Caterpillar

415 IL Industrial Loader

Net Power – SAE J1349:2011

69 hp

52 kW

Operating Weight – Maximum

17637 lb

8000 kg

Engine Model

Cat C3.6

Cat C3.6

Overview

The Cat® 415 IL Industrial Loader delivers great performance, improved fuel efficiency, and a superior hydraulic system.

Media

Photos

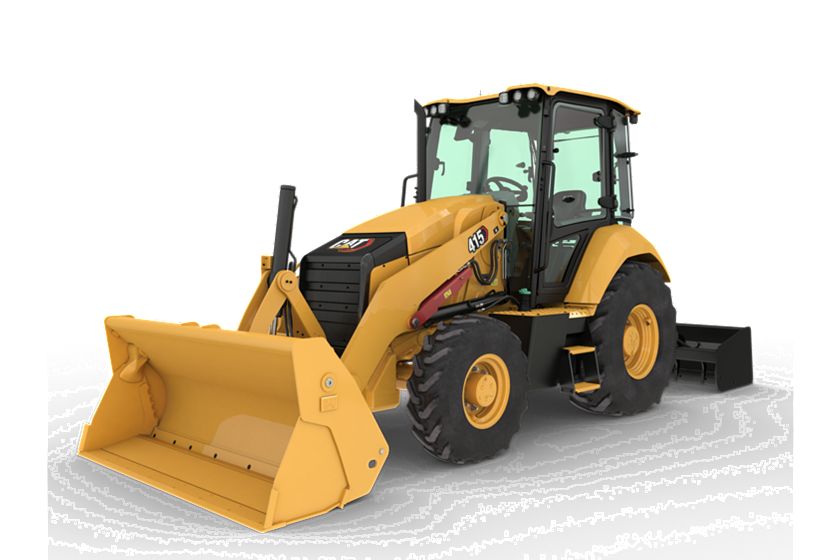

415 IL Backhoe Loader

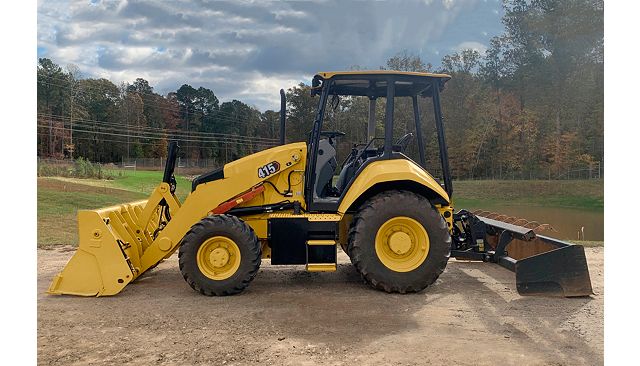

415 IL Backhoe Loader

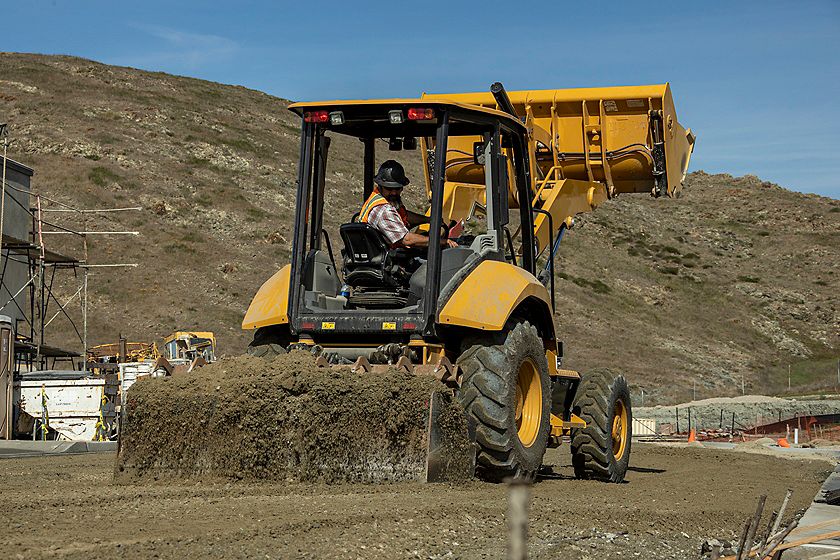

415 IL

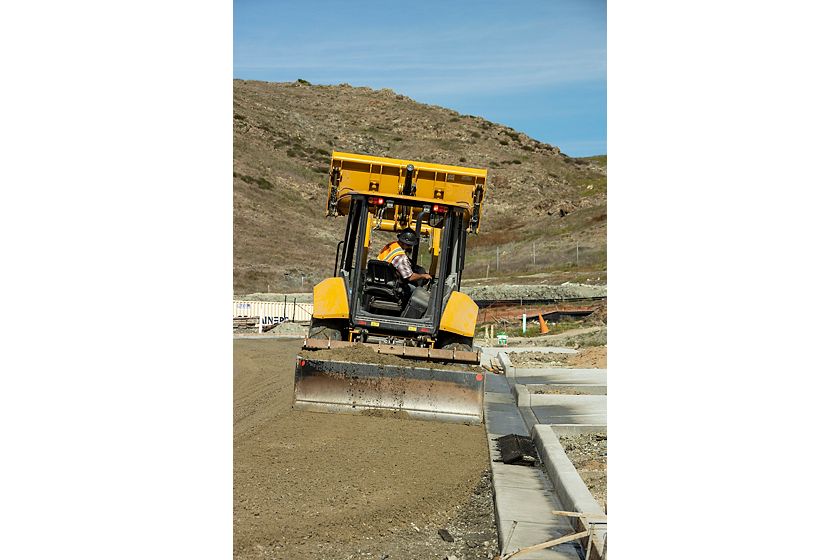

415 IL

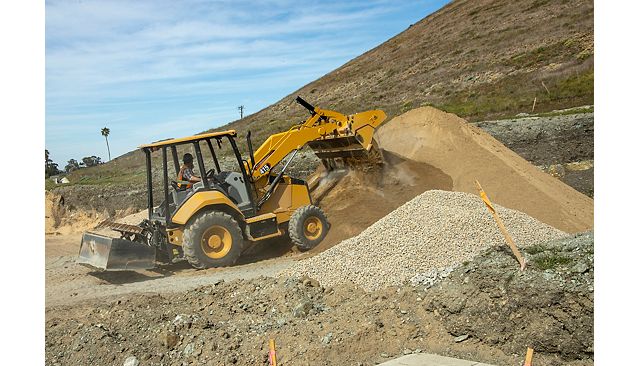

415 IL

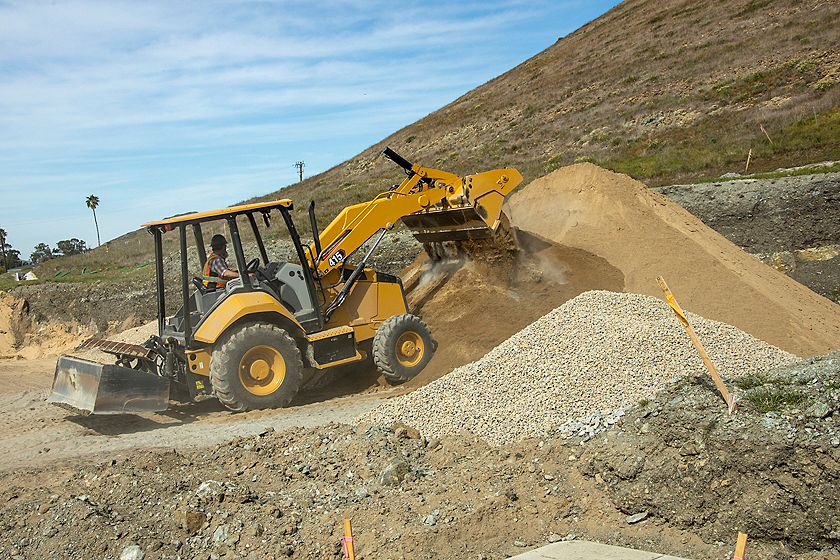

415 IL
415 IL
415 IL

Documents

Features

The 415 IL Industrial Loader.

Ergonomic Operator Station

Complete Machine Control

Superior Blade Controls

Machine Performance

Machine Versatility

Cat Attachments

Details

Specifications

Spec Value
Net Power – SAE J1349:2011 69 hp 52 kW
Engine Model Cat C3.6 Cat C3.6
Bore 3.86 in 98 mm
Stroke 4.72 in 120 mm
Displacement 220 in³ 3.6 l
Emissions Engine meets U.S. EPA Tier 4 Final emission standards. Engine meets U.S. EPA Tier 4 Final emission standards.
Net Peak Torque SAE J1349 308 ft·lbf 418 N·m
Gross Power – SAE J1995:2014 75 hp 56 kW
Net Peak Power – 2,200 rpm – SAE J1349 69 hp 52 kW
Gross Power – ISO 14396 74 hp 55 kW
Net Torque Rise – 1,200 rpm 86 % 86 %
Note No derating required up to 2286 m (7,500 ft). No derating required up to 2286 m (7,500 ft).
Net Power – 2,200 rpm – SAE J1349 69 hp 52 kW
Rated Net Power – 2,200 rpm – ISO 9249 69 hp 51 kW
Net Peak Power – 2,200 rpm – ISO 9249 69 hp 51 kW
Spec Value
Operating Weight – Maximum 17637 lb 8000 kg
Cab – ROPS/FOPS 359 lb 163 kg
Air Conditioning 101 lb 46 kg
MP Bucket (0.96 m3/1.25 yd3) – Without Fold-Over Forks 1642 lb 745 kg
MP Bucket (0.96 m3/1.25 yd3) – With Fold-Over Forks 2017 lb 915 kg
Operating Weight – Maximum – ROPS Capacity 17637 lb 8000 kg
Front Counterweight – Counterweights – Option 3 1015 lb 460 kg
Rear Counterweight 198 lb 90 kg
Note *Specifications shown are for machine equipped with 0.76 m³ (1.0 yd³) general purpose loader bucket, 115 kg (255 lb) front counterweight, 80 kg (176 lb) operator, all wheel drive and full fuel tank. *Specifications shown are for machine equipped with 0.76 m³ (1.0 yd³) general purpose loader bucket, 115 kg (255 lb) front counterweight, 80 kg (176 lb) operator, all wheel drive and full fuel tank.
Front Counterweight – Counterweights – Option 1 255 lb 115 kg
Front Counterweight – Counterweights – Option 2 530 lb 240 kg
Minimum Operating Weight 14035 lb 6366 kg
Spec Value
Power Shuttle Transmission – Standard – Reverse – 2nd 5.5 mile/h 8.9 km/h
Power Shuttle Transmission – Standard – Forward – 3rd 13 mile/h 20 km/h
Power Shuttle Transmission – Standard – Reverse – 3rd 13 mile/h 20 km/h
Power Shuttle Transmission – Standard – Reverse – 4th 23 mile/h 36 km/h
Power Shuttle Transmission – Standard – Forward – 4th 23 mile/h 36 km/h
Power Shuttle Transmission – Standard – Forward – 2nd 5.5 mile/h 8.9 km/h
Power Shuttle Transmission – Standard – Forward – 1st 3.4 mile/h 5.4 km/h
Power Shuttle Transmission – Standard – Reverse – 1st 3.4 mile/h 5.4 km/h
Spec Value
Rear Axle – Dynamic 20233 lb 9186 kg
Front Axle (4WD) – Static 26455 lb 12000 kg
Front Axle (4WD) – Dynamic 13228 lb 6000 kg
Rear Axle – Static 50582 lb 22964 kg
Spec Value
Pump Type Variable Flow, Axial Piston Variable Flow, Axial Piston
Type Closed Center Closed Center
System Pressure – Loader 2973 psi 20500 kPa
System Pressure – Hitch/Box Scraper 2973 psi 20500 kPa
Pump Capacity at 2,200 rpm 33 gal/min 125 l/min
Spec Value
Bore 2.6 in 65 mm
Stroke 4.2 in 106 mm
Rod Diameter 1.6 in 40 mm
Power Steering Hydrostatic Hydrostatic
Axle Oscillation 11° 11°
Type Front Wheel Front Wheel
Turning Circle – AWD (inner wheel not braked) – Outside, Front Wheels 26.8 ft 8.18 m
Turning Circle – AWD (inner wheel not braked) – Outside, Widest Loading Bucket 36 ft 10.97 m
Spec Value
Hydraulic System 23.8 gal (US) 90 l
Rear Axle 4.4 gal (US) 16.5 l
Cooling System with Air Conditioning 4.4 gal (US) 16.5 l
Fuel Tank 42 gal (US) 160 l
Front Axle (4WD) – Planetaries 0.2 gal (US) 0.7 l
Engine Oil – With Filter 2.3 gal (US) 8.8 l
Front Axle (4WD) 2.9 gal (US) 11 l
Rear Axle – Planetaries 0.4 gal (US) 1.7 l
Transmission – Power Shuttle – 2WD 4 gal (US) 15 l
Transmission – Power Shuttle – 4WD 4 gal (US) 15 l
Hydraulic Tank 10.6 gal (US) 40 l
Note Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Spec Value
Standard Configuration of Front/Rear Tires Front: 12.5 80/16.9; Rear: 16.9-24 Front: 12.5 80/16.9; Rear: 16.9-24
Spec Value
Standard Stick – MP Loader Bucket – 4WD no counterweight no counterweight
Standard Stick – GP Loader Bucket – 4WD 255 lb 116 kg

Standard Equipment

STANDARD EQUIPMENT

  • Air cleaner
  • Alarm, back-up
  • Audible system fault alarm
  • Box Blade Controls, finger lever pilot
  • Battery, maintenance-free, 880 CCA
  • Battery disconnect switch
  • Brace, lift cylinder
  • Brake, secondary parking
  • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
  • Bucket level indicator
  • Canopy, ROPS/FOPS
  • Coat restraint
  • Coolant/antifreeze, extended life
  • Counterweight, bumper
  • Dome light (cab only)
  • Diagnostic port for engine
  • Differential lock, floor mounted
  • Differential lock, loader joystick
  • Drink holders, two
  • Engine, Cat C3.6, meets Tier 4 Final emission standards, diesel particulate filter
  • Engine enclosure, sound suppression removal panels
  • Face seals, O-ring
  • Fan, suction and guard
  • Fast reversing shuttle, all gears
  • Fenders, rear
  • Filters, spin-on: fuel, engine oil, transmission oil, water separator
  • Filters, bowl and cartridge: hydraulic fluid
  • Flashing hazards/signal lights
  • Floor mat
  • Fuel tank, fully enclosed
  • Fully hinged front grill for cooling package cleaning access
  • Gauge cluster: coolant temperature, fuel level, torque converter temperature, battery voltage
  • Ground level fuel fill
  • High ambient cooling package
  • Hitch, rear 3-point
  • Hood lock, inside cab
  • Hydraulic hose, Cat XT™-3
  • Hydraulic oil cooler
  • Hydraulic oil level sight gauge
  • Hydraulic valve, hydrostatic steering
  • Hydraulic valves, loader 3 function
  • Hydraulic valves, rear 5 function
  • Hydraulics, load sensing with variable displacement piston pump
  • Indicator lights and LCD warnings for system status
  • Instrument panel lights
  • Key start/stop system
  • LCD screen with machine system information
  • Lights, working (2 front, 2 rear)
  • Loader, self-leveling, return-to-dig and transmission disconnect switch
  • Loader, single tilt
  • Mirror, rearview
  • Open circuit breather
  • Power receptacle, 12 volt, 2 internal, 2 external roof mounted
  • Power steering, hydrostatic
  • Seat belt, retractable, 75 mm (3 in)
  • Steering knob
  • Seat, mechanical suspension, fabric or vinyl cover, with armrest
  • Starting system, glow plugs
  • Steering, hydrostatic
  • Storage compartment, lockable
  • Storage tray
  • Stop and tail lights
  • Tires, 12.5/80-18 front, 16.9-24 rear
  • Toolbox, external, lockable
  • Torque converter
  • Throttle, foot, electronic
  • Transmission, four speed, syncromesh
  • Transmission neutralizer switch
  • Transport tie-downs
  • Four Wheel Drive
  • Warning horn, electric
  • Product Link™, cellular, PLE643
  • Product Link, dual mode, PLE683

Optional Equipment

OPTIONAL EQUIPMENT

  • Battery, additional, 880 CCA
  • Box, blade/scarifier
  • Cab, standard with air conditioning
  • Cold weather fuel (–30° C/–22° F)
  • Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
  • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
  • Counterweight, rear 90 kg (198 lb)
  • Dual tilt rear hitch
  • Face fan
  • Fenders, front with integral steps
  • Radio and CD player, Bluetooth®
  • Ride Control
  • Rotating beacon, magnetic mount
  • Security system keypad
  • Vandalism protection, gauge cover
  • Work Tool Attachments such as buckets, forks, and material handling arms. See your Cat dealer for more information.
  • LED lights, working (2 front, 2 rear)
  • Security system, Bluetooth
  • Security System, operator display
  • Side mirrors, cab, external
  • Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
