Caterpillar

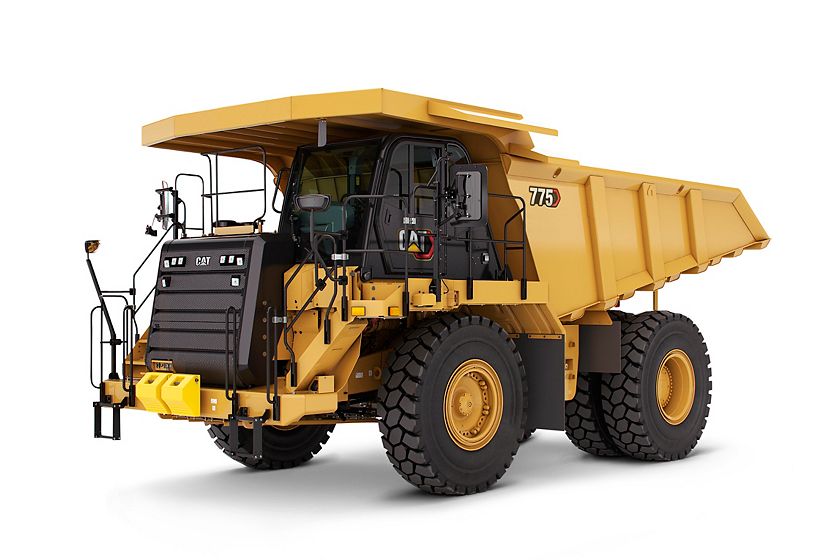

775 Off-Highway Truck

Nominal Payload Class (100%)

70.5 ton (US)

64 t

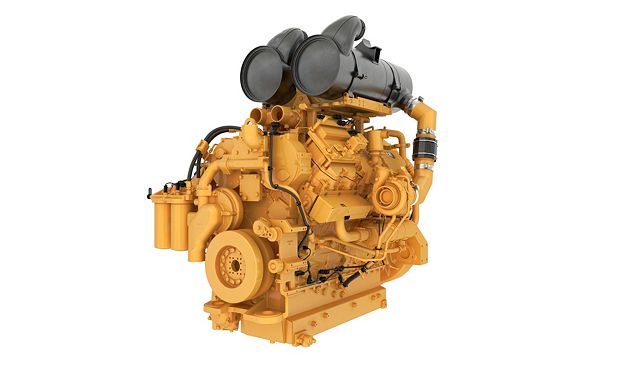

Engine Model

Cat® C27

Cat® C27

Top Speed – Loaded

41.6 mile/h

66.9 km/h

Overview

The Cat® 775 Off-Highway Truck is purpose-built to help operations move more material at a lower cost per ton. Designed and validated through rigorous engineering, testing, and quality control processes, the 775 has accumulated more than 30,000 hours of proven customer operation to help deliver dependable performance from day one. Seven fuel-saving features and two customizable fuel economy modes help reduce fuel consumption while maintaining high levels of productivity. A redesigned operator environment, enhanced serviceability, and improved environmental performance help maximize uptime while supporting operator comfort and efficiency. Built for today’s demanding haulage applications, the Cat 775 delivers the performance, efficiency, and reliability your operation depends on every day.

Media

Photos

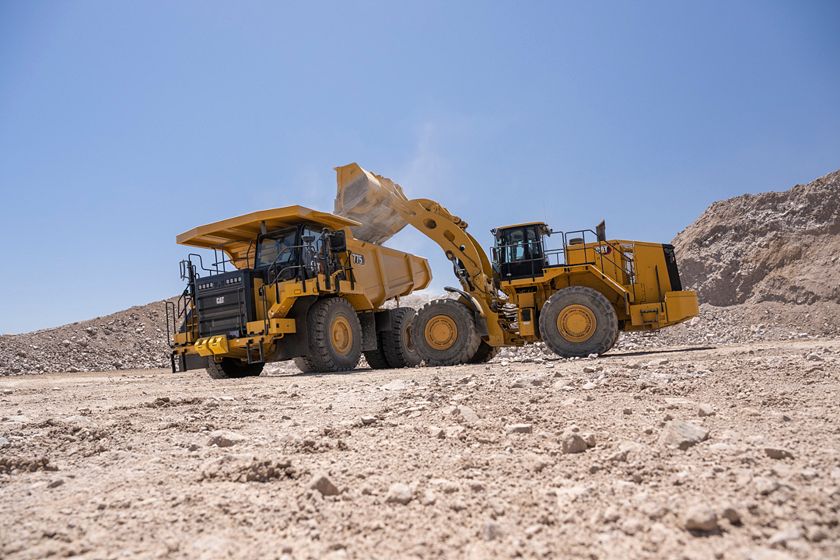

775 Off-Highway Trucks

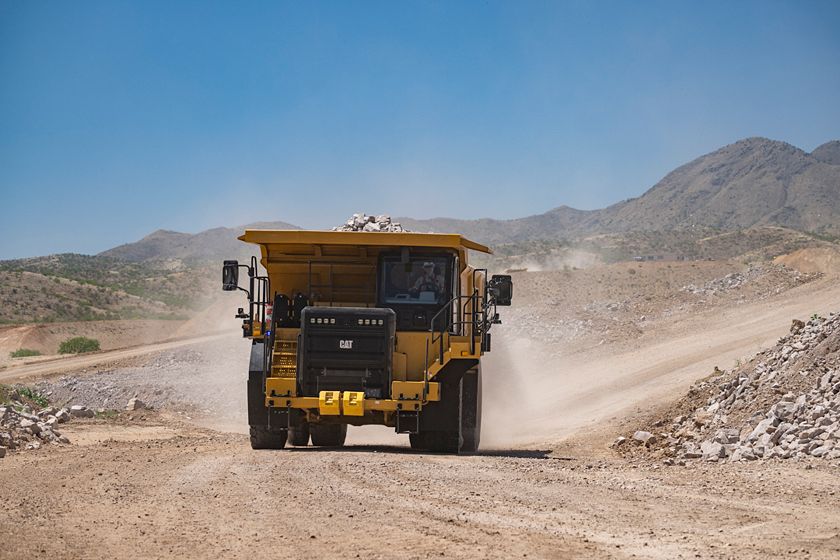

775 Off-Highway Trucks

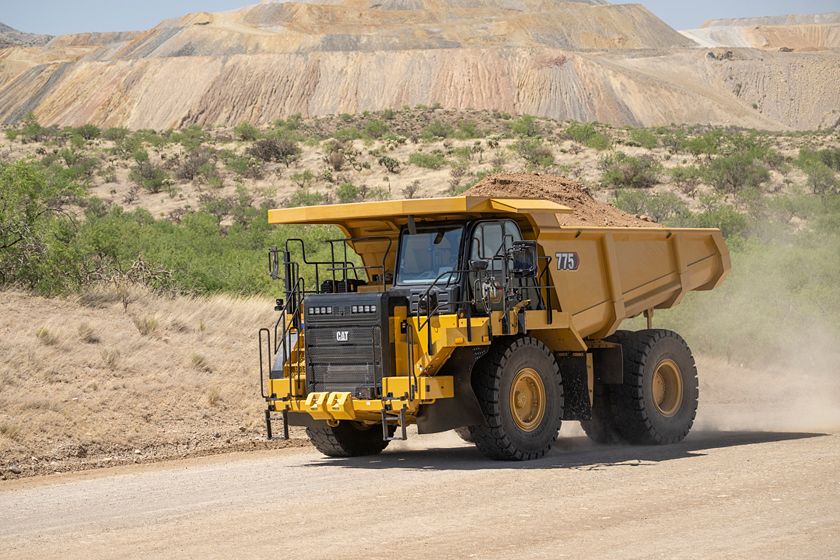

775 Off-Highway Trucks

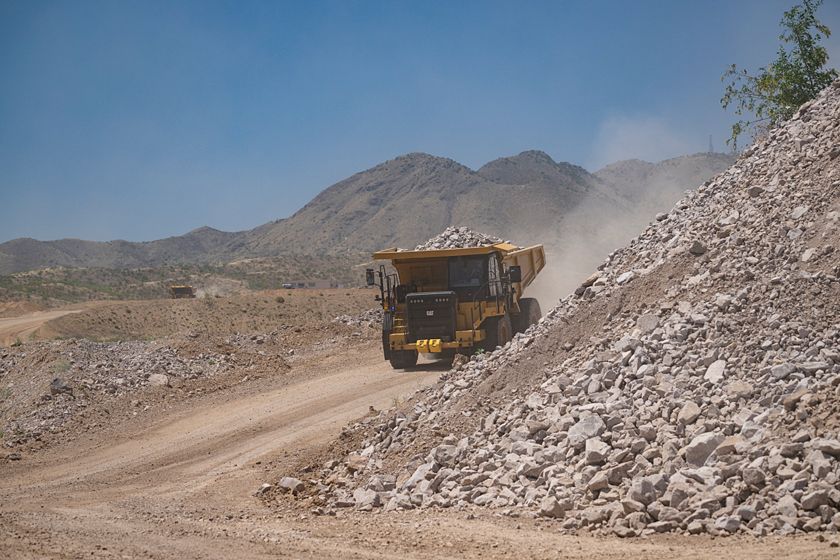

775 Off-Highway Trucks
775 Off-Highway Trucks
775 Off-Highway Trucks

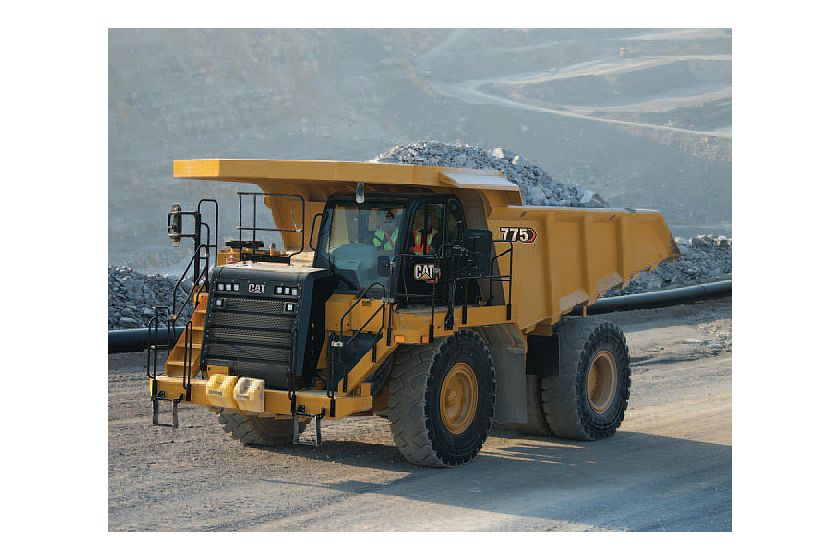

775 Off-Highway Trucks

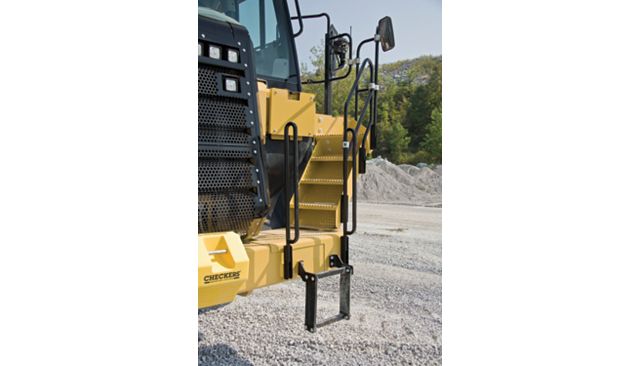

775 Off-Highway Trucks

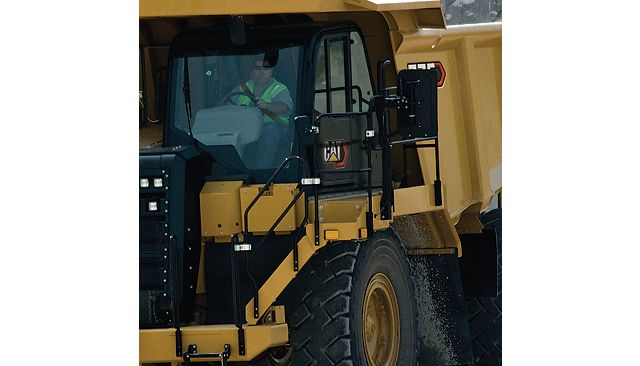

775 Off-Highway Trucks
775 Off-Highway Trucks

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Documents

Features

ACHIEVE GREATER PRODUCTIVITY

BOOST FUEL EFFICIENCY

DESIGNED FOR SAFETY

WORK IN COMFORT

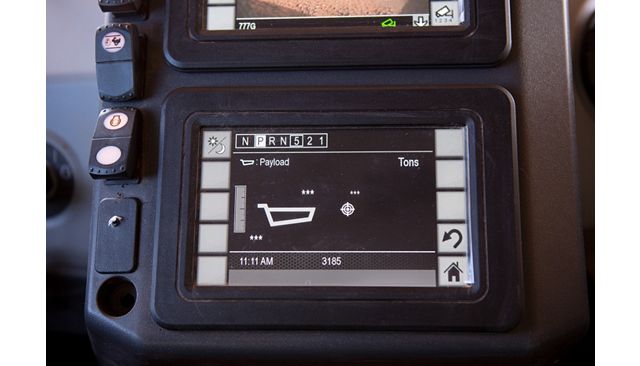

TECHNOLOGY THAT GETS WORK DONE

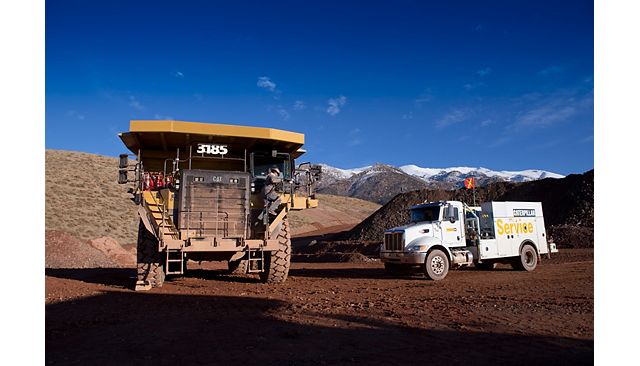

REDUCED MAINTENANCE COSTS AND OTHER COSTS

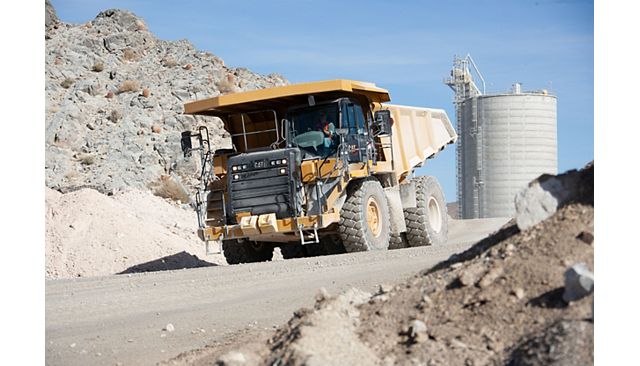

The 775 bodies meet your application and material needs.

APPLICATION VERSTILITY

Details

Specifications

Spec Value
Engine Model Cat® C27 Cat® C27
Rated Engine Speed 1800 r/min 1800 r/min
Gross Power – SAE J1995:2014 825 hp 615 kW
Engine Power – ISO 14396:2002 812 hp 605 kW
Net Power – SAE J1349:2011 768 hp 572 kW
Net Power – SAE J1349:2011/ISO 9249:2007 768 hp 572 kW
Peak Torque – Speed 1200 r/min 1200 r/min
Net Torque 3148 ft-lb 4269 N·m
Bore 5.4 in 137 mm
Stroke 6 in 152 mm
Displacement 1648 in³ 27 l
Note (1) Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard.
Note (2) Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
Note (3) Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (4) • No engine derating required up to 3048 m (10,000 ft). • Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. • No engine derating required up to 3048 m (10,000 ft). • Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Emissions Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Spec Value
Maximum Gross Vehicle Weight 246503 lb 111812 kg
Spec Value
Nominal Payload Class (100%) 70.5 ton (US) 64 t
Top Speed – Loaded 41.6 mile/h 66.9 km/h
Target Payload (100%) 70.5 ton (US) 64 t
Maximum Working Payload (110%) 77.5 ton (US) 70.3 t
Maximum Allowable Payload (120%)* 84.6 ton (US) 76.7 t
Not to Exceed Payload (120%)* 76762 ton (US) 76.8 t
Body Capacity – SAE 2:1 55.23 yd³ 42.23 m³
Note (1) Capacity with Dual Slope body – no liner. Capacity with Dual Slope body – no liner.
Note (2) * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations.
Spec Value
Forward – 1 6.6 mile/h 10.7 km/h
Forward – 2 9.3 mile/h 14.9 km/h
Forward – 3 12.6 mile/h 20.2 km/h
Forward – 4 16.9 mile/h 27.1 km/h
Forward – 5 22.8 mile/h 36.7 km/h
Forward – 6 30.8 mile/h 49.4 km/h
Forward – 7 41.6 mile/h 67 km/h
Reverse 8.7 mile/h 14 km/h
Note Maximum travel speeds with standard 24.00R35 (E4) tires. Maximum travel speeds with standard 24.00R35 (E4) tires.
Spec Value
Differential Ratio 3.64:1 3.64:1
Planetary Ratio 4.80:1 4.80:1
Total Reduction Ratio 17.49:1 17.49:1
Spec Value
Brake Surface – Front 25.7 in² 655 cm²
Brake Surface – Rear 9497 in² 61269 cm²
Brake Standards ISO 3450:2011 ISO 3450:2011
Spec Value
Pump Flow – High Idle 118 gpm 448 L/min
Relief Valve Setting – Raise 2502 psi 17250 kPa
Relief Valve Setting – Lower 500 psi 3450 kPa
Body Raise Time – High Idle 9.5 s 9.5 s
Body Lower Time – Float 12.5 s 12.5 s
Body Power Down – High Idle 14 s 14 s
Spec Value
Struck 42.7 yd³ 32.6 m³
Heaped (SAE 2:1)* 55.5 yd³ 42.2 m³
Note (1) Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.
Note (2) *ISO 6483:1980 *ISO 6483:1980
Spec Value
Struck 42.2 yd³ 32.3 m³
Heaped (SAE 2:1)* 55.2 yd³ 42.2 m³
Note (1) Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.
Note (2) *ISO 6483:1980 *ISO 6483:1980
Spec Value
Front Axle – Empty 52 % 52 %
Front Axle – Loaded 34 % 34 %
Rear Axle – Empty 48 % 48 %
Rear Axle – Loaded 66 % 66 %
Spec Value
Empty Loaded Cylinder Stroke Front 9.2 in 234 mm
Empty Loaded Cylinder Stroke Rear 5.8 in 149 mm
Rear Axle – Oscillation 8.1° 8.1°
Spec Value
Fuel Tank 210 gal (US) 795 l
Cooling System 43.3 gal (US) 164 l
Crankcase 24 gal (US) 90 l
Differential – Final Drives 37 gal (US) 140 l
Steering Tank 9.5 gal (US) 36 l
Steering System – Including Tank 14.3 gal (US) 54 l
Brake/Hoist Hydraulic Tank 46.5 gal (US) 176 l
Brake Hoist System 85 gal (US) 322 l
Torque Converter – Transmission System – HRC 18.5 gal (US) 70 l
Spec Value
Standard Tire 24.00R35 (E4) 24.00R35 (E4)
Note (1) Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2) Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.
Spec Value
ROPS Standards Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
FOPS Standards Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.
Spec Value
Sound Standards (1) The operator Equivalent Sound Pressure Level (Leq) is 73 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. The operator Equivalent Sound Pressure Level (Leq) is 73 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Sound Standards (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Standards (3) The machine sound power level is 114 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine sound power level is 114 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Spec Value
Steering Standards ISO 5010:2007 ISO 5010:2007
Steer Angle 31 ° 31 °
Turning Circle – Clearance Diameter 82 ft 25 m
Turning Diameter – Front 72.2 ft 22 m
Spec Value
Recyclability 98% 98%

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

  • Cat C27 Tier 4/Stage V compliant diesel engine:
    – Air cleaner with precleaner (2)
    – Air-To-Air Aftercooler (ATAAC)
    – Electric start
    – Engine idle shutdown
    – Ether starting aid
    – Exhaust muffler
    – NGMR radiator
  • For Tier 4 regions only (U.S./Canada):
    – Aftertreatment system
    • NOx Reduction System (NRS)
    • Diesel Oxidation Catalyst (DOC)

    – Demand fan
    – MEUI-C fuel system
  • Braking system:
    – Extended Life Brakes
    – Automatic Retarder Control (ARC)
    – Manual retarder (utilizes rear oil-cooled, multiple disc brakes)
    – Brake release motor (towing)
    – Dry disc brakes (front)
    – Front brake disconnect switch (front)
    – Oil-cooled multiple disc brakes (rear)
    – Brake wear indicator (rear)
    – Parking brake
    – Secondary brake
    – Service brake
  • Transmission:
    – 7-speed automatic powershift with:
    • Electronic Clutch Pressure Control (ECPC)
    • Advanced Productivity Electronic Control Strategy (APECS)

    – Automatic neutral idle
    – Autostall
    – Second gear start

SUSPENSION SYSTEMS

  • Suspension, front and rear

ELECTRICAL

  • Alarm backup
  • Alternator, 120 Amp
  • Autolube power supply ready
  • Batteries, maintenance-free, 12V (2), 1,400 CCA combined
  • Electrical system, 25 Amp, 24V to 12V converter
  • Lighting system:
    – Backup light (halogen)
    – Directional signals/hazard warning (front and rear LED)
    – Engine compartment light
    – Headlights, (halogen) with dimmer
    – Operator access courtesy lights
    – Side profile lights
    – Stop/tail lights (LED)
  • Service center containing:
    – Battery jump start
    – Breakers with spare fuses
    – Lockout switch
    – Ports, ET, and VIMS
    – Service lockout switch (power without engine start)

TECHNOLOGY PRODUCTS

  • Economy Modes, standard and adaptive
  • Product Link, cellular or satellite
  • Traction Control System (TCS)
  • Truck Production Management System
  • Vital Information Management System (VIMS)

OPERATOR ENVIRONMENT

  • Advisor display:
    – Air cleaner service indicator
    – Fluid level monitoring
    – Fuel level monitoring
    – Display languages (market based)
  • Air conditioning/heat
  • Automatic temperature control
  • Ashtray and cigarette lighter
  • Coat hook
  • Cup holders (4)
  • Diagnostic connection port, 24V
  • Entertainment radio ready:
    – 5 amp converter
    – Speakers
    – Antenna
    – Wiring harness
  • Foot rest
  • Gauges/indicators:
    – Brake oil temperature gauge
    – Coolant temperature gauge
    – Engine overspeed indicator
    – Fuel level
    – Hour meter
    – Speedometer with odometer
    – Tachometer
    – Transmission gear indicator
  • Hoist shift lever with integrated fingerprint control
  • Seat belt reminder system: Seat belt alert and Seat belt inhibit
  • Light – courtesy
  • Light – dome
  • Mirrors, non-heated
  • Power port, 24V and 12V (2)
  • Rollover Protection (ROPS)/Falling Object Protection (FOPS)
  • Seat, Cat Comfort Series III:
    – Full air suspension
    – Retractable 3-point seat belt with shoulder harness
  • Seat, training with lap belt
  • Steering wheel, padded, tilt and telescopic
  • Storage compartment
  • Sun visor
  • Throttle lock
  • Window, hinged, right side (emergency exit)
  • Window, powered, left side
  • Windshield wiper intermittent and washer

GUARDS

  • Driveline
  • Engine crankcase
  • Fan

FLUIDS

  • Antifreeze
  • Extended life coolant to –34° C (–30° F)
  • Grouped ground-level filters

OTHER STANDARD EQUIPMENT

  • Body down indicator
  • Body safety pin (secures body in up position)
  • Center-mounted rims
  • Fuel tank, 795 L (210 gal)
  • Ground level battery disconnect
  • Ground level engine shutdown
  • Ground level grease fittings
  • Operator Maintenance Manual (OMM)
  • Rims 17 × 35
  • Rock ejectors
  • Secondary steering (electric)
  • Tie down eyes
  • Tow hooks (front)/tow pin (rear)
  • Vandalism protection locks

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

  • Body heat
  • Body liner
  • Body sideboards
  • Cab precleaner
  • Cat Engine Brake
  • Clustered grease fittings
  • Cold weather packages
  • Fluid fill service center
  • HID lights
  • Mirrors, convex
  • Mirrors, heated
  • Spare rim
  • Visibility package (meets ISO 5006 requirements)
  • Wheel chocks
  • Work Area Vision System (WAVS)
