Off-Highway Trucks
For over 50 years, rugged Cat® off-highway trucks and mining trucks have worked in the harsh conditions of mines, construction projects and quarries around the world. Pass-matched with our wheel loaders and excavators, you can count on our haul trucks for maximum productivity at a low cost per ton.
Equipment Type (2 items)
Models
Mining Trucks
Cat Mining Trucks are engineered for performance, designed for comfort and built to last. These powerful haul trucks are able to move more material at a lower cost.
785
-
Nominal Rated Payload (33.00R51 Tires)
153 ton (US)
-
Rated Gross Machine Weight (33.00R51 tires)
550000 lb
-
Gross Power – SAE J1995
1600 HP
785D
-
Nominal Rated Payload
154 ton (US)
-
Rated Gross Machine Weight
550000 lb
-
Gross Power – SAE J1995
1450 HP
789 (Tier 4 Final / Stage V)
-
Nominal Rated Payload
211 ton (US)
-
Rated Gross Machine Weight
715001 lb
-
Gross Power – SAE J1995
2100 HP
789D
-
Nominal Rated Payload
210 ton (US)
-
Rated Gross Machine Weight
715000 lb
-
Gross Power – SAE J1995
2100 HP
793F
-
Nominal Rated Payload
256 ton (US)
-
Rated Gross Machine Weight
851000 lb
-
Gross Power – SAE J1995
2650 HP
794 AC
-
Nominal Rated Payload
327 ton (US)
-
Rated Gross Machine Weight
1150000 lb
-
Gross Power – SAE J1995
3500 HP
797F
-
Nominal Rated Payload
401 ton (US)
-
Rated Gross Machine Weight
1375000 lb
-
Gross Power – SAE J1995
4000 HP
Off-Highway Trucks
For over 50 years, rugged Cat® off-highway trucks and mining trucks have worked in the harsh conditions of mines, construction projects and quarries around the world. Pass-matched with our wheel loaders and excavators, you can count on our haul trucks for maximum productivity at a low cost per ton.
770G
-
Nominal Payload Class (100%)
42.1 ton (US)
-
Engine Model
Cat® C15
-
Top Speed – Loaded
45.8 mile/h

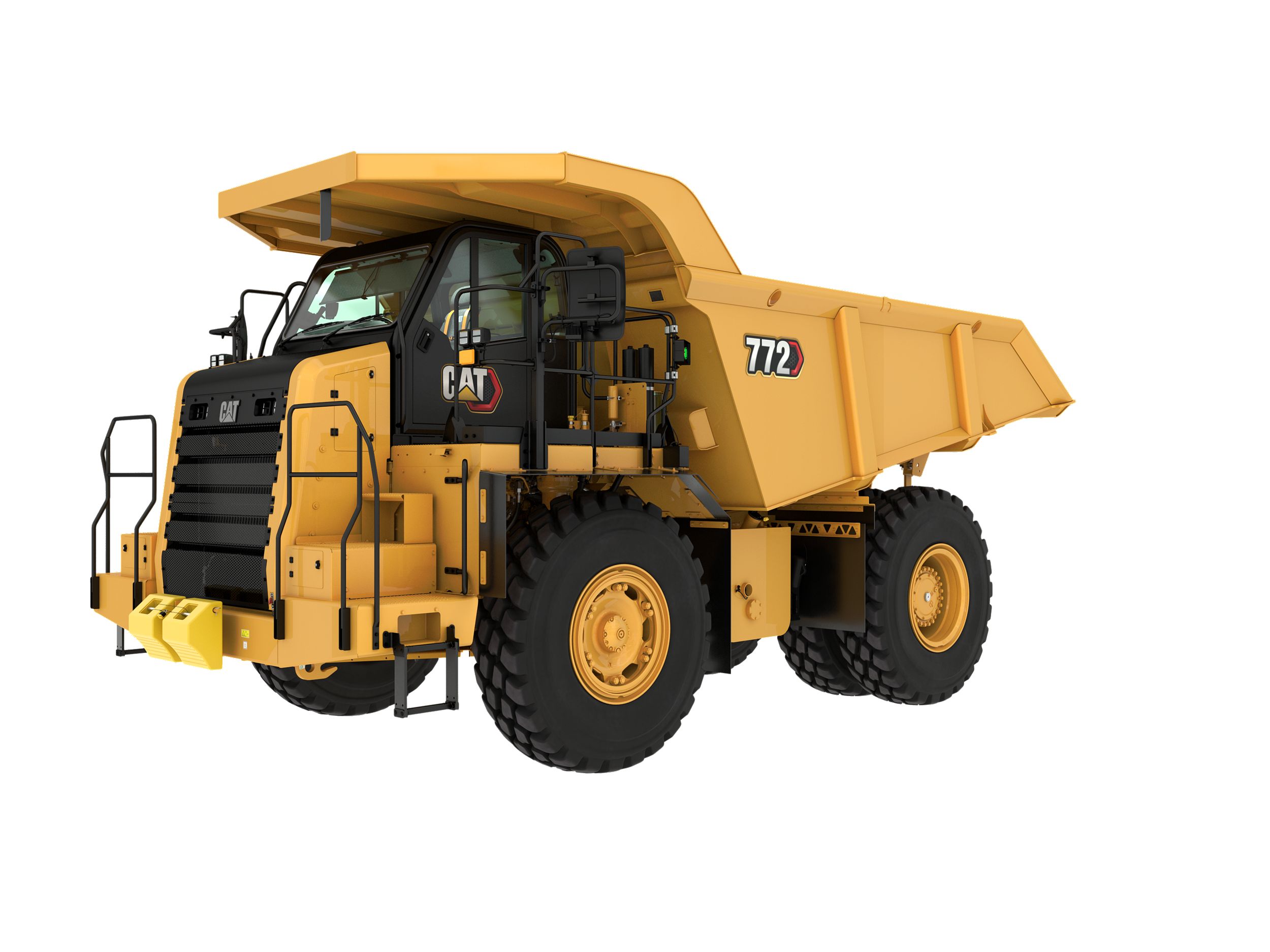

772G
-
Nominal Payload Class (100%)
51.6 ton (US)
-
Engine Model
Cat® C18
-
Top Speed – Loaded
49.2 mile/h
773G
-
Nominal Payload Class (100%)
61 ton (US)
-
Engine Model
Cat® C27
-
Top Speed – Loaded
41.6 mile/h

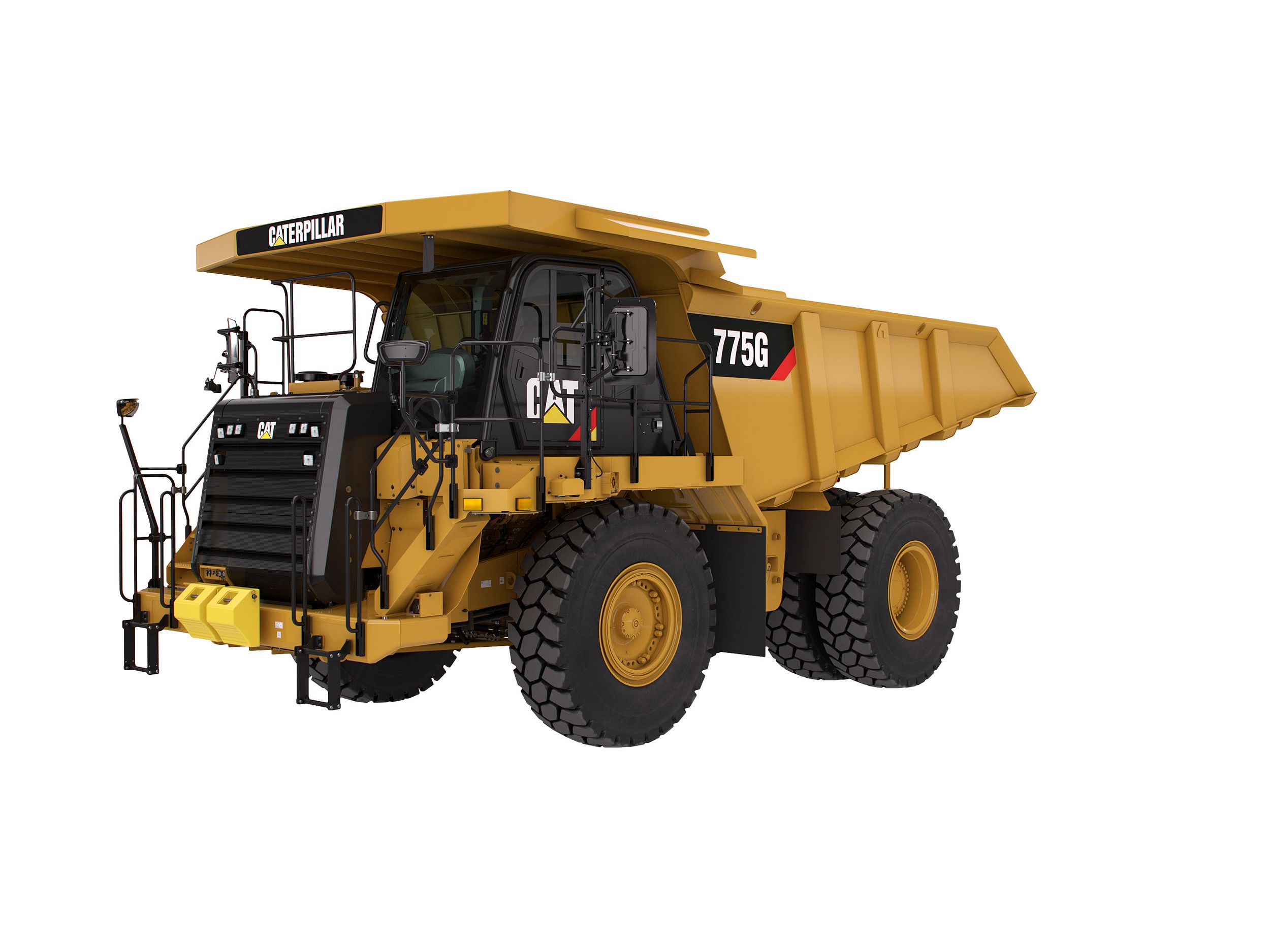

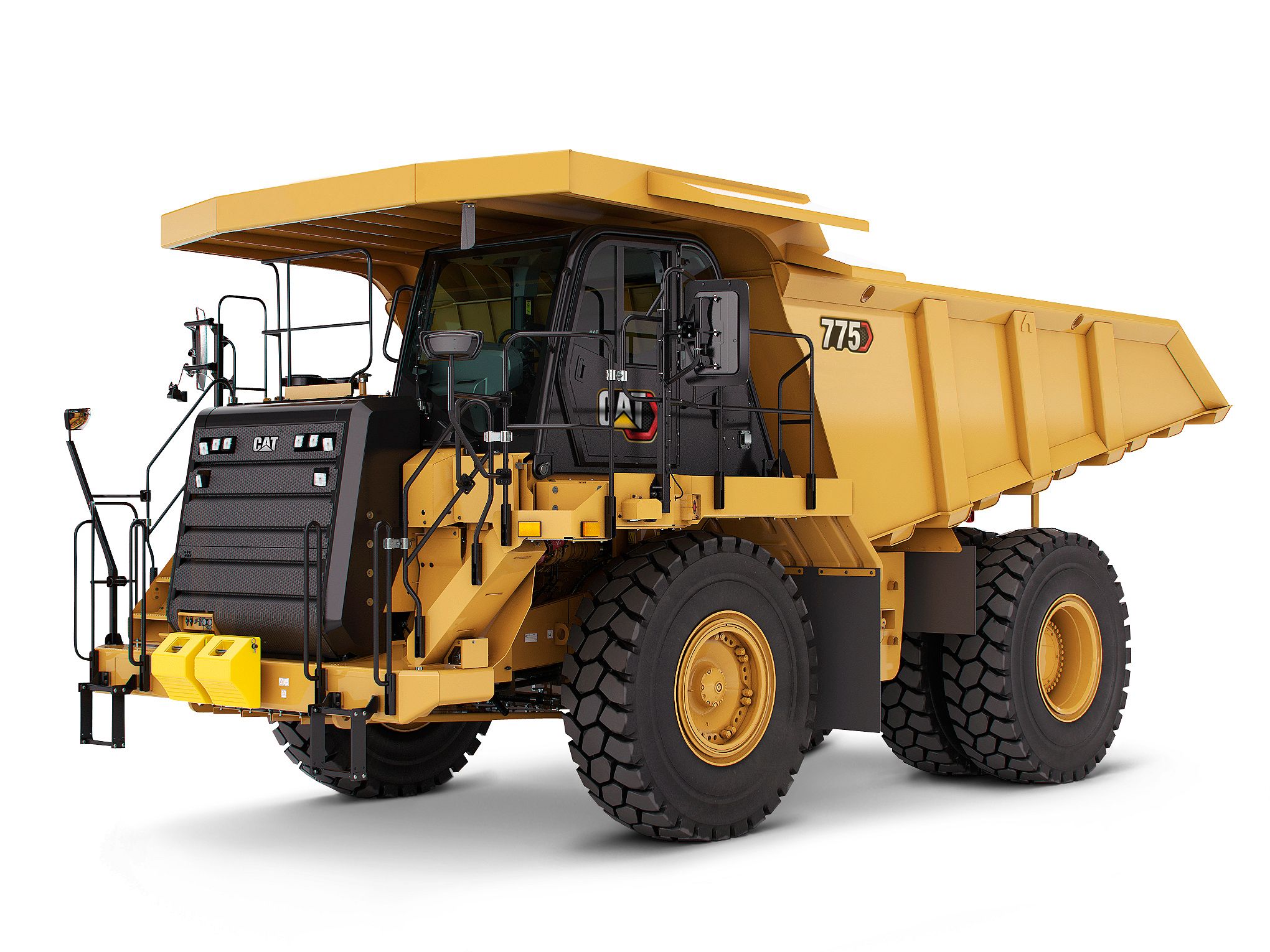

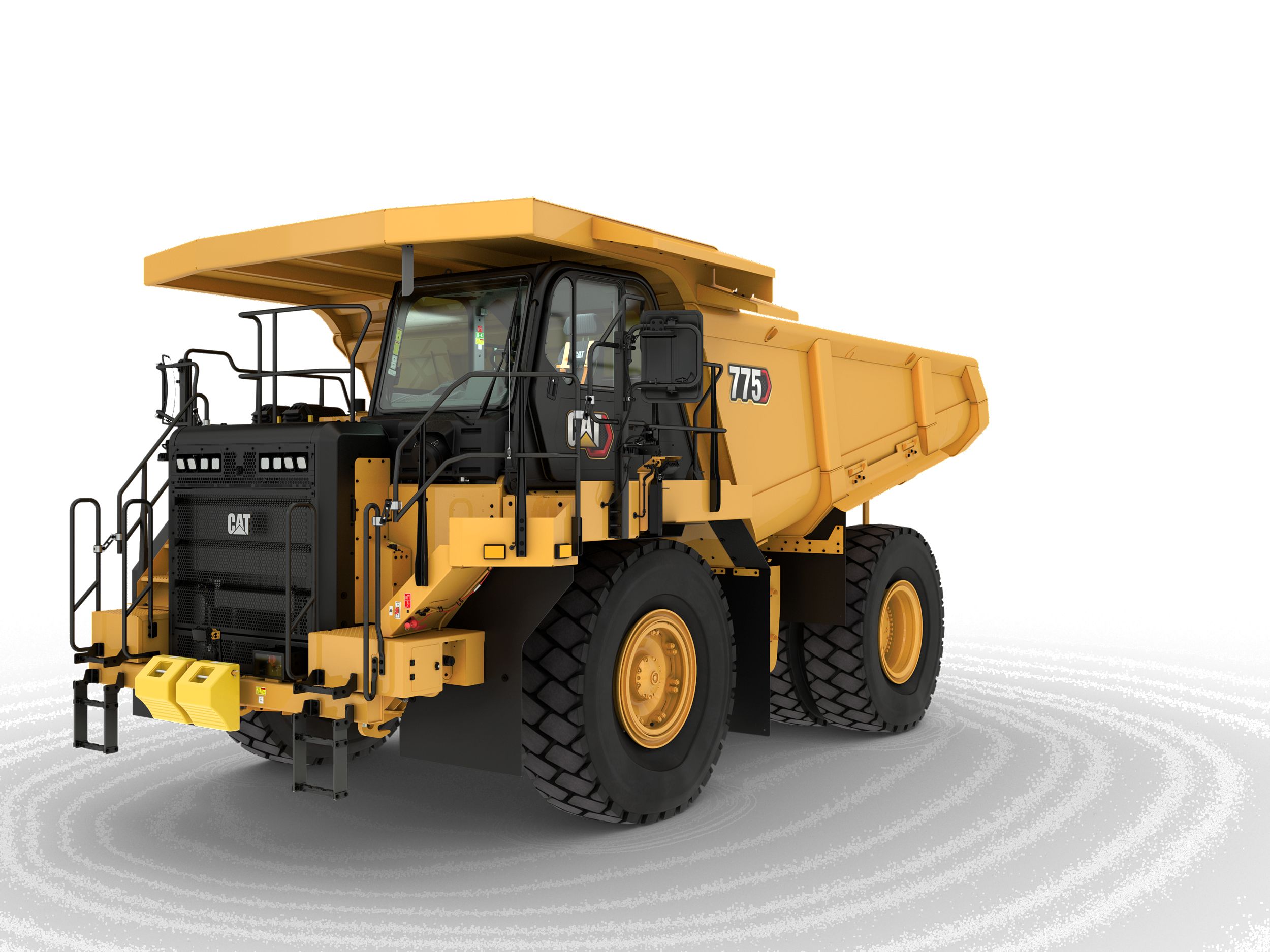

775G
-
Nominal Payload Class (100%)
70.5 ton (US)
-
Engine Model
Cat® C27
-
Top Speed – Loaded
41.6 mile/h
