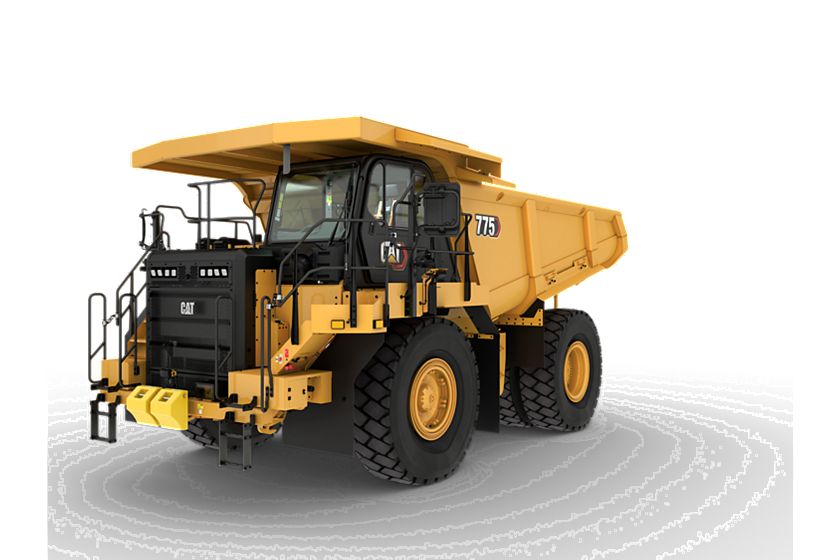

Cat
775 08 Off-Highway Truck
Nominal Payload Class (100%)
71.6 ton (US)
65 t
Engine Model
Cat® C27
Cat® C27
Top Speed – Loaded
67 km/h
67 km/h

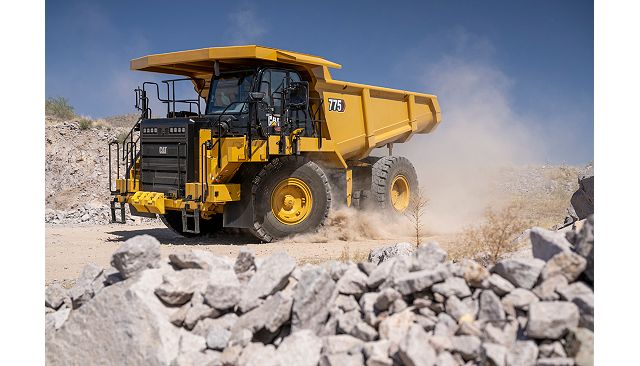

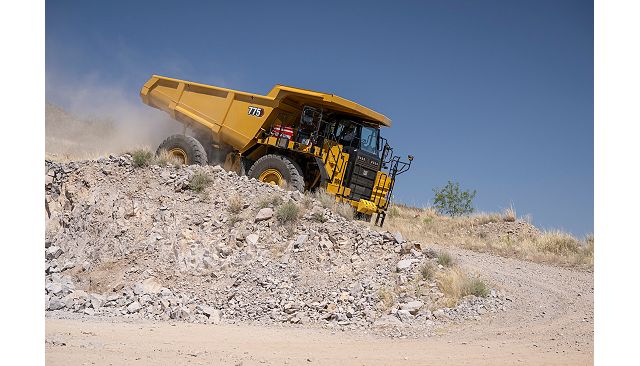

Overview
The Cat® 775 08 Next Generation Off-Highway Truck features enhanced service safety, upgraded chassis frame, double A-type suspension, and a lower center of gravity. The truck offers a larger payload volume, reduced cycle times, and designed to accommodate future technological integration.
Media

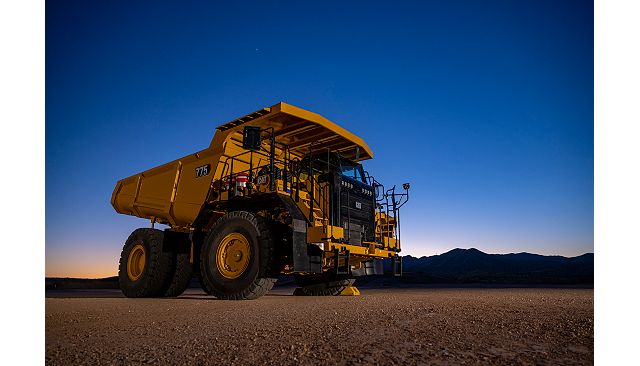

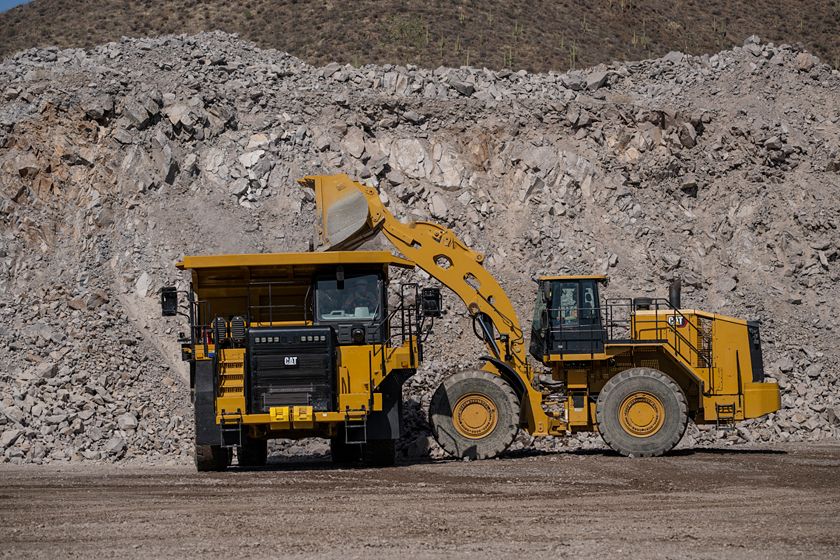

Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior

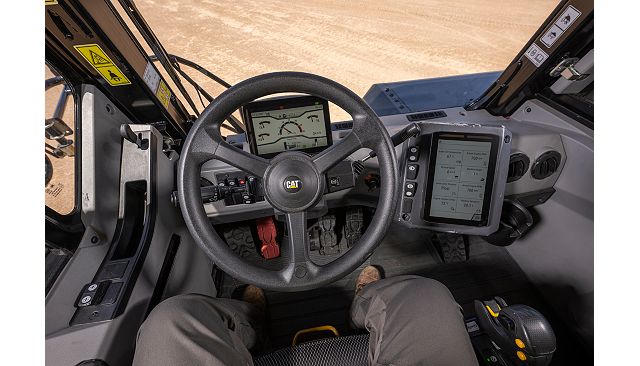

360° interior view. Double click on the image to zoom in on any area of the product.
Features
BOOST FUEL EFFICIENCY

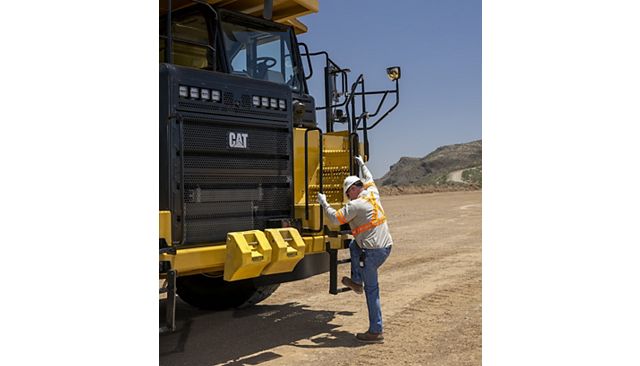

DESIGNED FOR SAFETY

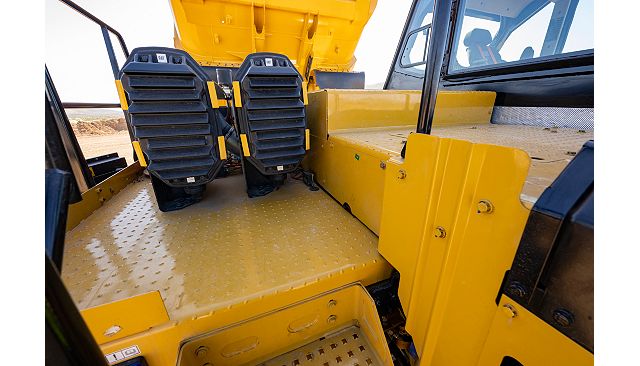

WORK IN COMFORT
TECHNOLOGY THAT GETS WORK DONE
REDUCED MAINTENANCE COSTS AND OTHER COSTS
THE PLATFORM FOR THE FUTURE
Details
Specifications
Operating Specifications
| Spec | Value |
|---|---|
| Nominal Payload Class (100%) | 71.6 ton (US) 65 t |
| Top Speed – Loaded | 67 km/h 67 km/h |
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat® C27 Cat® C27 |
| Rated Engine Speed | 1800 r/min 1800 r/min |
| Gross Power – SAE J1995:2014 | 825 hp 615 kW |
| Engine Power – ISO 14396:2002 | 811 hp 605 kW |
| Net Power – SAE J1349:2011 | 742 hp 553 kW |
| Net Power – ISO 9249 | 742 hp 553 kW |
| Peak Torque – Speed | 1200 r/min 1200 r/min |
| Net Torque – SAE J1349 | 3101 N·m 4205 N·m |
| Net Torque Rise | 43 43 |
| Bore | 5.3 in 137 mm |
| Stroke | 6 in 152 mm |
| Displacement | 1647 in³ 27 l |
| Emissions | Meets EU Stage V emission standards. Meets EU Stage V emission standards. |
| Note (1) | Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. |
| Note (2) | Net power advertised is the power available at the rated speed, measured at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan. Net power advertised is the power available at the rated speed, measured at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan. |
| Note (3) | MIN NET SAE J1349:2011/ISO 9249:2007 Net power advertised is the power available at the flywheel when the engine is equipped with fan at maximum speed, air intake system, exhaust system, and alternator. Net torque rise meets SAE J1349. MIN NET SAE J1349:2011/ISO 9249:2007 Net power advertised is the power available at the flywheel when the engine is equipped with fan at maximum speed, air intake system, exhaust system, and alternator. Net torque rise meets SAE J1349. |
Transmission
| Spec | Value |
|---|---|
| Forward – 1 | 6.6 mile/h 10.7 km/h |
| Forward – 2 | 9.3 mile/h 14.9 km/h |
| Forward – 3 | 12.6 mile/h 20.2 km/h |
| Forward – 4 | 16.9 mile/h 27.1 km/h |
| Forward – 5 | 22.8 mile/h 36.7 km/h |
| Forward – 6 | 30.8 mile/h 49.5 km/h |
| Forward – 7 | 41.6 mile/h 67 km/h |
| Reverse | 8.7 mile/h 14 km/h |
| Note | Maximum travel speeds with standard 24.00R35 (E4) tires. Maximum travel speeds with standard 24.00R35 (E4) tires. |
Final Drives
| Spec | Value |
|---|---|
| Differential Ratio | 3.64:1 3.64:1 |
| Planetary Ratio | 4.80:1 4.80:1 |
| Total Reduction Ratio | 17.49:1 17.49:1 |
Brakes
| Spec | Value |
|---|---|
| Brake Surface – Front | 25.7 in² 655 cm² |
| Brake Surface – Rear | 9497 in² 61269 cm² |
| Brake Standards | ISO 3450:2011 ISO 3450:2011 |
Body Hoists
| Spec | Value |
|---|---|
| Pump Flow – High Idle | 118 gpm 448 L/min |
| Relief Valve Setting – Raise | 2502 psi 17250 kPa |
| Relief Valve Setting – Lower | 500 psi 3450 kPa |
| Body Raise Time – High Idle | 9.5 s 9.5 s |
| Body Lower Time – Float | 12.5 s 12.5 s |
Weight Distributions - Approximate
| Spec | Value |
|---|---|
| Front Axle – Empty | 52 % 52 % |
| Front Axle – Loaded | 34 % 34 % |
| Rear Axle – Empty | 48 % 48 % |
| Rear Axle – Loaded | 66 % 66 % |
Suspension
| Spec | Value |
|---|---|
| Empty Loaded Cylinder Stroke Front | 8.3 in 212 mm |
| Empty Loaded Cylinder Stroke Rear | 5.4 in 137 mm |
| Rear Axle – Oscillation | 9.0° 9.0° |
Sound
| Spec | Value |
|---|---|
| Sound Standards | Operator Sound Level (ISO 6396:2008) 76 dB(A) Machine Sound Level (ISO 6395:2008) 119 dB(A) Operator Sound Level (ISO 6396:2008) 76 dB(A) Machine Sound Level (ISO 6395:2008) 119 dB(A) |
| Sound Standards (1) | The operator sound pressure level is 76 dB(A), measured according to the test procedures and conditions specified in ISO 6396:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed. The operator sound pressure level is 76 dB(A), measured according to the test procedures and conditions specified in ISO 6396:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Sound Standards (2) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Standards (3) | The machine sound power level is 119 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine sound power level is 119 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
Cab
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R1234yf. Refer to the machine labeling for identification of the gas.– If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.85 kg (4.1 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons) The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R1234yf. Refer to the machine labeling for identification of the gas.– If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.85 kg (4.1 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons) |
Steering
| Spec | Value |
|---|---|
| Steering Standards | ISO 5010:2019 ISO 5010:2019 |
| Steer Angle | 36 ° 36 ° |
| Turning Diameter – Front | 58 ft 17.7 m |
| Turning Circle – Clearance Diameter | 66 ft 20.2 m |
ROPS
| Spec | Value |
|---|---|
| ROPS/FOPS Standards | Rollover Protective Structure (ROPS)/Falling Objects Protective Structure (FOPS) Standards Rollover Protective Structure (ROPS)/Falling Objects Protective Structure (FOPS) Standards |
| ROPS Standards | Rollover protective structure (ROPS) meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer ROPS criteria. Rollover protective structure (ROPS) meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer ROPS criteria. |
| FOPS Standards | Falling objects protective structure (FOPS) meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer FOPS criteria. Falling objects protective structure (FOPS) meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer FOPS criteria. |
Tires
| Spec | Value |
|---|---|
| Standard Tire | 24.00R35 (E4) 24.00R35 (E4) |
| Note (1) | Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 210 gal (US) 795 l |
| Cooling System | 50.7 gal (US) 192 l |
| Final Drive – Each | 4 gal (US) 15 l |
| Differential – Final Drives | 57.6 gal (US) 218 l |
| Steering System – Including Tank | 14.3 gal (US) 54 l |
| Brake Hoist System – Includes Tank | 85.1 gal (US) 322 l |
| Torque Converter – Transmission System – HRC | 18.5 gal (US) 70 l |
| Crankcase | 23.8 gal (US) 90 l |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 98% 98% |
Dimensions (Approximate)
| Spec | Value |
|---|---|
| Length, Overall | 32.89 ft 10025 mm |
| Wheel Base | 14.25 ft 4344 mm |
| Rear Axle To Tail | 9.57 ft 2918 mm |
| Ground Clearance | 1.91 ft 583 mm |
| Dump Clearance | 2.49 ft 761 mm |
| Loading Height – Empty | 13.11 ft 3996 mm |
| Inside Body Depth – Maximum | 6.59 ft 2010 mm |
| Overall Height – Body Raised | 30.48 ft 9291 mm |
| Operating Width | 18.89 ft 5758 mm |
| Centerline Front Tire Width | 11.62 ft 3544 mm |
| Engine Guard Clearance | 2.79 ft 851 mm |
| Outside Body Width | 13.74 ft 4190 mm |
| Inside Body Width | 13.01 ft 3968 mm |
| Front Canopy Height | 144.44 ft 4403 mm |
| Rear Axle Clearance – Loaded | 2 ft 610 mm |
| Overall Body Length | 30.23 ft 9216 mm |
| Centerline of Rear Dual Tire Width | 9.61 ft 2930 mm |
| Inside Body Length | 20.66 ft 6300 mm |
| Height – Top of ROPS | 13.73 ft 4187 mm |
| Overall Tire Width | 14.59 ft 4450 mm |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Cat C27 Tier 4/Stage V compliant diesel engine:
– Air cleaner with precleaner (2)
– Air-To-Air Aftercooler (ATAAC)
– Electric start
– Engine idle shutdown
– Ether starting aid
– Exhaust muffler
– NGMR radiator - Braking system:
– Automatic Retarder Control (ARC)
– Manual retarder (utilizes rear oil-cooled, multiple disc brakes)
– Brake release motor (towing)
– Dry disc brakes (front)
– Front brake disconnect switch (front)
– Oil-cooled multiple disc brakes (rear)
– Brake wear indicator (rear)
– Parking brake
– Secondary brake
– Service brake - For Tier 4 regions only (U.S./Canada):
– Aftertreatment system- NOx Reduction System (NRS)
- Diesel Oxidation Catalyst (DOC)
– Demand fan
– MEUI-C fuel system - Transmission:
– 7-speed automatic powershift with:- Electronic Clutch Pressure Control (ECPC)
- Advanced Productivity Electronic Control Strategy (APECS)
– Automatic neutral idle
– Autostall
– Second gear start
SUSPENSION SYSTEMS
- Suspension, front and rear
ELECTRICAL
- Alarm backup
- Alternator, 150 Amp
- Autolube power supply ready
- Batteries, maintenance-free, 12V (2), 1,400 CCA combined
- Electrical system, 25 Amp, 24V to 12V converter
- Lighting system:
– All LED Backup light (halogen)
– Directional signals/hazard warning (front and rear LED)
– Engine compartment light
– Headlights, (halogen) with dimmer
– Operator access courtesy lights
– Side profile lights
– Stop/tail lights (LED) - Service center containing:
– Battery jump start
– Breakers with spare fuses
– Lockout switch
– Ports, ET, and VIMS
– Service lockout switch (power without engine start)
TECHNOLOGY PRODUCTS
- Economy Modes, standard and adaptive
- Product Link Radio
- Advanced Health (VIMS)
- Cat MSS with Operator Code
- Remote flash/remote troubleshooting
- Economy Modes, standard and adaptive
- Product Link Radio
- Advanced Health (VIMS)
- Cat MSS with Operator Code
- Remote flash/remote troubleshooting
- Seat Belt Reminder System: Seat Belt and Seat Belt Inhibit
- Overload speed limiter
- Fire Suppression Ready
GUARDS
- Driveline
- Engine crankcase
- Fan
FLUIDS
- Antifreeze
- Extended life coolant to –34° C (–30° F)
- Grouped ground-level filters
OTHER STANDARD EQUIPMENT
- Body down indicator
- Body safety pin (secures body in up position)
- Center-mounted rims
- Fuel tank, 795 L (210 gal)
- Ground level battery disconnect
- Ground level engine shutdown
- Ground level grease fittings
- Operator Maintenance Manual (OMM)
- Rims 17 × 35
- Rock ejectors
- Secondary steering (electric)
- Tie down eyes
- Tow hooks (front)/tow pin (rear)
- Vandalism protection locks
OPERATOR ENVIRONMENT
- Light – courtesy
- Seat, training with lap belt
- Advisor display:
– Air cleaner service indicator, fluid level monitoring, fuel level monitoring, display languages (market based) - Air conditioning/heat
- Automatic temperature control
- Coat hook
- Cup holders (4)
- Diagnostic connection port, 24V
- Entertainment radio ready:
– 5 amp converter
– Speakers
– Antenna
– Wiring harness - Foot rest
- Gauges/indicators:
– Brake oil temperature gauge
– Coolant temperature gauge
– Engine overspeed indicator
– Fuel level
– Hour meter
– Speedometer with odometer
– Tachometer
– Transmission gear indicator - Hoist lever
- Horn
- Light – dome
- Mirrors, heated
- Power port, 24V and 12V (2)
- Rollover Protection (ROPS)/Falling Object Protection (FOPS)
- Seatbelt, 4-point seat belt with shoulder harness
- Steering wheel, padded, tilt and telescopic
- Storage compartment
- Sun visor
- Throttle lock
- Window, hinged, right side (emergency exit)
- Window, powered, left side
- Windshield wiper intermittent and washer
OTHER
- Antifreeze
- Body down indicator
- Body safety pin (secures body in up position)
- Center-mounted rims
- Clustered grease fittings
- Cold weather packages
- Driveline guards
- Engine crankcase guards
- Extended life coolant to -34C (-30F)
- Fan guards
- Fuel tank, 795 L (210 gal)
- Ground level battery disconnect
- Driveshaft catch loop guard
- Ground-Level engine shutdown
- Grouped ground-level filters
- Operator maintenance manual (OMM)
- Rims 17 x 35
- Rock ejectors
- Secondary steering (electric)
- Suspension, front and rear (EU compliant)
- Tie down eyes
- Tow Hooks, front/tow pin, rear
- Vandalism protection locks
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Cat engine brake
OPTIONAL EQUIPMENT
- Body heat
- Body liner
- Body sideboards
- Cab precleaner
- Cat Engine Brake
- Clustered grease fittings
- Cold weather packages
- Fluid fill service center
- HID lights
- Mirrors, convex
- Mirrors, heated
- Spare rim
- Surround vision
- Surround vision with Cat Detect
- Work Area Vision System (WAVS)
OPERATOR ENVIRONMENT
- Cab precleaner
- Mirrors, convex cab, left-side
TECHNOLOGY PRODUCTS
- Product Link Dual Mode
- Traction control system (TCS)
- Cat Payload
- Tire Management System
- Tire pressure monitoring
- Fire Suppression
- Hill Assist with anti-roll-back
OTHER
- Body: Exhaust Body Heat
- Body: Steel Liner
- Body: Rubber Liner
- Body: Sideboard 155mm (6in)
- Body: Tail Extension
- Body Angle Limit
- Fluid fill service center
- Tire pressure monitoring
- Camera and Radar
- Engine Bay Mud Coverage
- Spare rim
- Wheel chocks
