Caterpillar

G3612 A4 Gas Compression Engine

    G3600 ADEM™4 engines provide a wide range of power options to fit your gas compression application. G3600 ADEM™4 engines bring the highest uptime in the industry and long operating intervals between overhaul. Operators that use G3600 ADEM™4 engines in their fleet enjoy virtually no unscheduled downtime, the right power for their application, the lowest operating costs, and emissions compliance. Ideal applications for G3600 ADEM™4 engines include centralized gathering stations, gas processing, transmissions, and storage applications. Cat G3612 ADEM™4 Gen 1 gas engine with standard ratings: 2796 bkW (3750 bhp) @ 1000 rpm and Cat G3612 ADEM™4 Gen 2 gas engine with standard ratings: 2796 bkW (3750 bhp) @ 1000 rpm and uprated ratings: 3076 bKW (4125 bhp) @ 1000 rpm. NSPS site compliant capable.​

      Media

      Photos

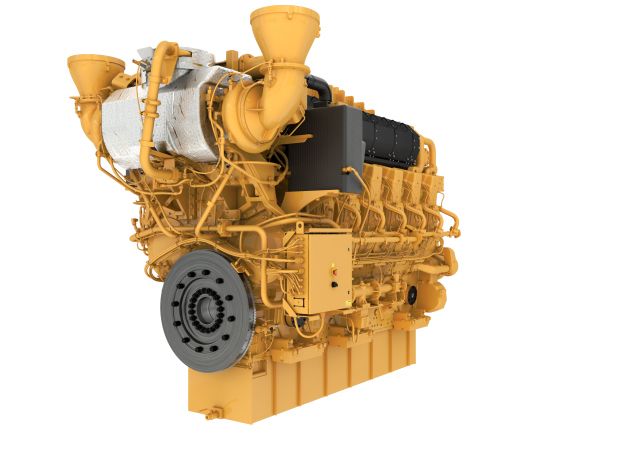

      G3612 Gas Engine
      G3612 Gas Engine

      360° View

      Exterior

      360° Exterior view. Double click on the image to zoom in on any area of the product.

      Documents

      Features

      Emissions

      Lean Burn Engine Technology

      Ease of Operation

      Advanced Digital Engine Management

      Gas Engine Rating Pro

      Product Support Offered Through Global Cat Dealer

      Over 80 Years of Engine Manufacturing Experience

      Website

      Details

      Specifications

      Spec Value
      Maximum Rating 4125 BHP 3076 bkW
      Rated Speed 1000 rpm 1000 rpm
      Emissions Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.3 g and 0.5 g/bhp-hr NOx Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.3 g and 0.5 g/bhp-hr NOx
      Minimum Rating 3750 BHP 2796 bkW
      Compression Ratio Gen 1 (9.2:1) Gen 2 (7:6:1) Gen 1 (9.2:1) Gen 2 (7:6:1)
      Aspiration Turbocharged-Aftercooled Turbocharged-Aftercooled
      Rotation from Flywheel End Counterclockwise Counterclockwise
      Displacement 15528 in³ 254 l
      Flywheel Teeth 255 255
      Oil Change Interval 5000 hours 5000 hours
      Ignition, Protection ADEM™4 ADEM™4
      Stroke 11.8 in 300 mm
      Bore 11.8 in 300 mm
      Length 195.09 in 4955.3 mm
      Width 102.28 in 2598 mm
      Height 129.1 in 3279 mm
      Weight – Dry 58500 lb 26835 kg
      Spec Value
      Cooling System 194 gal (US) 734 l
      Lube Oil System – Refill 272 gal (US) 1030 l

      Standard Equipment

      Air Inlet System

      • Air Cleaners
      • Air cleaner — standard duty Inlet air adapter

      Control System

      • ADEM 4

      Cooling System

      • ANSI Class 150 4 inch Flange (outlet water connection)
      • ANSI Class 150 6 inch Flange (Inlet Water connection)
      • Engine driven Water pump
      • Water Jacket Outlet Regulator 88° C

      Engine Rating

      • Engine rating and speed selection

      Exhaust System

      • Hard Heat Sheilded Exhaust Manifolds – SAE Standard
      • Vertical Exhaust Outlet

      Flywheel & Flywheel Housing

      • Flywheel including ring gear for starting. SAE Standard

      Flywheel and Flywheel Housing

      • Engine Barring Device

      Fuel System

      • Fuel Filter
      • Gas Pressure Regulator

      General

      • Paint
      • Wood Skid

      Instrumentation

      • Basic HMI Engine Interface

      Lube System

      • Breathers
      • Closed Crankcase Ventilation System
      • Front and Rear Oil Drains
      • Intermittent Prelube Pump
      • Oil Cooler
      • Oil Cooler
      • Oil Pan
      • Oil Supply line

      Mounting System

      • Six Engine Mounting Feet

      Power Take-offs

      • Damper and Damper Guard

      Protection System

      • Crankcase Explosion Relief Valves

      Starting System

      • Air Starting Motor

      Telematics System

      • Cat Connect Technology

      Cat Connect Technology

      • ANSI Class 150 2 inch Flange ( Customer Connect)

      Optional Equipment

      Charging System

      • Alternator

      Control System

      • Software Development

      Exhaust System

      • Flex EXH Fitting

      Fuel System

      • Fuel Connections

      Genereal

      • Language Decals

      Lube System

      • Lubricating Oil
      • Oil Level Regulator
      • Air or electric motor-driven prelube
      • Duplex oil filter
      • RH service
      • Lube oil makeup system

      Mounting System

      • Lifting Eye Exhaust Shield
      • Mounting Plates
      • Mounting plates (set of six)

      Service

      • Service Tools

      Telematics System

      • Cell – Satellite Radio

      Telematics

      • Product Link Extension Harness

      Instrumentation

      • LCD display panel
      • Color HMI display
      • Modbus and Ethernet capable

      Power Take-Offs

      • Front stub shafts

      Starting System

      • Air pressure reducing valve
      • Natural gas starting system

      General

      • Engine barring device
      • Damper guard
