Oil and Gas
Caterpillar prime movers are designed to be durable and to deliver low operating costs. And they have been proving it, day in and day out, in oil and gas applications throughout the world, since the 1930’s.
Equipment Type (9 items)
Models
Energy Storage Solutions

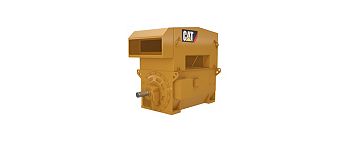

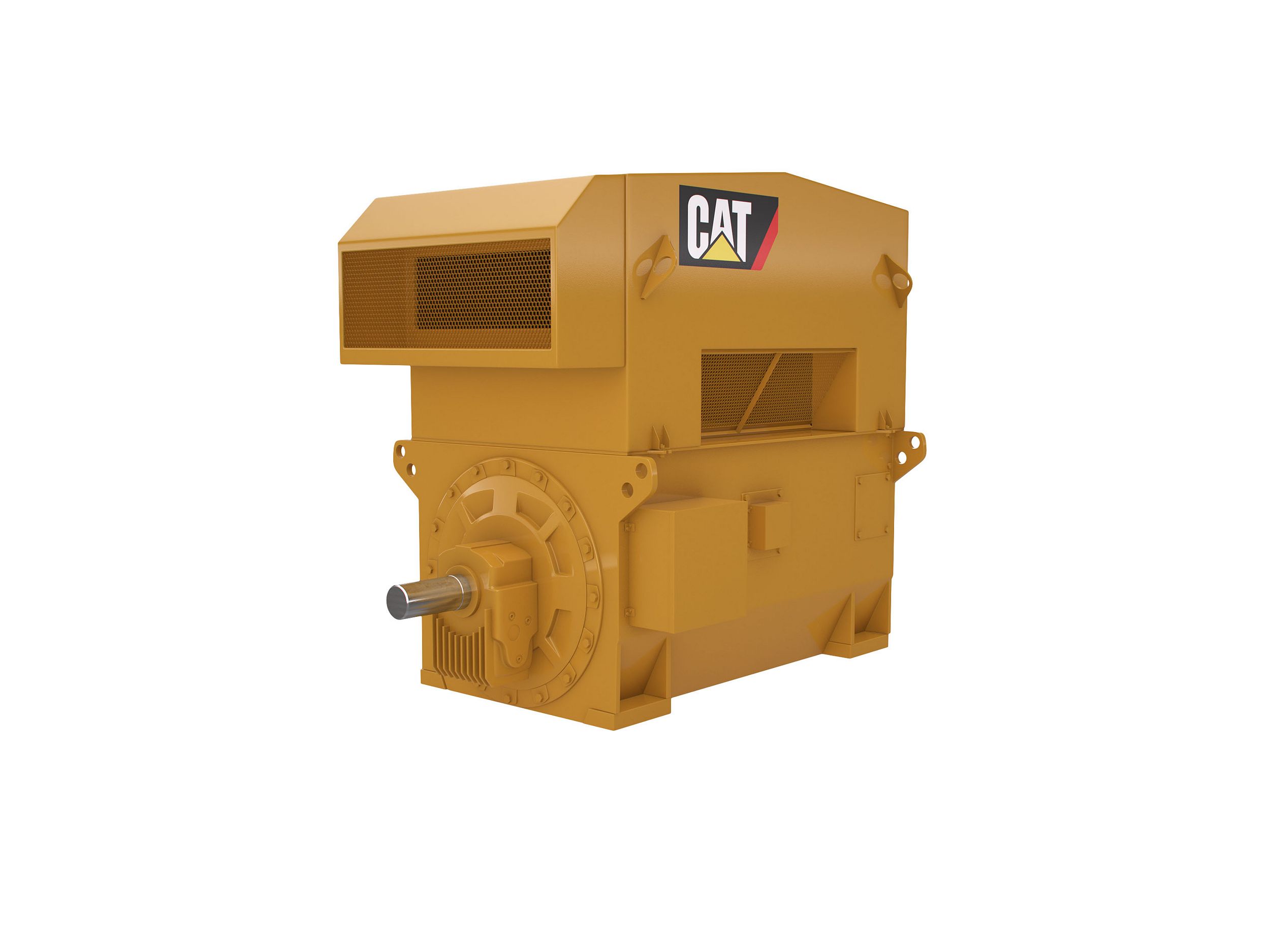

Gas Compression Electric Motors
Cat® Electric Motors used in gas compression applications.
CN1566 Electric Motor
-
Voltage/Frequency
4000V ± 10%/60 Hz
-
Type of EX-Protection
Class 1 Division 2 Group A,B,C,D T3 (NEC or CEC)
CN3086 Electric Motor for Gas Compression
-
Voltage/Frequency
4000V & 4160V ± 10%/60 Hz
-
Type of EX-Protection
Class 1 Division 2 Group A,B,C,D T3 (NEC or CEC)
CN3586 Electric Motor for Gas Compression
CN5086 Electric Motor
-
Voltage/Frequency
4000V ± 10%/60 Hz
-
Type of EX-Protection
Class 1 Division 2, Group A,B,C,D T3 (NEC or CEC)
Gas Compression Engines
Cat gas compression engines are the prime movers for gas lift, gas gathering, wellhead gas compression, pipeline compression, storage, gathering, and re-injection. Caterpillar provides the widest power range and fuel and lowest owning and operating costs in the industry.
G3520J
-
Emissions
U.S. EPA Spark Ignited Stationary NSPS emissions for 2010
-
Minimum Rating
1725 BHP
G3304B
-
Maximum Rating
95 BHP
-
Emissions
NSPS 2010
-
Displacement
427 in³
G3306B
-
Maximum Rating
211 BHP
-
Emissions
NSPS 2010
-
Displacement
638 in³
G3406
-
Maximum Rating
325 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
891 in³
G3408
-
Maximum Rating
400 BHP
-
Emissions
NSPS Site Compliant Capable or non-regulated
-
Displacement
1099 in³
G3408C
-
Maximum Rating
425 BHP
-
Emissions
NSPS Site Compliant Capable or Non-regulated
-
Displacement
1099 in³
G3412
-
Maximum Rating
600 BHP
-
Emissions
Non-regulated areas
-
Displacement
1649 in³
G3412C
-
Maximum Rating
637 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
1649 in³
CG137-8
-
Maximum Rating
400 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
1099 in³
CG137-12
-
Maximum Rating
600 BHP
-
Emissions
NSPS 2010
-
Displacement
1648 in³
G3508 LE
-
Maximum Rating
670 BHP
-
Emissions
NSPS Site Compliant Capable or Non-regulated
-
Displacement
2105 in³
G3512 TA
-
Maximum Rating
1004 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
3158 in³
G3516 NA
-
Maximum Rating
1340 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
4210 in³
G3516J
-
Maximum Rating
1380 BHP
-
Emissions
U.S. EPA Spark Ignited Stationary NSPS emissions
-
Displacement
4211 in³
G3606 A4
-
Maximum Rating
2065 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
7762 in³
G3608 A4
-
Maximum Rating
2750 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
10350 in³
G3612 A4
-
Maximum Rating
4125 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
15528 in³
G3616 A4
-
Maximum Rating
5500 BHP
-
Emissions
NSPS Site Compliant Capable
-
Displacement
20698 in³
G3516 TA
-
Maximum Rating
1380 BHP
-
Emissions
NSPS Site Compliant Capable
-
Minimum Rating
660 BHP

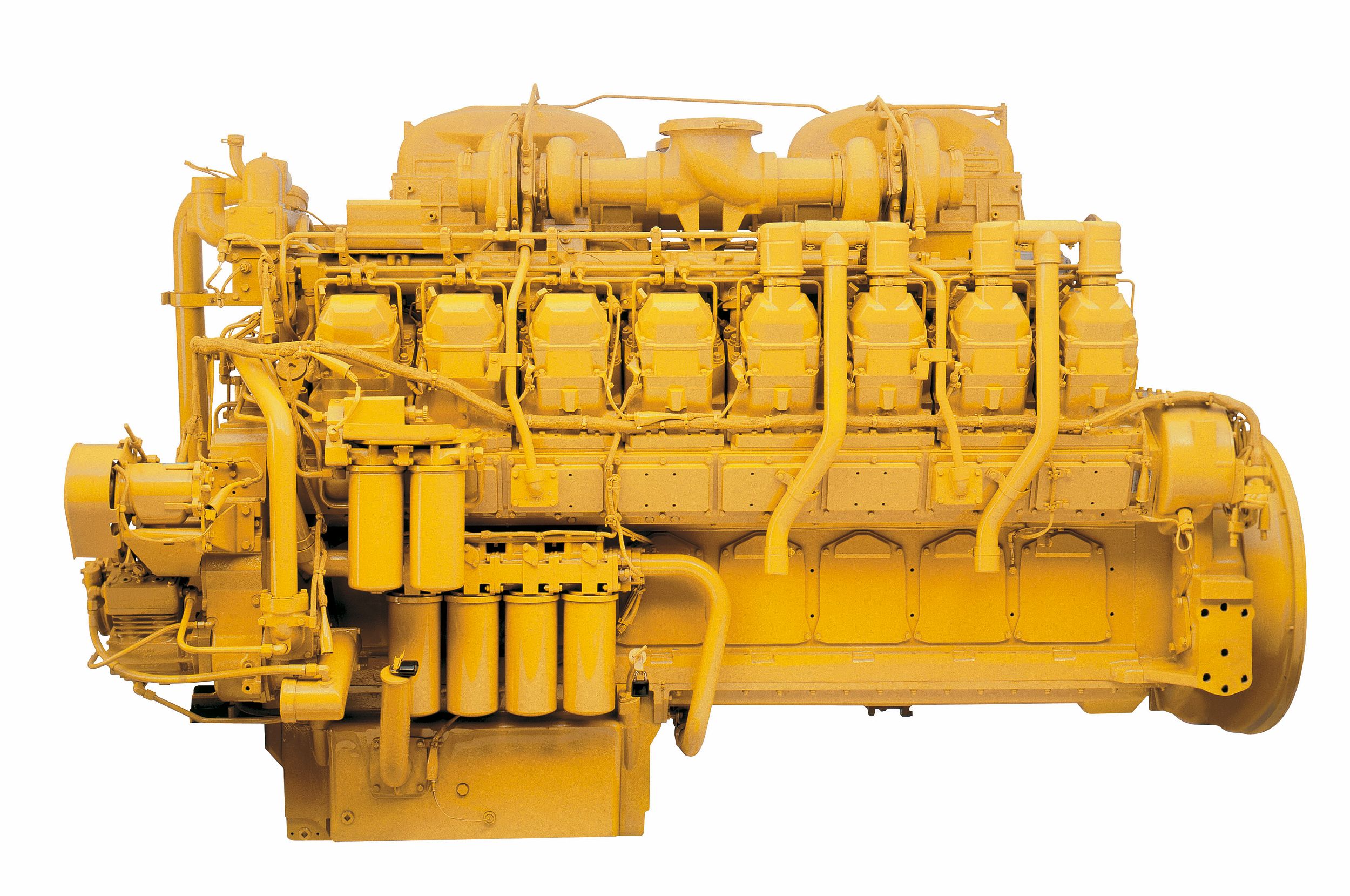

Land Drilling Engines and Generator Sets
Cat engines that provide power for land mechanical rigs and mud pumps used in drilling operations.
C15 ACERT™
-
Minimum Rating
440 BHP
-
Maximum Rating
595 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
C15 ACERT™
-
Maximum Rating
580 BHP
-
Emissions
U.S. EPA Tier 4 Interim, EU Stage IIIB
-
Displacement
928 in³
C18 ACERT™
-
Maximum Rating
800 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
-
Displacement
1100 in³
C18 ACERT™
-
Maximum Rating
800 BHP
-
Emissions
U.S. EPA Non-road Tier 4 Final
-
Displacement
1104 in³
C18 ACERT™
-
Maximum Rating
755 BHP
-
Emissions
U.S. EPA Tier 4 Interim, EU Stage IIIB
-
Displacement
1104.5 in³
C27 ACERT™
-
Maximum Rating
1150 BHP
-
Emissions
U.S. EPA Non-road Tier 2
-
Displacement
1658 in³
C27 ACERT™
-
Maximum Rating
950 BHP
-
Emissions
U.S. EPA Non-road Tier 4 Final
-
Displacement
1648 in³
C32 ACERT™
-
Maximum Rating
1500 BHP
-
Emissions
U.S. EPA Non-road Tier 2
-
Displacement
1953 in³
C32 ACERT™
-
Maximum Rating
1125 BHP
-
Emissions
U.S. EPA Non-road Tier 4 Final
-
Displacement
1958 in³
3508
-
Maximum Rating
1135 BHP
-
Emissions
Non-certified
-
Displacement
2111 in³
3508B
-
Maximum Rating
900 BHP
-
Emissions
Non-certified
-
Displacement
2111 in³
3508C
-
Maximum Rating
900 BHP
-
Emissions
U.S. EPA Non-road Tier 2
-
Displacement
2111 in³

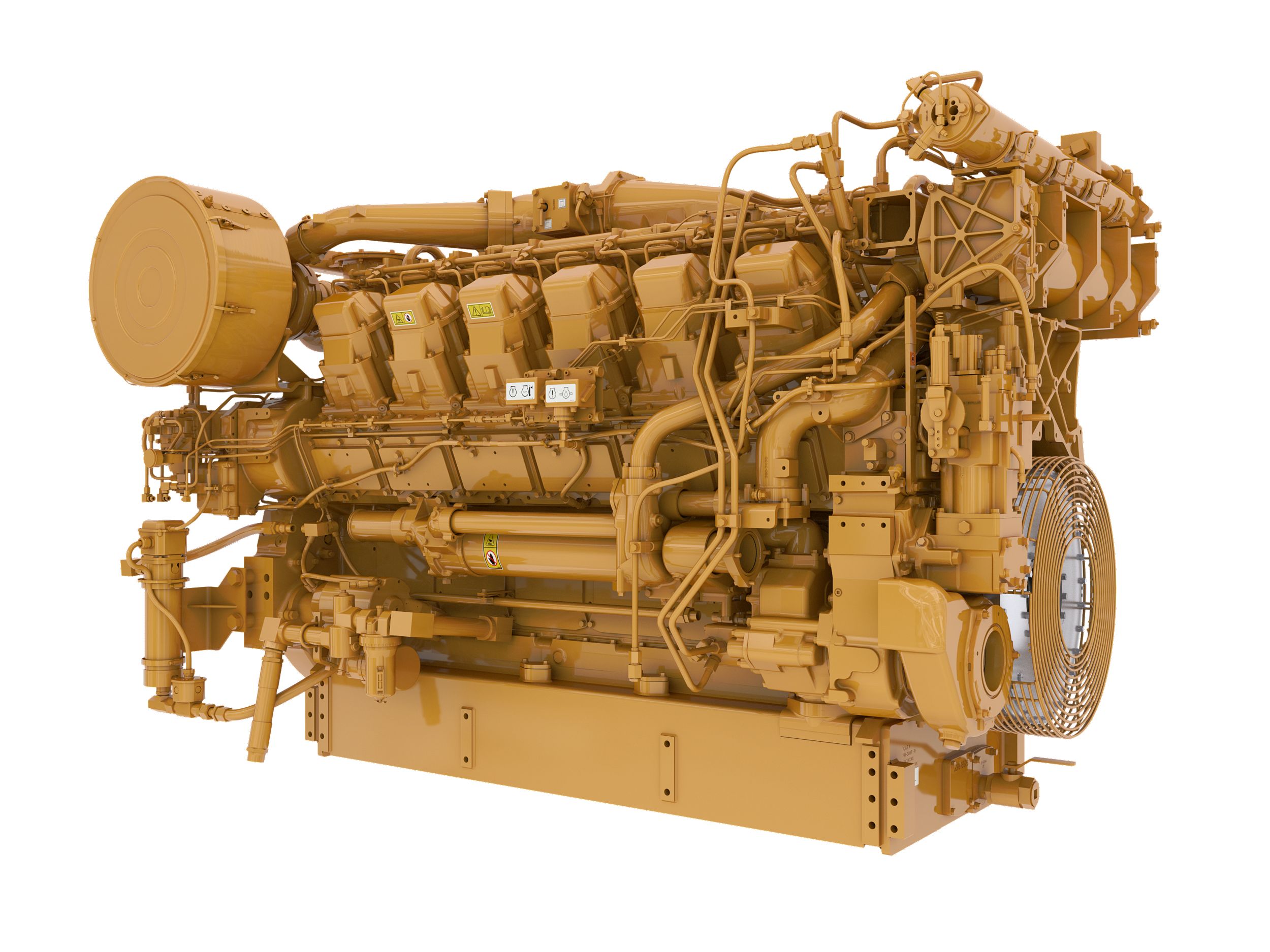

3512
-
Maximum Rating
1800 BHP
-
Emissions
Non-certified
-
Displacement
3158 in³
3512C
-
Maximum Rating
1475 BHP
-
Emissions
U.S. EPA Non-road Tier 2
-
Displacement
3574 in³
3516
-
Maximum Rating
1649 BHP
-
Emissions
Non-certified
-
Displacement
4210 in³

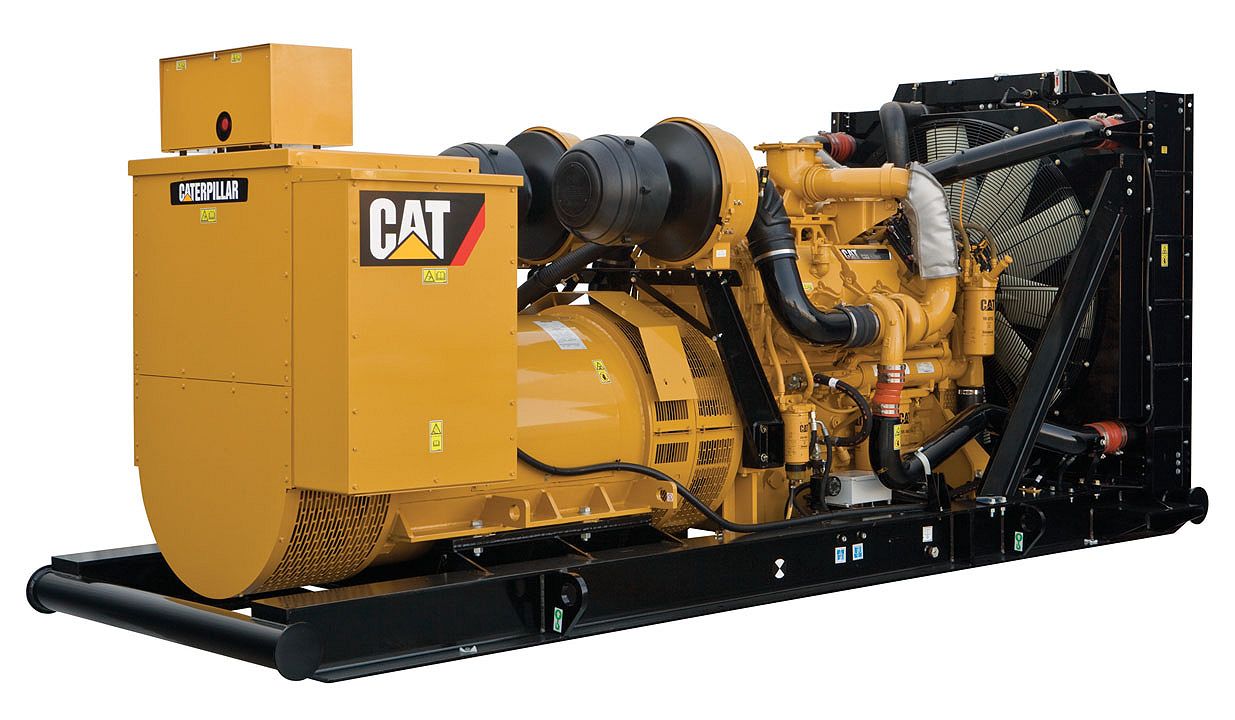

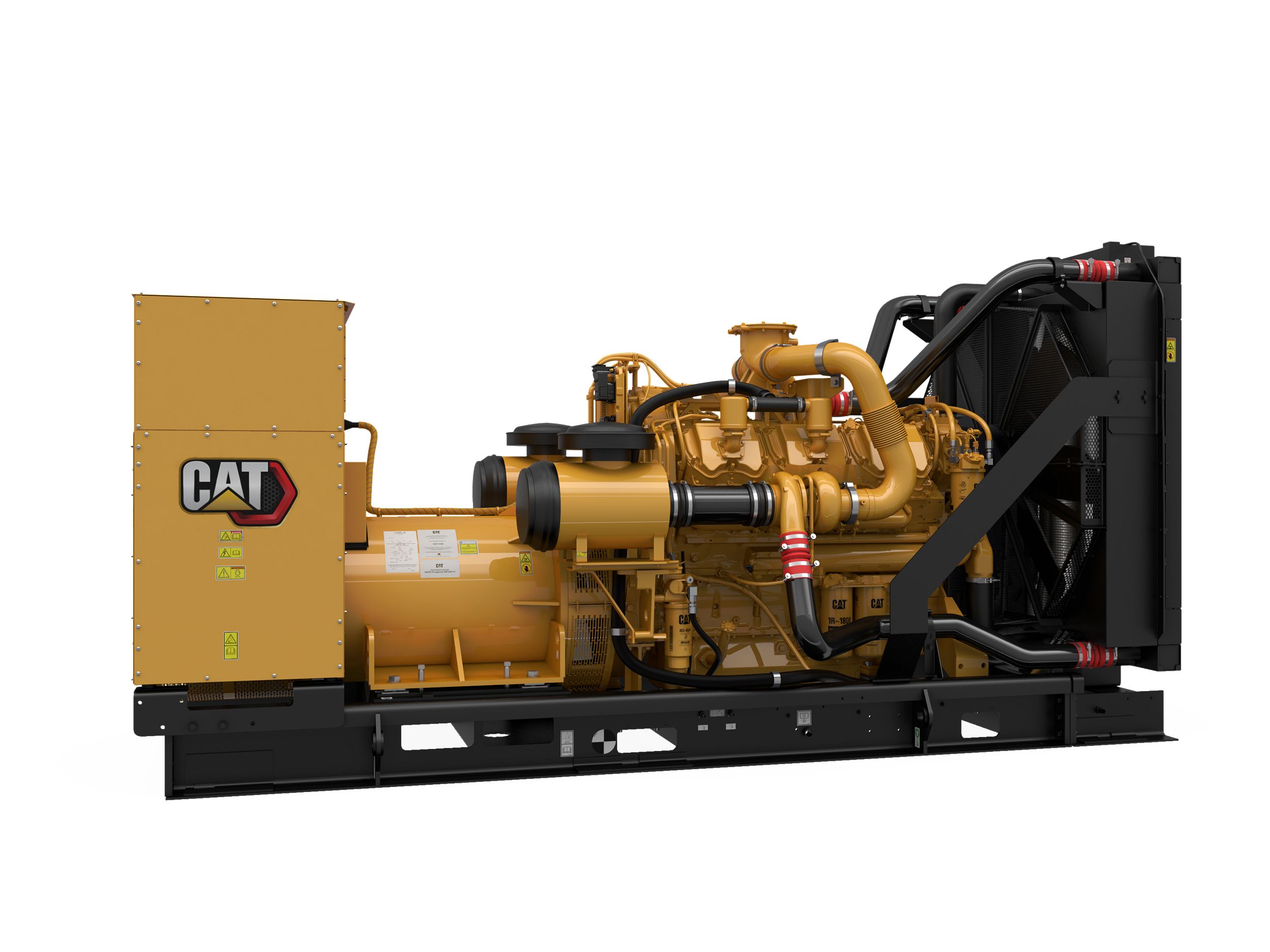

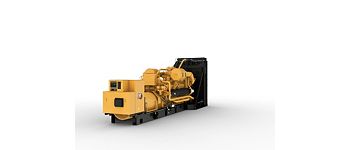

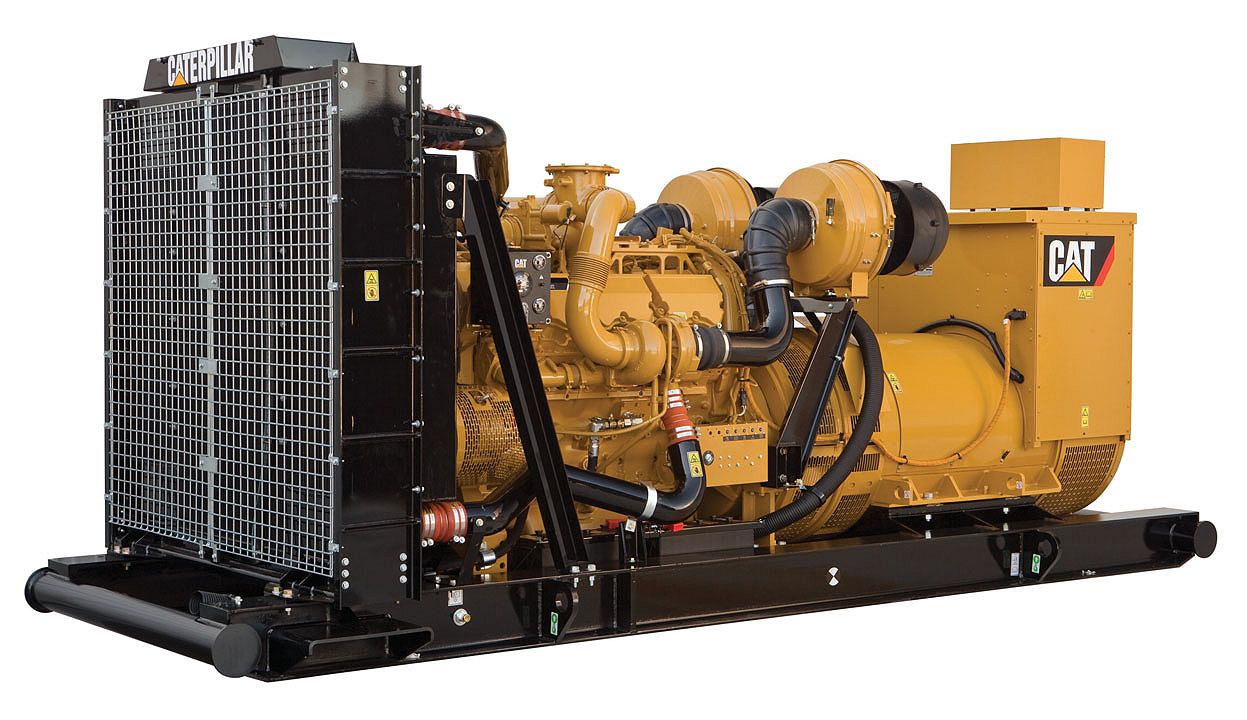

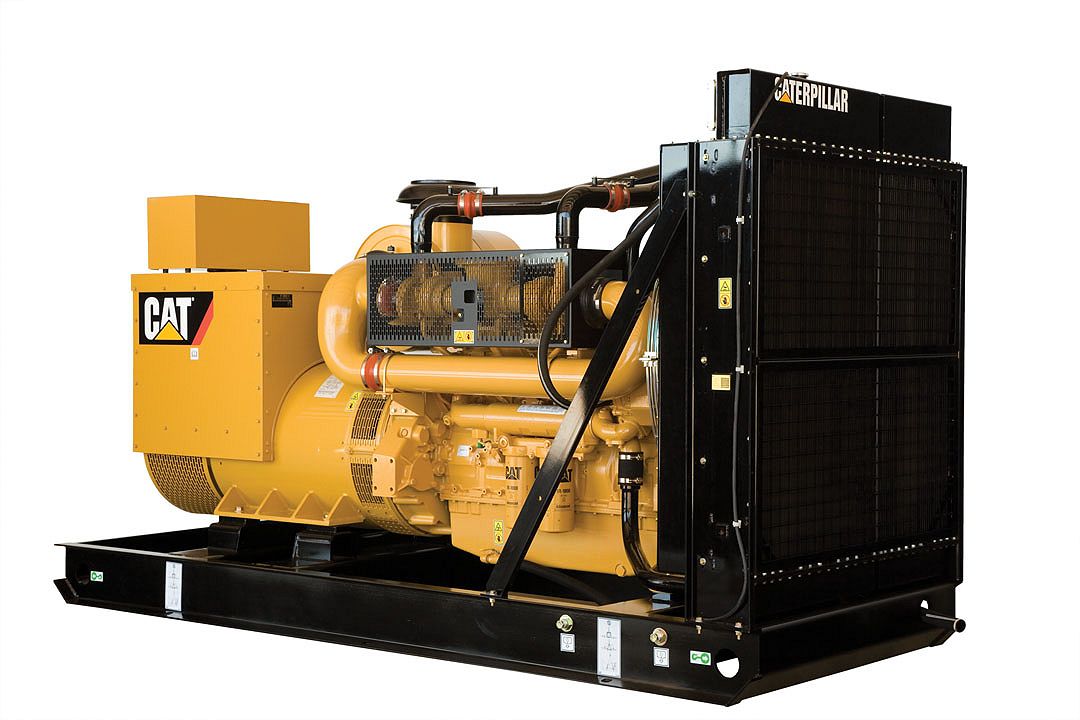

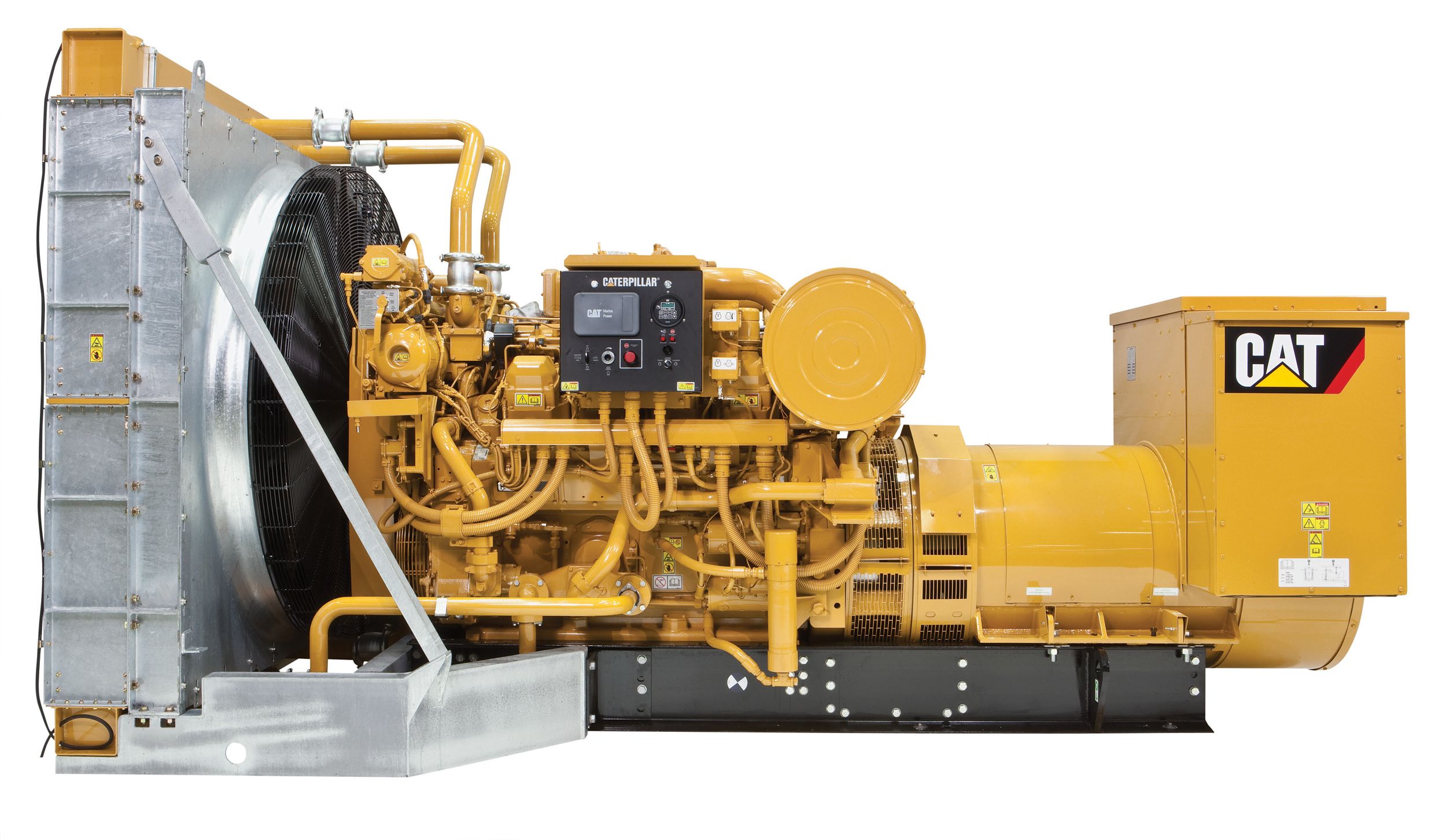

Land Production Generator Sets
Land production generator sets provide electrical power for a variety of applications in the oilfield such as camp power, power for electric motor pumps, emergency power, and field electrification. They are designed specifically for the oilfield and have the capability to run on a wide variety of fuels.
G3520
-
Emissions/Fuel Strategy
U.S. EPA Large S.I. Tier 2 / Non-Road Mobile Certified
-
Aspiration
Turbocharged
-
Bore
6.7 in
C15 ACERT Tier 2
-
Maximum Rating
455 ekW (570 kVA)
-
Minimum Rating
292 ekW (365 kVA)
-
Fuel
Diesel
C15 ACERT Tier 4i
-
Maximum Rating
450 ekW (562 kVA)
-
Minimum Rating
450 ekW (562 kVA)
-
Fuel
Diesel
C18 ACERT Tier 2
-
Maximum Rating
545 ekW (680 kVA)
-
Minimum Rating
440 ekW (550 kVA)
-
Fuel
Diesel
C27 ACERT Tier 4i
-
Maximum Rating
725 ekW (907 - 1035 kVA)
-
Minimum Rating
725 ekW (907 - 1035 kVA)
-
Fuel
Diesel
C27 ACERT Tier 2
-
Maximum Rating
725 ekW (907 - 1035 kVA)
-
Minimum Rating
725 ekW (907 - 1035 kVA)
-
Fuel
Diesel
C32 ACERT Tier 2
-
Maximum Rating
800 ekW (1000 kVA)
-
Minimum Rating
910 ekW (1300 kVA)
-
Fuel
Diesel
3516B with Dynamic Gas Blending
-
Maximum Rating
1600 ekW (2000 kVA)
-
Minimum Rating
1600 ekW (2000 kVA)
-
Fuel
CNG, LNG, field gas, natural gas with diesel
CG137-12
-
Maximum Rating
400 ekW (500 kVA)
-
Minimum Rating
400 ekW (500 kVA)
-
Fuel
CNG, LNG, field gas, natural gas
G3306B
-
Maximum Rating
135 ekW (170 kVA)
-
Minimum Rating
110 ekW (138 kVA)
-
Fuel
CNG, LNG, field gas, natural gas

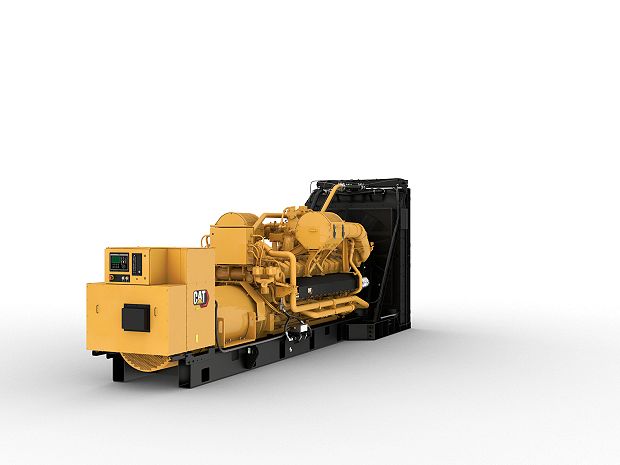

Mobile Gas Solutions
G3520
-
Emissions/Fuel Strategy
U.S. EPA Large S.I. Tier 2 / Non-Road Mobile Certified
-
Aspiration
Turbocharged
-
Bore
6.7 in
CG137-12
-
Maximum Rating
400 ekW (500 kVA)
-
Minimum Rating
400 ekW (500 kVA)
-
Fuel
CNG, LNG, field gas, natural gas
G3512
-
Emissions/Fuel Strategy
U.S. EPA Tier 2 S.I. Non Road Mobile
-
Aspiration
Turbocharged-2 stage after cooled
-
Bore
6.7 in

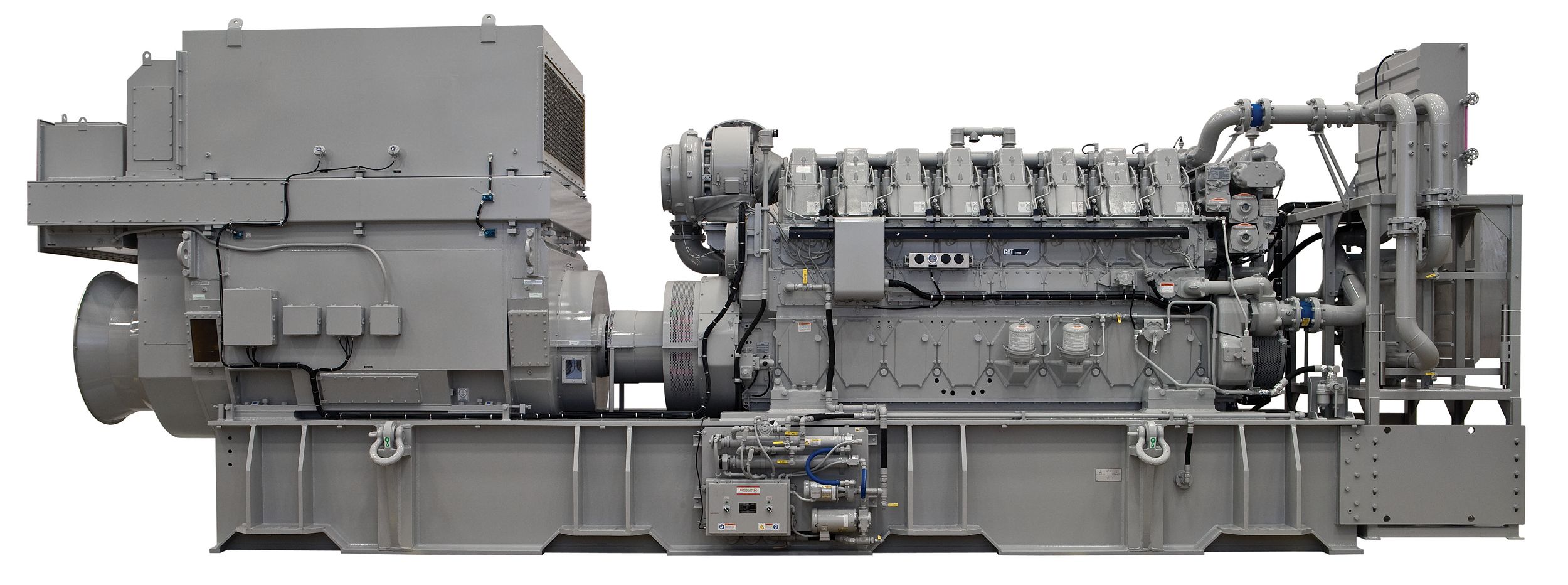

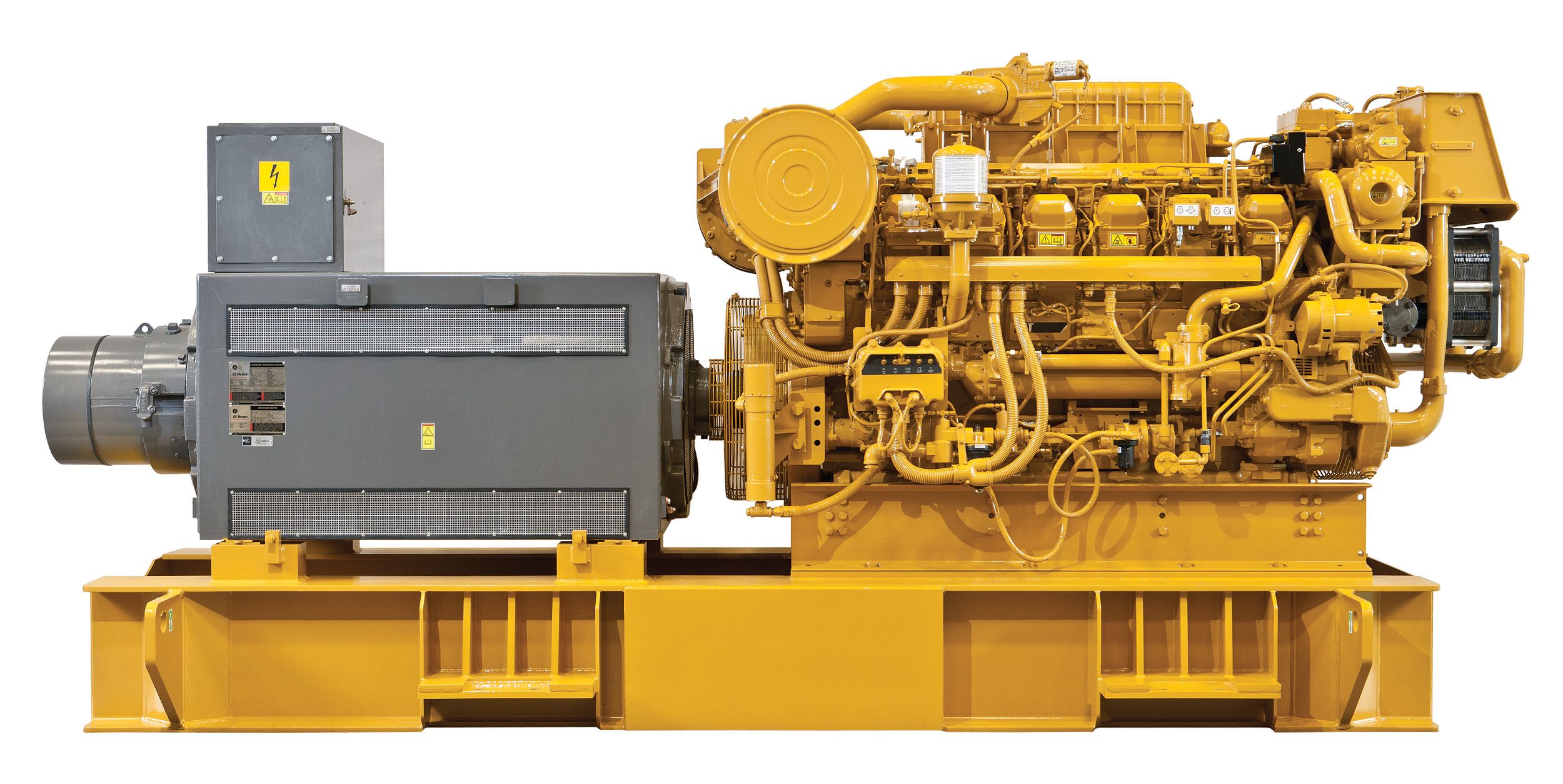

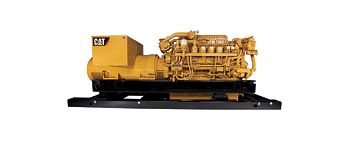

Offshore Drilling and Production Generator Sets
Generator sets for offshore main power, essential services power, and emergency power on board drilling vessels and production vessels and platforms.
3508B
-
Minimum Rating
738 kV·A
-
Maximum Rating
1138 kV·A
-
Emissions
IMO Tier I
3508C
-
Minimum Rating
799 kV·A
-
Maximum Rating
974 kV·A
-
Emissions
IMO Tier II
3512B
-
Minimum Rating
1100 kV·A
-
Maximum Rating
1943 kV·A
-
Emissions
IMO Tier I
3512C
-
Minimum Rating
1470 kV·A
-
Maximum Rating
1700 kV·A
-
Emissions
EPA Tier 2, IMO II
3512C
-
Minimum Rating
1938 kV·A
-
Maximum Rating
2125 kV·A
-
Emissions
IMO Tier II
3516B
-
Minimum Rating
1475 kV·A
-
Maximum Rating
2281 kV·A
-
Emissions
IMO Tier I
3516C
-
Minimum Rating
2039 kV·A
-
Maximum Rating
2304 kV·A
-
Emissions
IMO Tier II
3516C (HD) CI/D2 Hazardous Location
-
Minimum Rating
2625 kV·A
-
Maximum Rating
2625 kV·A
-
Emissions
EPA Tier 2, IMO Tier II
C175-16
-
Minimum Rating
2619 kV·A
-
Maximum Rating
3325 kV·A
-
Emissions
Available in IMO Tier II/ EPA Marine Tier 2 configurations
C280-6
-
Minimum Rating
2320 kV·A
-
Maximum Rating
2722 kV·A
-
Emissions
IMO Tier 2 / EPA Marine Tier 2
C280-8
-
Minimum Rating
3084 kV·A
-
Maximum Rating
3634 kV·A
-
Emissions
IMO Tier II/EPA Marine Tier 2
C280-12
-
Minimum Rating
4640 kV·A
-
Maximum Rating
5444 kV·A
-
Emissions
IMO Tier II/EPA Marine Tier 2
C280-16 FMT
-
Minimum Rating
7510 kV·A
-
Maximum Rating
7684 kV·A
-
Emissions
IMO Tier 2 / EPA Marine Tier 2

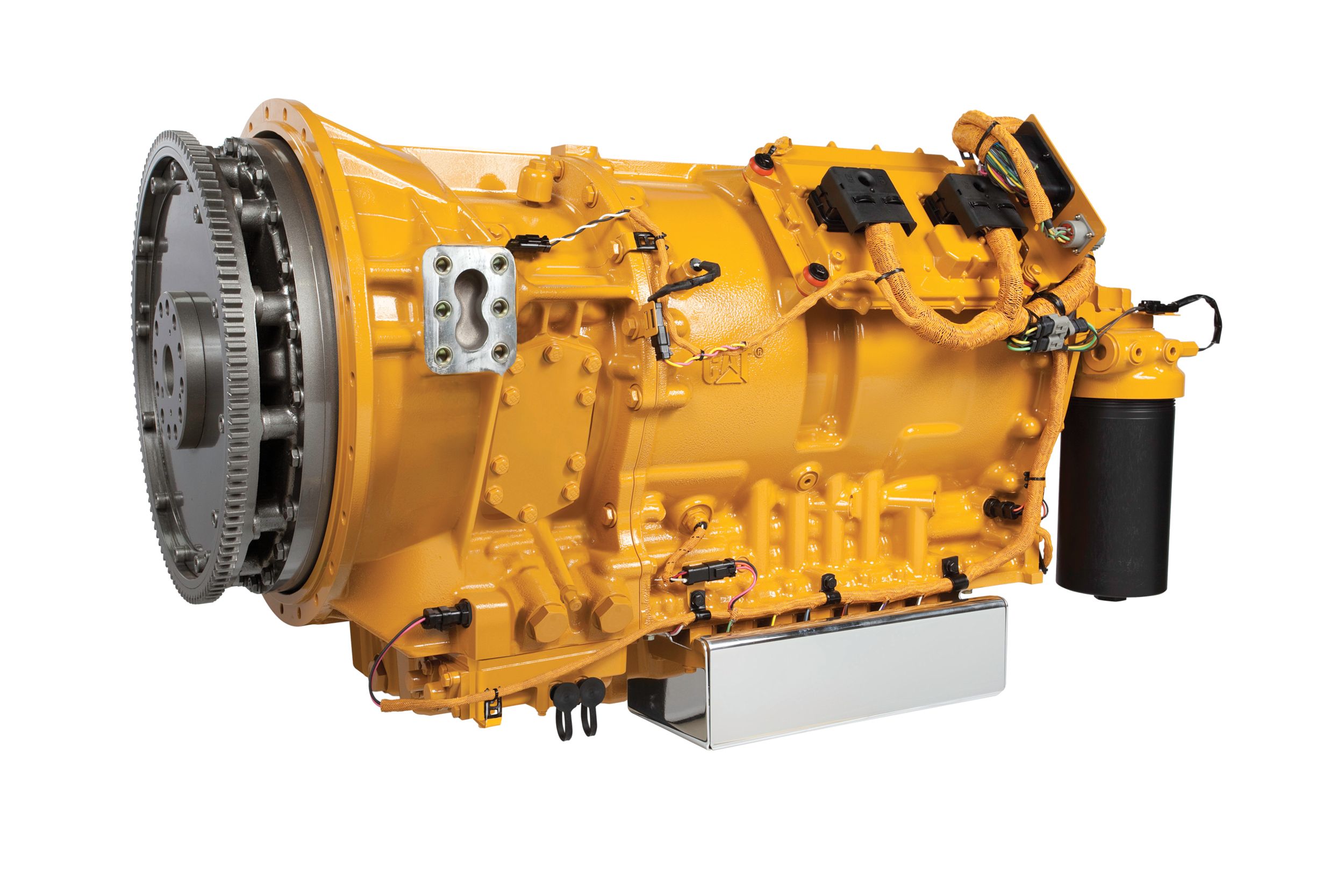

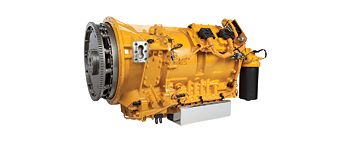

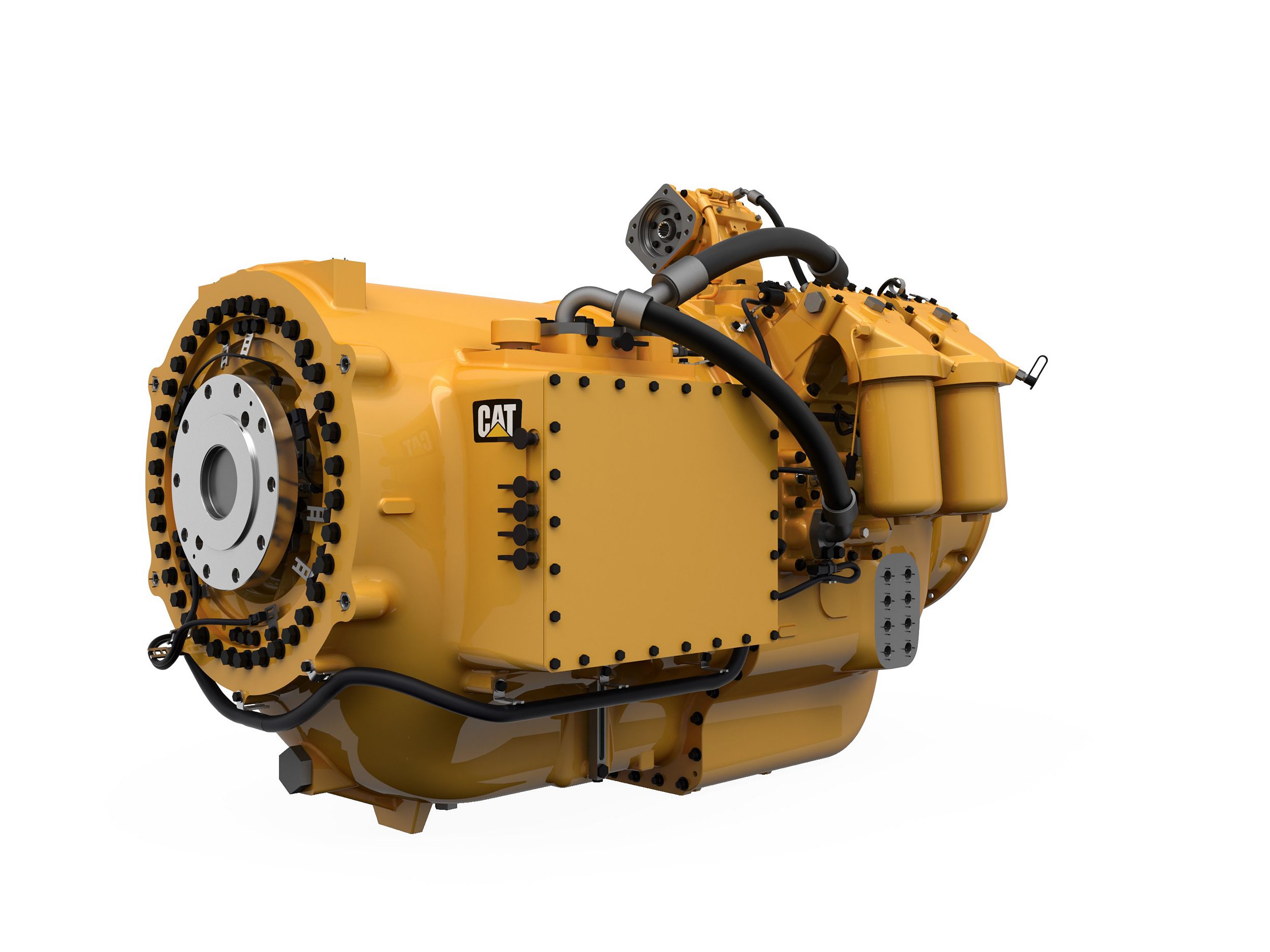

Well Service Transmissions
Cat transmissions for the oil and gas industry are used in numerous well service and drilling applications.Cat transmissions are proven in the oil and gas industry and widely known for their exceptional power, leading durability, ease of operation, and shifting options.
TH53-E60
-
Gross Input Power
2500 BHP
-
Gross Peak Input Torque
8914 ft-lb
-
Rated Input Speed
1900 r/min
CX31-P600
-
Gross Input Power
600 BHP
-
Gross Peak Input Torque
2025 ft-lb
-
Rated Input Speed
2100 r/min
CX35-P800
-
Gross Input Power
800 BHP
-
Gross Peak Input Torque
2700 ft-lb
-
Rated Input Speed
2100 r/min
CX48-P2300
-
Gross Input Power
2300 BHP
-
Gross Peak Input Torque
6656 ft-lb
-
Rated Input Speed
1900 r/min
TH48-E70
-
Gross Peak Input Torque
4422 ft-lb
-
Rated Input Speed
2100 r/min
-
Maximum Turbine Torque
7442 ft-lb
TH55-E70
-
Gross Input Power
3300 BHP
-
Gross Peak Input Torque
9350 ft-lb
-
Rated Input Speed
1900 r/min
TH55-E90
-
Gross Input Power
3300 BHP
-
Gross Peak Input Torque
9350 ft-lb
-
Rated Input Speed
1900 r/min

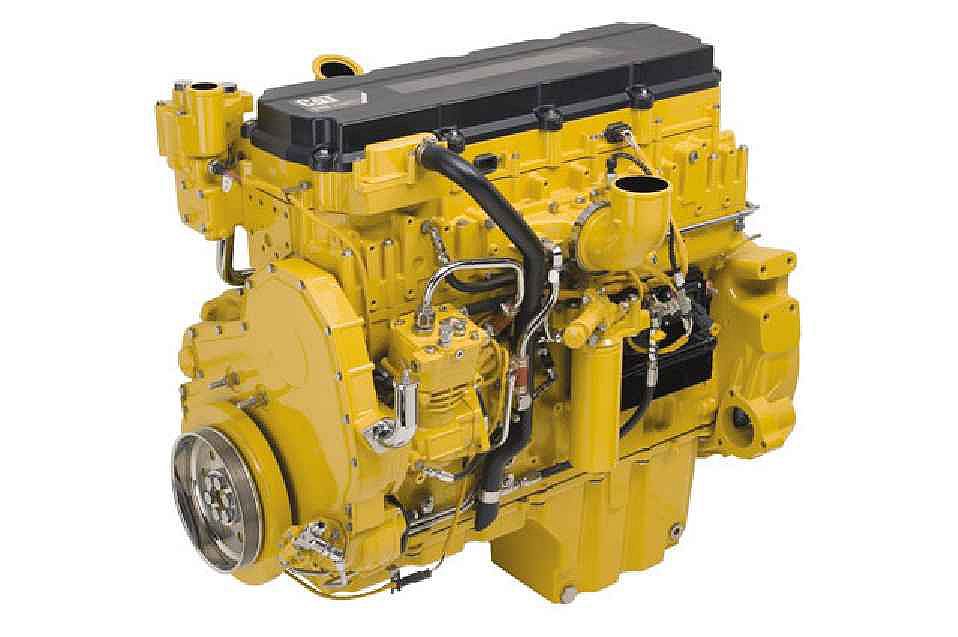

Well Service Engines
Cat well service engines are used in a wide range of applications including pressure pumping, workover rigs, kill mud pumps, coil tubing pump support, acidizing units, cementing units, blenders, coil tubing units, and hydraulic power units, including hazardous location and Tier 4 technology.
C7 ACERT™ (Water-Cooled Manifold)
-
Maximum Rating
275 BHP
-
Emissions
EPA & CARB Non-Road Tier 3, EU Stage IIIA, EPA Marine Tier 2, IMO Tier II
-
Displacement
442 in³
C7 ACERT™ (Hazardous Location)
-
Maximum Rating
275 BHP
-
Emissions
EPA & CARB Non-Road Tier 3, EU Stage IIIA, EPA Marine Tier 2, IMO Tier II
-
Displacement
442 in³
C7 ACERT™ (Dry Manifold)
-
Maximum Rating
300 BHP
-
Emissions
EPA & CARB Non-Road Tier 3, EU Stage IIIA, IMO Tier II
-
Displacement
441.8 in³

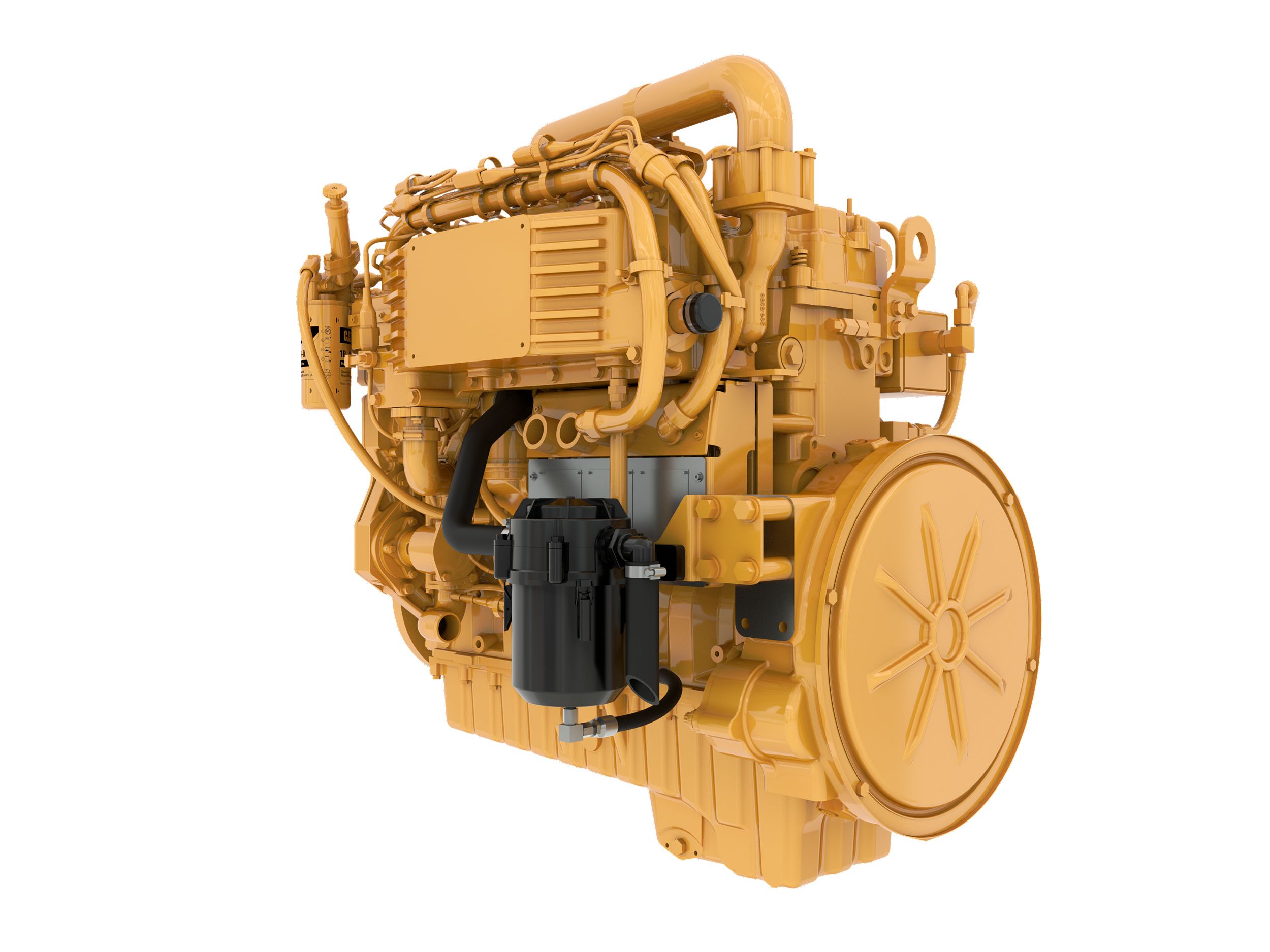

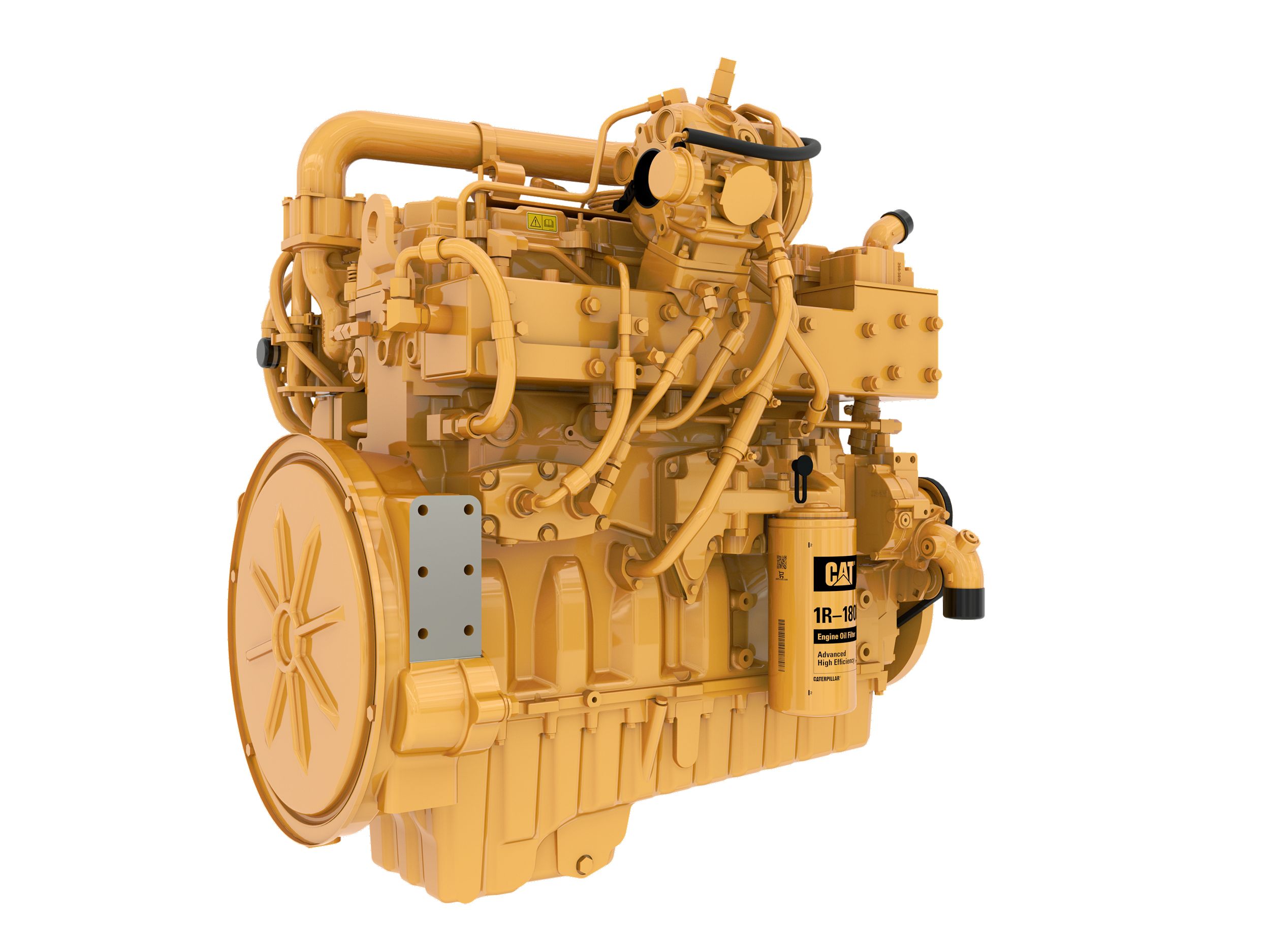

C9 ACERT™ (Water-Cooled Manifold)
-
Maximum Rating
340 BHP
-
Emissions
EPA and CARB Non-Road Tier 3,EU Stage IIIA, EPA Marine Tier 2, IMO Tier II
-
Displacement
538 in³
C9 ACERT™ (Hazardous Location)
-
Maximum Rating
340 BHP
-
Emissions
EPA and CARB Non-Road Tier 3, EU Stage IIIA, EPA Marine Tier 2, IMO Tier II
-
Displacement
537.96 in³

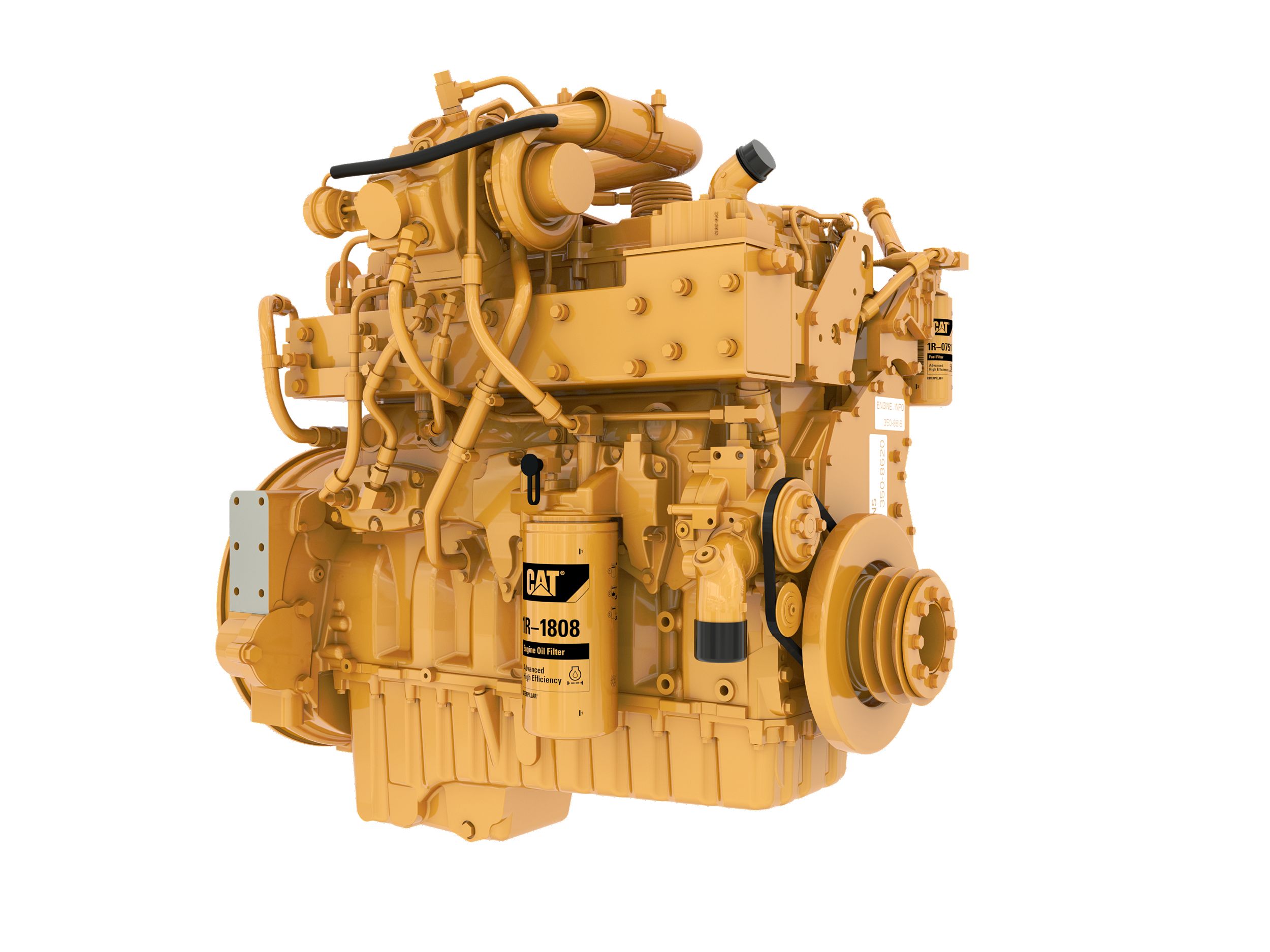

C9 ACERT™ (Dry Manifold)
-
Maximum Rating
375 BHP
-
Emissions
EPA and CARB Non-Road Tier 3, EU Stage IIIA, IMO Tier II
-
Displacement
538 in³
C9.3 ACERT™ (Tier 4 Final)
-
Maximum Rating
400 BHP
-
Emissions
EPA Tier 4 Final and EU Stage IV
-
Displacement
567.5 in³
C11 ACERT™ (Dry Manifold)
-
Maximum Rating
450 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
-
Displacement
681 in³
C13 ACERT™ (Dry Manifold)
-
Maximum Rating
520 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
-
Displacement
760 in³
C13 ACERT™ (Tier 4 Final)
-
Maximum Rating
520 BHP
-
Emissions
EPA Tier 4 Final and EU Stage IV
-
Displacement
762.8 in³
C15 ACERT™ (Water-Cooled Mainfold)
-
Maximum Rating
540 BHP
-
Emissions
IMO Tier II Certified, Marine Tier 2 Certified, Marine Tier 3 Capable
-
Displacement
928 in³
C15 ACERT™ (Dry Manifold)
-
Maximum Rating
595 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
-
Displacement
928 in³
C15 ACERT™ (Tier 4 FINAL)
-
Maximum Rating
580 BHP
-
Emissions
EPA Tier 4 Final and EU Stage IV
-
Displacement
927.6 in³
C18 ACERT™ (Dry Manifold)
-
Maximum Rating
800 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
-
Displacement
1100 in³
C18 ACERT™ (T4 Final)
-
Maximum Rating
800 BHP
-
Emissions
EPA Tier 4 Final and EU Stage IV
-
Displacement
1104 in³

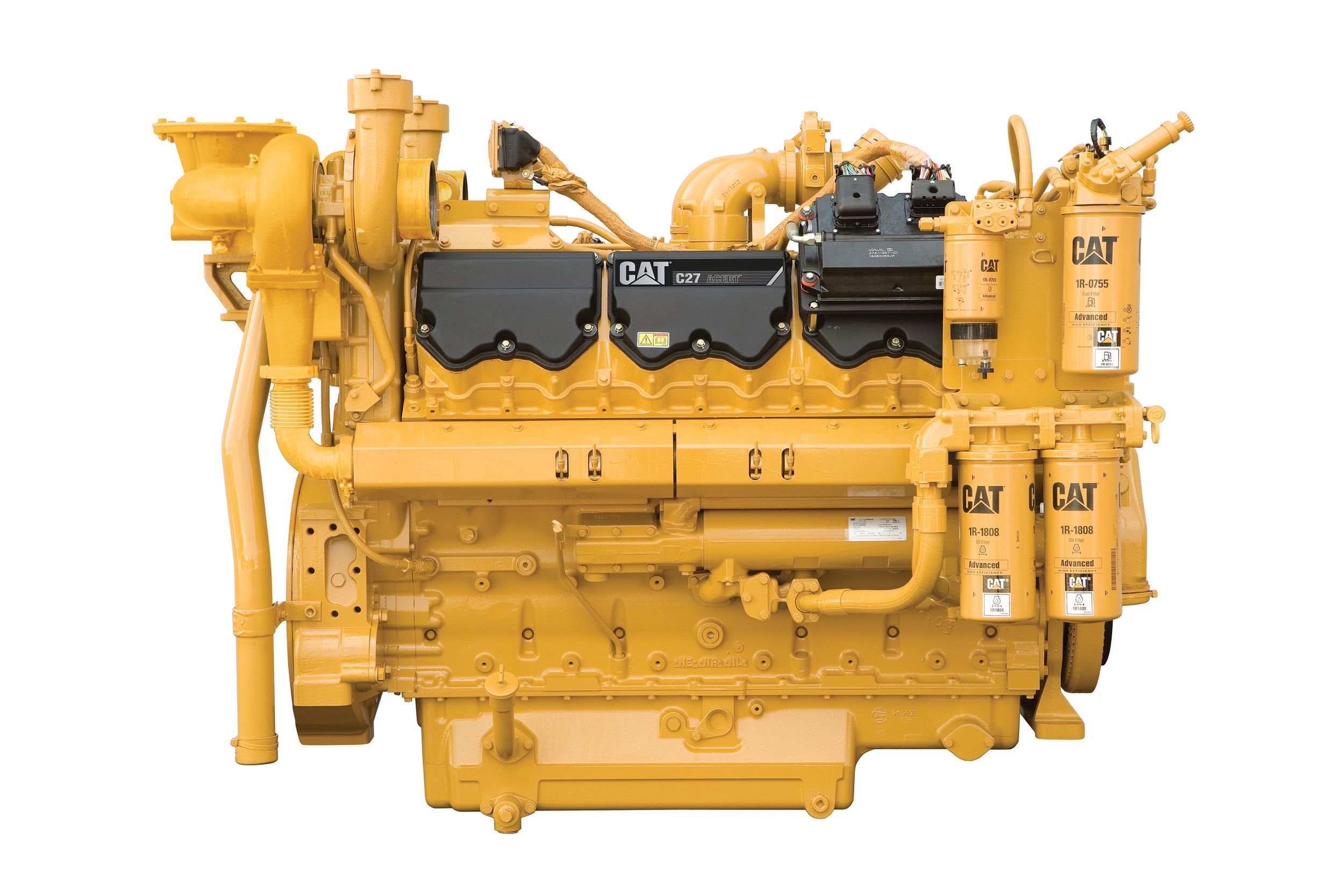

C27 ACERT™ (Tier 4 Final)
-
Maximum Rating
950 BHP
-
Emissions
U.S. EPA Tier 4 Final
-
Displacement
1648 in³
C27 ACERT™ (Dry Manifold)
-
Maximum Rating
1050 BHP
-
Emissions
2006 EPA and CARB Tier 2, and EC Stage II Non-Road emissions certified
-
Displacement
1658 in³

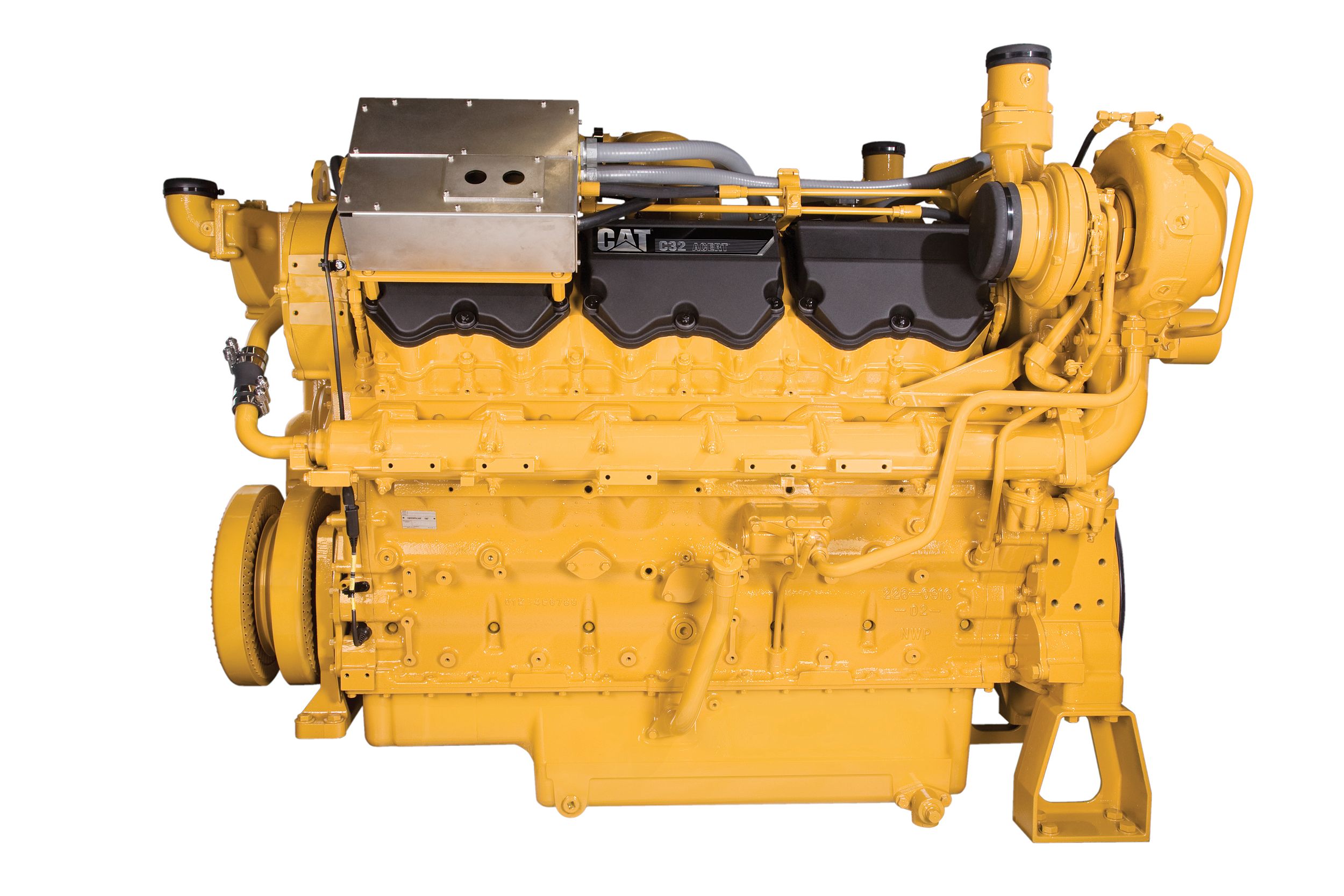

C32 ACERT™ (Hazardous Location)
-
Maximum Rating
1110 BHP
-
Emissions
U.S. Non-Road Tier 2 CARB, IMO Tier II, EPA Marine Tier 2
-
Displacement
1960 in³
C32 ACERT™ (Tier 4 Final)
-
Maximum Rating
1125 BHP
-
Emissions
U.S. EPA Tier 4 Final
-
Displacement
1958 in³
C32 ACERT™ (Water-Cooled Manifold)
-
Maximum Rating
1225 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 2, EPA Marine Tier 2, IMO Tier II, China Stage III
-
Displacement
1960.5 in³
C32 ACERT™ (Dry Manifold)
-
Maximum Rating
1500 BHP
-
Emissions
EPA and CARB Non-Road Mobile Tier 2, IMO Tier II, China Stage III
-
Displacement
1960.5 in³
3512C DGB
-
Maximum Rating
2500 BHP
-
Emissions
Non-current EPA Tier 2
-
Displacement
3574 in³
3512C
-
Maximum Rating
2500 BHP
-
Emissions
Non-current EPA Tier 2 and China Stage III
-
Displacement
3596 in³
3512C HD (Offshore)
-
Maximum Rating
2500 BHP
-
Emissions
IMO Tier II and EPA Marine Tier 2
-
Displacement
58.9 in³
3516C HD
-
Maximum Rating
3300 BHP
-
Emissions
EPA Non-Road Tier 2, IMO II and China Stage III
-
Displacement
3173 in³
3512E Tier 4 Final
-
Maximum Rating
2500 BHP
-
Emissions
Non-Road Mobile EPA Tier 4 Final
-
Displacement
3596 in³
