Caterpillar

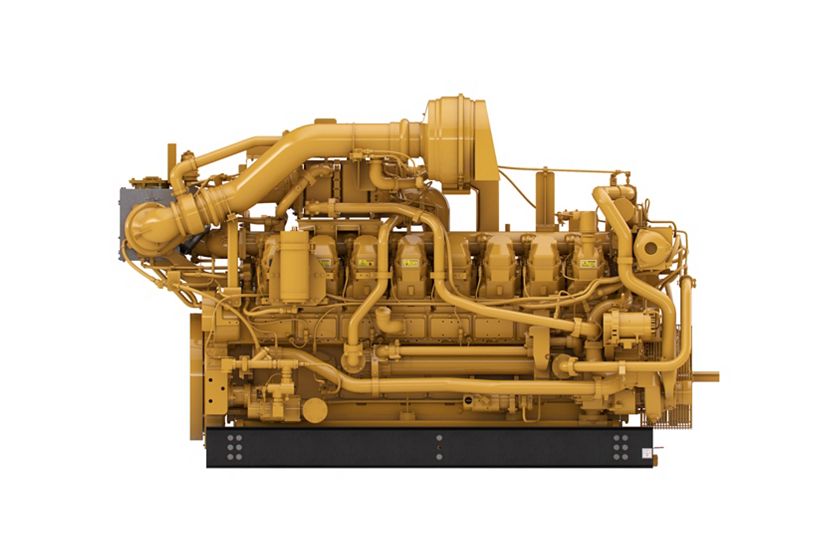

G3516 TA Gas Engine
G3516 TA Gas Engine
Media
Photos
Documents
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 1380 BHP 1029 bkW |
| Emissions | NSPS Site Compliant Capable NSPS Site Compliant Capable |
| Minimum Rating | 660 BHP 492 bkW |
| Bore | 6.7 in 137 mm |
| Stroke | 6 in 152 mm |
Standard Equipment
Air Inlet System
- Intermediate duty air cleaner with service indicator
- Rain shield
Cooling System
- Two-stage charge air cooling: First stage — JW + 1st stage AC; Second stage — OC + 2nd stage AC
- Engine cooling and charge air cooling thermostats
- Jacket water pump, gear driven, centrifugal, non-self-priming
- Atercooler water pump, gear driven, centrifugal, non-self-priming
- Aftercooler with corrosion-resistent stainless steel core
Exhaust System
- Watercooled exhaust manifolds
- Dry turbocharger housing
- Dry exhaust elbow
Flywheels & Housings
- Flywheel, SAE No. 21
- Flywheel housing, SAE No. 00
- SAE standard rotation
Fuel System
- 32 – 35 psig gas supply to engine
- Electronic fuel metering valve
- Gas pressure regulator
- Gas shutoff valve
Instrumentation
- Product Link cellular radio
Lubrication System
- Crankcase breathers – top mounted Oil cooler
- Simplex oil filter – RH
- Shallow oil pan
- Oil sampling valve
- Turbo oil accumulator
Mounting System
- Rails
Power Take-Offs
- Double damper and guard
- Front housing, two sided
- Front lower LH accessory drive
General
- Paint — Cat yellow
- Crankshaft vibration damper and guard
Optional Equipment
Air Inlet System
- Remote air inlet adapter
Charging Alternator
- CSA alternator 24V, 60A
Cooling System
- Jacket water heater
- Mechanical joint assembly connections
Exhaust System
- Flexible fittings
- Elbows
- Flanges
Fuel System
- Fuel filter
- Gas shutoff valve
Instrumentation
- LAN adapter
- Operator interface panel
- Operator interface panel enclosure
- 3′,15′,40′,90′,140′ Product Link extension harness
- 50′, 100′ interconnect harness
Lubrication System
- Lubricating oil
- Oil pan drain
- Air prelube pump
Power Take-Offs
- Single damper and guard
- Front stub shaft
Starting System
- 90 psi starter
- 150 psi starter
General
- Special paint
- Barring Device LH or RH
- Explosion relief valves
- Crankshaft pulley
