Caterpillar
G3306B Gas Compression Engine

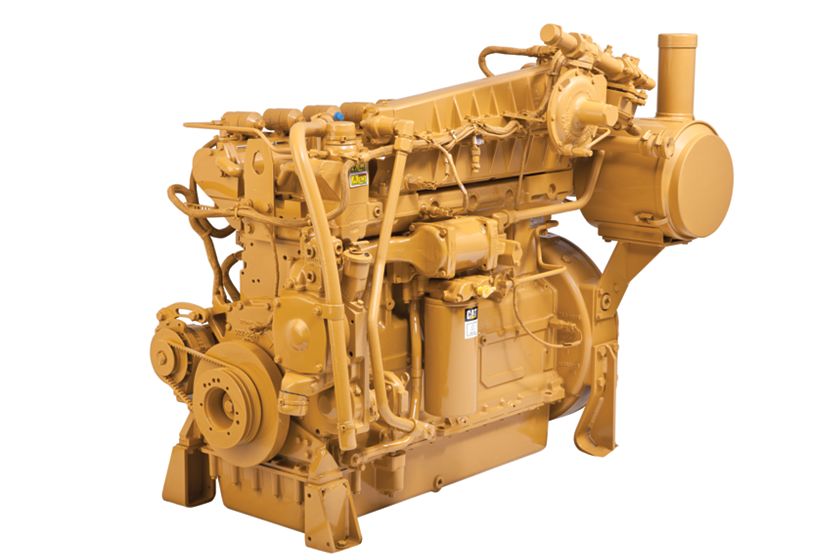

Tough and durable, built on the industry-standard G3300 platform and equipped with technology that brings performance, uptime, and low operating cost to your operation. G3306B engines meet the most demanding continuous duty gas compression applications with virtually no unscheduled downtime. Ideal applications for G3306B engines include gas lift, gas gathering, and wellhead gas compression. Cat G3306B gas engine. Ratings: 108-157 bkW (145-211 bhp) @ 1800 rpm are NSPS site compliant capable with Caterpillar or customer-provided air-fuel ratio control and aftertreatment.
Media
Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Documents
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 211 BHP 157 bkW |
| Emissions | NSPS 2010 NSPS 2010 |
| Displacement | 638 in³ 10.5 l |
| Minimum Rating | 145 BHP 108 bkW |
| Compression Ratio | 10.5:1 10.5:1 |
| Aspiration | Naturally Aspirated or Turbocharged-Aftercooled Naturally Aspirated or Turbocharged-Aftercooled |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Flywheel and Flywheel Housing | SAE No. 1 SAE No. 1 |
| Flywheel Teeth | 156 156 |
| Weight – Dry | 2450 lb 1111 kg |
| Oil Change Interval | 750 hours 750 hours |
| Ignition, Protection | ADEM A4 ADEM A4 |
| Air/Fuel Ratio Control | ADEM A4 ADEM A4 |
| Stroke | 6 in 152 mm |
| Bore | 4.8 in 122.92 mm |
Capacity for Liquids
| Spec | Value |
|---|---|
| Cooling System | 5.25 gal (US) 20 l |
| Lube Oil System – Refill | 11.9 gal (US) 44.5 l |
Standard Equipment
Air Inlet System
- Air cleaner — intermediate duty, dry
- Air cleaner rain cap (shipped loose)
- Service indicator
Control System
- ADEM A4
Cooling System
- Thermostats and housing — full open temperature 97°C (207°F)
- Jacket water pump — gear-driven, centrifugal, non-self-priming
Exhaust System
- Exhaust manifolds — watercooled
- Exhaust elbow — dry
- 102 mm (4 in)
- Three-way catalyst — 1.0 g NOx and 0.5 g NOx catalyst options
Flywheels & Flywheel Housings
- Flywheel, SAE No. 1
- Flywheel housing, SAE No. 1
- SAE standard rotation
Fuel System
- Air/fuel ratio control
- Gas pressure regulator
- Requires 10.3-34.5 kPa (1.5-5 psi) gas
- Natural gas carburetor
Ignition System
- ADEM A4 ignition
Lube System
- Crankcase breather, top mounted
- Oil cooler
- Oil filter
- Oil pan, full sump
- Oil filler and dipstick
Protection System
- The following parameters include alarm and shutdown
Optional Equipment
Charging Alternator
- 24V, 35A alternator
- 24V, 35A CSA alternator*
Cooling System
- Radiators
- Jacket water pump inlet adapter
Exhaust System
- Exhaust flex fitting — ANSI flange
- Exhaust elbow
- Exhaust flange — ANSI flange
Guards
- Fan guard
- Damper guard
Ignition System
- CSA certified electronics and ignition
Instrumentation
- Operator interface panel
- Operator interface panel enclosure
- 15′, 20′ and 50′ interconnect harness
Starting System
- Air pressure regulator
- Air start silencer
- Vane starter
- Electric starter
- Turbine starter
