Caterpillar

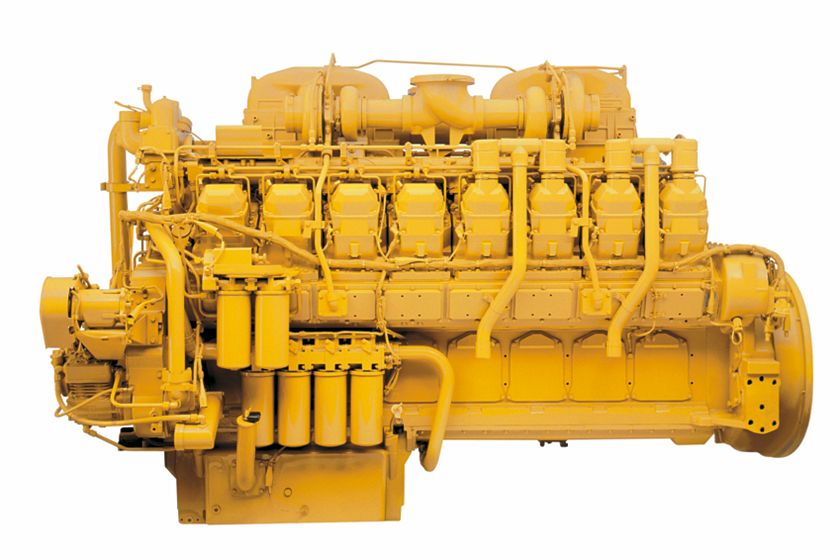

3516 Land Mechanical Drilling Engine
Cat 3516 engines set the standard in the drilling industry. For many years the 3500 has been the preferred choice by drillers due to their high performance, durability, and reliability in the oilfield.The ideal application for the 3512 engine is mechanical drive for land drilling rigs.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.3516 engines, with ratings: 1230 bkW (1649 bhp) @ 1200 rpm. Not emissions certified, available for non-regulated areas.
Media
Photos
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 1649 BHP 1230 bkW |
| Emissions | Non-certified Non-certified |
| Displacement | 4210 in³ 69 l |
| Minimum Rating | 1649 BHP 1230 bkW |
| Bore | 6.69 in 170 mm |
| Stroke | 7.48 in 190 mm |
| Rated Speed | 1200 r/min 1200 r/min |
| Aspiration | Turbocharged-Aftercooled Turbocharged-Aftercooled |
| Governor and Protection | W3161 W3161 |
| Engine Weight – Net Dry | 19090 lb 8659 kg |
| Oil Change Interval | 500 500 |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Flywheel and Flywheel Housing | SAE No. 00 SAE No. 00 |
| Flywheel Teeth | 183 183 |
Capacity for Liquids
| Spec | Value |
|---|---|
| Minimum Cooling System – Engine Only | 61.5 gal (US) 233 l |
Dimensions
| Spec | Value |
|---|---|
| Length | 128 in 3251 mm |
| Width | 67 in 1701 mm |
| Height | 78.9 in 2004 mm |
Standard Equipment
Air Inlet System
- Corrosion-resistant aftercooler core
- Regular duty air cleaner
- Service indicator
Control System
- Governor, Woodward 3161 — RH
- Pneumatic control
- Governor control – positive locking
Cooling System
- Thermostats and housing (dual outlet)
- Jacket water pump, gear driven
Exhaust System
- Dry exhaust manifold
- Exhaust flexible fitting, adapters, and flanges
Flywheel and Housing
- SAE No. 00 flywheel
- SAE No. 00 flywheel housing
- SAE standard rotation
Fuel System
- Fuel filter
- Fuel transfer pump
- Flexible fuel lines
- Fuel priming pump
Instrumentation
- Analog instrument gauges:
Lubrication System
- Crankcase breather
- Oil cooler
- Oil filter
- Shallow oil pan
- Oil drain extension, 2 in NPT female connection
Mounting System
- Rails, mounting, floor type
Power take-offs
- Accessory drive
- Front housing, two-sided
Protection System
- Manual shutoff control, LH
- Junction box
- Safety shutoff protection, energized to shutdown
Starting System
- Air starting motor
- Air silencer
General
- Paint – Cat yellow
- Vibration damper and guard
- Lifting eyes
Optional Equipment
Air Inlet System
- Heavy duty air cleaner
- Remote air inlet adapters
Control System
- Load sharing governor, 2301A
- Load sharing module
- Governor conversion to 0-200 mA direct rack control
- Local speed throttle control
- Throttle position sensors
Cooling System
- High gloss black folded core radiators and conventionalcore radiators
- Belt guard
- Blower fan
- Fan drive and fan pulley
- Radiator cover
- Water level switch gauge
- Air separator
- Coolant level sensors
- Connections
Exhaust System
- Exhaust elbows
- Exhaust mufflers
Fuel System
- Primary fuel filter
Generator and Attachments
- Low voltage extension box
- Potential and current transformers
- Air filter
- Cable access box
- Bearing RTDs
Instrumentation
- Customer management device
- Gauges and instrumentation panels
- Switches and contactors
Lubrication System
- Crankcase fumes disposal
- Oil pan accessories
Power Take-off
- Crankshaft pulley
- Front stub shaft
- Charging alternator
- Air compressor
Protection System
- Explosion relief valves (3)
- Shutoffs
- Switches and contactors
Starting System
- Manual air starter
- Air pressure regulator
General
- Flywheel guard
