Caterpillar

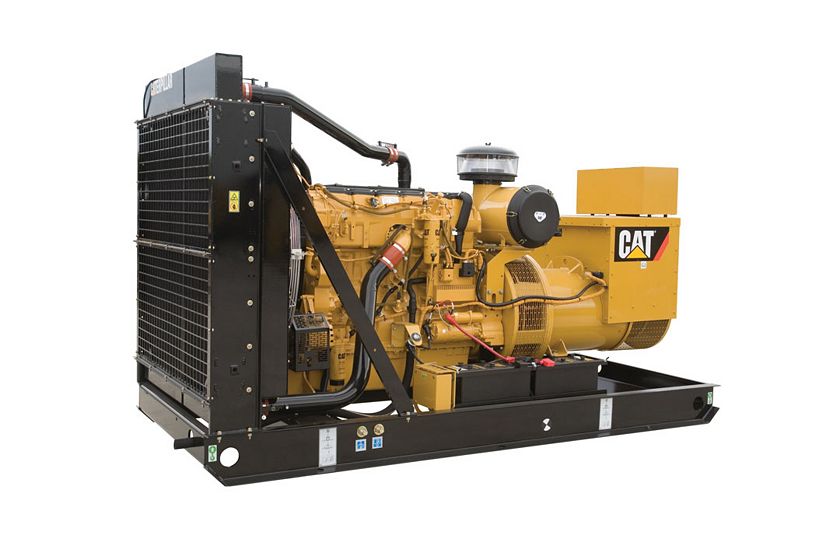

C15 ACERT Tier 2 Oilfield Diesel Generator Set
Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C15 ACERT oilfield diesel generator set. Ratings: 292 – 455 ekW (365 – 570 kVA) @ 50 and 60 Hz (1500 and 1800 rpm) meet China Stage II, U.S. EPA Tier 2 equivalent, EU Stage II equivalent emission standards.
Media
Photos
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 455 ekW (570 kVA) 455 ekW (570 kVA) |
| Minimum Rating | 292 ekW (365 kVA) 292 ekW (365 kVA) |
| Emissions/Fuel Strategy | U.S. EPA Tier 2, U.S. EPA Tier 3, EU Stage II, China Phase II U.S. EPA Tier 2, U.S. EPA Tier 3, EU Stage II, China Phase II |
| Aspiration | Turbocharged, air-to-air aftercooled Turbocharged, air-to-air aftercooled |
| Manifold Type | Dry Dry |
| Bore | 5.4 in 137.2 mm |
| Stroke | 6.75 in 171.4 mm |
| Displacement | 927 in³ 15.2 l |
| Engine Control and Protection | ADEM A4 ADEM A4 |
| Generator Set Control | EMCP 3.1 EMCP 3.1 |
| Generator | SR4B SR4B |
| Fuel System | MEUI MEUI |
| Frequency – Speed | 50/60 Hz (1500/1800 rpm) 50/60 Hz (1500/1800 rpm) |
Capacity for Liquids
| Spec | Value |
|---|---|
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Length | 138.5 in 3518 mm |
| Width | 60 in 1524 mm |
| Height | 83.1 in 2110 mm |
| Weight | 10500 lb 4760 kg |
Standard Equipment
Air Inlet System
- Heavy-duty air filter
Cooling System
- Radiator package mounted (50° C)
- Coolant drain line with valve at edge of base
- Coolant level sensor
- Fan and belt guards
- Coolant level sight gauge
- Cat Extended Life Coolant
Exhaust System
- Dry exhaust manifold
- Flanged faced outlets
- Stainless steel flex with split-cuff connection
Fuel System
- Primary fuel filter with integral water separator
- Secondary fuel filters
- Fuel priming pump
- Flex fuel lines
Generator
- SR4B brushless, single-bearing, self-excited
- Class H insulation
- Random wound
- IP23 protection
- CDVR 3-phase sensing with selectable volts/Hz
- 3 sensing CTs and one droop CT
- Coastal protection
Generator Attachments
- RH extended cable access box
Controls
- ADEM A4 ECU
- EMCP 3 Control Panel
Lube System
- Deep sump (60 L) — 500-hour service interval
- High efficiency oil filter
- Oil drain valves
- Fumes disposal
- Gear-type lube oil pump
Mounting System
- Steel base frame (skidable)
- Linear vibration isolation — seismic zone 4
Starting/Charging System
- 24-volt starting motor
- 45-amp charging alternator
- Battery rack
General
- Paint — Caterpillar yellow except rails and radiators (gloss black)
- Flywheel and flywheel housing — SAE No. 1
- Vibration damper with pulley
- Engine lifting eyes
Optional Equipment
Air Inlet System
- Precleaner
Exhaust System
- Mufflers
- Manifold and turbocharger guards
- Elbows
Generator
- Permanent magnet excitation
- Oversize and premium generators
- Anti-condensation space heaters available with permanent magnet excitation generators
- Top and bottom power cable entry
Starting/Charging System
- Jacket water heater with shutoff valves
- Battery disconnect switch
- Battery rack with heavy duty batteries
