Caterpillar

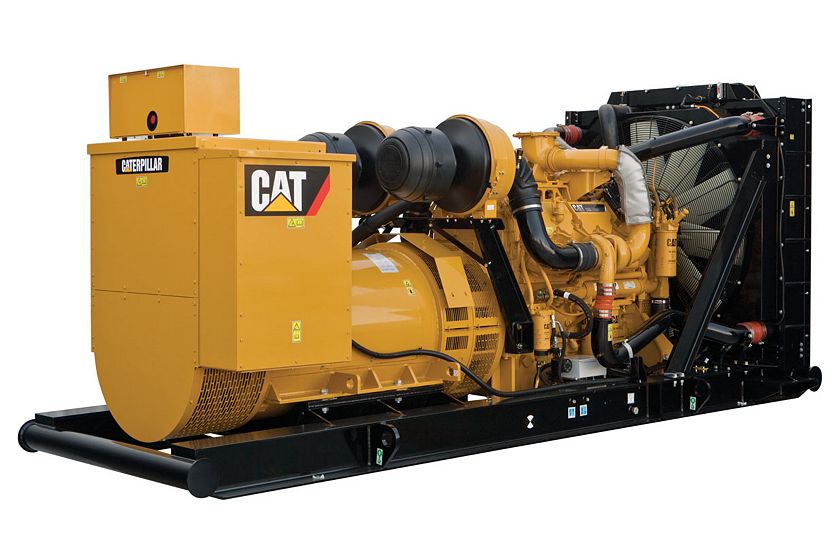

C27 ACERT Tier 4i Oilfield Diesel Generator Set
Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C27 ACERT oilfield diesel generator set. Ratings: 725 ekW (1035 kVA) @ 60 Hz (1800 rpm) meets U.S. EPA Tier 4 interim emission standards.
Media
Photos
Documents
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 725 ekW (907 - 1035 kVA) 725 ekW (907 - 1035 kVA) |
| Minimum Rating | 725 ekW (907 - 1035 kVA) 725 ekW (907 - 1035 kVA) |
| Emissions/Fuel Strategy | U.S. EPA Tier 2, U.S. EPA Tier 4 interim U.S. EPA Tier 2, U.S. EPA Tier 4 interim |
| Aspiration | Turbocharged, aftercooled Turbocharged, aftercooled |
| Manifold Type | Dry Dry |
| Bore | 5.4 in 137.2 mm |
| Stroke | 6 in 152.4 mm |
| Displacement | 1648 in³ 27 l |
| Engine Control and Protection | ADEM A4 ADEM A4 |
| Generator Set Control | EMCP 4.2 EMCP 4.2 |
| Generator | SR4B SR4B |
| Fuel System | MEUI MEUI |
| Frequency – Speed | 60 Hz (1800 rpm) 60 Hz (1800 rpm) |
Capacity for Liquids
| Spec | Value |
|---|---|
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Length | 186 in 4725 mm |
| Width | 77 in 1950 mm |
| Height | 86 in 2180 mm |
| Weight | 20000 lb 9072 kg |
Standard Equipment
Air Inlet System
- Heavy-duty dual element air cleaner
- Service indicator
Cooling System
- Radiator package mounted (50° C)
- Side-by-side cores
- Coolant drain line with valve at edge of base
- Coolant level sight gauge
- Fan and belt guards
- Cat Extended Life Coolant
- Metal top and bottom tanks
Exhaust System
- Dry exhaust manifold
Fuel System
- Primary fuel filter
- Secondary fuel filter
- Fuel priming pump
- Fuel transfer pump
Generator
- SR4B
- Class H insulation
- Random wound
- IP23 protection
- Cat DVR
- Permanent magnet excitation
- Two-bearing, close coupled alignment
Controls
- ADEM A4 ECU
- EMCP 4.2 control panel
- Emergency stop pushbutton
Lube System
- Oil cooler
- High efficiency oil filter
- Oil drain valves
- Fumes disposal
- Gear-type lube oil pump
Mounting System
- Heavy-duty oilfield welded steel base (skiddable)
- Anti-vibration mounts
- Designed welded base for increased durability (C-channel design)
Starting/Charging System
- 24-volt starting motor
- 45-amp charging alternator
General
- Paint — Caterpillar yellow except rails and radiators (gloss black)
- Flywheel and flywheel housing — SAE No. 0
- Engine lifting eyes
Optional Equipment
Air Inlet System
- Pre-cleaners
Control System
- Direct rack control
Cooling System
- Jacket water heater
Exhaust System
- Manifold and turbocharger guards
- Expander
Generator
- Self excited
Starting/Charging System
- Air starting motor
Mounting System
- Short base – 4725 mm (186 in) total length (does not include drag bars)
