Caterpillar

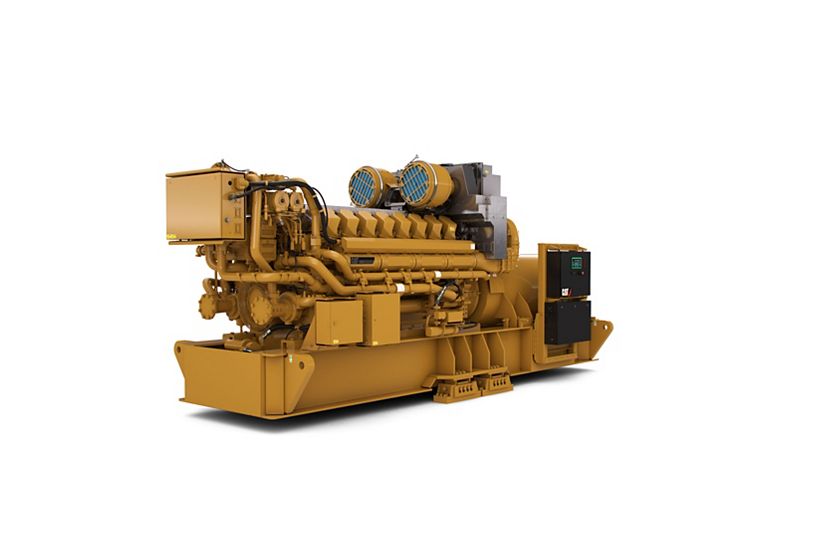

C175-16 Offshore Generator Set
Caterpillar can help you navigate the challenges in the oil and gas industry, including global competition, tightening emission standards, and high productivity demands. The Cat® C175 delivers more reliable power in less space than any other generator set in its class. As efficient as it is powerful, this compact package will make a huge impact on your rig’s performance. The proven success of the 3500 series engines forms the foundation of the Cat C175 diesel engine. Low owning and operating costs, high endurance components, and outstanding serviceability add to the innovations. The Cat Alarm and Protection System integrates with dual ADEM A4 engine control modules to provide redundant engine control, generator set protection, and a simple operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat C175-16 offshore generator set. Ratings: 1833-2660 ekW 2619-3325 kVA) @ 50/60 Hz (1500/1200/1800 rpm). U.S. EPA Marine Tier 2 certified and IMO Tier II emissions compliant.
Media
Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Minimum Rating | 2619 kV·A 1833 ekW |
| Maximum Rating | 3325 kV·A 2660 ekW |
| Emissions | Available in IMO Tier II/ EPA Marine Tier 2 configurations Available in IMO Tier II/ EPA Marine Tier 2 configurations |
| Stroke | 8.66 in 220 mm |
| Weight | 53599 lb 24312 kg |
| Oil Change Interval | 1000 h 1000 h |
| Fuel System | Common Rail/EUI™ Common Rail/EUI™ |
| Engine Control | Dual ADEM™ A4 Dual ADEM™ A4 |
| Generator Set Control | MPD 3.0 / Cat® Alarm and Protection System MPD 3.0 / Cat® Alarm and Protection System |
| Bore | 6.89 in 175 mm |
| Displacement | 5167 in³ 85 l |
| Aspiration | Turbocharged/2-stage aftercooled Turbocharged/2-stage aftercooled |
| Speed | 1200/1500/1800 rpm 1200/1500/1800 rpm |
Dimensions
| Spec | Value |
|---|---|
| Height | 50 Hz - 2928 (115 in) / 60 Hz - 2916 mm ( 115 in) 50 Hz - 2928 (115 in) / 60 Hz - 2916 mm ( 115 in) |
| Width | 50 Hz - 2413 mm (95 in) / 60 Hz - 2125 mm (84 in) 50 Hz - 2413 mm (95 in) / 60 Hz - 2125 mm (84 in) |
| Length | 50 Hz - 6782 mm (267 in) / 60 Hz - 6742 mm (265 in) 50 Hz - 6782 mm (267 in) / 60 Hz - 6742 mm (265 in) |
Capacity for Liquids
| Spec | Value |
|---|---|
| Cooling System – Engine | 92 gal (US) 77 l |
| Lube Oil System – Refill | 250 gal (US) 946 l |
Standard Equipment
Air Inlet System
- Dual turbochargers
- Corrosion-resistant aftercooler core
- Air cleaners — single or dual element
Exhaust System
- Dry exhaust manifolds with thermo-laminated heat shields
- Dual turbochargers with water-cooled bearings and thermo-laminated heat shields
- Vertical exhaust outlet
- Flange and exhaust expanders
Cooling System
- Separate-circuit-aftercooler (SCAC) and jacket water (JW) circuit cooling system
- Gear-driven centrifugal pumps, one for each circuit
- SCAC electronic thermostat, outlet-controlled with aftercooler inlet temperature sensing
- JW electronic thermostat, outlet-controlled with outlet temperature sensing
- Engine oil cooler in JW circuit
Fuel System
- Cat common rail high-pressure fuel system with electronically controlled unit injectors
- Duplex primary fuel filter with water separator
- Duplex secondary/tertiary fuel filters
- Electric fuel priming pump
- Gear-driven low pressure transfer pump
- Gear-driven high pressure transfer pump
- Double-walled high pressure fuel lines
- Fuel pressure, temperature, and leak detection sensors
Lubrication System
- Engine-driven, gear-type oil pump
- Integral lube oil cooler
- Front-mounted oil drain lines and valve
- Oil sampling valve
- Filler and dipstick
- Four-canister simplex oil filter
- Prelube pump — electric, air, or custom
- Fumes disposal with crankcase breathers
- Crankcase explosion relief valves
Engine Control and Protection
- Dual ADEM A4 engine control unit (ECU) for redundancy
- Software monitors engine parameters and performs alarm, derate, and shutdown functions
- Rigid wiring harness
- Marine Power Display 3.0 (MPD 3.0)
Mounting
- Inner-outer base with vibration isolators
Generator
- Kato brushless permanent magnet 6P6.6-3200 HR
- 2-bearing, close-coupled arrangement
- 60 Hz, 600V, 0.7 PF
- UL/CSA listed, IP23
Flywheel and Coupling
- Flywheel housing, SAE No. 00
- Flywheel, SAE No. 00
- ABS certified, non-certified, or custom-coupling and coupling mounting
- Free-standing or close-coupled generator set arrangements
Starting System
- Turbine air starter or
- Dual electric starting motors or
- Air and electric starting motors (redundant)
General
- Power distribution box — 24V or custom
- 20A battery charger
- Cat yellow paint
- Offshore oil field sub-base
- Integral spring isolators with limit stop
- Lift provisions on base
- Oil drain extension
- Engine length drip pan with drain
- Torsional dampened driveline couplings
Optional Equipment
Air Inlet System
- Air cleaner service indicator
Cooling System
- 9 kW, 240V, 60 hz jacket water heater
- Custom jacket water heater
Fuel System
- Four canister duplex oil filter
Engine Control and Protection
- Cat Alarm and Protection System
- Communication module PL1000T/E
- Direct-rack control
- Thermocouples
- Metal particle detector
- SOLAS spray shielding
Mounting
- Custom I-beam base with vibration isolators
Generator
- Custom generator
General
- TVA report
- Special tests
- Project-specific installation drawings
- P&ID-electrical drawings
- Spare parts kit
- Barring group
- Engine lifting group
- Custom generators and radiators
