3508B Offshore Generator Set

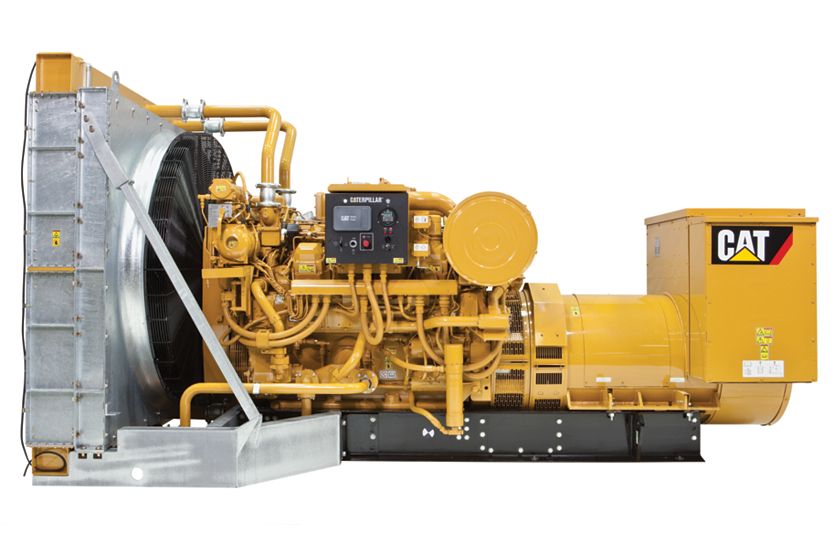

Cat 3500 offshore generator sets are specifically designed for drilling and production operations offshore. Decades of experience powering offshore vessels and platforms make have evolved into a product that offers proven performance, low emissions, high durability, and low owning and operating costs.Applications for 3500 offshore generator sets include main power, essential services power, and emergency power on-board drilling and production rigs and vessels.Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat® 3508B offshore generator set. Ratings: 590-910 ekW (738-1138 kVA) @ 50/60 Hz (1000/1200/1500/1800 rpm). Meets IMO Tier I emission standards equivalent.
Media
Photos
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Minimum Rating | 738 kV·A 590 ekW |
| Maximum Rating | 1138 kV·A 910 ekW |
| Emissions | IMO Tier I IMO Tier I |
| Bore | 6.7 in 170 mm |
| Displacement | 2116 in³ 35 l |
| Stroke | 7.5 in 190 mm |
| Fuel System | EUI EUI |
| Engine Control | ADEM A3 ADEM A3 |
| Oil Change Interval | 1000 h 1000 h |
| Weight | 27503 lb 12475 kg |
| Aspiration | TUrbocharged-Aftercooled TUrbocharged-Aftercooled |
Dimensions
| Spec | Value |
|---|---|
| Height | 80.6 in 2048 mm |
| Width | 70.2 in 1784 mm |
| Length | 158.7 in 4031 mm |
Capacity for Liquids
| Spec | Value |
|---|---|
| Cooling System – Engine | 81.6 gal (US) 309 l |
| Lube Oil System – Refill | 60 gal (US) 227 l |
Standard Equipment
AIR INLET SYSTEM
- Separate Circuit aftercooler core, corrosion resistant coated(air side)Air cleaner, regular dutyDual Turbochargers, 152 mm (6 in) OD straight connection
CONTROL SYSTEM
- Caterpillar A-III Electronic Engine Control, LHwith Electronic Unit Injector Fuel SystemRigid Wiring Harness(10 amp DC power required to drive Electronic Engine Control Module)
COOLING SYSTEM
- Outlet controlled thermostat and housing, full opentemperature 92°C (198°F)
- Jacket water pump, gear driven
- Single water outlet connection, includes flange:143 mm (5.6″)
- Aftercooler fresh water cooling pump (SCAC), gear drivencentrifugal
- SCAC pump circuit contains a thermostat to keep theaftercooler coolant from falling below 30°C (85°F)
EXHAUST SYSTEM
- Dry gas tight exhaust manifolds with heat shieldsDual Turbochargers with watercooled bearings and heat shieldsExhaust outlet, vertical, 203 mm (8 in) round flanged outlet
FLYWHEELS & FLYWHEEL HOUSINGS
- Flywheel, SAE No. 00, 183 teethFlywheel housing, SAE No. 00
FUEL SYSTEM
- Fuel filter
- Fuel transfer pump
- Electronically Controlled Unit Injectors
- Fuel priming pump, LH
- Rigid fuel return line with customer connection point asbase of engine
INSTRUMENTATION
- Overspeed shutdown notification light, Emergency stop notification light
- Graphical Unit (Marine Power Display) for analog or digital displayof:
LUBE SYSTEM
- Crankcase breather, top mounted
- Oil cooler
- Oil filter and dipstick, LH
- Oil pump, gear-type
- Oil pan drain valve, 2″ NPT female connection
PROTECTION SYSTEM
- A-III Electronic Monitoring System provides customer programmableengine de-ration strategies to protect against adverse operatingconditions
- Emergency stop push button (located in Electronic Instrument Panel)Safety shutoff protection:
STARTING SYSTEM
- Air starting motor, RH, 620 to 1034 kPa (90 to 150 psi),LH control
- Air silencer
GENERAL
- Paint, Caterpillar yellow, with black rails
- Vibration damper and guard
- Lifting eyes
- Engine and generator, three-point mounted to sub-base
- Lift provisions on base
- Oil drain extension
- Engine length drip pan
Optional Equipment
AIR INLET SYSTEM
- Remote Air Inlet Adapters
CHARGING SYSTEM
- Battery Chargers
- Charging Alternators
CONTROL SYSTEM
- Load Sharing module
- Local speed throttle control
- Direct rack control interface, 0-200 mA DC control
COOLING SYSTEM
- Coolant level sensors
- Connections
- Air separator
EXHAUST SYSTEM
- Flexible fittings
- Elbows
- Flanges
- Flange and exhaust expanders
- Mufflers
FUEL SYSTEM
- Fuel Cooler
- Primary fuel filter
- Fuel filters
- Duplex fuel filters
- Fuel level switch
GENERATOR ATTACHMENTS
- Air filter — generator
- Bearing temperature detectors
- Cable access box
- Manual voltage control
INSTRUMENTATION
- PL1000T Communication Module
- PL1000E Communication Module
- Customer Interface Box
- Remote panel display
- Remote cylinder temperature display
- Exhaust temperature thermocouples
- Discrete I/O module
- Intake manifold temperature sensors
- Oil temperature sensor
LUBE SYSTEM
- Duplex oil filter
- Bypass centrifugal oil filter
- 500-hour oil pan
- Emergency lube oil connections
- Oil level regulator
- Prelube
- Sump pump
MOUNTING SYSTEM
- Vibration isolators
POWER TAKE-OFFS
- Auxiliary drive shafts and pulleys
STARTING SYSTEM
- Air or electric starting motor
- Redundant start with select switch
PROTECTION SYSTEM
- Spray shielding
- Crankcase explosion relief valve
- Metal particle detector
GENERAL
- Jacket water heater
