3512B Offshore Generator Set

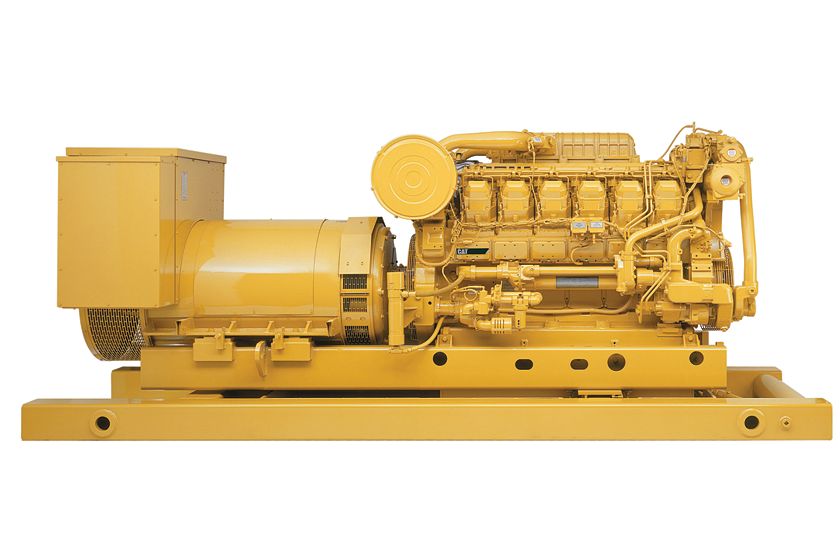

Cat 3500 offshore generator sets are specifically designed for drilling and production operations offshore. Decades of experience powering offshore vessels and platforms make have evolved into a product that offers proven performance, low emissions, high durability, and low owning and operating costs.Applications for 3500 offshore generator sets include main power, essential services power, and emergency power on-board drilling and production rigs and vessels.Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat 3512B offshore generator set. Ratings: 880-1360 ekW (1100-1943 kVA) @ 50/60 Hz (1000/1200/1500/1800 rpm). Meets IMO Tier I emission standards equivalent. Select ratings meet IMO Tier II emission standards.

Media

Photos

Features

Details

Specifications

Spec Value
Minimum Rating 1100 kV·A 880 ekW
Maximum Rating 1943 kV·A 1360 ekW
Emissions IMO Tier I IMO Tier I
Weight 33014 lb 14975 kg
Stroke 7.5 in 190 mm
Displacement 3175 in³ 52 l
Bore 6.7 in 170 mm
Oil Change Interval 1000 h 1000 h
Engine Control ADEM A3 ADEM A3
Aspiration Turbocharged-Aftercooled Turbocharged-Aftercooled
Fuel System EUI EUI
Spec Value
Height 86.9 in 2207 mm
Length 190.6 in 4842 mm
Width 78.3 in 1988 mm
Spec Value
Cooling System – Engine 106 gal (US) 401 l
Lube Oil System – Refill 84 gal (US) 318 l

Standard Equipment

AIR INLET SYSTEM

  • Separate Circuit aftercooler core, corrosion resistant coated(air side)Air cleaner, regular dutyDual Turbochargers, 152 mm (6 in) OD straight connection

CONTROL SYSTEM

  • Caterpillar A-III Electronic Engine Control, LHwith Electronic Unit Injector Fuel SystemRigid Wiring Harness(10 amp DC power required to drive Electronic Engine Control Module)

COOLING SYSTEM

  • Outlet controlled thermostat and housing, full opentemperature 92°C (198°F)
  • Jacket water pump, gear driven
  • Single water outlet connection, includes flange:143 mm (5.6″)
  • Aftercooler fresh water cooling pump (SCAC), gear drivencentrifugal
  • SCAC pump circuit contains a thermostat to keep theaftercooler coolant from falling below 30°C (85°F)

EXHAUST SYSTEM

  • Dry gas tight exhaust manifolds with heat shieldsDual Turbochargers with watercooled bearings and heat shieldsExhaust outlet, vertical, 203 mm (8 in) round flanged outlet

FLYWHEELS & FLYWHEEL HOUSINGS

  • Flywheel, SAE No. 00, 183 teethFlywheel housing, SAE No. 00

FUEL SYSTEM

  • Fuel filter
  • Fuel transfer pump
  • Electronically Controlled Unit Injectors
  • Fuel priming pump, LH
  • Rigid fuel return line with customer connection point asbase of engine

INSTRUMENTATION

  • Overspeed shutdown notification light, Emergency stop notification light
  • Graphical Unit (Marine Power Display) for analog or digital displayof:

LUBE SYSTEM

  • Crankcase breather, top mounted
  • Oil cooler
  • Oil filter and dipstick, LH
  • Oil pump, gear-type
  • Oil pan drain valve, 2″ NPT female connection

PROTECTION SYSTEM

  • A-III Electronic Monitoring System provides customer programmableengine de-ration strategies to protect against adverse operatingconditions
  • Emergency stop push button (located in Electronic Instrument Panel)Safety shutoff protection:

STARTING SYSTEM

  • Air starting motor, RH, 620 to 1034 kPa (90 to 150 psi),LH control
  • Air silencer

GENERAL

  • Paint, Caterpillar yellow, with black rails
  • Vibration damper and guard
  • Lifting eyes
  • Engine and generator, three-point mounted to sub-base
  • Lift provisions on base
  • Oil drain extension
  • Engine length drip pan

Optional Equipment

AIR INLET SYSTEM

  • Remote Air Inlet Adapters

CHARGING SYSTEM

  • Battery Chargers
  • Charging Alternators

CONTROL SYSTEM

  • Load Sharing module
  • Local speed throttle control
  • Direct rack control interface, 0-200 mA DC control

COOLING SYSTEM

  • Coolant level sensors
  • Connections
  • Air separator

EXHAUST SYSTEM

  • Flexible fittings
  • Elbows
  • Flanges
  • Flange and exhaust expanders
  • Mufflers

FUEL SYSTEM

  • Fuel Cooler
  • Primary fuel filter
  • Fuel filters
  • Duplex fuel filters
  • Fuel level switch

GENERATOR ATTACHMENTS

  • Air filter — generator
  • Bearing temperature detectors
  • Cable access box
  • Manual voltage control

INSTRUMENTATION

  • PL1000T Communication Module
  • PL1000E Communication Module
  • Customer Interface Box
  • Remote panel display
  • Remote cylinder temperature display
  • Exhaust temperature thermocouples
  • Discrete I/O module
  • Intake manifold temperature sensors
  • Oil temperature sensor

LUBE SYSTEM

  • Duplex oil filter
  • Bypass centrifugal oil filter
  • 500-hour oil pan
  • Emergency lube oil connections
  • Oil level regulator
  • Prelube
  • Sump pump

MOUNTING SYSTEM

  • Vibration isolators

POWER TAKE-OFFS

  • Auxiliary drive shafts and pulleys

STARTING SYSTEM

  • Air or electric starting motor
  • Redundant start with select switch

PROTECTION SYSTEM

  • Spray shielding
  • Crankcase explosion relief valve
  • Metal particle detector

GENERAL

  • Jacket water heater
