3516C Offshore Generator Set

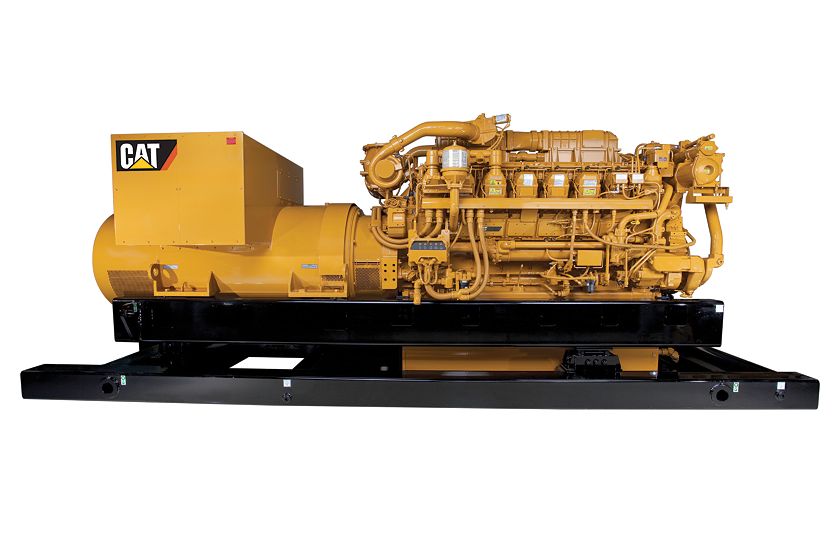

Cat 3500 offshore generator sets are specifically designed for drilling and production operations offshore. Decades of experience powering offshore vessels and platforms make have evolved into a product that offers proven performance, low emissions, high durability, and low owning and operating costs.Applications for 3500 offshore generator sets include main power, essential services power, and emergency power on-board drilling and production rigs and vessels.Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat 3516C offshore generator set. Ratings: 1631-1843 ekW (2039-2304 kVA) @ 50 Hz (1500 rpm). Meets IMO Tier II emission standards.
Media
Photos
Documents
Details
Specifications
Engine Specifications
| Spec | Value |
|---|---|
| Minimum Rating | 2039 kV·A 1631 ekW |
| Maximum Rating | 2304 kV·A 1843 ekW |
| Emissions | IMO Tier II IMO Tier II |
| Engine Control | ADEM A3 ADEM A3 |
| Oil Change Interval | 1000 h 1000 h |
| Displacement | 4233 in³ 69 l |
| Aspiration | Turbocharged-Aftercooled Turbocharged-Aftercooled |
| Bore | 6.7 in 170 mm |
| Stroke | 7.5 in 190 mm |
| Weight | 41400 lb 18800 kg |
| Fuel System | EUI EUI |
Dimensions
| Spec | Value |
|---|---|
| Width | 78.3 in 1988 mm |
| Length | 264 in 6705 mm |
| Height | 99.9 in 1537 mm |
Capacity for Liquids
| Spec | Value |
|---|---|
| Lube Oil System – Refill | 107 gal (US) 405 l |
| Cooling System – Engine | 62 gal (US) 234.7 l |
Standard Equipment
AIR INLET SYSTEM
- Corrosion resistant separate circuit aftercooler core, regular dutyair cleaners, dual turbochargers
CONTROL SYSTEM
- Caterpillar A-III electronic engine control, Electronic UnitInjection fuel system, rigid wiring harness
COOLING SYSTEM
- Auxiliary fresh water pump, centrifugal non-self-priming auxiliarysea water pump, gear driven centrifugal jacket water pump,expansion tank, engine oil cooler, thermostats and housing
EXHAUST SYSTEM
- Dry gas-tight exhaust manifolds with heat shields, dualturbochargers with water-cooled bearings and heat shields,vertical exhaust outlet
FLYWHEELS & FLYWHEEL HOUSINGS
- Flywheel, SAE No. 00, 183 teethFlywheel housing, SAE No. 00
FUEL SYSTEM
- Fuel filter, RH, with service indicators
- Fuel transfer pump
- Electronically Controlled Unit Injectors
INSTRUMENTATION
- Engine mounted instrument panel with four position switch, overspeed shutdown notification light, emergency stop notificationlight, graphical display unit for analog or digital display of: oil andfuel pressure, oil and fuel filter differential, system DC voltage,exhaust and water temperature, air inlet restriction, servicemeter, engine speed, fuel consumption (total and instantaneous)
LUBE SYSTEM
- Top mounted crankcase breather, RH oil filter, RH oil filler,gear type oil pump, deep sump oil pan, recommended use ofCaterpillar Diesel Engine Oil 10W30 or 15W40
MOUNTING SYSTEM
- Industrial type engine mounting rails)
POWER TAKE-OFFS
- Accessory driveLower RH, Lower LHFront housing, Two-sided
PROTECTION SYSTEM
- A-III Electronic Monitoring System provides customer programmableengine de-ration strategies to protect against adverse operatingconditions
- Emergency stop push button (located in Electronic Instrument Panel)Safety shutoff protection for oil pressure and water temperature, overspeed protection
GENERAL
- Vibration damper and guardPaint, Caterpillar Yellow engine with black rails.Lifting eyes
Optional Equipment
AIR INLET SYSTEM
- Air Cleaner Removal
- Remote Air Inlet Adapters
CHARGING SYSTEM
- Battery Chargers
- Charging Alternators
CONTROL SYSTEM
- Load Sharing module
- Local speed throttle control
COOLING SYSTEM
- Water level switch gauge
- Coolant level sensors
- Connections
- Keel Cooling Conversions
- Radiator cooling conversion
- Heat exchangers
- Auxiliary water pumps
- Sea water pump removal
- Air separator
EXHAUST SYSTEM
- Exhaust outlet
- Flexible fittings
- Elbows
- Flanges
- Flange and exhaust expanders
- Mufflers
FUEL SYSTEM
- Fuel Cooler
- Fuel priming pumps
- Flexible fuel lines
- Rigid Fuel Lines
- Primary fuel filter
- Fuel level switch
GENERATORS AND GENERATOR ATTACHMENTS
- INSTALLED GENERATOR ARRANGEMENTS F/MAR AUX ENGINES
- INSTALLED GENERATOR ARRANGEMENTS F/MAR AUX ENGINES
INSTRUMENTATION
- PL1000T Communication Module
- PL1000E Communication Module
- Customer Interface Box
- Thermocouples
- Remote panel display
- Remote cylinder temperature display
LUBE SYSTEM
- Oil Pan
- Oil pan accessories
- Sump pumps
- Prelubrication Options
- Lubricating oil
- Centrifugal Oil Filter
MOUNTING SYSTEM
- Vibration isolators
- Rails
POWER TAKE-OFFS
- Flywheel guard
- Flexible coupling
- Coupling hub
- Front housing accessories
- Upper left hand front location
- Upper left hand rear location
- Upper right hand front location:
- Upper right hand rear location
- Lower left hand front location
- Front housing accessory drives
- Front power take-offs
- Crankshaft pulleys
- Damper guard removals
PROTECTION SYSTEM
- Air inlet shutoffs
- Switches and contactors
- Explosion relief valve
- Sensors
SPARE PART KITS
- Engine Parts Kits
STARTING SYSTEM
- Starting motors or barring divice
- Air starting motors options
- Starting aids
- Battery sets – 24 volt – Dry
- Battery rack
GENERAL
- Tool set
- Caterpillar datalink wire
SVCE TOOLS/SHIP PROT/FACTORY SUPPORT
- Commissioning
