3516C (HD) CI/D2 Hazardous Location

Cat 3500 offshore generator sets are specifically designed for drilling and production operations offshore. Decades of experience powering offshore vessels and platforms make have evolved into a product that offers proven performance, low emissions, high durability, and low owning and operating costs. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat 3516C (HD) Class I/ Division 2 offshore generator set ratings: 1285-1530 ekW @ 60 Hz (1200 rpm) and 2250 ekW @ 60 Hz (1800 rpm).

Media

Photos

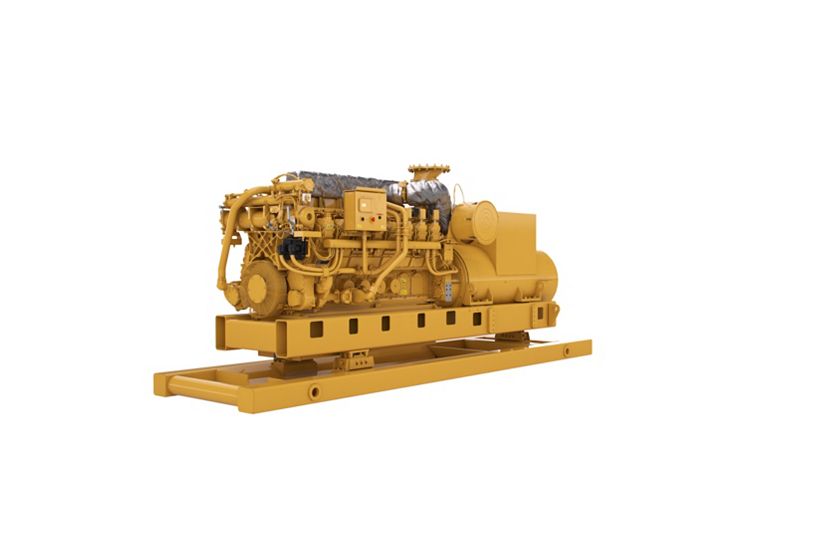

3516C (HD) Offshore Generator Set
3516C (HD) Offshore Generator Set

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Custom Packaging

Product Support Offered Through the Global Cat Dealer Network

Over 80 Years of Engine Manufacturing Experience

Over 80 Years of Engine Manufacturing Experience

Web Site

Details

Specifications

Spec Value
Minimum Rating 2625 kV·A 2100 ekW
Maximum Rating 2625 kV·A 2100 ekW
Emissions EPA Tier 2, IMO Tier II EPA Tier 2, IMO Tier II
Engine Control ADEM A4 ADEM A4
Bore 6.7 in 170 mm
Weight 38581 lb 17500 kg
Displacement 4764 in³ 78 l
Fuel System EUI EUI
Stroke 8.5 in 215 mm
Aspiration Dual Turbocharged-Aftercooled Dual Turbocharged-Aftercooled
Spec Value
Length 264 in 6705 mm
Height 99.8 in 2535 mm
Width 78.2 in 1986 mm
Spec Value
Lube Oil System – Refill 107 gal (US) 405 l
Cooling System – Engine 62 gal (US) 234.7 l

Standard Equipment

AIR INLET SYSTEM

  • Aftercooler core, corrosion resistant (air side)
  • Air cleaner, regular duty with service indicators
  • Dual turbochargers, rear mounted

CONTROL SYSTEM

  • Dual Caterpillar A4 electronic engine control with electronic unit injector fuel system and rigid wiring harness.
  • 24 VDC (less than 10A) to be provided by customer at Power Distribution Panel to power engine electrical system.

COOLING SYSTEM

  • Jacket water (JW) engine cooling and two-stage jacket water/separate circuit (SCAC) charge air cooling
  • To ensure compliance in use, radiators or heat exchangers must be capable of rejecting sufficient heat to allow proper engine operation at worst site conditions.
  • The radiator or heat exchanger must supply 48C (118 F)
  • SCAC cooling water to the aftercooler inlet of at least 200 gal/min at ambient temperature of 30C and at site conditions (including altitude considerations)

EXHAUST SYSTEM

  • Dry gas-tight exhaust manifolds with heat shields, dual turbochargers with water-cooled bearings and heat shields.
  • Exhaust outlet: 305 mm (12 in) round flanged outlet, vertical orientation

FLYWHEELS & FLYWHEEL HOUSINGS

  • Flywheel, SAE No. 00, 183 teeth Flywheel housing, SAE No. 00
  • Flywheel housing, SAE No. 00
  • SAE standard rotation

FUEL SYSTEM

  • Duplex Fuel filter, LH service. Simplex fuel filter, RH service
  • Fuel transfer pump
  • Fuel priming pump, RH
  • Electronically Controlled Unit Injectors
  • Customer connection located at lower right front of engine
  • SOLAS shielding

INSTRUMENTATION

  • Engine mounted instrument panel with four position switch, over speed shutdown notification light, emergency stop notification light, graphical display unit for analog or digital display of: oil and fuel pressure, oil and fuel filter differential, system DC voltage, exhaust and water temperature, air inlet restriction, service meter, engine speed, fuel consumption (total and instantaneous)

LUBE SYSTEM

  • Top mounted crankcase breather, RH oil filter, RH oil filler, gear type oil pump, deep sump oil pan, recommended use of Caterpillar Diesel Engine Oil 10W30 or 15W40

MOUNTING SYSTEM

  • Mounting rails and isolation system based on customer request

ELECTRICAL SYSTEM

  • MCS certified Class I / Divison 2
  • Low Smoke Zero Halogen Wiring Harness

PROTECTION SYSTEM

  • A-III Electronic Monitoring System provides customer programmable engine de-ration strategies to protect against adverse operating conditions
  • Emergency stop push button (located in Electronic Instrument Panel) Safety shutoff protection for oil pressure and water temperature, over speed protection

HAZARDOUS LOCATION

  • Only electrical system is hazardous environment certified
  • NEC 500 Class I Division 2 for gas groups C and D
  • Temperature class is T3 for ambient temperatures from -10 C to 50 C
  • Class I/ Division 2 CMPD

GENERATOR AND GENERATOR ATTACHMENTS

  • Class I / Division 2 designed to customer’s specifications
  • Insulation for harsh environment protection
