Caterpillar

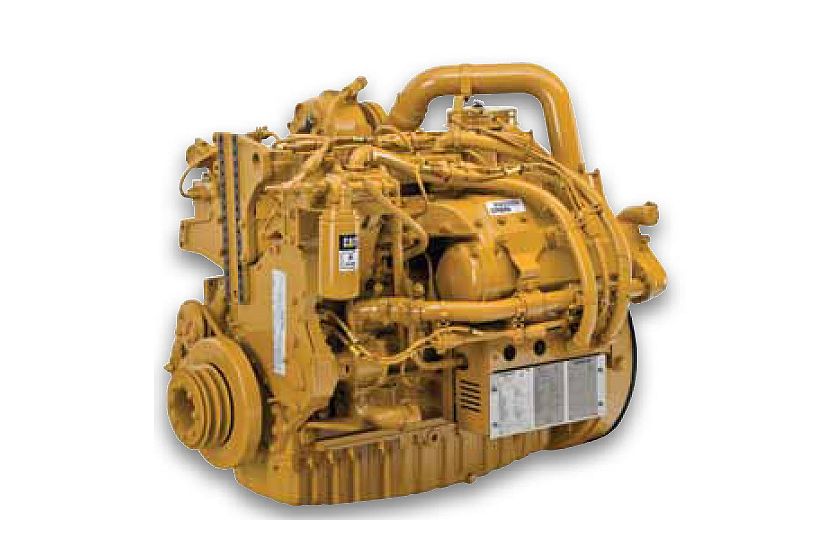

C7 ACERT™ Hazardous Location Engine
Cat C7 ACERT hazardous location engines are the ideal solution for specialized and demanding operations in the oilfield. Engines are hazardous-location certified from the factory to minimize installation design, time, and cost. Decades of field operation and intense research and development allow Cat C7 ACERT hazardous location engines to deliver excellent performance with low operating costs and emissions. Hazardous location engines are certified to operate in potentially explosive environments. Applications powered by C7 ACERT engines include pump skids, acidizing units, cementing units, coil tubing units, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C7 ACERT hazardous location engines, with ratings 153-172 bkW (205-230 bhp) @ 2200 rpm meet IMO Tier II, U.S. EPA Marine Tier 3, EPA Non-road Tier 3 equivalent and EU Stage IIIA equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.
Media
Photos
Documents
Details
Specifications
General Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 275 BHP 205 bkW |
| Displacement | 442 in³ 7.2 l |
| Minimum Rating | 205 BHP 153 bkW |
| Governor and Protection | Electronic ADEM™ A4 Electronic ADEM™ A4 |
| Aspiration | Turbocharged-Aftercooled Turbocharged-Aftercooled |
| Flywheel and Flywheel Housing | SAE 1,2, or 3 SAE 1,2, or 3 |
| Flywheel Teeth | 156 (SAE 1), 134 (SAE 2), 126 (SAE 3) 156 (SAE 1), 134 (SAE 2), 126 (SAE 3) |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Stroke | 5 in 127 mm |
| Bore | 4.3 in 110 mm |
Emissions
| Spec | Value |
|---|---|
| Emissions | EPA & CARB Non-Road Tier 3, EU Stage IIIA, EPA Marine Tier 2, IMO Tier II EPA & CARB Non-Road Tier 3, EU Stage IIIA, EPA Marine Tier 2, IMO Tier II |
Dimensions
| Spec | Value |
|---|---|
| Length | 41.5 in 1053 mm |
| Width | 29.8 in 758 mm |
| Height | 40.6 in 1032 mm |
| Weight | 1386 lb 629 kg |
Capacity for Liquids
| Spec | Value |
|---|---|
| Lube Oil System – Refill | 36 gal (US) 34 l |
| Cooling System | 78.2 gal (US) 74 l |
Standard Equipment
Air Inlet System
- Turbocharger, separate circuit (SCAC) or remote (REMAC) aftercooler
- Single, right-side, center-mounted turbo with water-cooled turbine housing
- Air inlet, RH side, rear facing, 101.6 mm (4 in.) connection type
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Cold mode start strategy
- Automatic altitude compensation
- Fuel cooled ECU
- Power compensation for fuel temperature
- Programmable low and high idle
- Electronic diagnostics and fault logging
- Programmable monitoring system (engine speed, temperature, pressure)
- J1939 broadcast (diagnostic and engine status)
- Certified electrical control system
- Derated engine: automatic ambient temperature compensation
Cooling System
- Thermostats and housing, front-facing outlet — 51 mm (2.01 in) connection
- Jacket water pump — belt-driven, centrifugal
- Water pump — inlet RH front vertical inlet (pointing down) — 63 mm (2.48 in)
Exhaust System
- Single, right-side, center-mounted turbo with water-cooled turbine housing
- Exhaust manifold — water-cooled
- Front turbo exhaust
Flywheels and Flywheel Housing
- Mandatory selection of: SAE No. 1, SAE No. 2, or SAE No. 3 flywheel and housing SAE standard rotation
Fuel System
- HEUI fuel system
- Fuel filter — secondary, LH front (2-micron high performance)
- Fuel transfer pump — left front
- Fuel priming pump — left front
Lube System
- Crankcase breather — top rear
- Crankcase fumes disposal — RH
- Oil cooler — RH
- Oil filter — RH
- Oil pan — front sump, 31 L (33 qt) oil change capacity
- Oil filler — front top valve cover
- Oil level gauge — LH rear
- Engine oil pump — gear-driven
- Oil valve sampling, RH
Power Take-Offs
- Crankshaft drive pulley — 2 grooves, 190 mm (7.5 in) diameter, 22.3 mm (0.88 in) wide
General
- Vibration damper
- Lifting eyes
- Literature
- No paint
Mandatory Options
- Flywheel housing and flywheel
- Primary filter/water separator
- Turbo orientation
Optional Equipment
Air Compressors
- Air compressor governor
Air Inlet System
- Precleaner
- Air inlet elbow
- Charging System
- Cooling System
Emissions Certifications
- IMO certification
Flywheels and Flywheel Housing
- Crankshaft seal
Instrumentation
- Gauges and instrument panels
Lube System
- Oil pans
- Drain and cover
- Remote oil filters
- Lubricating oils
Mounting System
- Structural steel base
- Engine support — front and rear
Power Take-Offs
- Rear enclosed clutches
- Hydraulic pump drives
- Crankshaft pulleys
General
- Tool set
