Caterpillar

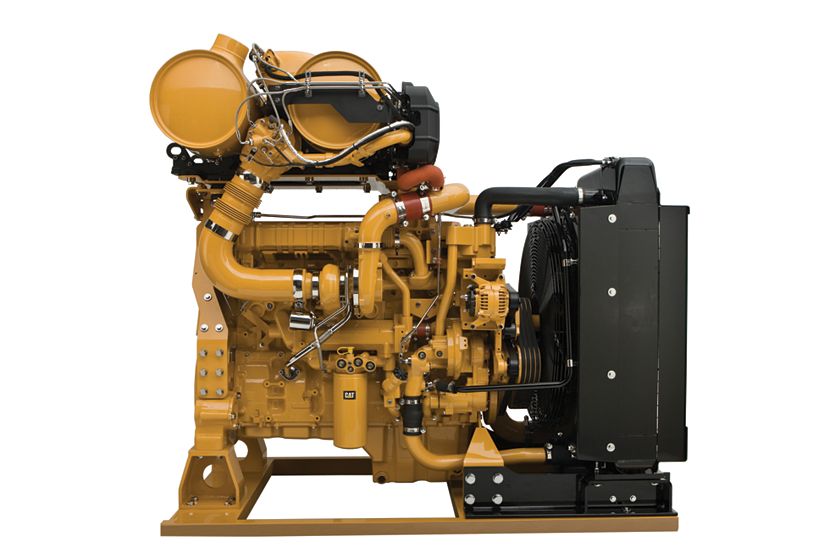

C13 ACERT™ Tier 4 Final Engine

Name: C13 ACERT™ Tier 4 Final Engine
Brand: Caterpillar

Cat C13 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C13 ACERT engines to deliver excellent performance with low operating costs while meeting tight environmental requirements.This is an ideal engine for applications that require compliance with the highest emission standards in well service applications such as workover rigs, pump skids, acidizing units, cementing units, and hydraulic power units.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.C13 ACERT engines with ratings: 287-388 bkW (385-520 bhp) @ 1800-2100 rpm are designed to meet U.S. EPA Tier 4 Final, EU Stage IV emission standards. This information about Emissions describes the particular rating’s emissions technology. For more information about emissions certification, please contact your local Cat dealer.

Media

C13 ACERT™ Tier 4 Final Petroleum Engine

Documents

C13 ACERT T4F Engine Spec Sheet

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Emissions

Reliable, Quiet, and Durable Power

High Performance

Fuel Efficiency

Fuel & Oil

Broad Application Range

Package Size

Low-Cost Maintenance

Quality

World-class Product Support Offered Through

Specifications

US Metric

General Specifications

Spec	Value
Maximum Rating	520 BHP 388 bkW
Displacement	762.8 in³ 12.5 l
Minimum Rating	385 BHP 287 bkW
Aspiration	Turbocharged-Aftercooled Turbocharged-Aftercooled
Flywheel and Flywheel Housing	SAE 1 SAE 1
Flywheel Teeth	113 113
Stroke	6.18 in 157 mm
Bore	5.12 in 130 mm

Emissions

Spec	Value
Emissions	EPA Tier 4 Final and EU Stage IV EPA Tier 4 Final and EU Stage IV

Dimensions

Spec	Value
Length	47.3 in 1201 mm
Width	39.9 in 1013 mm
Height	44.7 in 1186 mm
Weight	1976 lb 896 kg

Standard Equipment

Control System

Electronic control system, over-foam wiring harness, automatic altitude compensation, power compensated for fuel temperature, remote fan control, configurable software features, engine monitoring system SAE J1939 broadcast and control, integrated Electronic Control Unit (ECU)

Cooling System

Cooling package provides additional auxiliary heat load capacity capable of a minimum 10% of engine rated power. See the Web Ambient Tool (https://wbdat.cat.com/) for estimated ambient capability based on rating, fan drive ratio, fan, altitude and auxiliary heat load.

Exhaust System

Mid-mount turbocharged system with front and rear exhaust configurations

Flywheels and Flywheel Housing

SAE No. 1 flywheel housing; available SAE 1 power take-off housing with optional SAE A, SAE B, and SAE C power take-off drives; engine power can also be taken from the front of the engine with optional attachments

Fuel System

MEUI injection; primary fuel filter, secondary fuel filters, fuel transfer pump, electronic fuel priming

Lube System

Open crankcase ventilation system with fumes disposal (optional OCV filter system); oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven); choice of sumps (front, rear, and center)
