Caterpillar

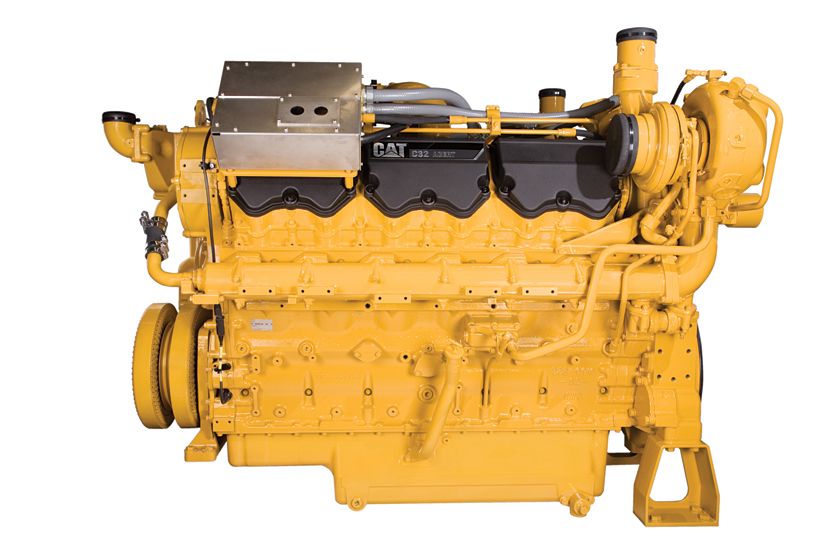

C32 ACERT™ Hazardous Location Engine
Cat C32 ACERT hazardous location engines are the ideal solution for specialized and demanding operations in the oilfield. Engines are hazardous-location certified from the factory to minimize installation design, time, and cost. Decades of field operation and intense research and development allow Cat C32 ACERT hazardous location engines to deliver excellent performance with low operating costs and emissions. Hazardous location engines are certified to operate in potentially explosive environments. Applications powered by C32 ACERT engines include well stimulation pumping, pump skids, nitrogen units, acidizing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C32 ACERT hazardous location engines, with ratings 597-828 bkW (800-1110 bhp) @ 2100 rpm meet IMO Tier II, U.S. EPA Marine Tier 2, and U.S. EPA Non-road Tier 2 equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.
Media
Photos
Documents
Details
Specifications
General Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 1110 BHP 828 bkW |
| Displacement | 1960 in³ 32.1 l |
| Minimum Rating | 800 BHP 597 bkW |
| Aspiration | Turbocharged-Aftercooled Turbocharged-Aftercooled |
| Flywheel and Flywheel Housing | SAE No. 0 or SAE No. 1 SAE No. 0 or SAE No. 1 |
| Flywheel Teeth | 136 136 |
| Stroke | 6.4 in 162 mm |
| Bore | 5.7 in 145 mm |
Emissions
| Spec | Value |
|---|---|
| Emissions | U.S. Non-Road Tier 2 CARB, IMO Tier II, EPA Marine Tier 2 U.S. Non-Road Tier 2 CARB, IMO Tier II, EPA Marine Tier 2 |
Dimensions
| Spec | Value |
|---|---|
| Length | 76.18 in 1934.9 mm |
| Width | 56.34 in 1431 mm |
| Height | 54.66 in 1388.3 mm |
| Weight | 6950 lb 3152 kg |
Standard Equipment
Air Inlet System
- Dual side-mounted turbochargers — inlet 152.4 mm (6 in) hose connection
Control System
- Programmable ratings
- Cold mode start strategy
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle
- Electronic diagnostics and fault logging
- Engine monitoring and protection system (speed, temperature, pressure)
- J1939 Broadcast (diagnostic, engine status and control)
- Electronic governing, PTO speed control
- Certified electrical control system
- Customer interface harness available as optional attachment
Cooling System
- Thermostats and housing — outlet LH vertical orientation
- Jacket water pump — gear-driven, centrifugal, RH
Exhaust System
- Exhaust manifold, water-cooled
- Dual turbo, rear turbo exhaust, full marmon connection 127 mm (5 in), maximum load 10 kg for direct connection to turbo
- Water-cooled center sections
Flywheels and Flywheel Housing
- Mandatory selection of: SAE No. 0 or SAE No. 1 flywheel and housing SAE standard rotation
Fuel System
- MEUI fuel system
- Fuel filter — RH (2 micron high performance)
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather — rear-mounted
- Oil cooler — RH
- Oil filler in RH front gear case
- Oil filter — RH
- Oil level gauge — RH
- Oil pan rear sump
Mounting System
- Narrow front support
Power Take-Offs
- Crankshaft pulley — 203.2 mm (8 in) 5 grooves 15.9 (.63 in) wide; 292.1 mm (11.5 in) 1 groove 15.9 (.63 in) wide
General
- Paint — Cat yellow
- Vibration damper with single pulley
- Lifting eyes
- Automatic variable timing — electronic
- Electronic installation kit 70-pin connector (connectors, pins, socket)
Mandatory Options
- HP must be specified when ordering
- All engines shipped at 2100 rpm
- Flywheel housing
- These engines meet the current IMO emission standards as defined by Regulation 13 of Annex VI to the International Convention for the Prevention of Pollution from Ships, 1973, as modified by the Protocol of 1978, further amended by the Protocol of 1997. A statement of compliance issued by the United States government’s EPA (Environmental Protection Agency) is included in the technical file that is shipped with the engine as proof of our engine’s ability to meet IMO emissions requirements. If this technical file is insufficient to meet the customer’s requirements, then a GL or CCS IMO emissions certification may be ordered.
Optional Equipment
Air Inlet System
- Air cleaner
- Air inlet adapters
- Turbocharger outlet adapters
- Air lines
Charging System
- Battery chargers
- Charging alternators
- Alternator mounting
- Circuit breakers and mountings
Cooling System
- Dry charge coolant conditioners
- Thermostat housing
- Coolant level sensor
- Radiator
- Suction fans and blower fans
- Fan adapters
- Fan drives
Emissions
- IMO certifications
Exhaust System
- Elbows
- Mufflers
Fuel Systems
- Electric fuel priming pump
Instrumentation
- Customer management device
- Interconnect harness
- Gauges and instrument panels
Lube System
- Oil pans
- Oil service side
- Oil level gauge
- Oil filters
- Lubricating oils
Mounting System
- Structural steel base
- Engine support — front and rear
Power Take-Offs
- Auxiliary drive
- Damper pulley
- Hydraulics gear pumps
Protection System
- Mechanical shutoffs
- Solenoid shutoffs
Starting System
- Electric starting motors – 12V, 24V
- Battery sets – 24V
- Battery rack and cable
- Starting aids
Transmission Arrangement
- Transmission water lines
- Transmission cooler
