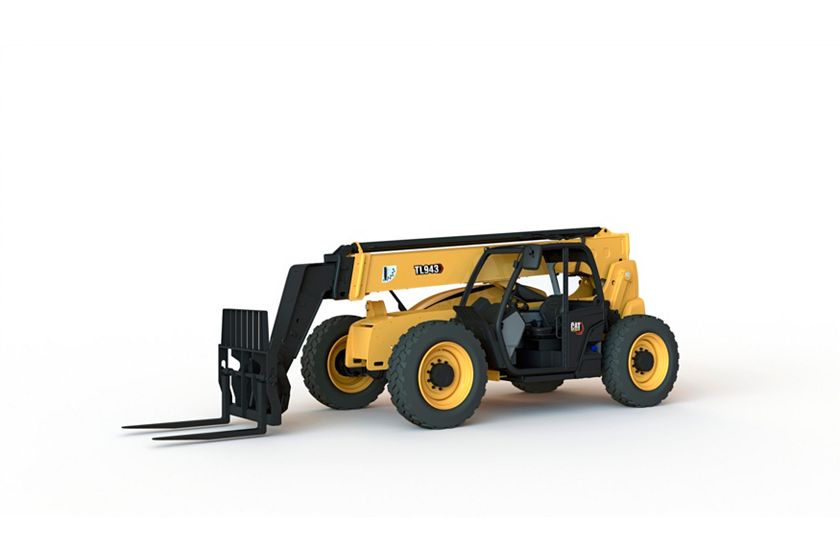

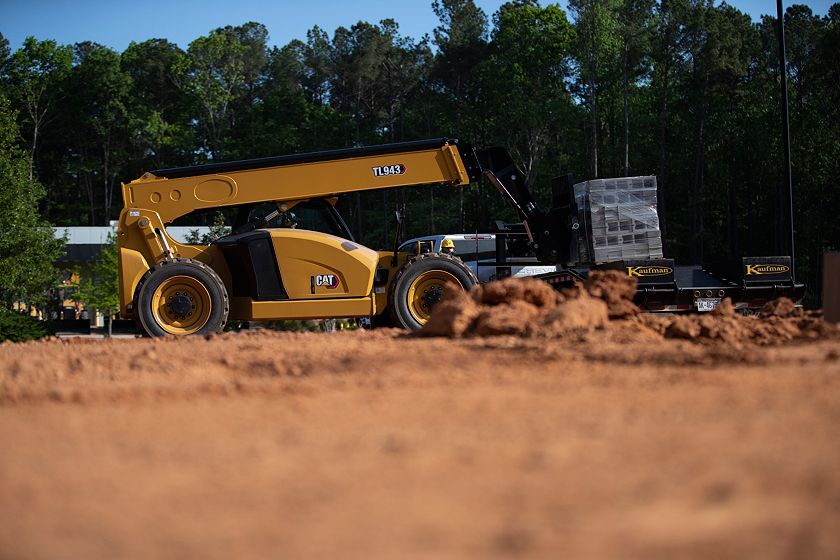

TL943 Telehandler
Rated Load Capacity
9000 lb
4082 kg
Maximum Lift Height
43 ft
13.1 m
Engine Model
Cat® C3.6L
Cat® C3.6L
Overview
Cat Telehandlers offer performance and versatility.
Media
Photos
Documents
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat® C3.6L Cat® C3.6L |
| Gross Power – Basic | 73.7 HP 55 kW |
| Gross Power – Premium | 111 HP 83 kW |
| Note | *Meets U.S. EPA Tier 4 Final emission standards. *Meets U.S. EPA Tier 4 Final emission standards. |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 25750 lb 11680 kg |
Operating Specifications
| Spec | Value |
|---|---|
| Rated Load Capacity | 9000 lb 4082 kg |
| Maximum Lift Height | 43 ft 13.1 m |
| Capacity at Maximum Lift Height | 7000 lb 3175 kg |
| Capacity at Maximum Reach | 1200 lb 544 kg |
| Maximum Forward Reach | 31 ft 9.4 m |
| Top Travel Speed | 18 mile/h 29 km/h |
Dimensions
| Spec | Value |
|---|---|
| Height | 8.16 ft 2490 mm |
| Width | 8 ft 2470 mm |
| Wheel Base | 11.25 ft 3343 mm |
| Length – Fork Face | 20.5 ft 6248 mm |
| Ground Clearance | 17 in 432 mm |
| Turning Radius – Over Tires | 12 ft 3.7 m |
Tires
| Spec | Value |
|---|---|
| Standard | 370/75-28 Duraforce Air 370/75-28 Duraforce Air |
| Optional (1) | 370/75-28 Duraforce Foam Fill 370/75-28 Duraforce Foam Fill |
| Optional (2) | 315/95-28 Telemaster Solid 315/95-28 Telemaster Solid |
| Optional (3) | 14.00-24 16PR Air 14.00-24 16PR Air |
| Optional (4) | 14.00-24 12PR Foam 14.00-24 12PR Foam |
| Optional (5) | 370/75-28 Non-Marking Air 370/75-28 Non-Marking Air |
| Optional | 370/75-28 Non-Marking Foam 370/75-28 Non-Marking Foam |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 38 gal (US) 145 l |
| Hydraulic System | 47 gal (US) 177 l |
| Diesel Exhaust Fluid | 5.7 gal (US) 21.5 l |
Boom Performance
| Spec | Value |
|---|---|
| Boom Up | 9.9 s 9.9 s |
| Boom Down | 8.5 s 8.5 s |
| Tele In | 14.6 s 14.6 s |
| Tele Out | 14.5 s 14.5 s |
| Drawbar Pull – Premium | 25589 lb 114 kN |
Braking System
| Spec | Value |
|---|---|
| Parking Brake | Spring-applied hydraulic release on front axle Spring-applied hydraulic release on front axle |
Brakes
| Spec | Value |
|---|---|
| Features | Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle |
Operator Station
| Spec | Value |
|---|---|
| Features | Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab |
Instrumentation
| Spec | Value |
|---|---|
| Features | Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge |
Work Tools
| Spec | Value |
|---|---|
| Carriages – Swing | 100°, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100°, 72 in, 6,500 lb Capacity, 5,000 lb Swung) 100°, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100°, 72 in, 6,500 lb Capacity, 5,000 lb Swung) |
| Carriages – Standard Tilt | 50 in 1270 mm |
| Pallet Forks – Option 2 | [2] 1220 mm, 60 mm × 100 mm ([2] 48 in, 2.36 in × 4 in) [2] 1220 mm, 60 mm × 100 mm ([2] 48 in, 2.36 in × 4 in) |
| Carriages – Side Shift | 50 in 1270 mm |
| Carriages – Dual Fork Positioning | 50 in 1270 mm |
| Pallet Forks – Option 1 | [2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in) [2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in) |
| Lumber Forks – Option 1 | [2] 1525 mm, 45 mm × 180 mm ([2] 60 in, 1.75 in × 7 in) [2] 1525 mm, 45 mm × 180 mm ([2] 60 in, 1.75 in × 7 in) |
| Cubing Forks | [2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in) [2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in) |
| Pallet Forks – Option 3 | [2] 1829 mm, 60 mm × 150 mm ([2] 72 in, 2.36 in × 6 in) [2] 1829 mm, 60 mm × 150 mm ([2] 72 in, 2.36 in × 6 in) |
Standard Equipment
TELESCOPIC BOOM
- Boom angle indicator
ELECTRICAL
- Alternator, 60 amp, 12 volt
- Battery, 12 volt, 1000 CCA
- Horn
- Alarm, backup
OPERATOR STATION
- Canopy, ROPS/FOPS
- Joystick, single electronic
- Adjustable joystick wristrest
- Grab bars for easy entry
- Seat – vinyl, suspension with Cat logo
- Steering wheel spinner knob
- Floor mat – heavy duty
- Left side rear view mirror
- Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill
- Instruments – volt meter, hourmeter, engine oil pressure gauge, water temperature gauge. All gauges protected by clear acrylic cover.
- Park Brake with indicator light
- Steering Wheel with Cat logo
- Cat keys and locks
- Brakes – wet disc service
- Belt, seat – 3″ wide
POWER TRAIN
- Engine, Cat C3.6L – 55kW (73.7 hp) or 83kW (111hp) gross horsepower
- Thermal starting aid
- Transmission, Cat PG145 6 speed Power-shift, 4-speed forward, 3-speed reverse
- Cat filters, hoses and couplings
- Axles – Dana
- Steering – 4 wheel
- Drive – 4 wheel
STRUCTURE
- Chassis, frame level up to 10 degrees when operating in rough, uneven terrain
- Cat IT Coupler
ANTI-FREEZE
- Coolant – Anti-freeze, 50/50 Mix
TIRES
- Tires – 370/75-28 Duraforce Air
OTHER EQUIPMENT
- Integrated lift and tie down points
- Standard Cat color paint
- Auxillary hydraulics for auxillary attachments (one function)
Optional Equipment
TELESCOPIC BOOM
- Hydraulic IT Coupler (includes Auxiliary Electrics)
ELECTRICAL
- Work Light Group: 3 Cab mounted Lights — 2 forward, 1 rearward; 1 reversing light; 2 Boom mounted Lights, 1 rotating beacon
- Engine heater block
- Heater – open cab
- Road Light Group — Headlights, Brake Lights, Turn Signals
OPERATOR STATION
- Air conditioning
- Single Joystick – with Rocker Switch
- EROPS – Cab Enclosure (Door, Safety Glass Windows, Front Windshield Wiper, Heater & Defroster Fan)
- Skylight Wiper
- Brick guard – Front and top.
TIRES
- Tires – 370/75-28 Duraforce Foam Fill
- Tires – 315/95-28 Telemaster Solid
- Tire – 14.00-24 16PR Air
- Tire – 14.00-24 12 PR Foam
- Tires – 370/75-28 Non-Marking Air
OTHER EQUIPMENT
- Fenders
- Tow Hook – Pintle Type
- Artic package – Package includes: 2400 AMP starter, 1000 watt hydraulic reservoir heater, 500 watt engine oil-pan heater, Dual maintenance free, 1375 CCA gel cell batteries, 160 watt battery heating blanket, 1000 watt engine block heater
WORK TOOLS
- Carriage – side shift, 50 in. (available from factory)
- Lifting Hook – fork mounted (available from factory)
- Truss Broom
- Carriage – standard tilt, 50 in. (available from factory)
- Carriage – standard rotate, 50 in. (available from factory)
- Carriage – swing, 72 in., 100 degrees, 9,000 lb. capacity, 5,000 lb. swung (available from factory)
- Pallet Forks – two 60 in, 2 in x 6 in, 9,000 lb. capacity per pair (available from factory)
- Pallet Forks – two 48 in, 2.36 in x 4 in, 9,000 lb. capacity per pair (available from factory)
- Cubing Forks – two 48 in, 2 in x 2 in, 3,800 lb. capacity per pair (available from factory)
- Bucket – General Purpose 1.3 Cu. Yd.
- Bucket – Material Handling 1.95 Cu. Yd.
- Bucket – Multi-Purpose, 1.3 Cu. Yd.
- Work Platform — 8 ft x 4 ft with maximum capacity of 1,000 lbs. Includes enclosed fork pockets, side entry/exit gate, removable front rail and wire mesh floor
