Cat

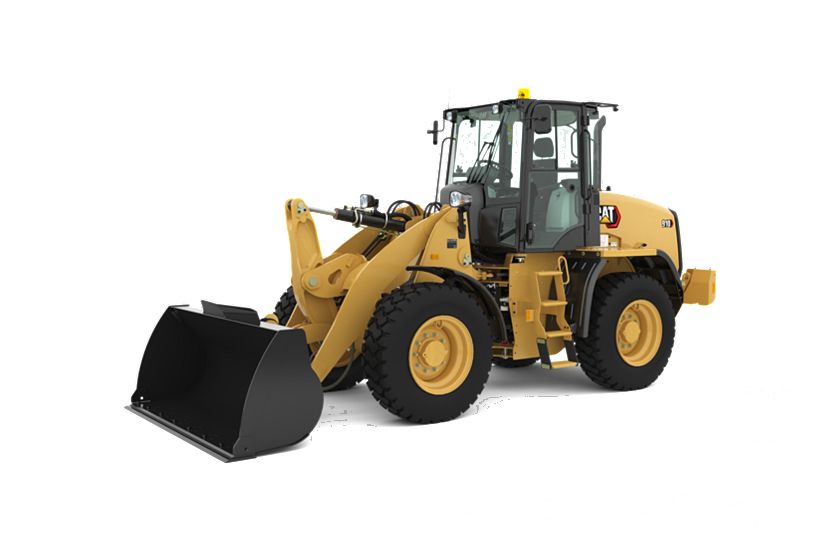

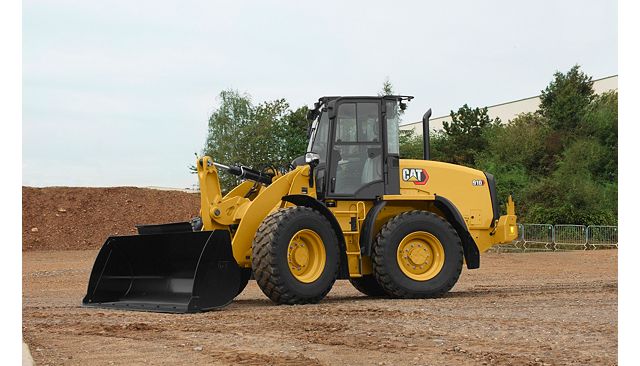

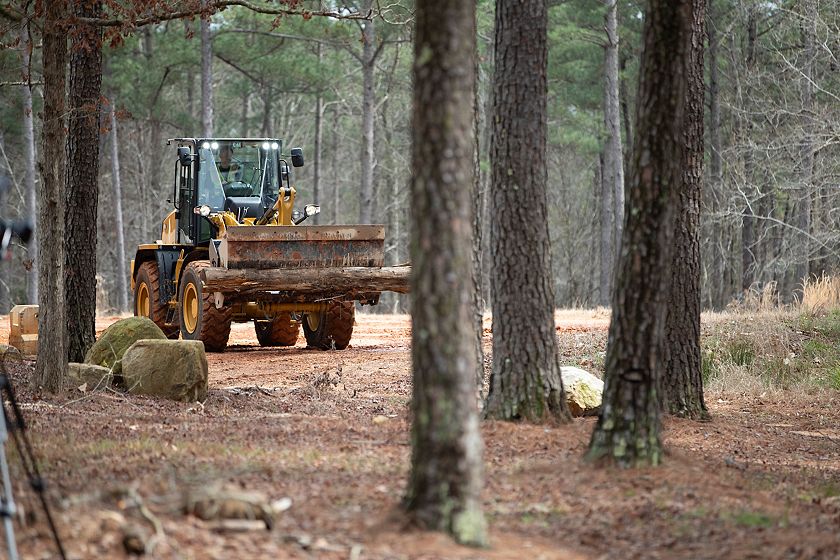

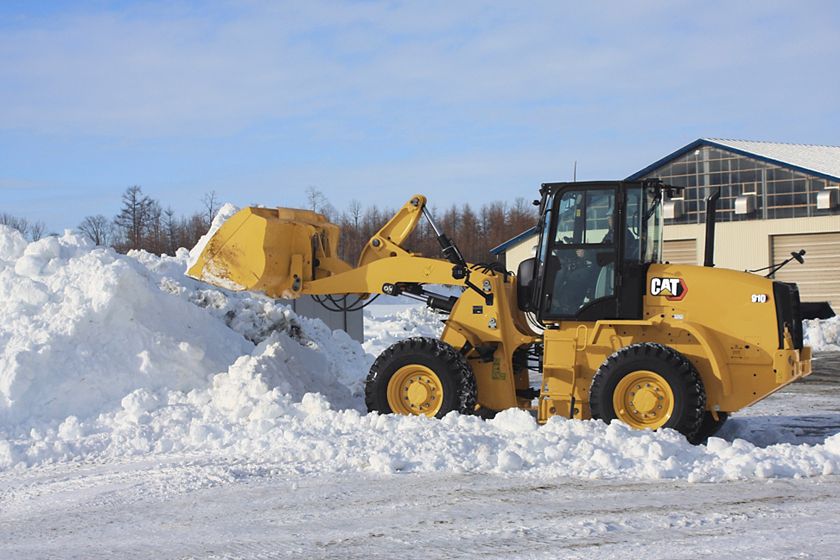

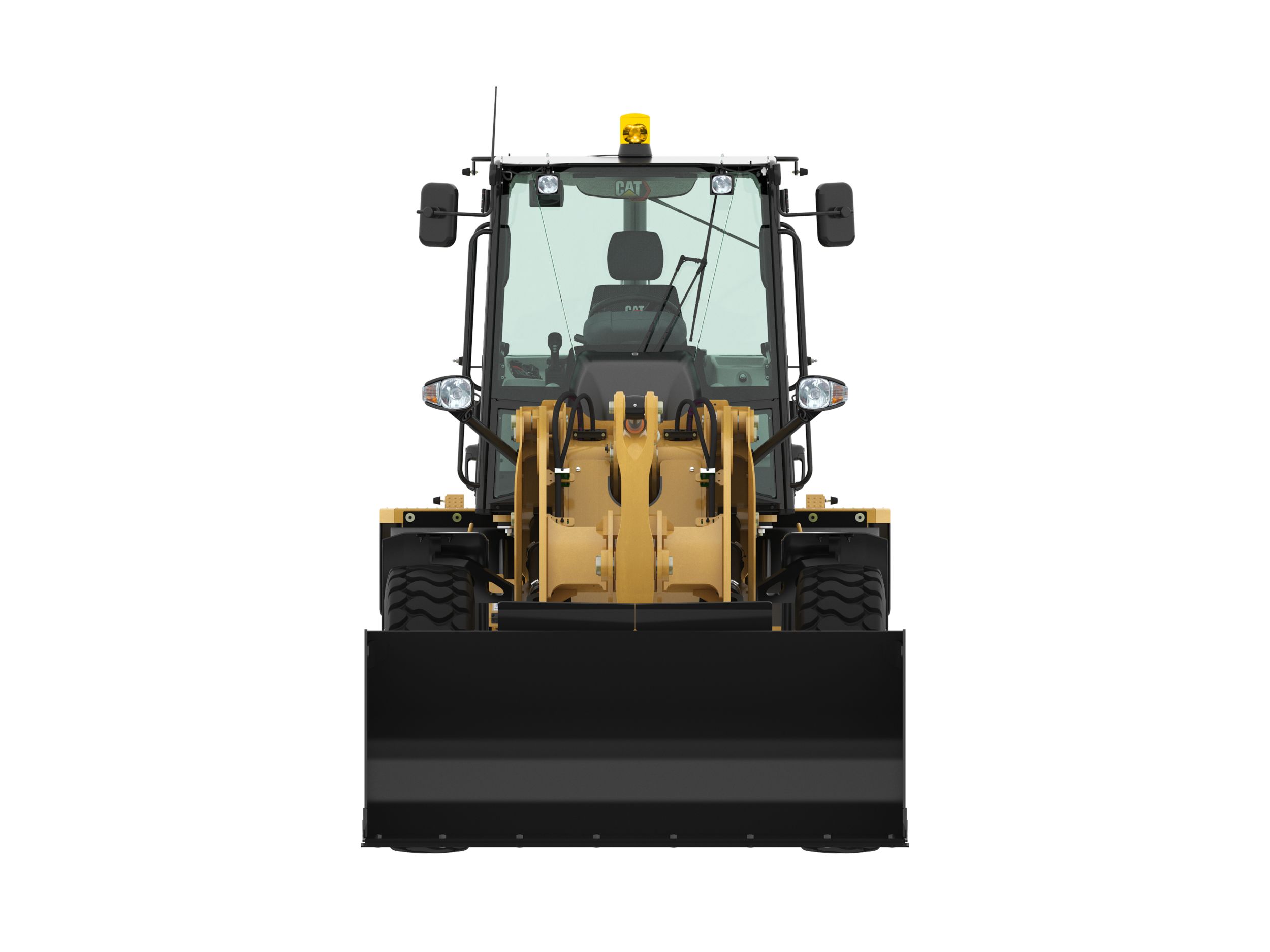

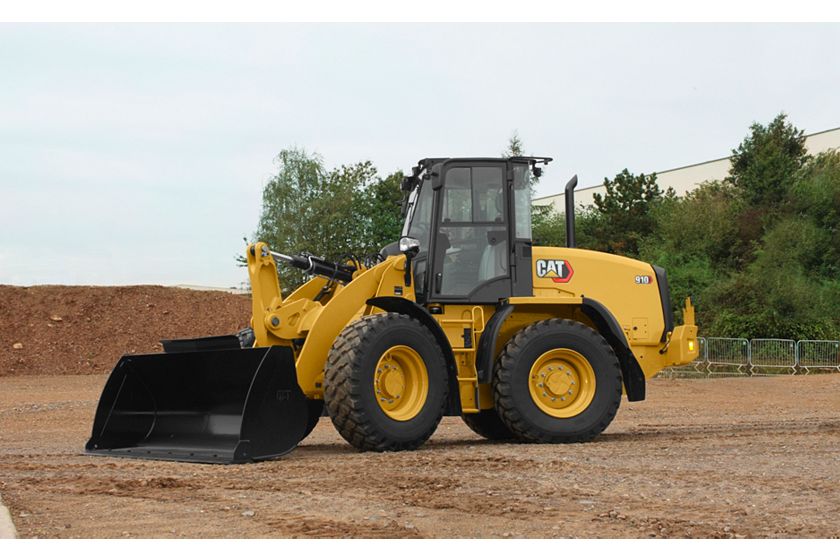

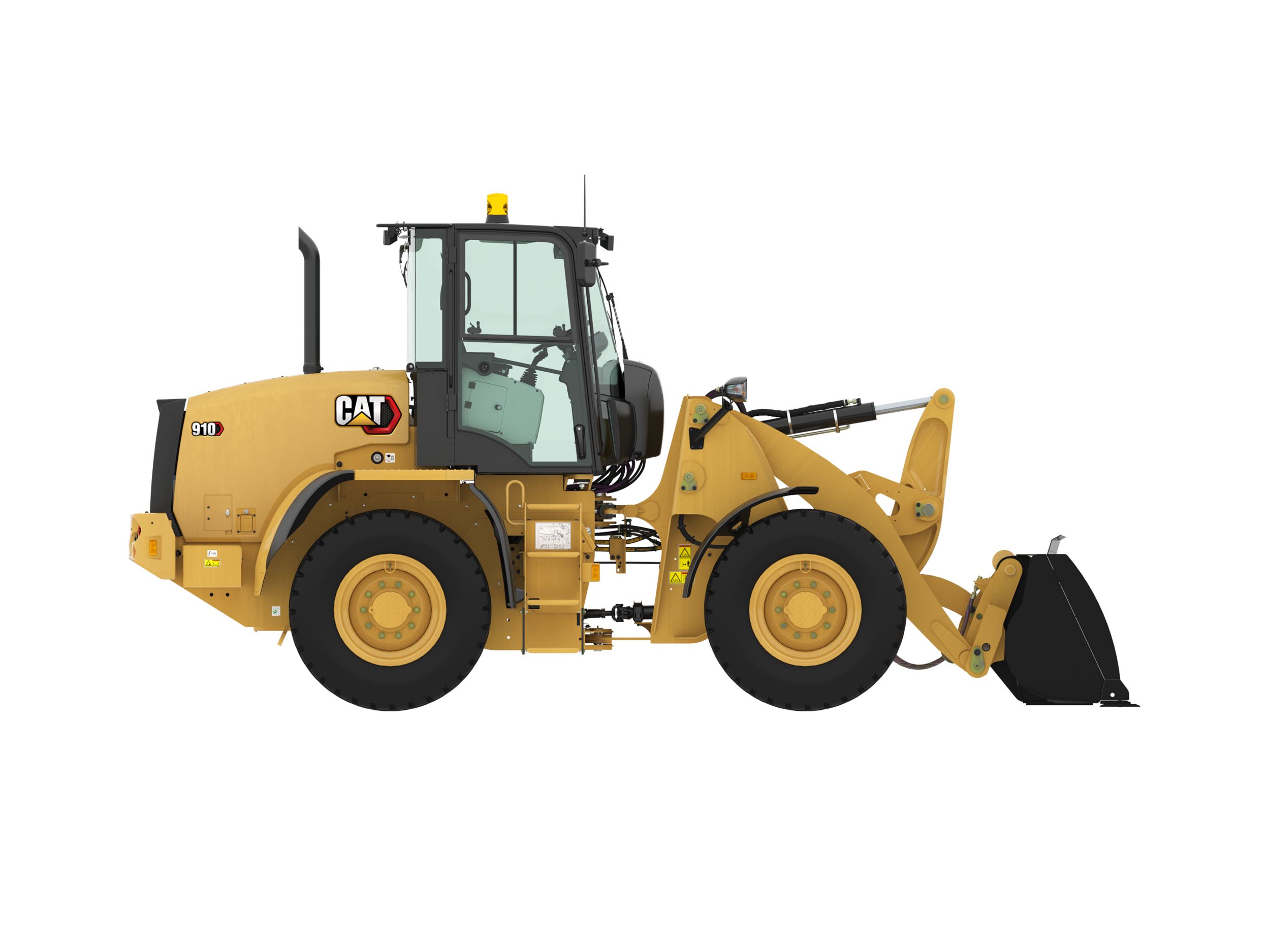

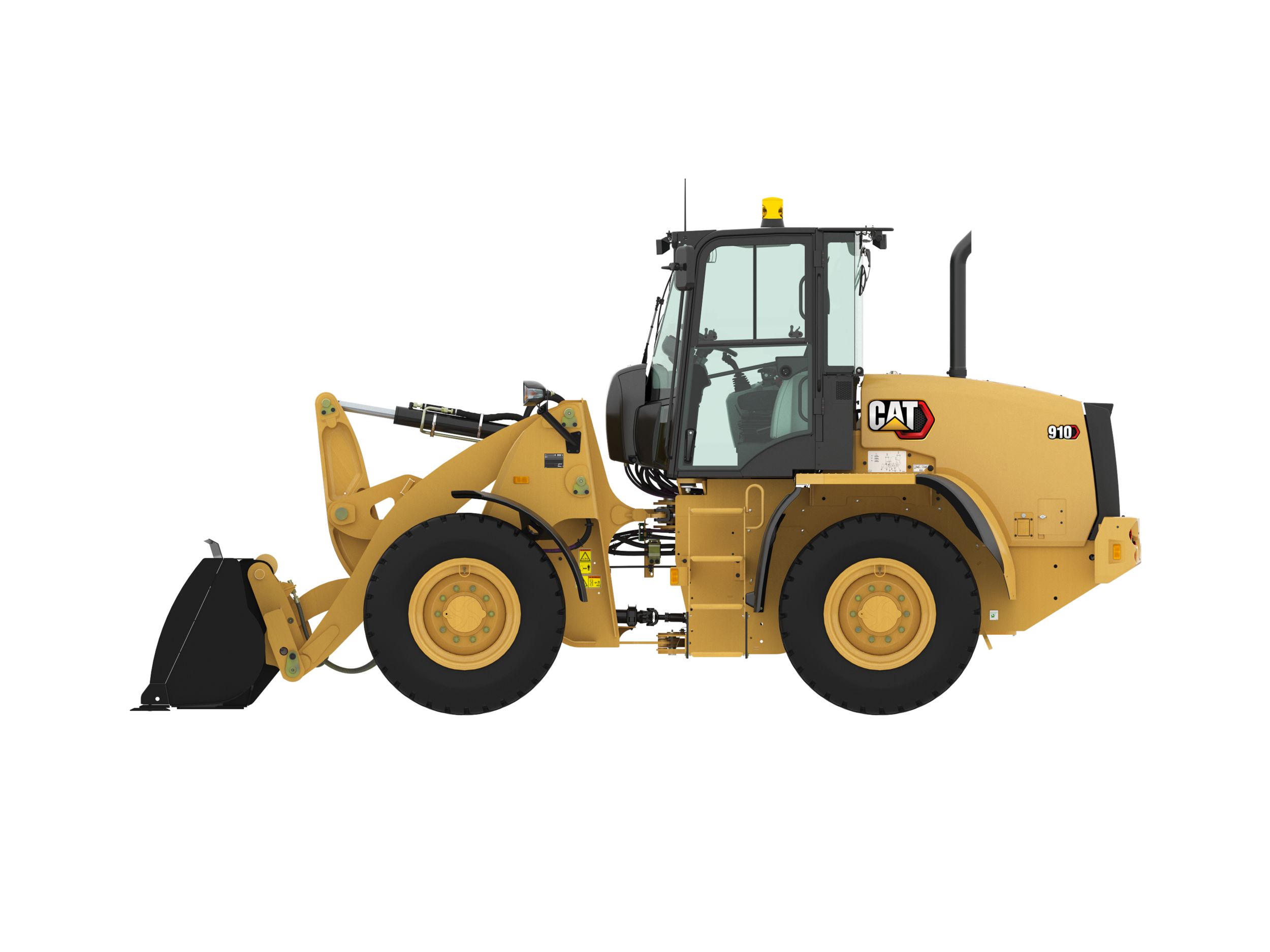

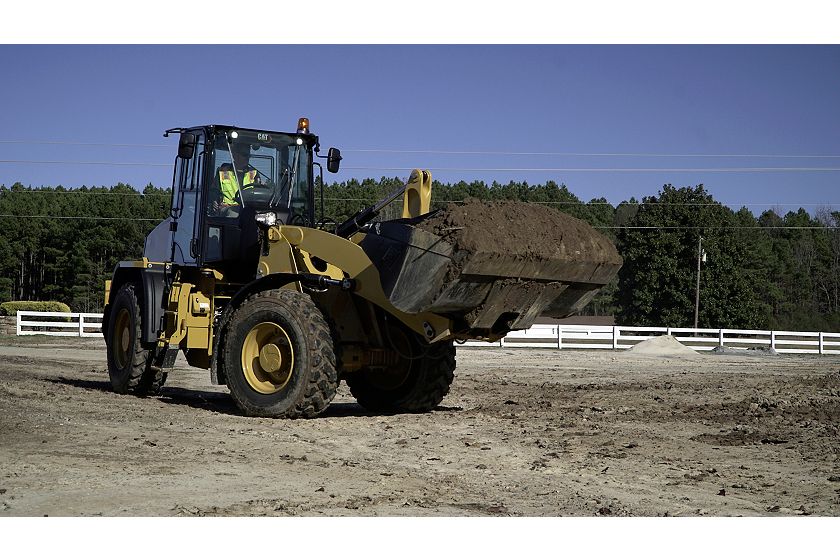

910 Compact Wheel Loader

Name: 910 Compact Wheel Loader
Brand: Cat

Maximum Gross Power

110 HP

82 kW

Operating Weight

18102 lb

8109 kg

Bucket Capacities

1.3-3.5 m3 (1.7-4.6 yd3)

Overview

The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.

Media

The New Cat® Wheel Loaders are Here For You

Cat® 910, 914, 920 Compact Wheel Loaders at Work

Cat® 910, 914, 920 Compact Wheel Loaders Overview

Cat® 910, 914, 920 Compact Wheel Loaders Features and Benefits

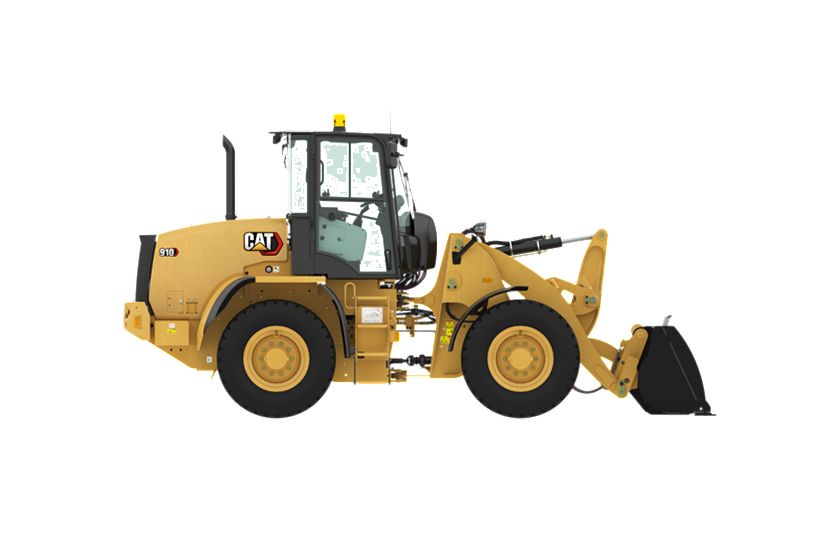

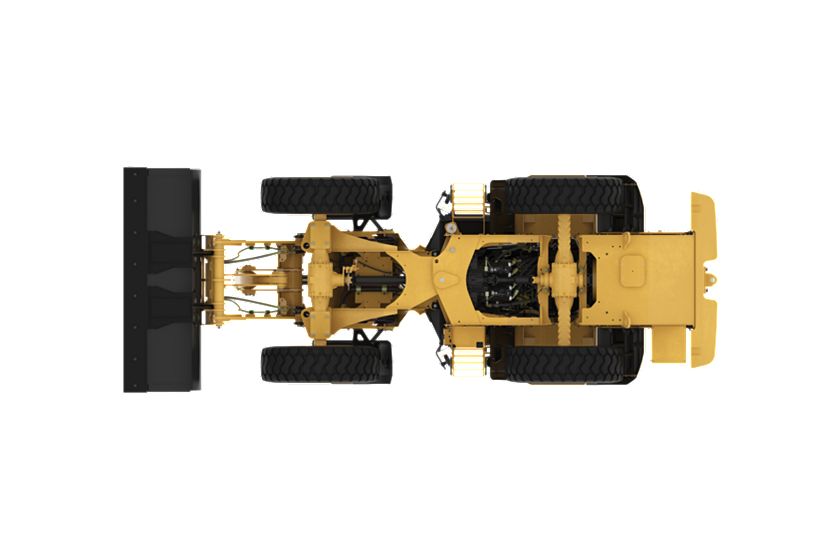

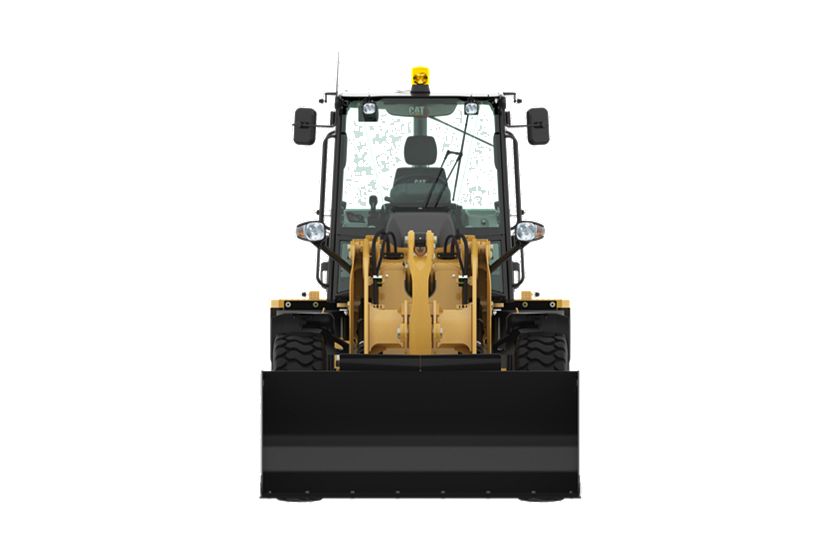

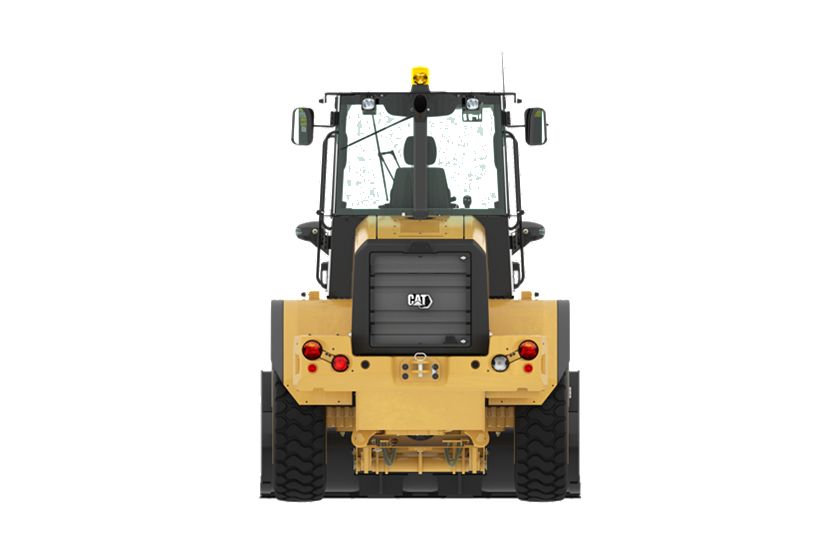

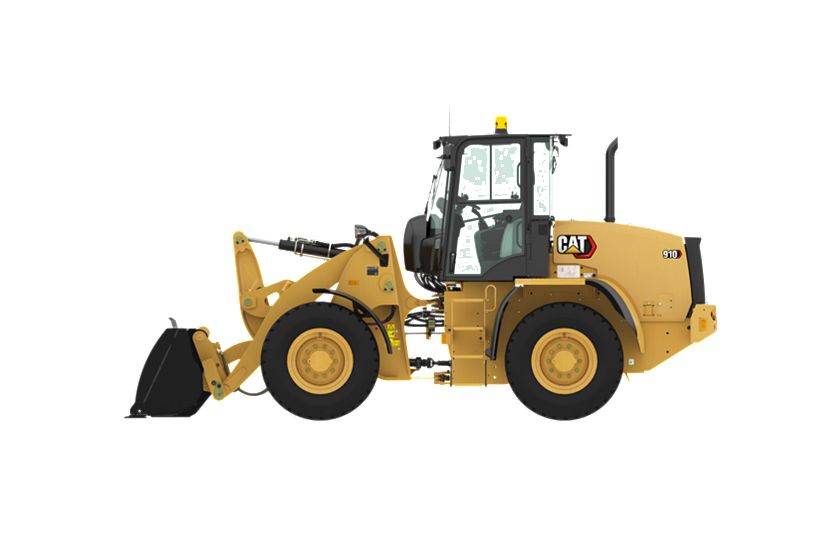

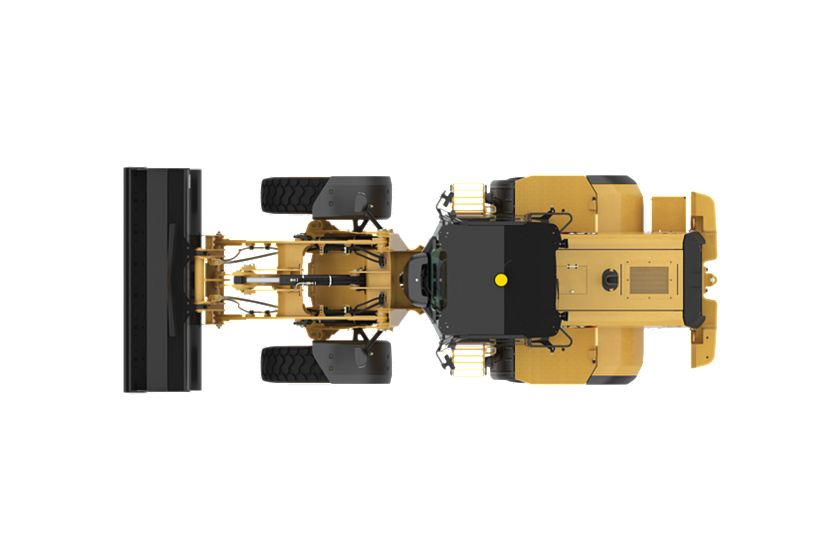

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Email
This field is for validation purposes and should be left unchanged.

Features

Cat® C3.6 Engine

Cat Optimized Z-bar Loader Linkage

Work Tools

Hydraulics and Controls

Tuned Drivetrain

Cab

Serviceability

Efficiently Powerful

Standard Fuel Savings Features

Sustainability

Specifications

US Metric

Engine

Spec	Value
Rated Net Power – Rated Engine Speed	2200 r/min 2200 r/min
Maximum Gross Power – Rated Engine Speed	1800 r/min 1800 r/min
Rated Net Power – SAE J1349	99 HP 74 kW
Maximum Gross Power – ISO 14396 (metric)	112 HP 112 HP
Rated Net Power – ISO 9249	98 HP 73 kW
Maximum Gross Torque – SAE J1995	335 ft·lbf 454 N·m
Maximum Gross Torque – ISO 14396	332 ft·lbf 450 N·m
Maximum Net Torque – SAE J1349	329 ft·lbf 446 N·m
Maximum Net Torque – ISO 9249	327 ft·lbf 443 N·m
Displacement	220 in³ 3.6 l
Bore	3.85 in 98 mm
Stroke	4.72 in 120 mm
Engine Model	Cat C3.6 Cat C3.6
Emissions	Engine meets Tier 4 Final/Stage V emission standards. Engine meets Tier 4 Final/Stage V emission standards.
Note	Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Gross Power – ISO 14396	110 HP 82 kW
Maximum Gross Power	110 HP 82 kW

Buckets

Spec	Value
Bucket Capacities	1.3-3.5 m3 (1.7-4.6 yd3) 1.3-3.5 m3 (1.7-4.6 yd3)
Bucket Capacities – General Purpose	1.3-1.9 m³ (1.7-2.5 yd³) 1.3-1.9 m³ (1.7-2.5 yd³)
Bucket Capacities – Light Material	2.5-3.5 m³ (3.3-4.6 yd³) 2.5-3.5 m³ (3.3-4.6 yd³)

Weights

Spec	Value
Operating Weight	18102 lb 8109 kg

Steering

Spec	Value
Maximum Working Pressure – Steering Pump	2683 psi 18500 kPa
Steering Articulation Angle – Each Direction	40 ° 40 °
Steering Cycle Times – Full Left to Full Right – At 2,350 rpm: 90 rpm Steering Wheel Speed	3.2 s 3.2 s
Maximum Flow – Steering Pump	17 gal/min 66 l/min
Number of Steering Wheel Turns – Full Left to Full Right or Full Right to Full Left	3.75 turns 3.75 turns

Loader Hydraulic System

Spec	Value
Hydraulic Cycle Time – Dump, at Maximum Reach	1.4 s 1.4 s
Hydraulic Cycle Time – Total Cycle Time	12.5 s 12.5 s
Maximum Working Pressure – Implement Pump	3408 psi 23500 kPa
Relief Pressure – Tilt Cylinder	4931 psi 34000 kPa
Hydraulic Cycle Time – Rackback	2.2 s 2.2 s
Relief Pressure – Tilt Cylinder – 3rd Function Maximum Working Pressure	3046 psi 21000 kPa
Hydraulic Cycle Time – Raise, Ground Level to Maximum Lift	5.2 s 5.2 s
Maximum Flow – Implement Pump	32 gal/min 122 l/min
Relief Pressure – Tilt Cylinder – 4th Function Maximum Working Pressure	3046 psi 21000 kPa
Maximum Flow – Implement Pump – 4th Function, Maximum Flow	24 gal/min 90 l/min
Maximum Flow – Implement Pump – 3rd Function, Maximum Flow	24 gal/min 90 l/min
Hydraulic Cycle Time – Float Down, Maximum Lift to Ground Level	3.7 s 3.7 s

Service Refill Capacities

Spec	Value
Cooling System	5.7 gal (US) 21.5 l
Fuel Tank	43.6 gal (US) 165 l
Hydraulic System – Including Tank	25.9 gal (US) 98 l
Hydraulic Tank	14.5 gal (US) 55 l
Transmission	0.8 gal (US) 3.2 l
Note	DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Axles – Front Center Differential	2 gal (US) 7.5 l
Axles – Rear Center Differential	2 gal (US) 7.5 l
Engine Crankcase	2.6 gal (US) 10 l
Diesel Exhaust Fluid (DEF) Tank	4.8 gal (US) 18 l

Transmission

Spec	Value
Note	Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse – Speed Range 3	25 mile/h 40 km/h
Forward and Reverse – Speed Range 2*	12.5 mile/h 20 km/h
Forward and Reverse – Speed Range 1*	6.3 mile/h 10 km/h

Tires

Spec	Value
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Standard Size	15.5 R25 L2 XTLA 15.5 R25 L2 XTLA
Other Choices Include	17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (1)	Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details.

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 ISO 3449:2005
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008, when the cab is properly installed and maintained, is 77 dB(A). The declared dynamic operator sound pressure levels per ISO 6396:2008, when the cab is properly installed and maintained, is 77 dB(A).
Note (3)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A). The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (4)	The measurements were conducted with the cab doors and windows closed. The measurements were conducted with the cab doors and windows closed.

Axles

Spec	Value
Front	Fixed; Locking differential (standard) Fixed; Locking differential (standard)
Rear	Oscillating ±11 degrees; Locking differential (Standard) Oscillating ±11 degrees; Locking differential (Standard)
