Cat

A23 Auger

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural andlandscaping applications.

Media

Photos

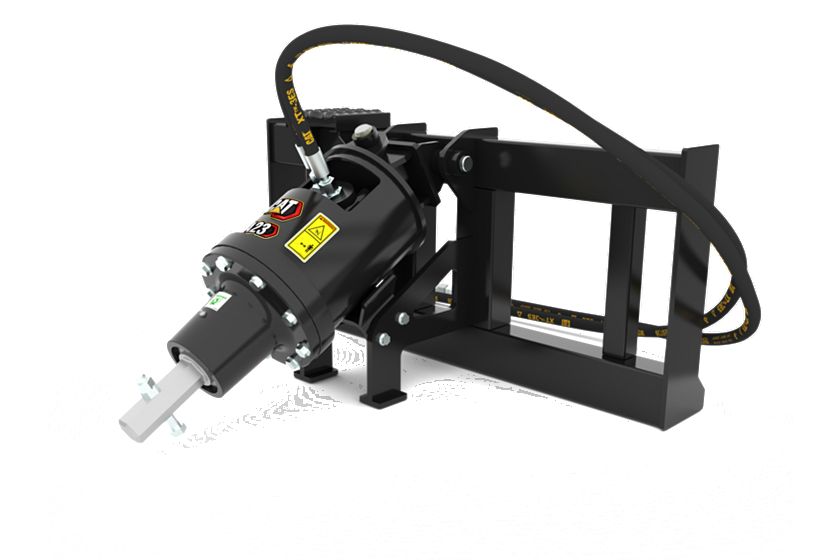

Studio Shot
Studio Shot

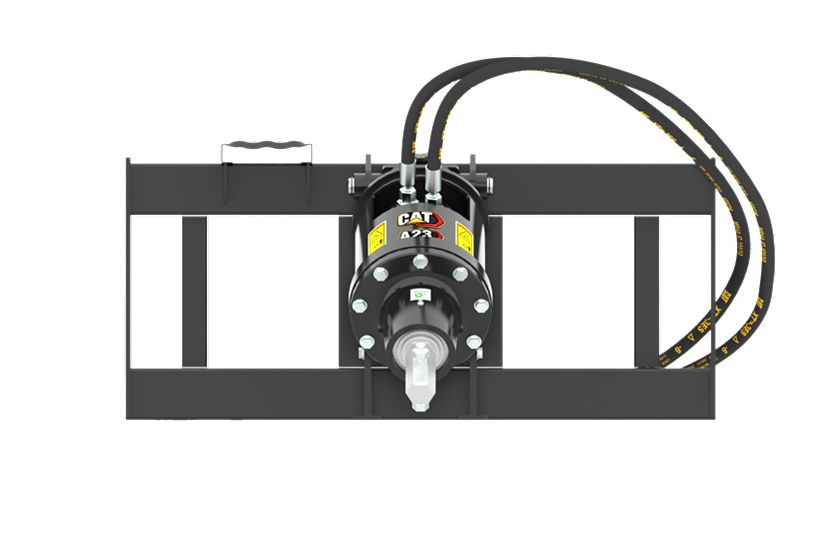

Front View
Front View

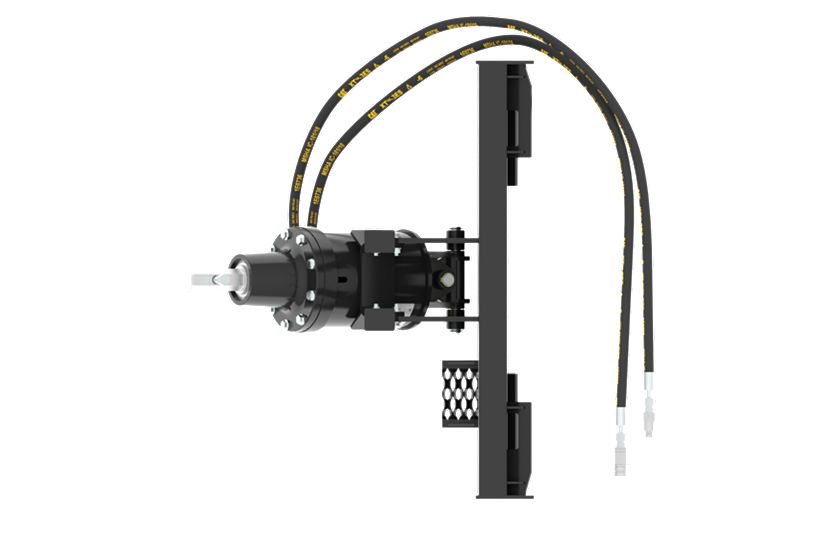

Top View
Top View

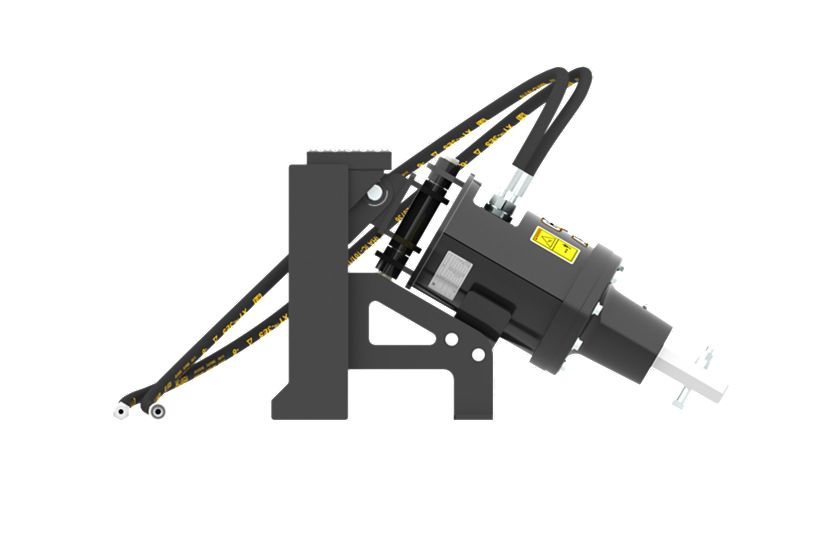

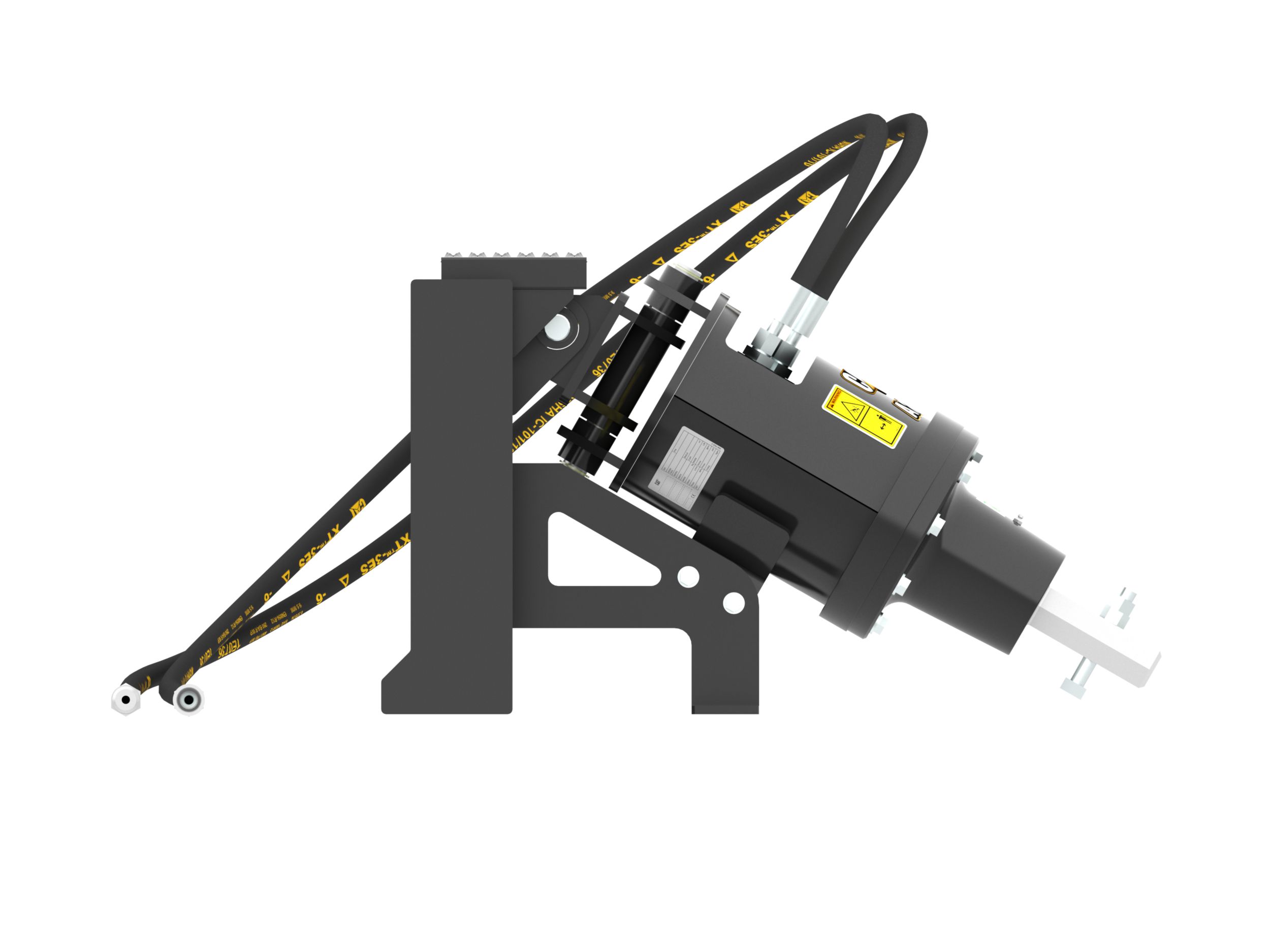

Left View
Left View

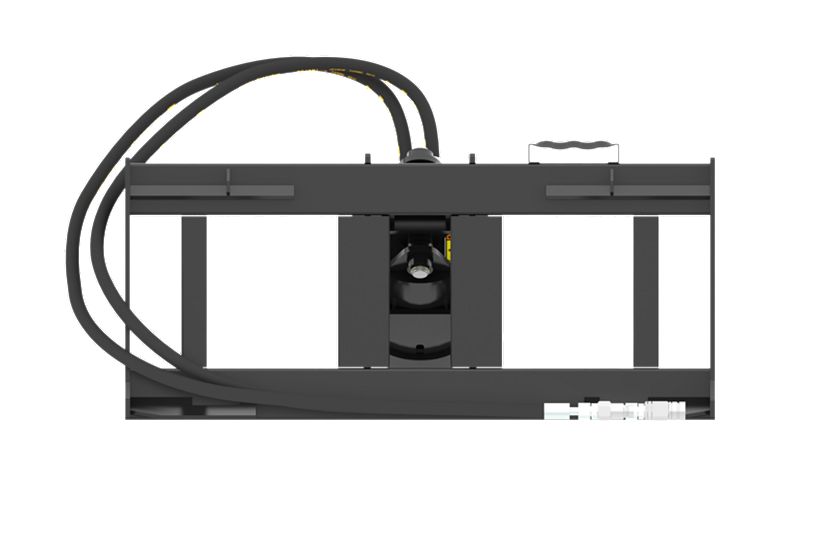

Rear View
Rear View

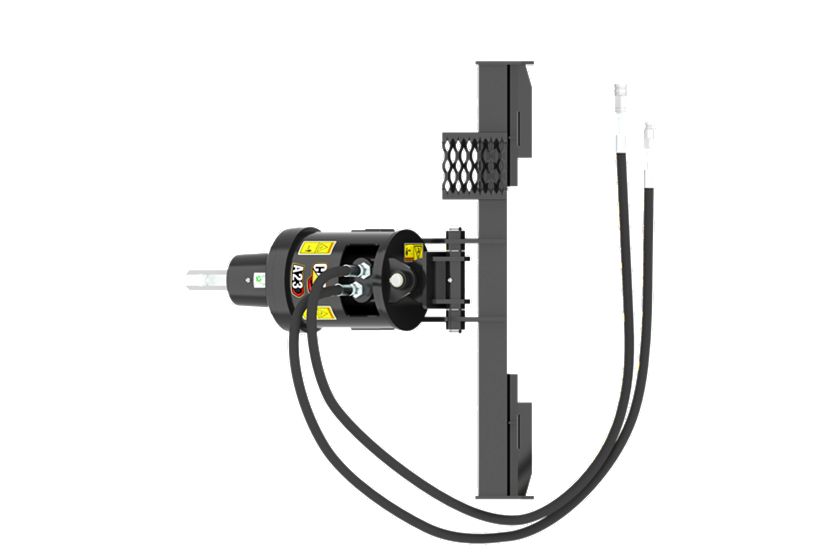

Bottom View
Bottom View

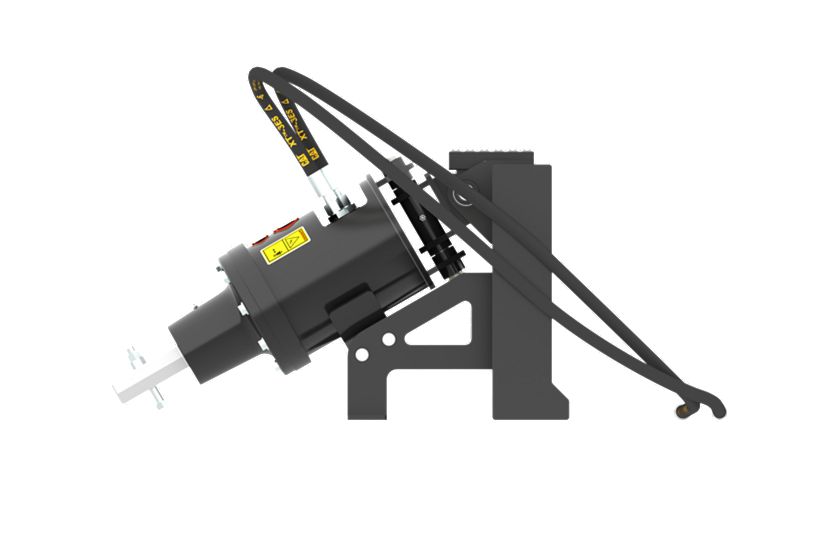

Right View
Right View
Cat® Auger at Work on a 908M Compact Wheel Loader
Cat® Auger at Work on a 908M Compact Wheel Loader
Cat® Auger at Work on a 277D Multi Terrain Loader
Cat® Auger at Work on a 277D Multi Terrain Loader

Videos

Cat® Auger Attachment at Work
Cat® Auger Attachment Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Augers except where indicated.

Documents

Features

Application

Multiple Drive Systems

Rugged Bits for Every Application

Bit Extensions and Adapters

Rugged Mounting Bracket

Details

Specifications

Spec Value
Drive Shaft Torque at Maximum Pressure 1699.3 lb/ft 2304 N·m
Drive Method Gerotor Motor - Direct Drive Gerotor Motor - Direct Drive
Mounting Bracket Design Skid Steer Loader Coupler Skid Steer Loader Coupler
Required Hydraulics Standard Flow Standard Flow
Optimal Hydraulic Flow 42-83 L/min (11-22 gpm) 42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Overall Width – With Bracket 45 in 1152 mm
Overall Length – With Bracket 23.5 in 598 mm
Overall Height 40.2 in 1020 mm
Housing Diameter 9.9 in 252 mm
Swing Range 102 degrees 102 degrees
Swing Range (fore/aft) 120 degrees 120 degrees
Swing Range (L/R) 102 degrees 102 degrees
Weight 423.3 lb 192 kg
Motor Displacement 38 in³ 629 cm³
Bit Speed at Maximum Flow 127 rpm 127 rpm
Hex Output Shaft Size 2 in 51 mm
