Cat

A41 Auger

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural andlandscaping applications.

Media

Photos

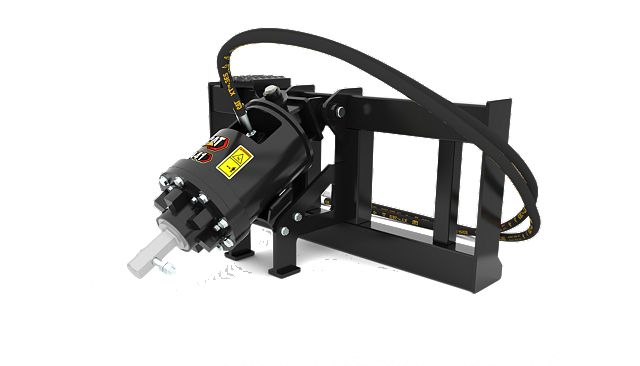

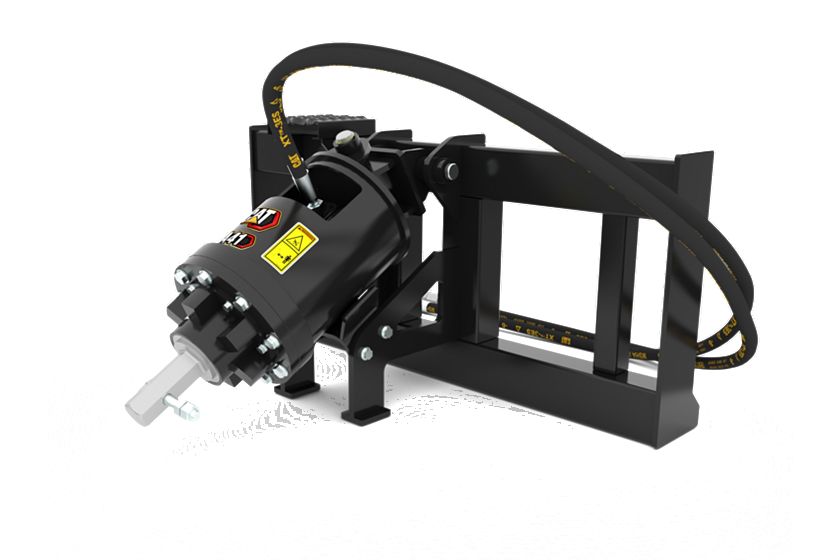

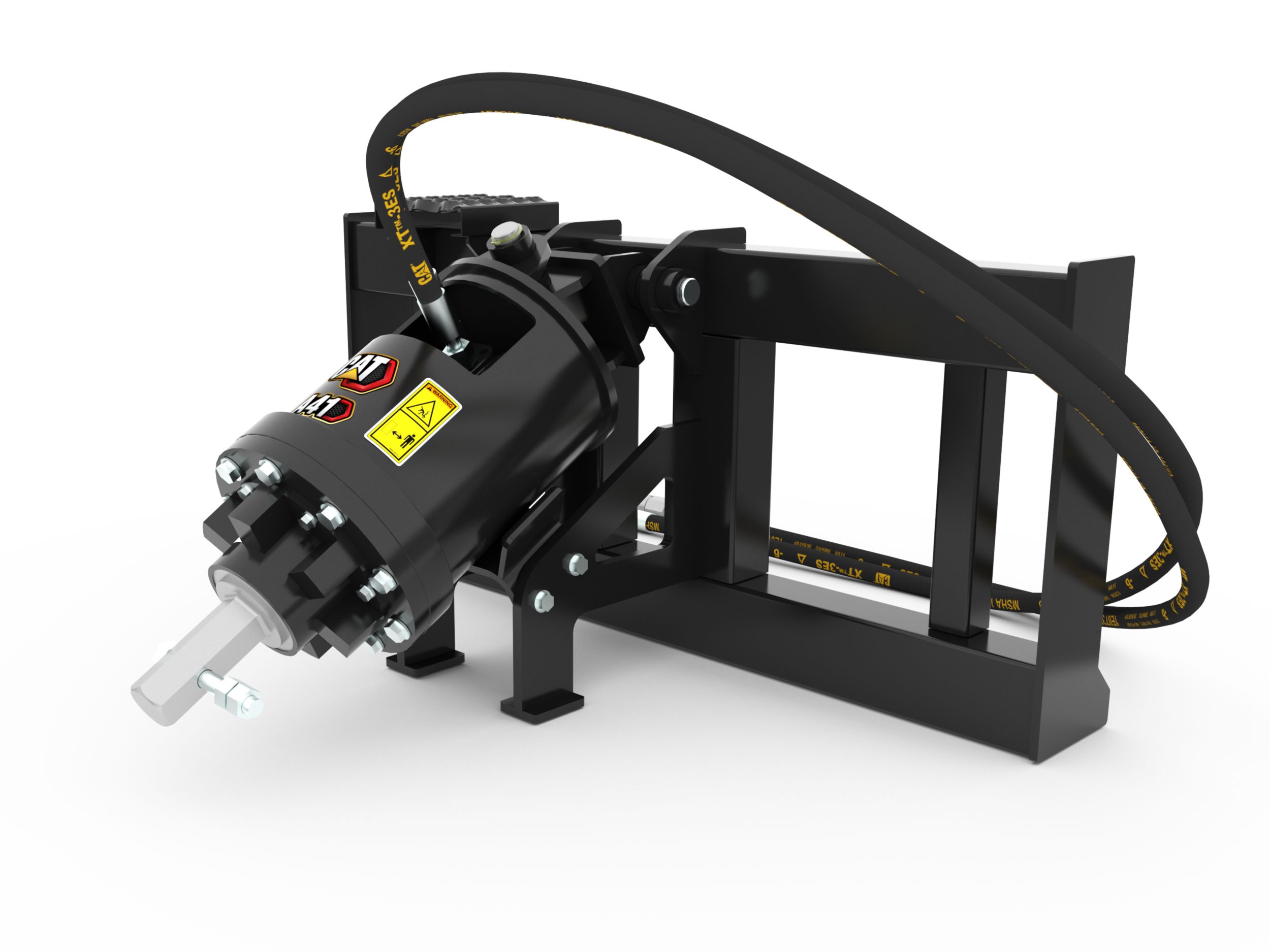

Studio Shot
Studio Shot

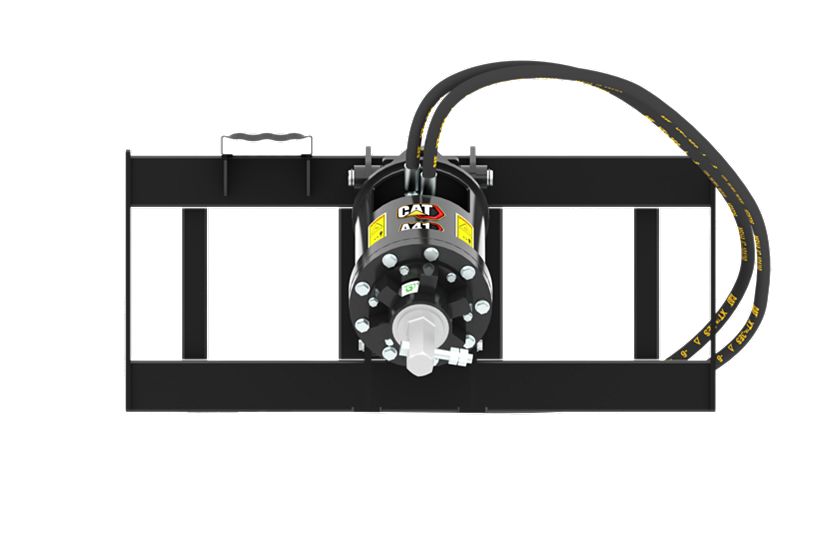

Front View
Front View

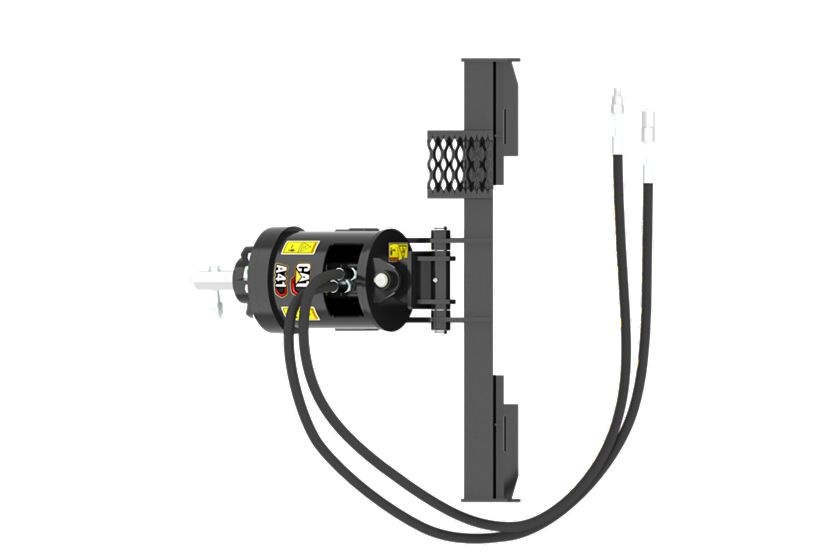

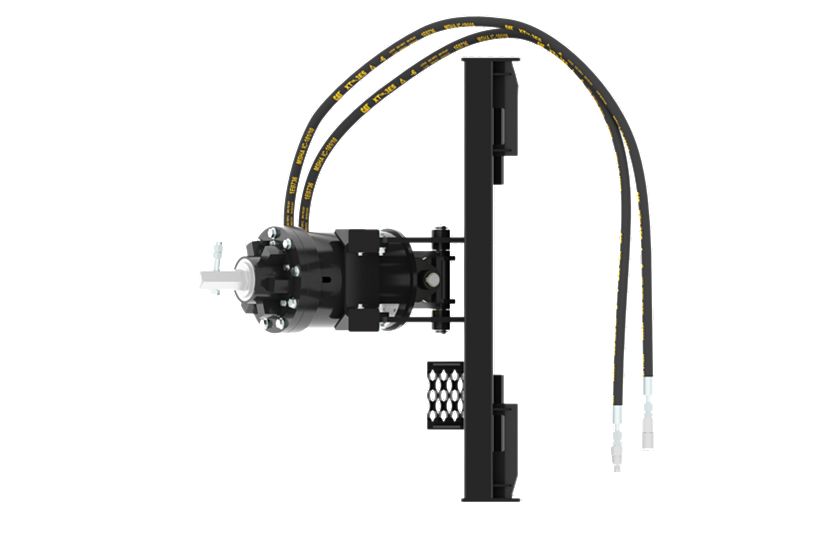

Top View
Top View

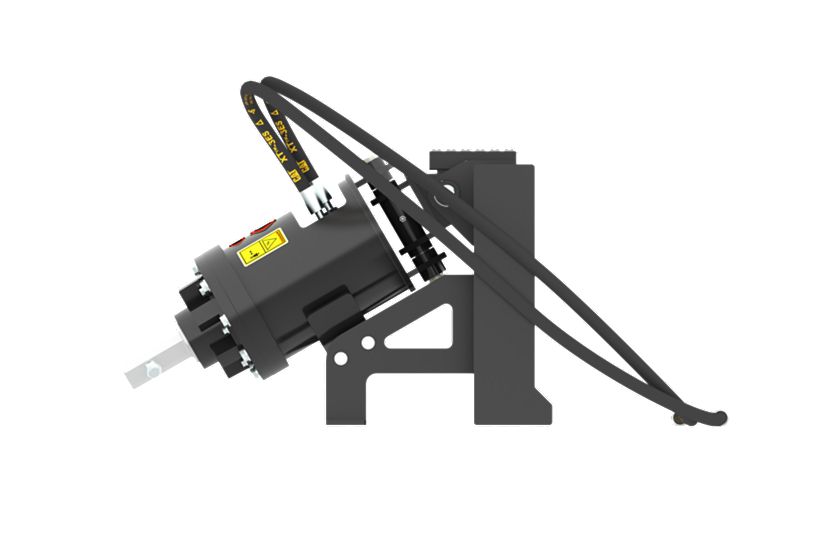

Left View
Left View

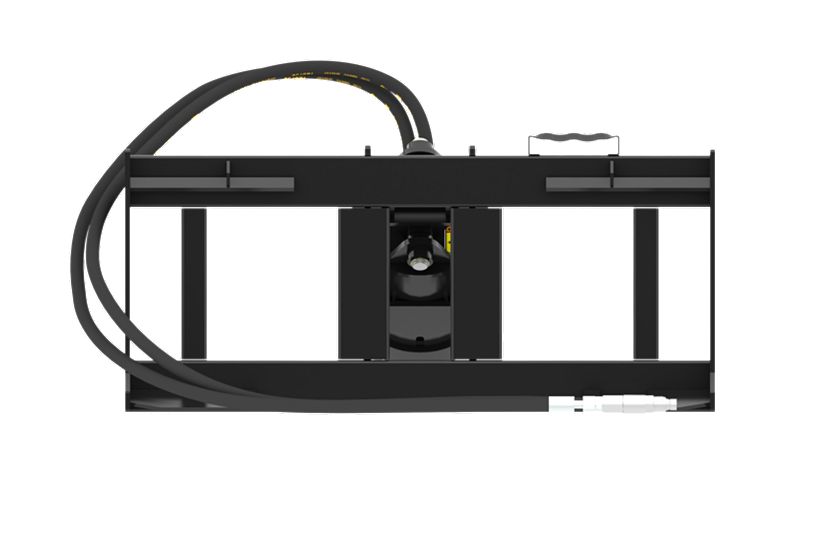

Rear View
Rear View
Bottom View
Bottom View

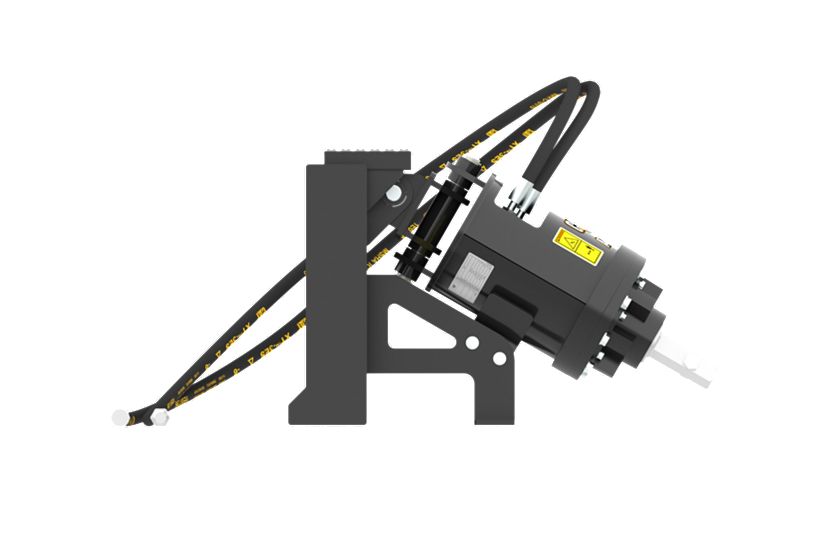

Right View
Right View
Cat® Auger at Work on a 908M Compact Wheel Loader
Cat® Auger at Work on a 908M Compact Wheel Loader

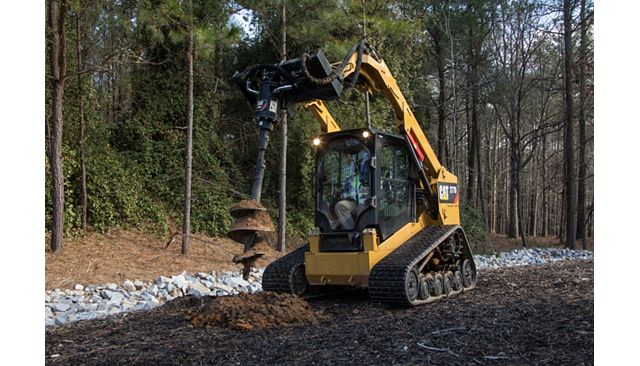

Cat® Auger at Work on a 277D Multi Terrain Loader
Cat® Auger at Work on a 277D Multi Terrain Loader

Videos

Cat® Auger Attachment at Work
Cat® Auger Attachment Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Augers except where indicated.

Documents

Features

Application

Multiple Drive Systems

Rugged Bits for Every Application

Bit Extensions and Adapters

Rugged Mounting Bracket

Details

Specifications

Spec Value
Drive Shaft Torque at Maximum Pressure 3037.3 lb/ft 4118 N·m
Drive Method Gerotor Motor - Single Planetary Reduction Gerotor Motor - Single Planetary Reduction
Mounting Bracket Design Skid Steer Loader Coupler Skid Steer Loader Coupler
Required Hydraulics Standard Flow Standard Flow
Optimal Hydraulic Flow 42-83 L/min (11-22 gpm) 42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Overall Width – With Bracket 45.4 in 1152 mm
Overall Length – With Bracket 23.5 in 598 mm
Overall Height 36.8 in 934 mm
Housing Diameter 9.9 in 252 mm
Swing Range 102 degrees 102 degrees
Swing Range (fore/aft) 120 degrees 120 degrees
Swing Range (L/R) 102 degrees 102 degrees
Weight 366 lb 166 kg
Motor Displacement 15 in³ 250 cm³
Bit Speed at Maximum Flow 71 rpm 71 rpm
Hex Output Shaft Size 2 in 51 mm
