Cat

1829 mm (72 in) Angle Blade

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Media

Photos

Studio Shot
Studio Shot
Front View
Front View
Top View
Top View
Left View
Left View
Rear View
Rear View
Bottom View
Bottom View
Right View
Right View
Cat® Blade at Work
Cat® Blade at Work

Videos

Cat® Blades at Work
Cat® Angle Blade Operating Tips
Cat® Angle Blade and Dozer Blade Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Angle Blades except where indicated.

Documents

Features

Application

Two-Way Blade

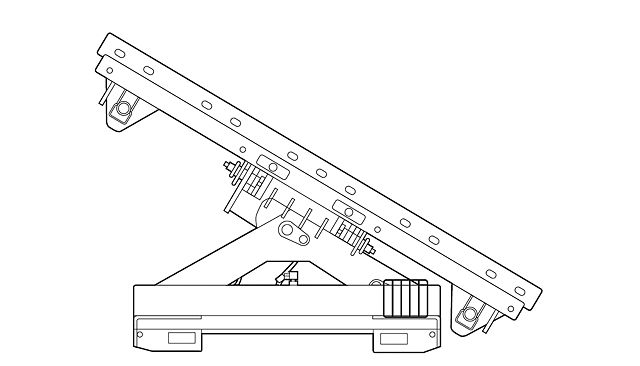

Angle Range

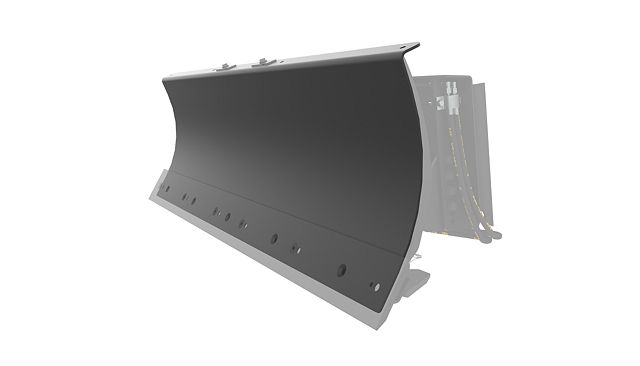

Curved Moldboard

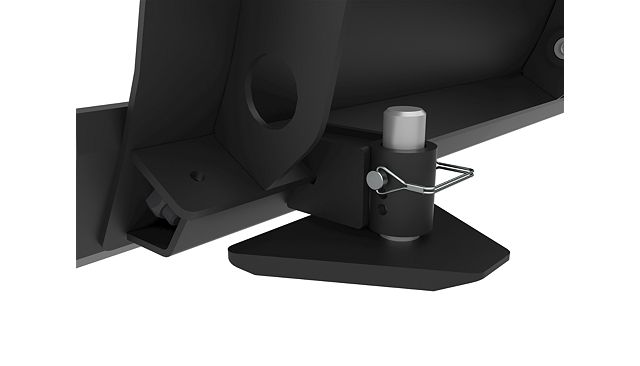

Adjustable Skid Shoes

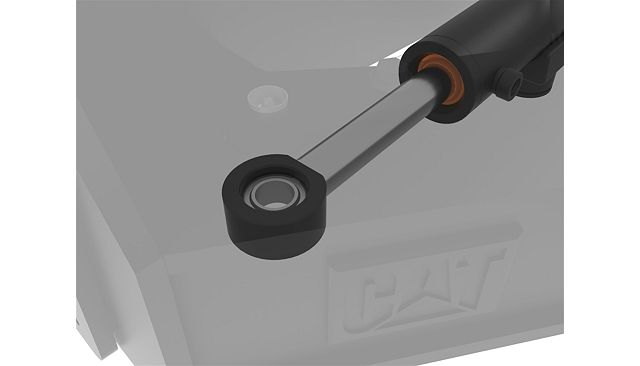

Spherical Rod Eye Cylinder

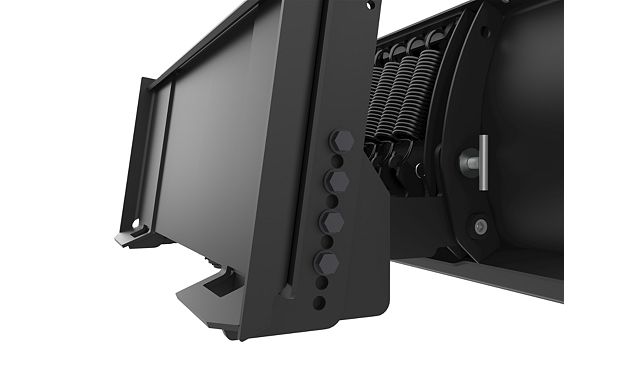

Four Pre-loaded Springs

Adjustable Interface

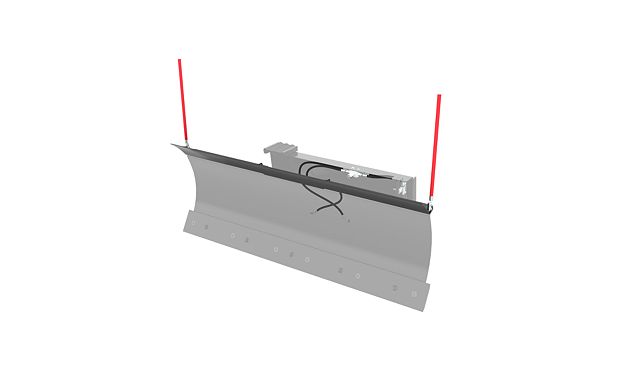

Optional Snow Kit

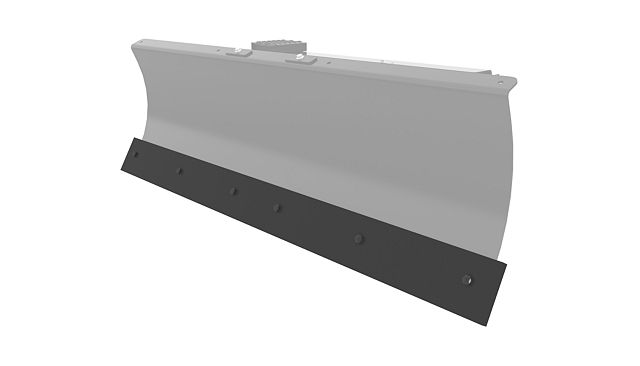

Optional Non-Metallic Blade

Details

Specifications

Spec Value
Blade Width 72 in 1829 mm
Width – Fully Angled 66.3 in 1685 mm
Maximum Blade Angle – Right/Left of Center 30 degrees 30 degrees
Blade Height 24.2 in 614 mm
Cutting Edge Width 74.5 in 1893 mm
Length 29.6 in 753 mm
Weight 690 lb 313 kg
Cutting Edge Thickness 0.6 in 16 mm
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Required Hydraulics Standard Flow Standard Flow
Interface Type Skid Steer Coupler Skid Steer Coupler
