Cat

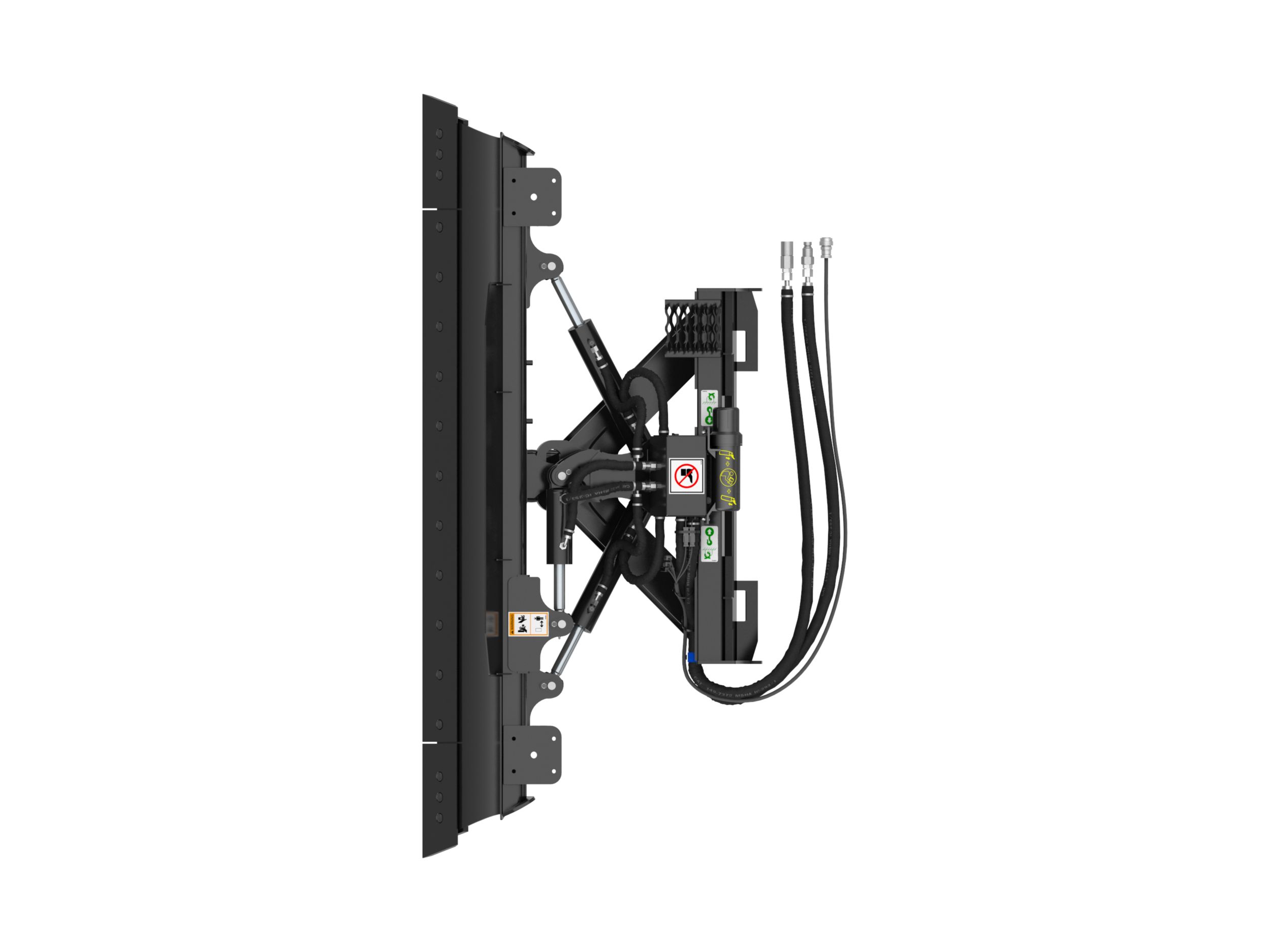

2337 mm (92 in) Dozer Blade

Designed for rough and finish grading in dirt, gravel, and light dozing.

Media

Photos

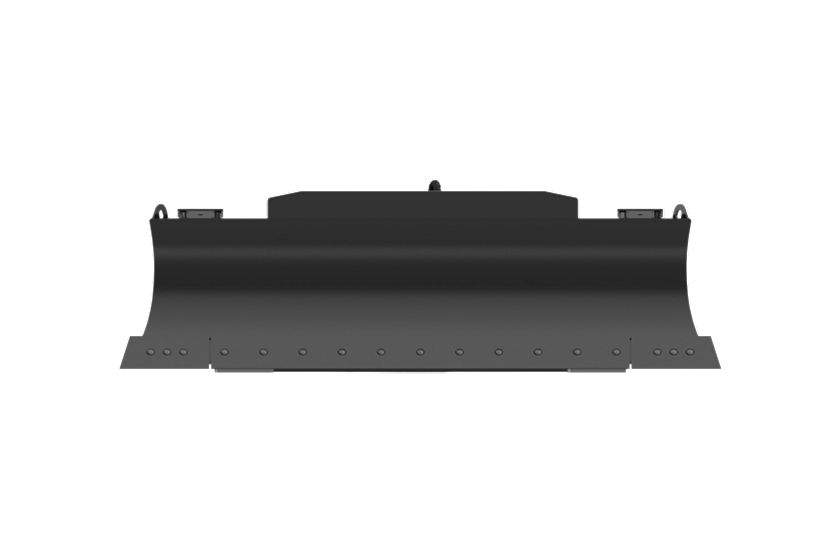

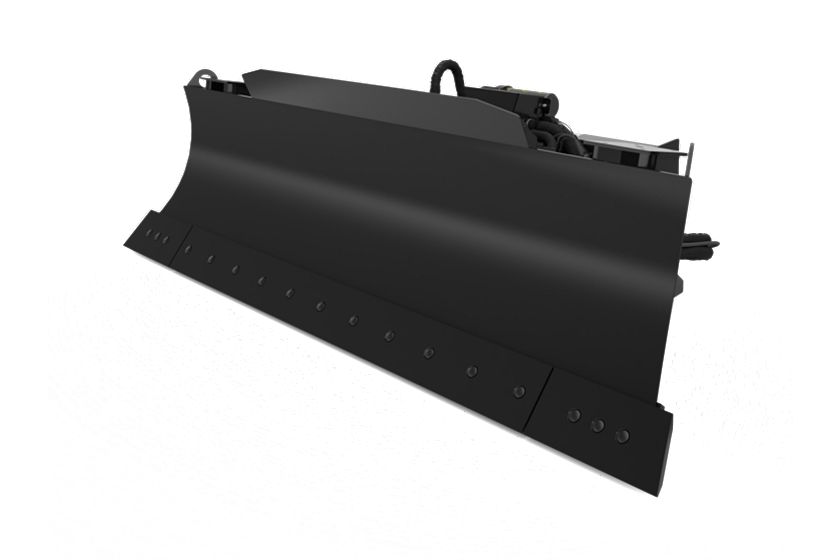

Studio Shot
Studio Shot
Front View
Front View

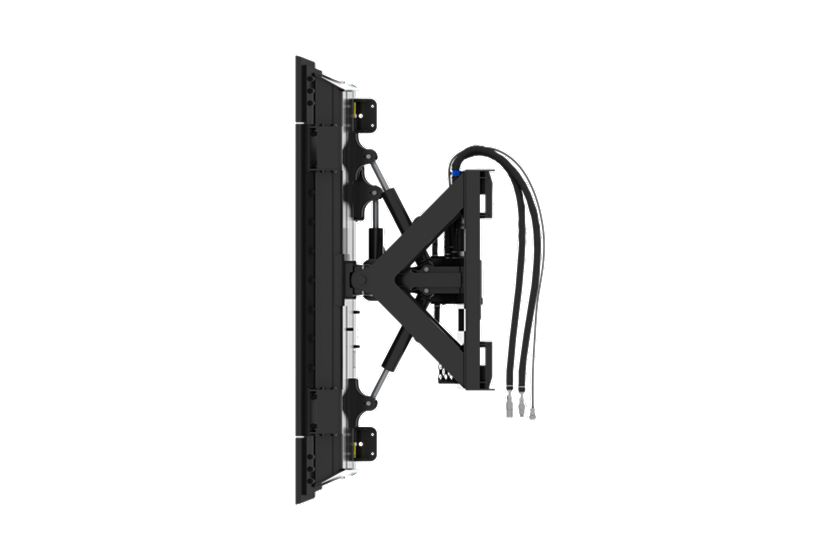

Top View
Top View

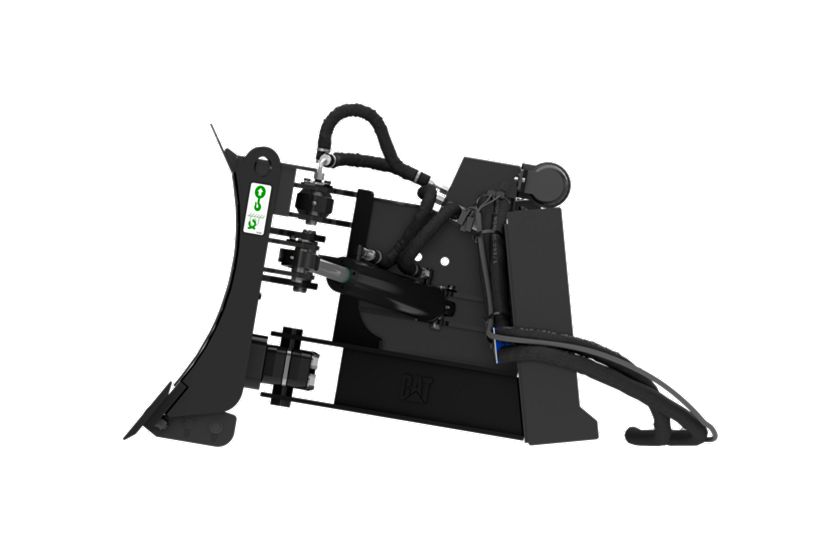

Left View
Left View

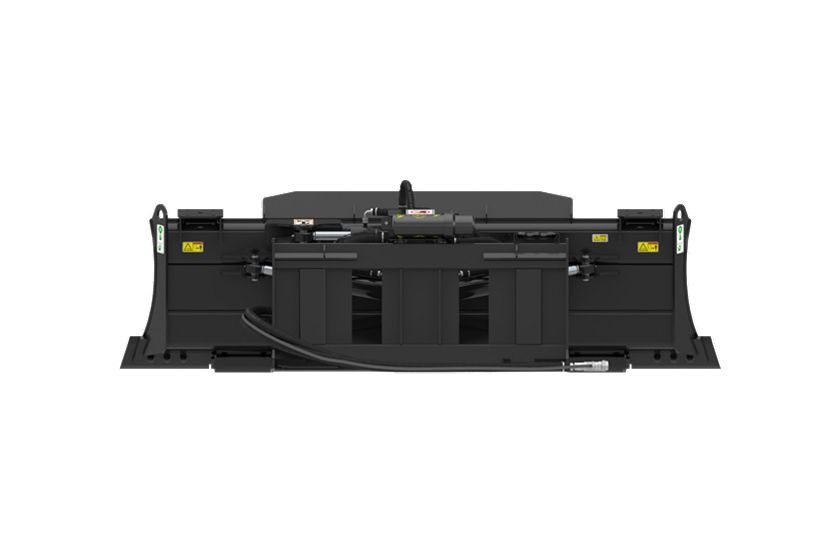

Rear View
Rear View
Bottom View
Bottom View

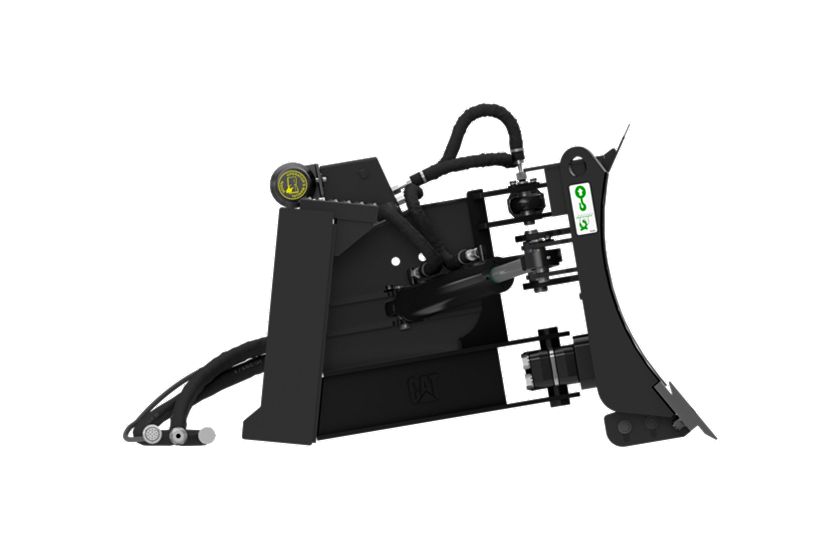

Right View
Right View

Videos

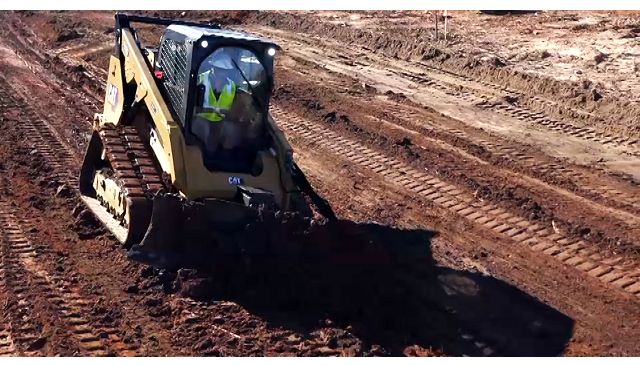

Cat® Blades at Work
Cat® Dozer Blade Operating Tips
Cat® Angle Blade and Dozer Blade Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Features shown represent all Cat® Dozer Blades except where indicated.

Documents

Features

Application

VPAT Design

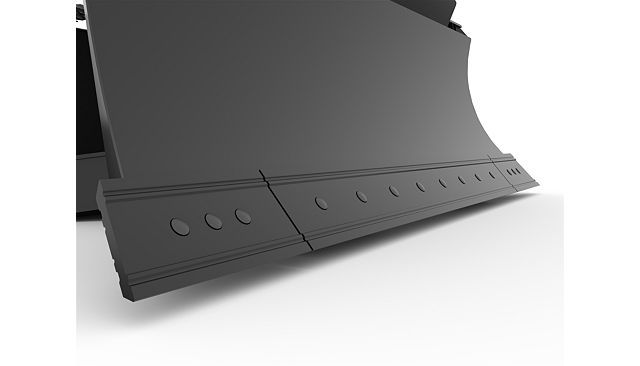

Replaceable Cutting Edge

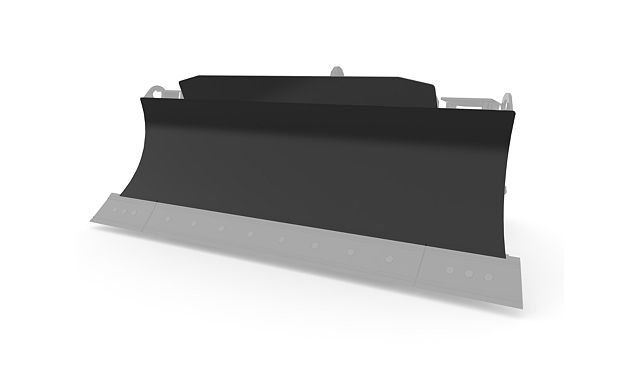

Spill Guard

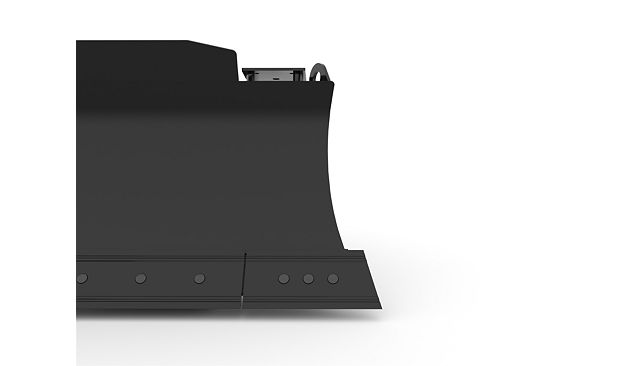

Angled Blade Ends

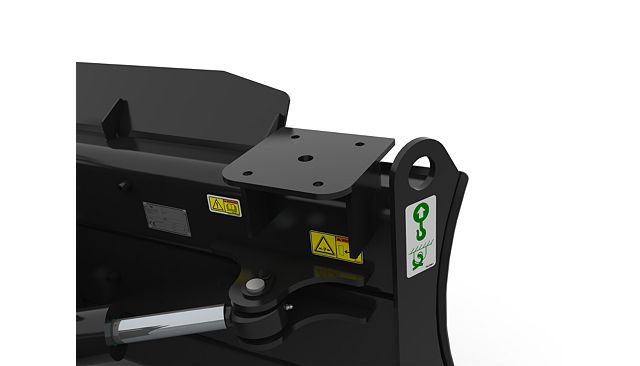

Mast Mounting Points

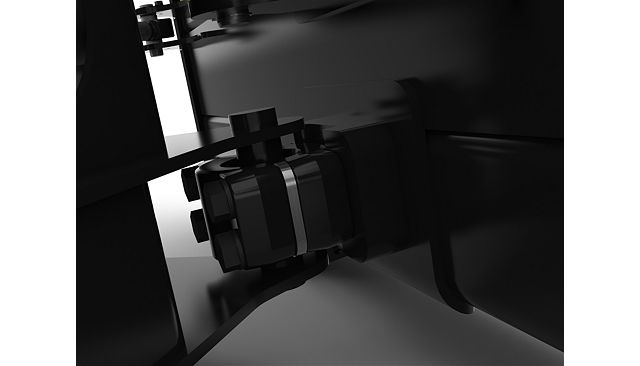

Removable Shims

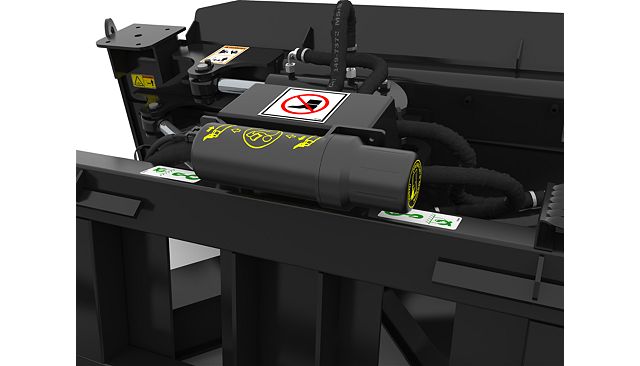

OMM Container

Details

Specifications

Spec Value
Blade Width 92 in 2337 mm
Width – Fully Angled 80.7 in 2049 mm
Maximum Blade Angle – Right/Left of Center 30 degrees 30 degrees
Tilt Angle Range +/- 10 degrees 10 degrees
Blade Height 24.4 in 619 mm
Overall Height 25.1 in 637 mm
Length 40.5 in 1028 mm
Weight 1085 lb 492 kg
Cutting Edge Thickness 0.6 in 16 mm
Required Hydraulics Standard Flow Standard Flow
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Interface Type Skid Steer Coupler Skid Steer Coupler
