Cat

BA118C Manual Angle Broom With Polypropylene/Wire Bristles

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Media

Photos

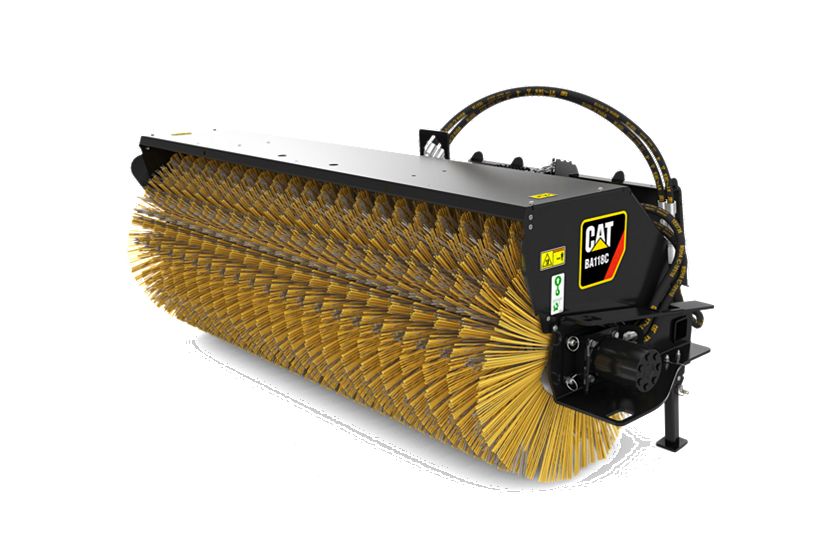

Studio Shot
Studio Shot

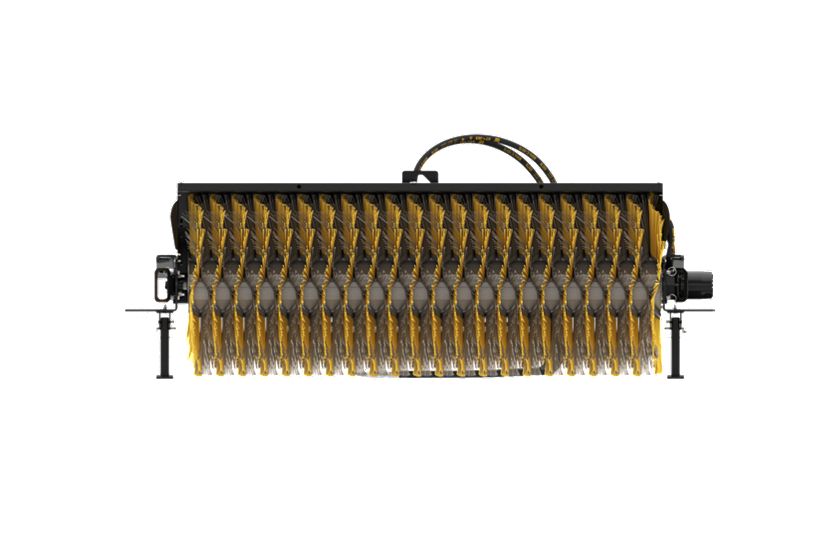

Front View
Front View

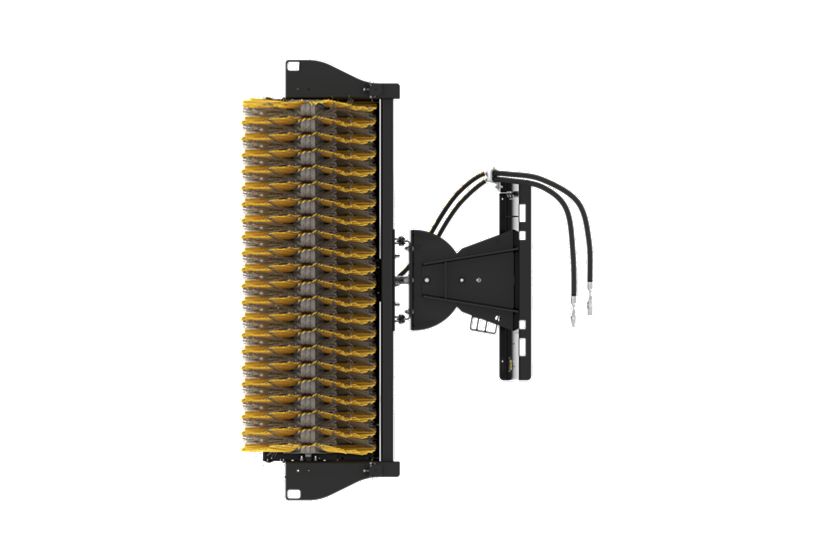

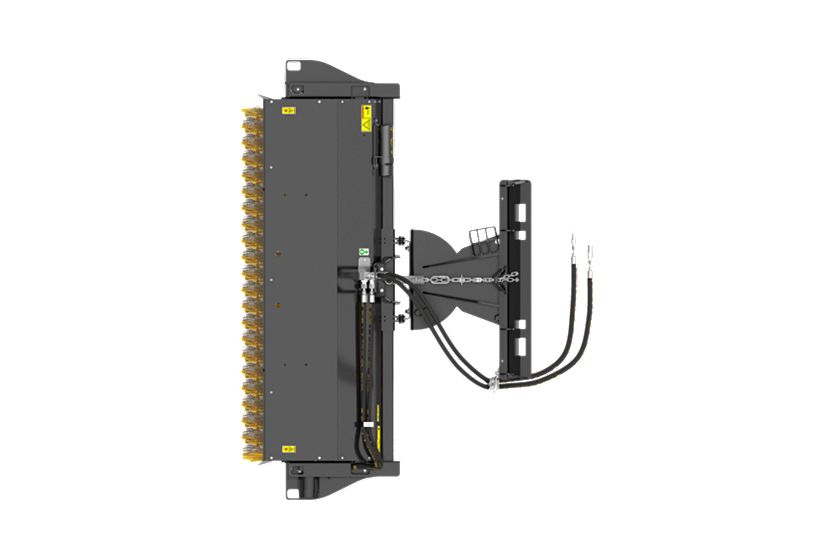

Top View
Top View

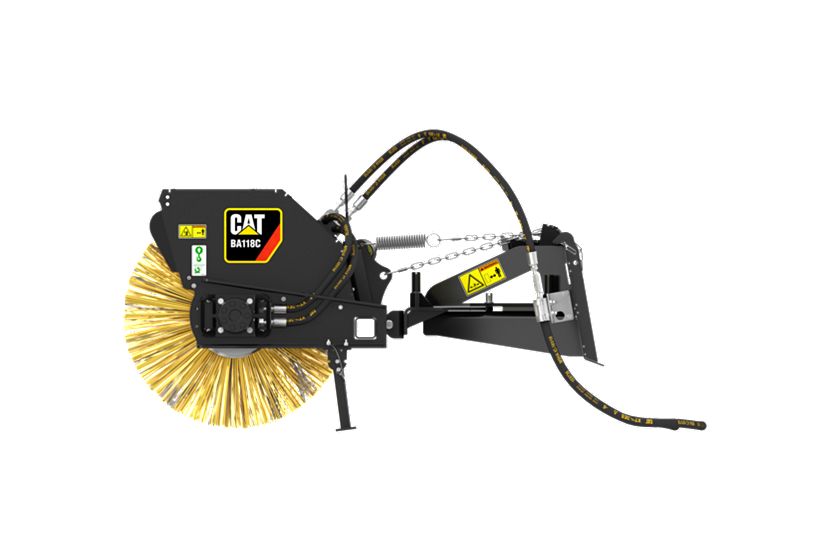

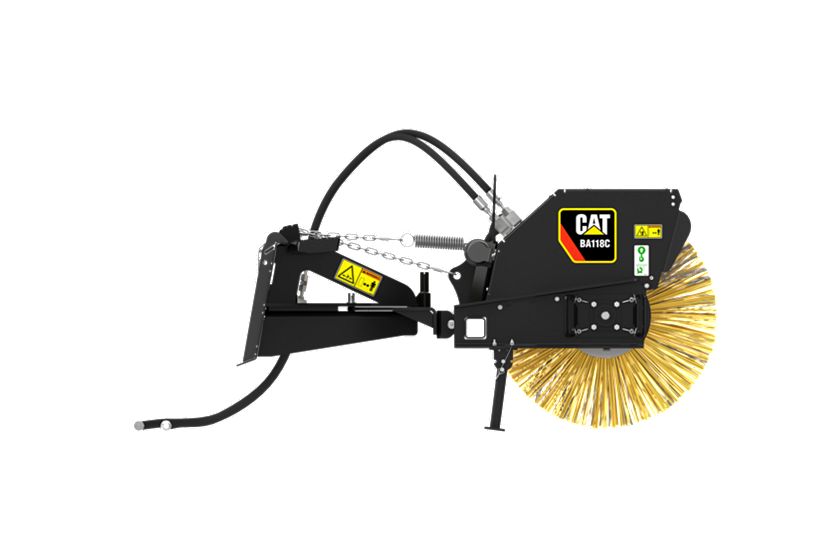

Left View
Left View

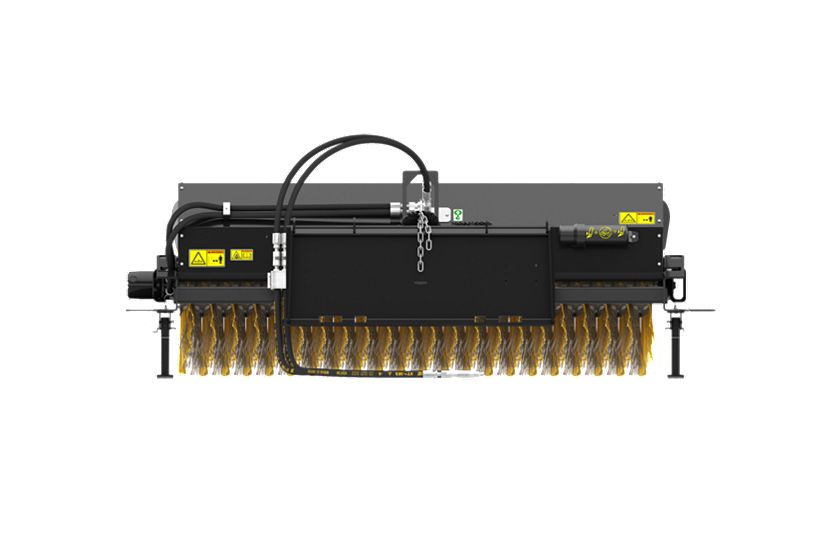

Rear View
Rear View
Bottom View
Bottom View
Right View
Right View

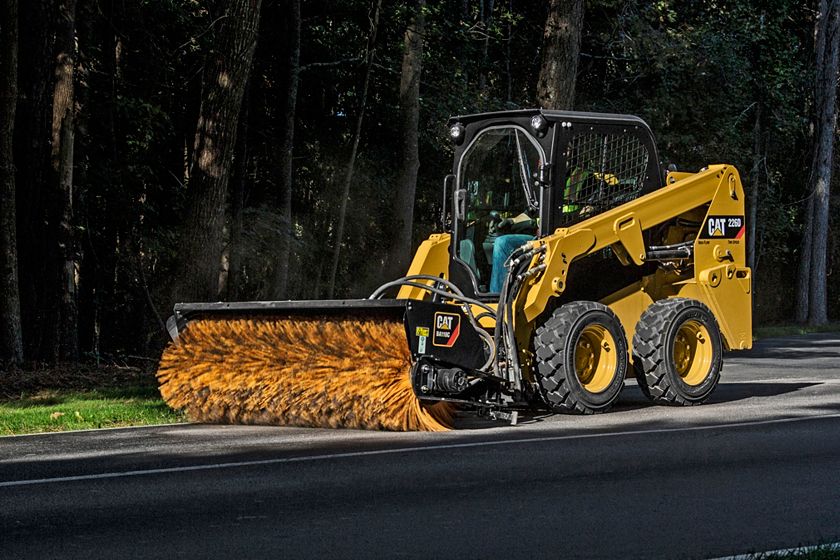

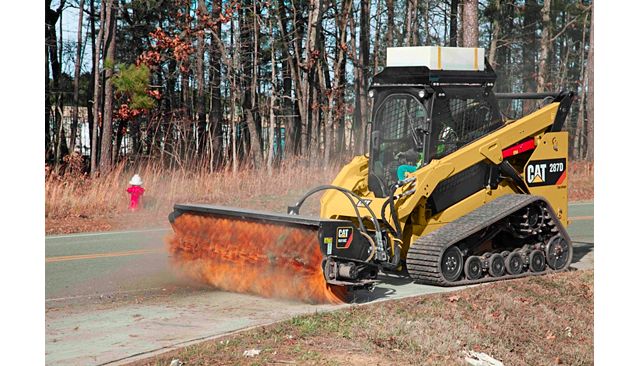

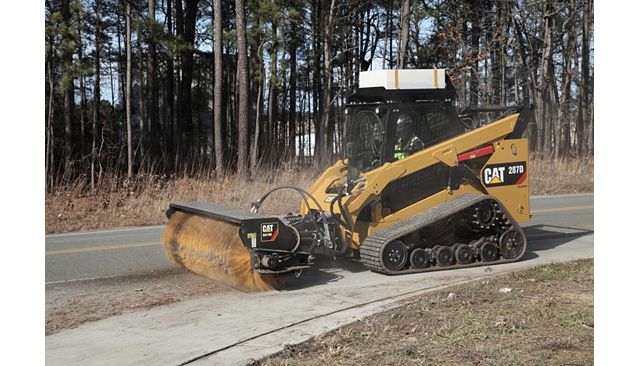

Cat® BA118C Angle Broom at Work
Cat® BA118C Angle Broom at Work

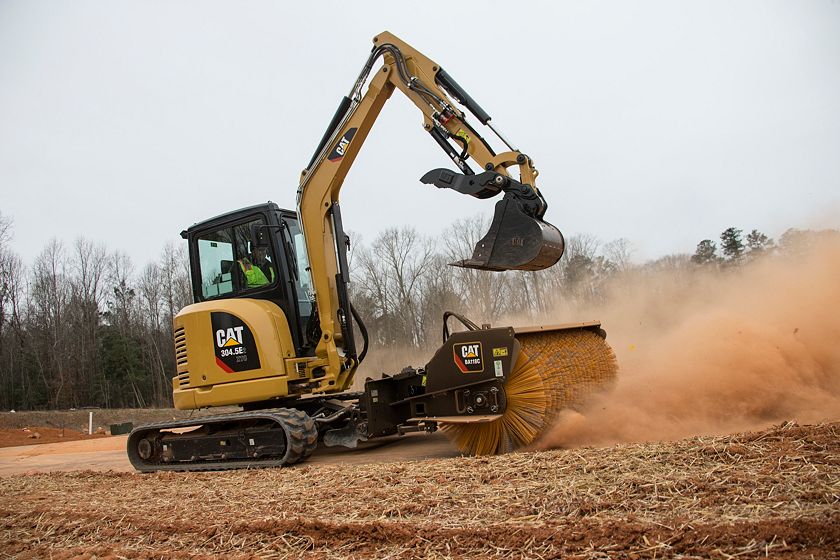

Cat® 304.5E2 XTC Mini Excavator sweeping with a BA118C Angle Broom
Cat® 304.5E2 XTC Mini Excavator sweeping with a BA118C Angle Broom

Videos

Cat® Angle Broom and Utility Broom for Compact Equipment at Work
Cat® BA118C Angle Broom Overview
Cat® Brooms at Work
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Angle Brooms except where indicated.

Documents

Features

Application

Variable Sweeping Angle

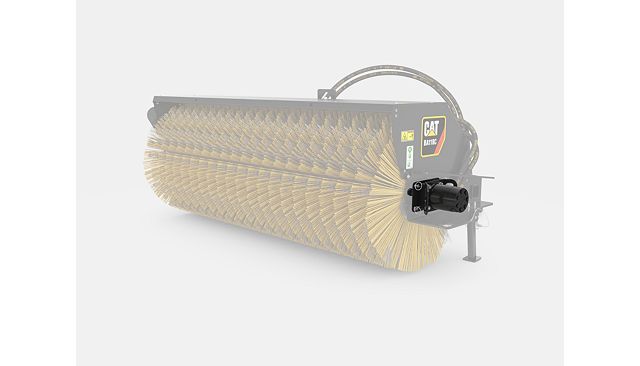

Reliable Hydraulic Motor

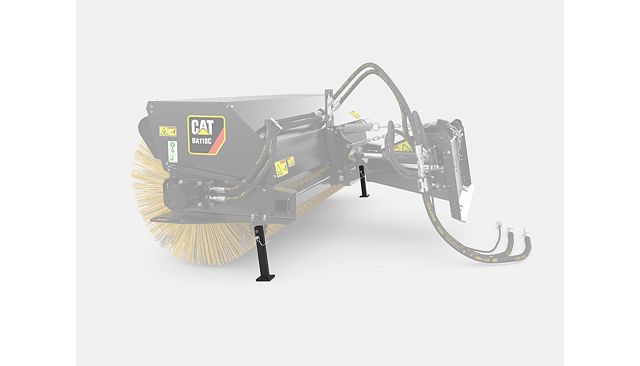

Parking Supports

Optional Water Kit

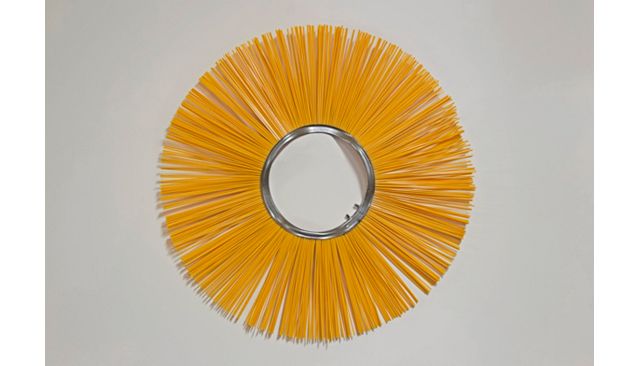

Polypropylene and Wire Bristle Options

Details

Specifications

Spec Value
Overall Width 103.8 in 2637 mm
Sweeping Width 83.4 in 2119 mm
Brush Diameter 32.1 in 815 mm
Required Hydraulics Standard Flow Standard Flow
Height 36.1 in 918 mm
Length 68.5 in 1741 mm
Weight 906.1 lb 411 kg
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement 24.7 in³/rev 405 cm³/rev
Brush Speed at Maximum Flow 199 rpm 199 rpm
Sweeping Width – Angled (± 30 Degrees) 72.8 in 1849 mm
Overall Width – Angled (± 30 Degrees) 98.7 in 2508 mm
Drive Method Direct Drive Direct Drive
Interface Type Skid Steer Coupler Skid Steer Coupler
Optional Hood Extension 39.7 lb 18 kg
