Cat

MB200 Mixing Bucket

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Media

Photos

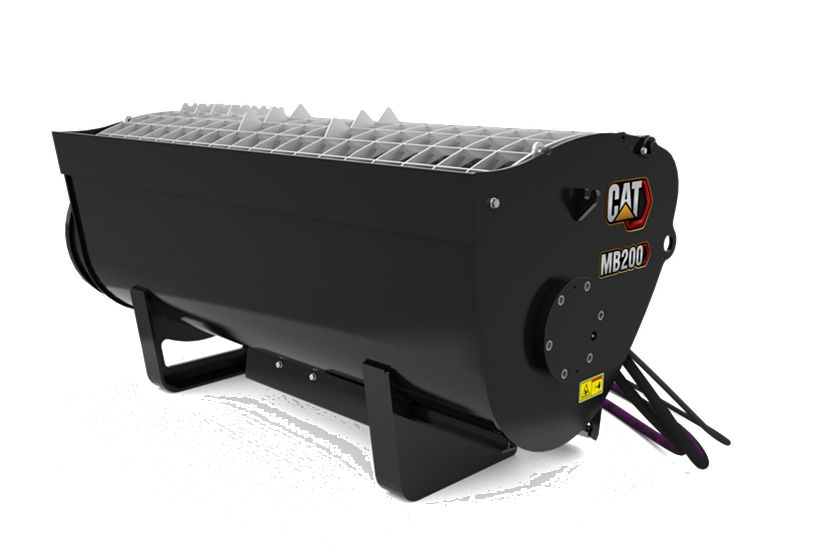

Studio Shot
Studio Shot

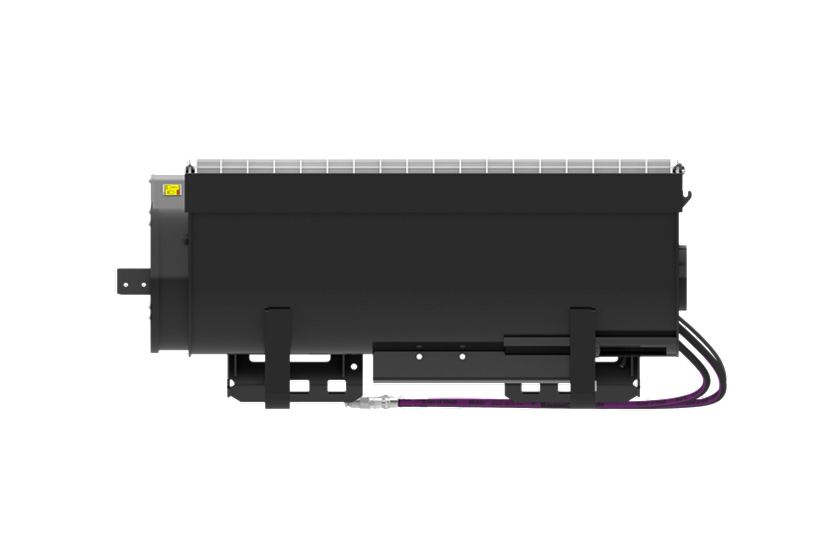

Front View
Front View

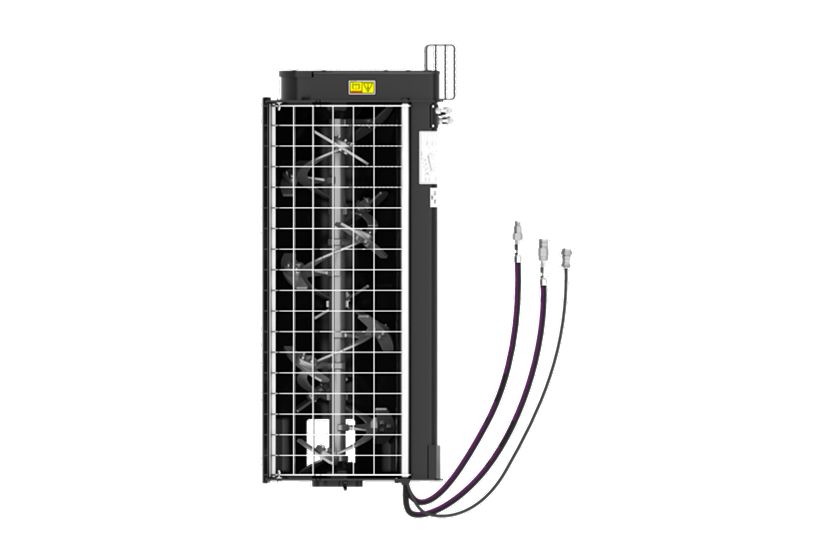

Top View
Top View

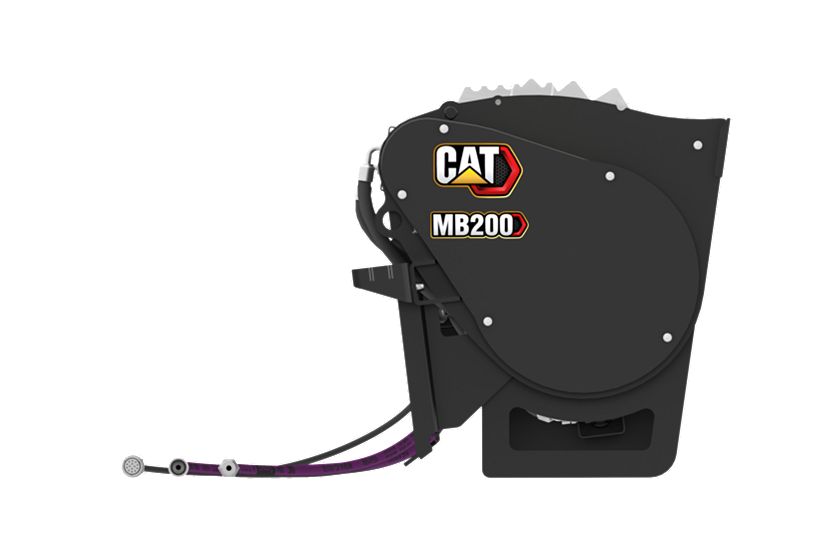

Left View
Left View

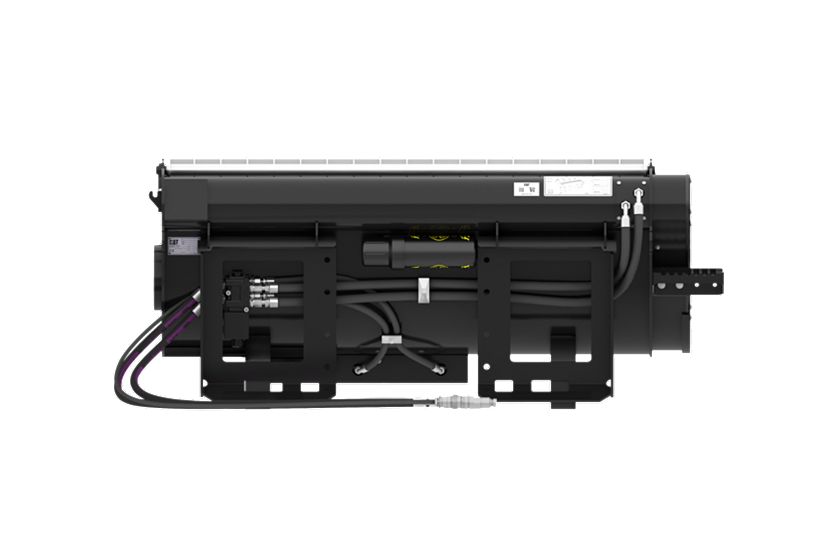

Rear View
Rear View

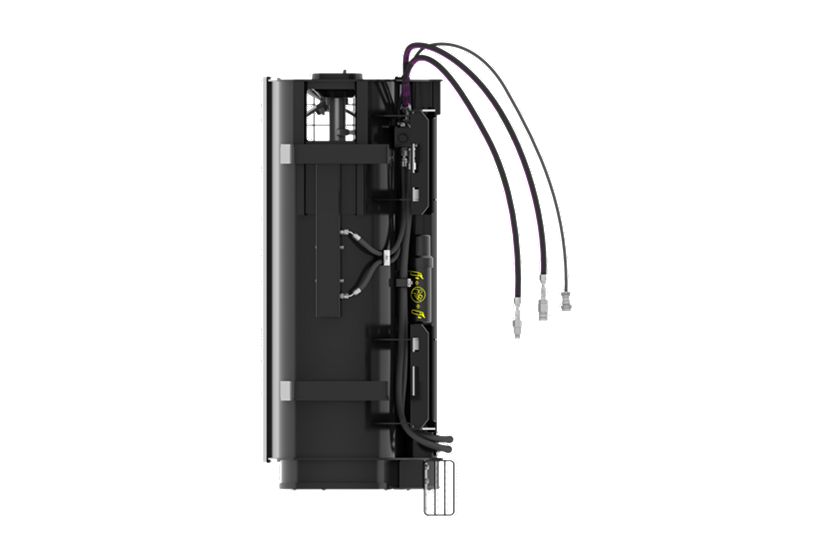

Bottom View
Bottom View

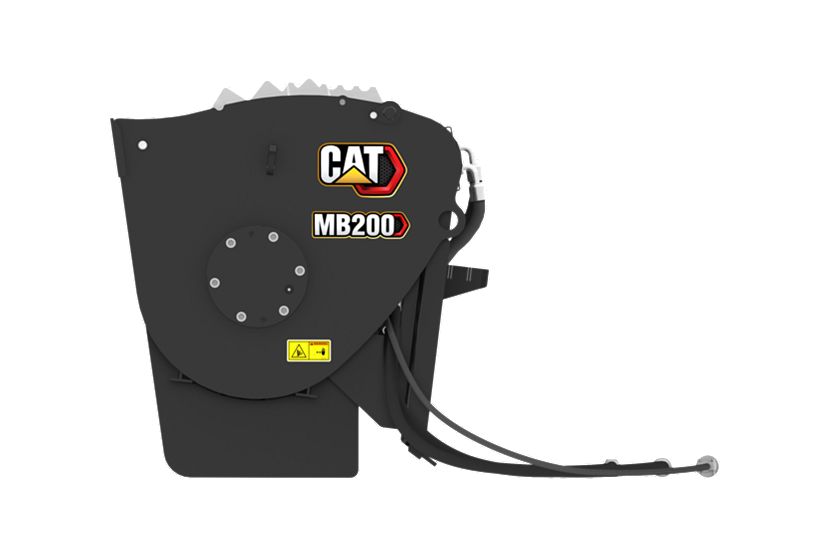

Right View
Right View

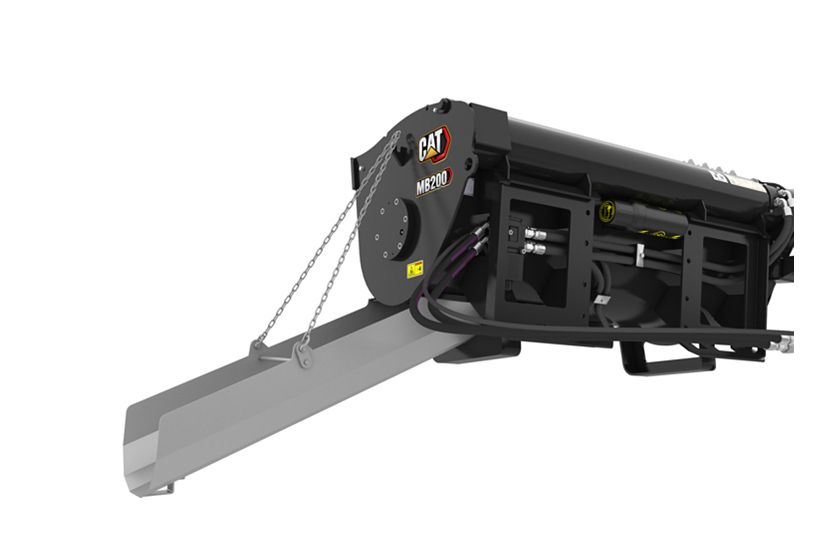

Mixing Bucket Chute
Mixing Bucket Chute

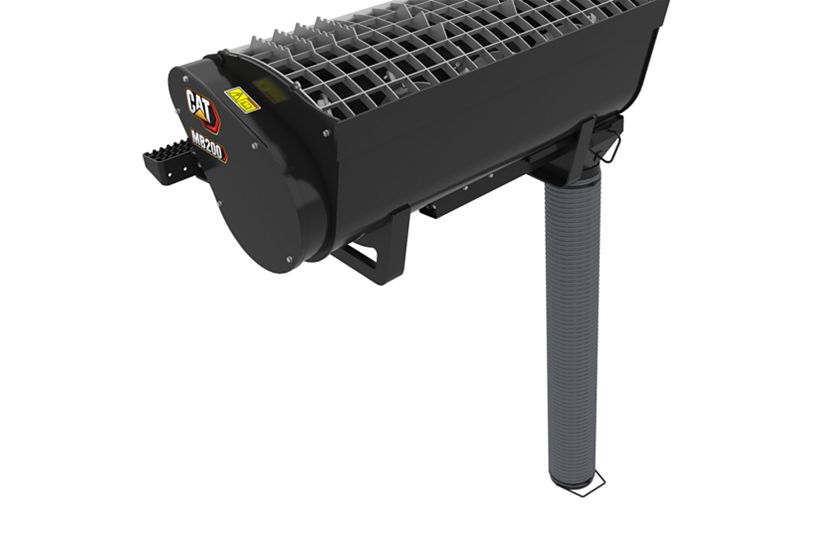

Mixing Bucket Hose
Mixing Bucket Hose
Customer Adding Mix to Cat® Mixing Bucket Using Integrated Bag Breakers
Customer Adding Mix to Cat® Mixing Bucket Using Integrated Bag Breakers
Customer using Cat® Mixing Bucket hose to direct mix right where you need it.
Customer using Cat® Mixing Bucket hose to direct mix right where you need it.
Cat® Mixing Bucket Scooping Rock
Cat® Mixing Bucket Scooping Rock

Videos

An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

360° view. Double click on the image to zoom in on any area of the product.

Documents

Features

Easy Material Addition

Bucket Cutting Edge

Reinforced Steel Bucket Cavity

Bolt-On Replaceable Auger Paddles

Remotely Operated Chute Door

Bolt-On Serrated Step

Tool Mounted Operation and Maintenance Manual Holder

Details

Specifications

Spec Value
Capacity 0.26 yd³ 0.2 m³
Width 54.6 in 1386 mm
Required Hydraulics Standard Flow Standard Flow
Auger Speed Range 10-30 rpm 10-30 rpm
Drive Method Chain Chain
Height 28.8 in 731 mm
Length 27.3 in 694 mm
Optimal Hydraulic Flow 60-70 lpm (16-18 gpm) 60-70 lpm (16-18 gpm)
Optimal Hydraulic Pressure 140-200 bar (2031-2901 psi) 140-200 bar (2031-2901 psi)
Weight 639 lb 290 kg
Auger Diameter 16 in 406 mm
Number of Auger Paddles 12 12
Interface Type Skid Steer Coupler Skid Steer Coupler
Overall Width 63.1 in 1602 mm
