Cat

2188 mm (86 in) Multi-Purpose Bucket With Bolt-On Cutting Edge And Spill Guard

Powerful clamping forces for grasping large, unusually shaped objects such as trees and recycling debris.

Media

Photos

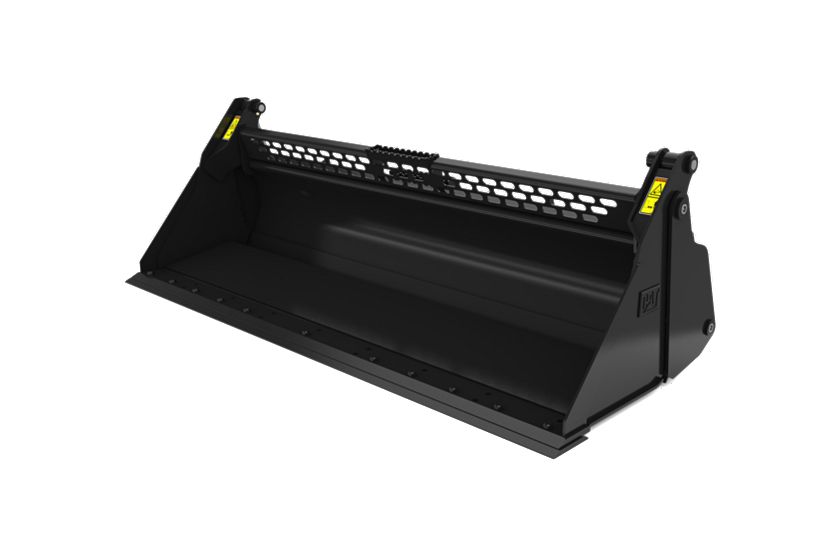

Studio Shot
Studio Shot

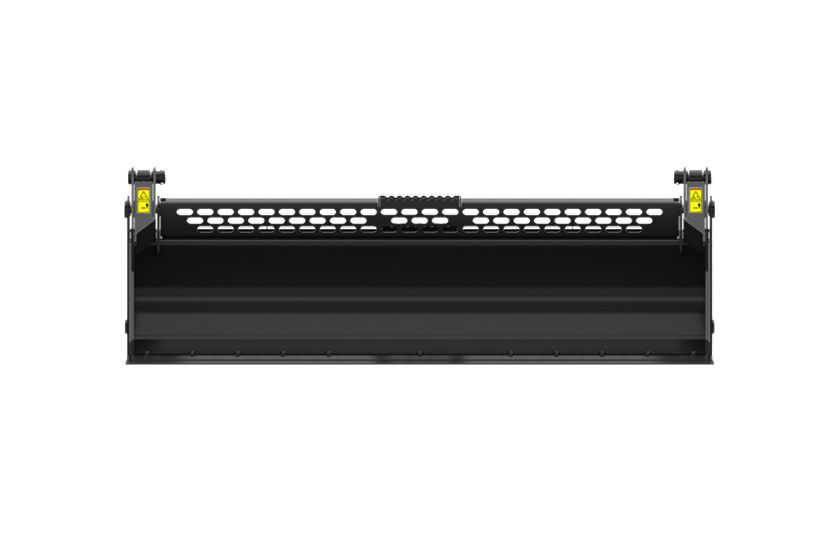

Front View
Front View

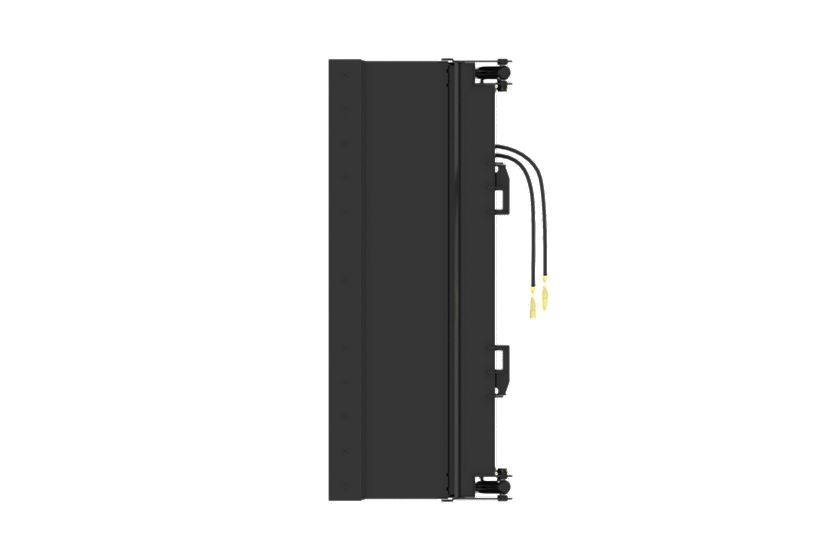

Top View
Top View

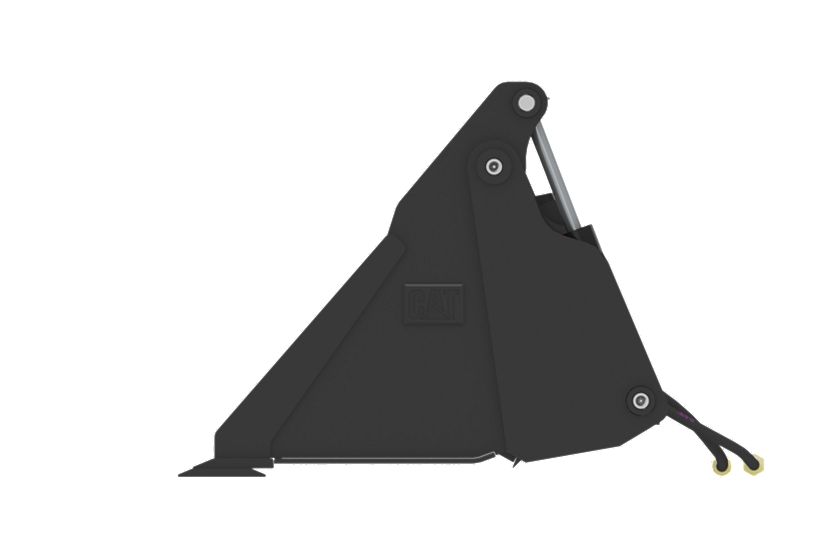

Left View
Left View

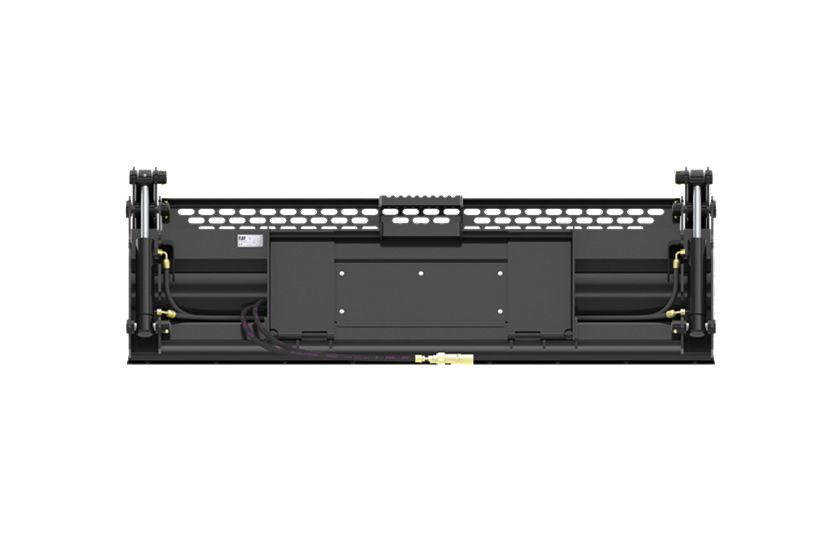

Rear View
Rear View

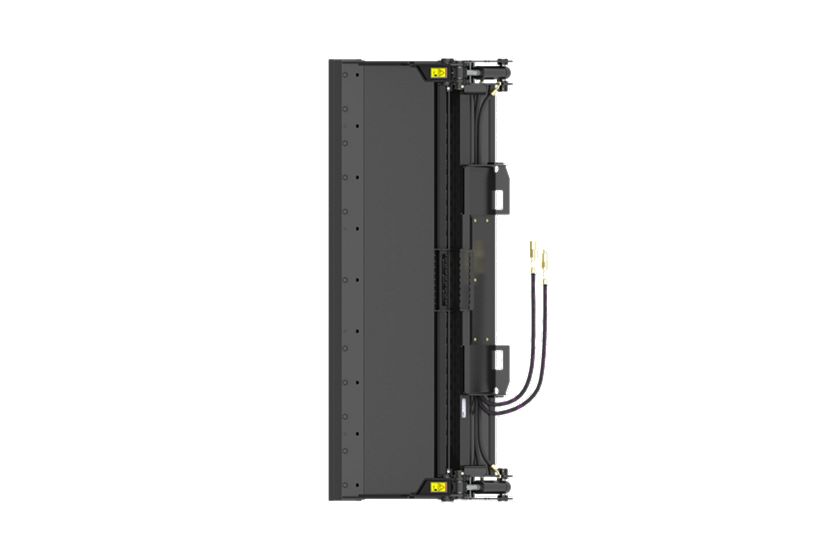

Bottom View
Bottom View

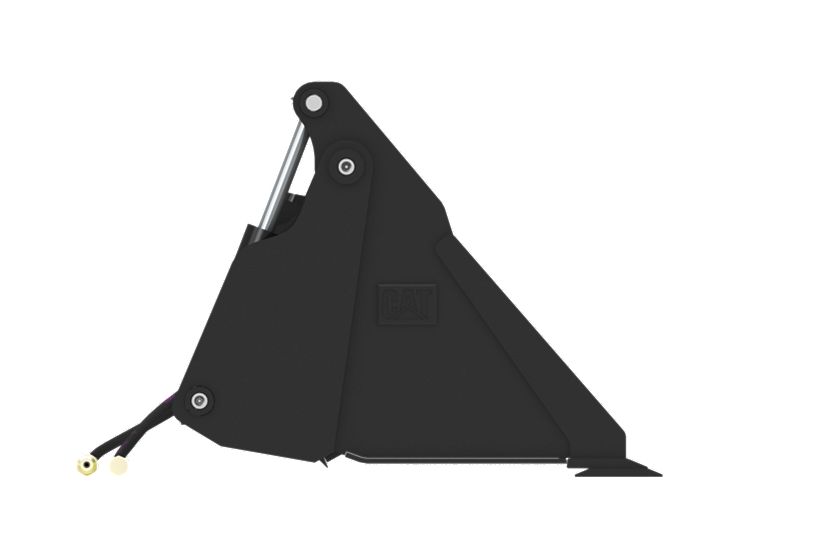

Right View
Right View

Videos

Cat® Multi Purpose Bucket at Work
Cat® Multi Purpose Buckets at Work
Cat® Buckets for Compact Loaders at Work
An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Features

Application

Excellent Clamping Force

Clam Jaw Opens a Full 89 Degrees

Serrated Clam Side Edge

Ground Engaging Tool Options

Details

Specifications

Spec Value
Width 86.1 in 2188 mm
Capacity 0.56 yd³ 0.43 m³
Weight 1071 lb 486 kg
Height 29.1 in 740 mm
Length 36.2 in 919 mm
Base Edge Thickness 0.7 in 19 mm
Cutting Edge Thickness 0.6 in 16 mm
Operating Pressure 3335.9 psi 23000 kPa
Jaw Opening 30.2 in 767 mm
Clam Angle 89 degrees 89 degrees
Interface Type Skid Steer Coupler Skid Steer Coupler
