CV117 Vibratory Drum Compactor

Vibratory action and dynamic force provides excellent compaction in a compact size.

Media

Photos

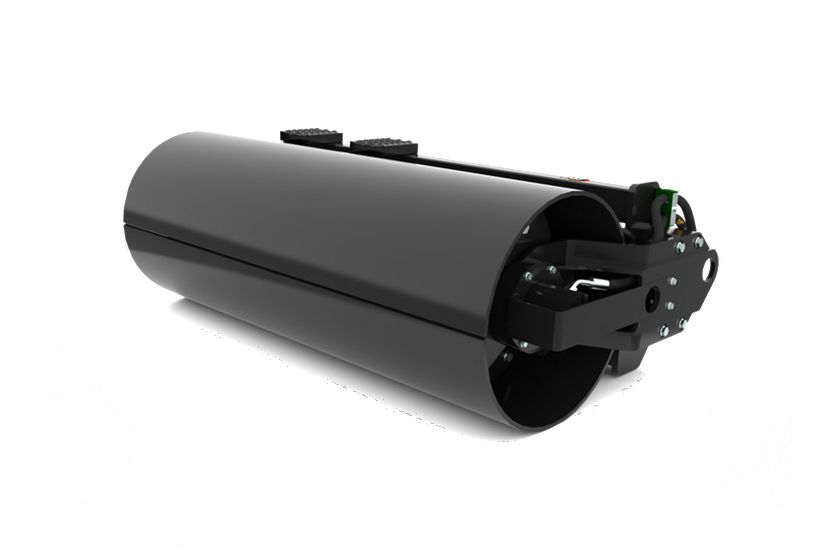

Studio Shot
Studio Shot
Front View
Front View

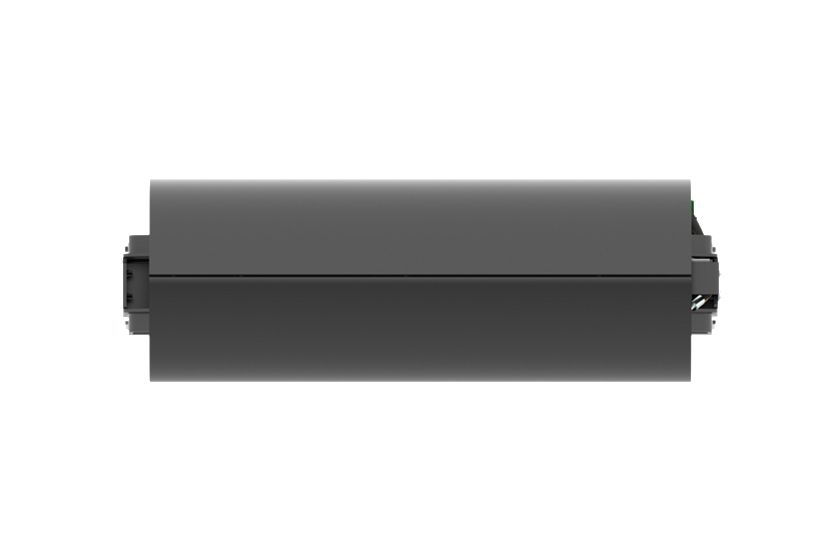

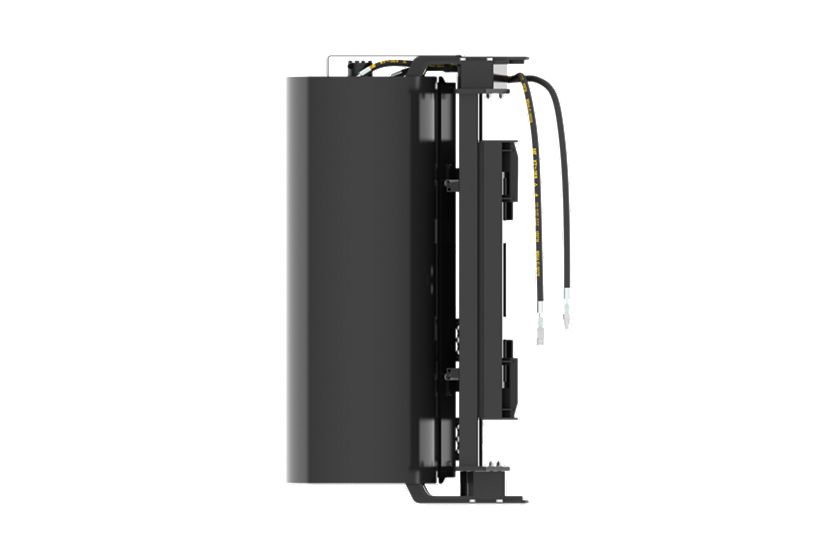

Top View
Top View

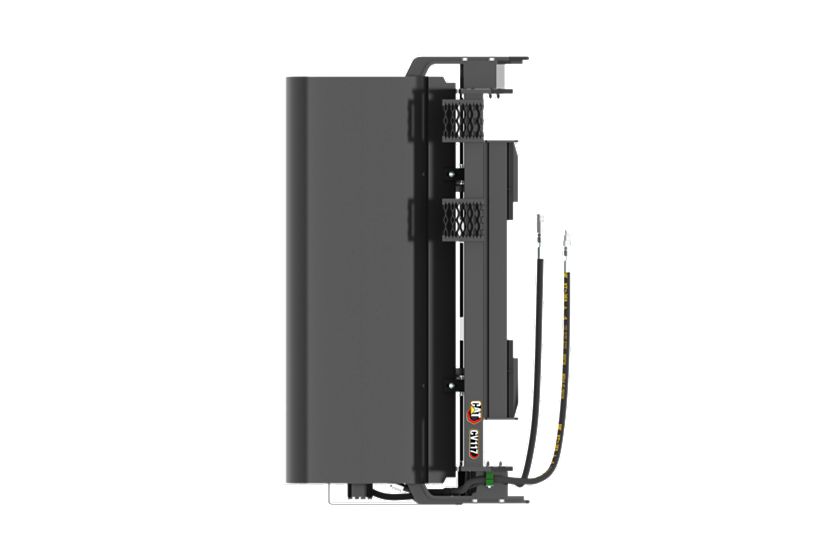

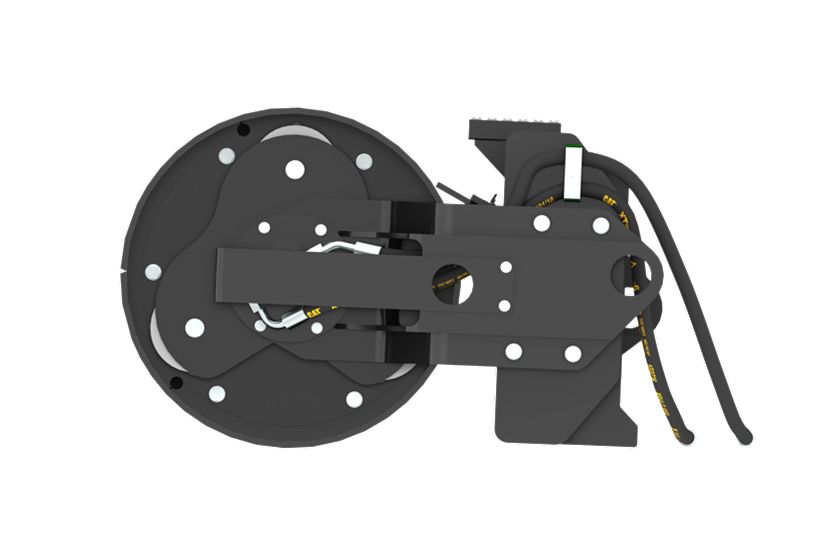

Left View
Left View
Rear View
Rear View

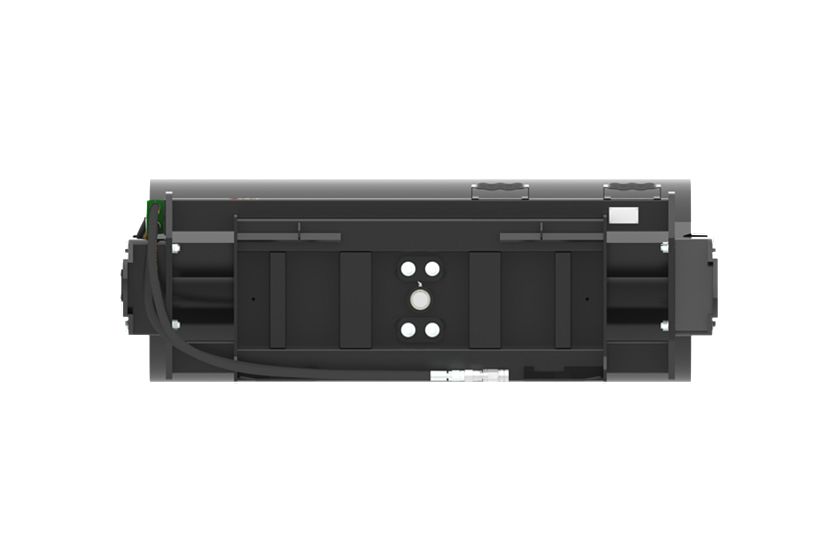

Bottom View
Bottom View

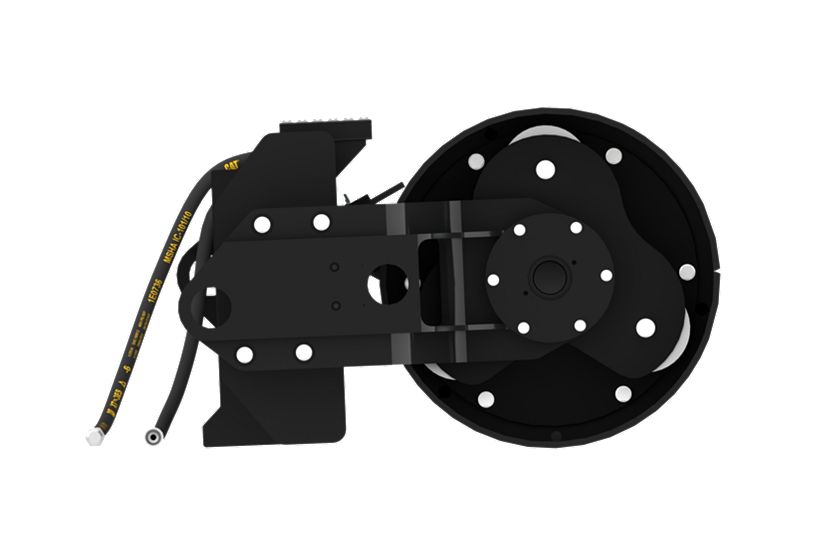

Right View
Right View

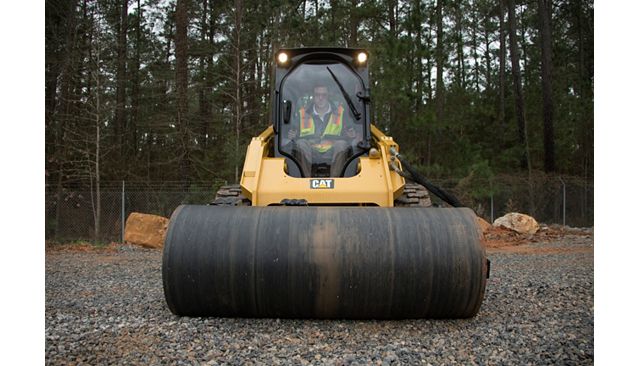

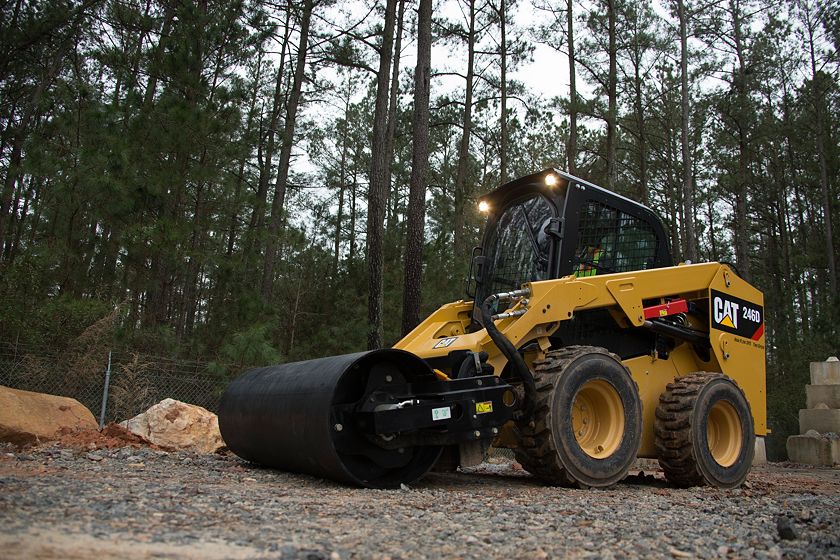

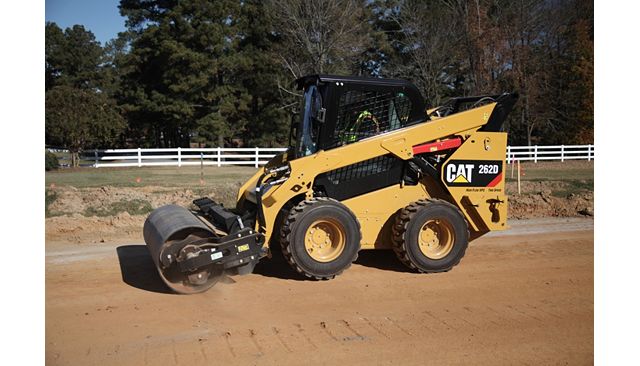

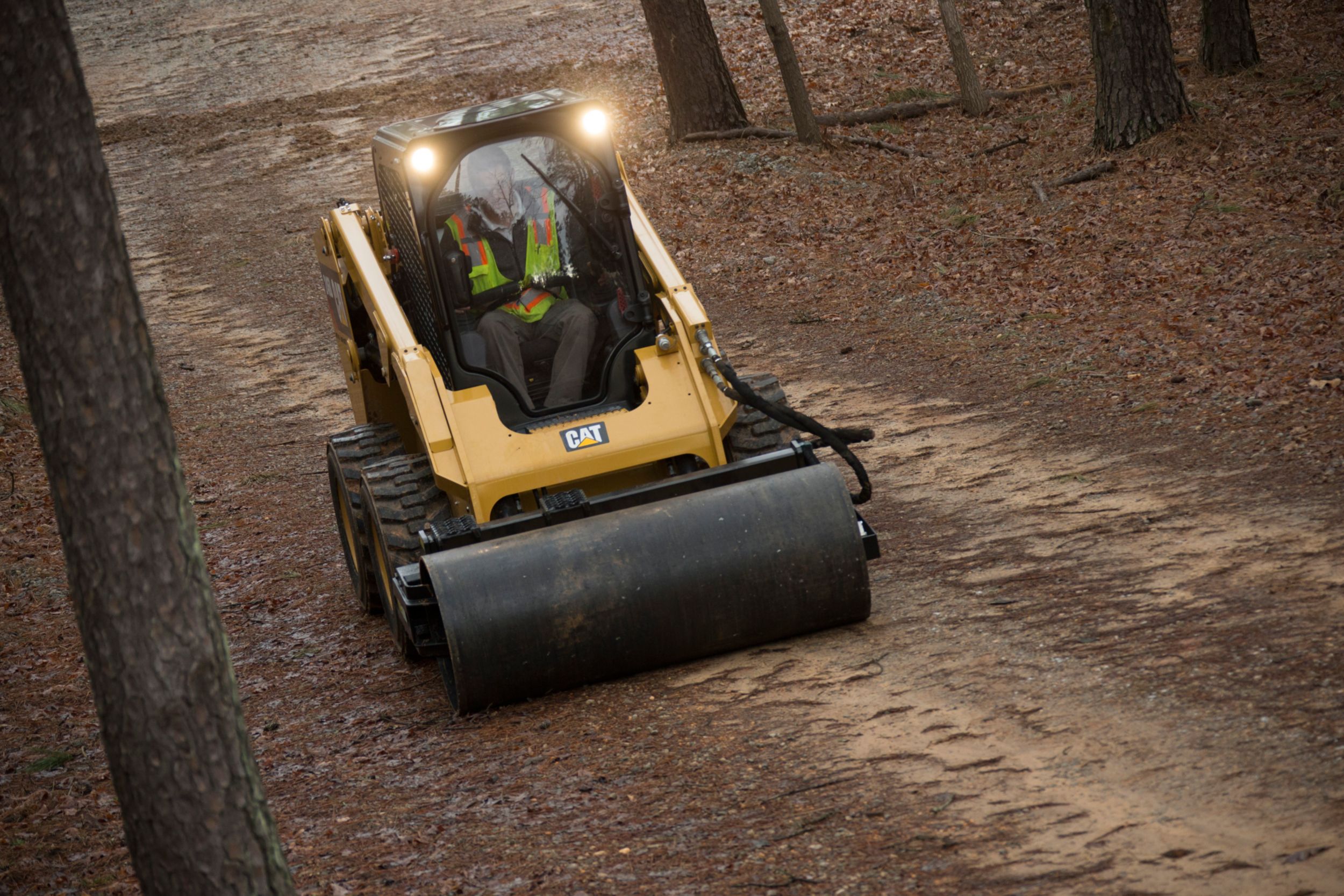

Cat® 246D Skid Steer Loader and Vibratory Drum Compactor at Work
Cat® 246D Skid Steer Loader and Vibratory Drum Compactor at Work

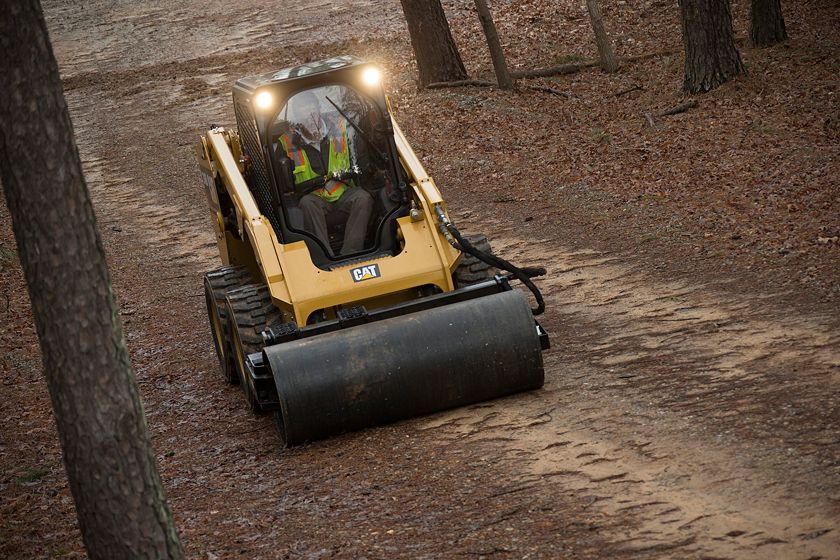

Cat® Vibratory Drum Compactor Smoothing a Path
Cat® Vibratory Drum Compactor Smoothing a Path

Videos

Cat® Vibratory Drum Compactors at Work
Cat® Vibratory Drum Compactors Operating Tips
Cat® Vibratory Drum Compactors Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Vibratory Drum Compactors except where indicated.

Documents

Features

Application

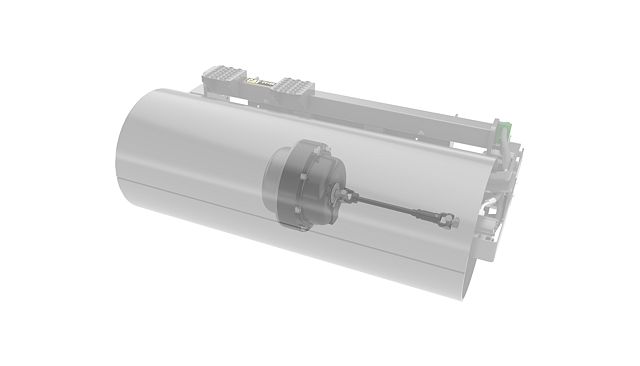

Vibratory Pod Design

Higher Compaction Forces

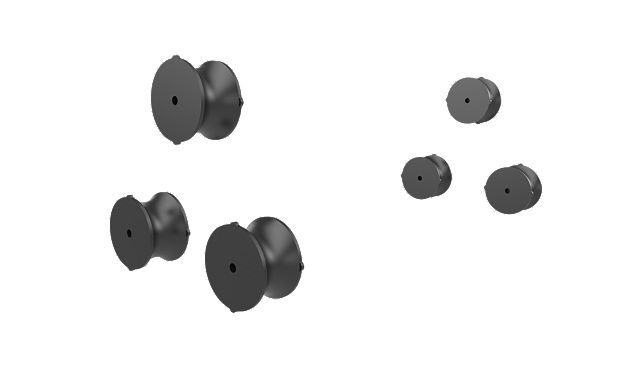

Replaceable Rubber Mounts

High Strength Steel Drums

Pivoting Interface

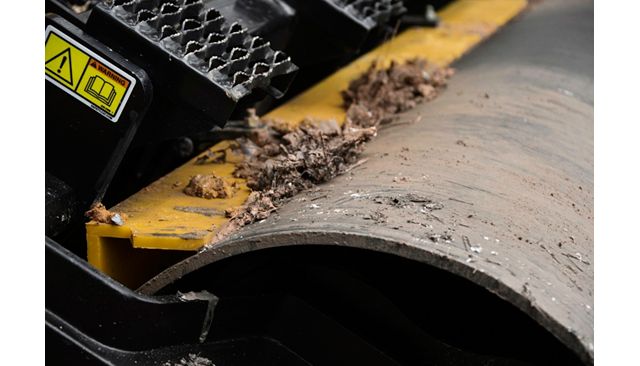

Spring-Loaded Scraper Bar

Details

Specifications

Spec Value
Drum Width 66 in 1676 mm
Weight 2063.5 lb 936 kg
Required Hydraulics Standard Flow Standard Flow
Overall Width 73 in 1854 mm
Height 25 in 634 mm
Length 39.7 in 1009 mm
Drum Diameter 25 in 634 mm
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Drum Frequency at Maximum Flow 2,946 vibrations/minute 2,946 vibrations/minute
Drum Oscillation Tilt Range ± 15 degrees ± 15 degrees
Dynamic Force 11902.7 lb 5399 kg
Amplitude 0.046 in 1.15 mm
Motor Size 1.7 in³ 28 cm³
Drive Method Gear Motor - Direct Gear Motor - Direct
