Cat

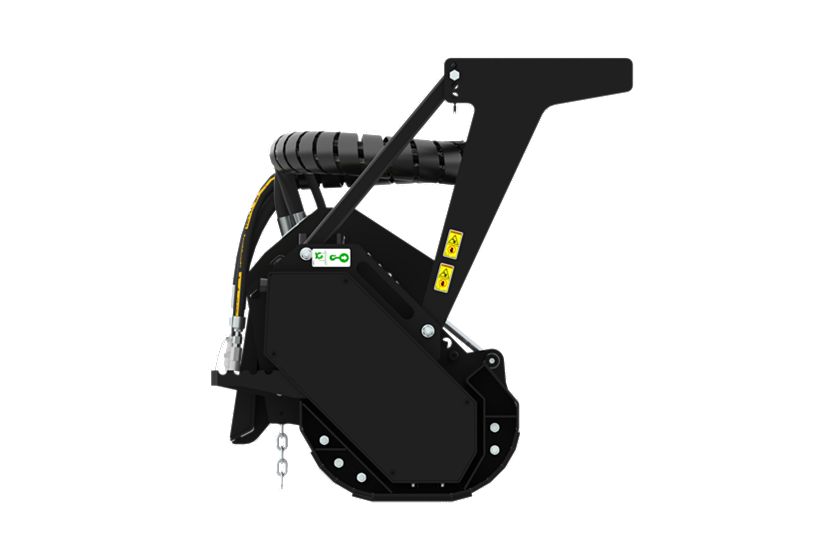

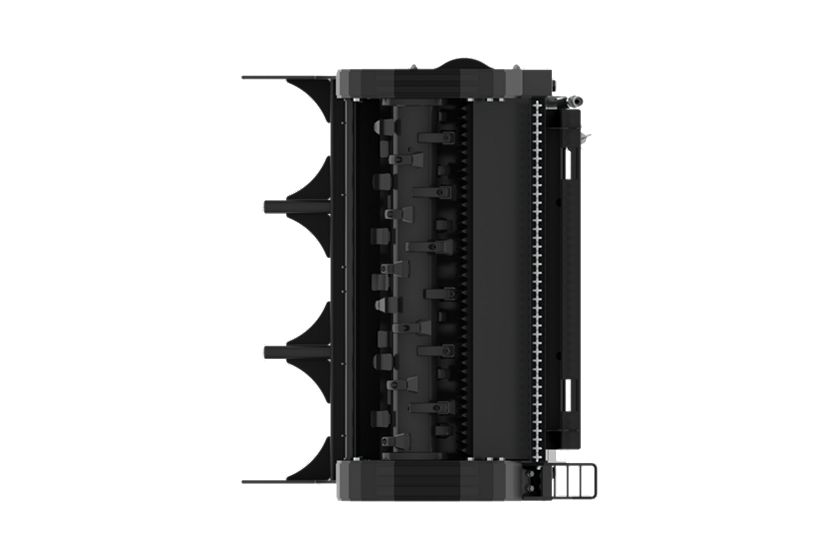

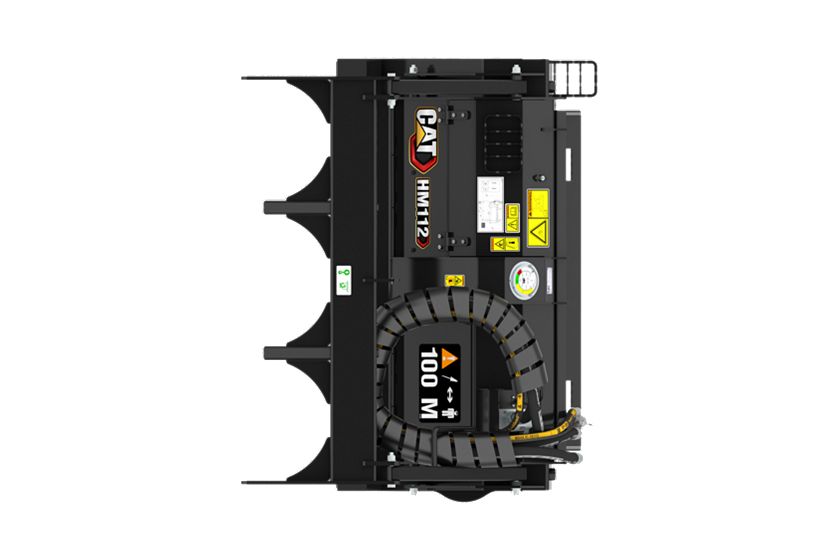

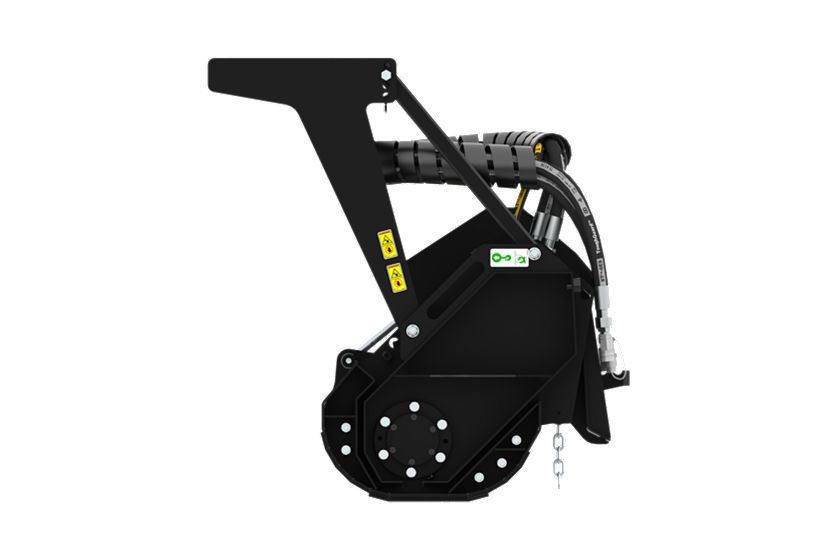

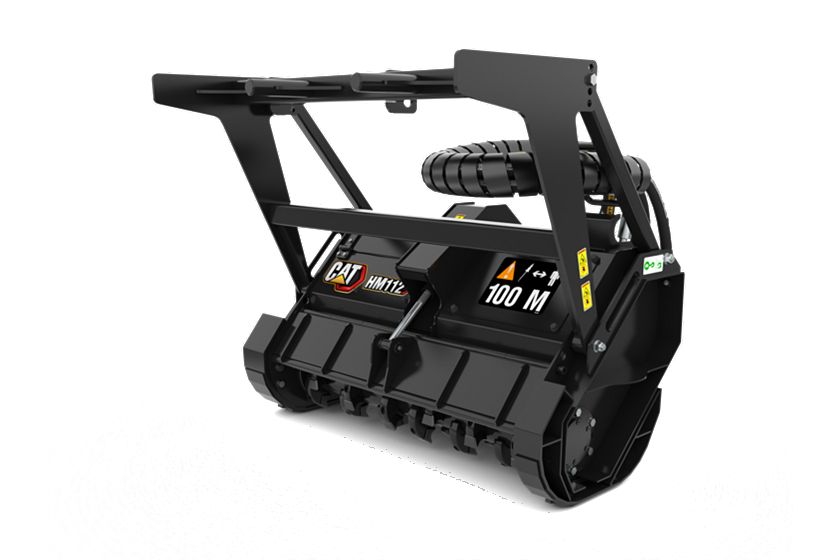

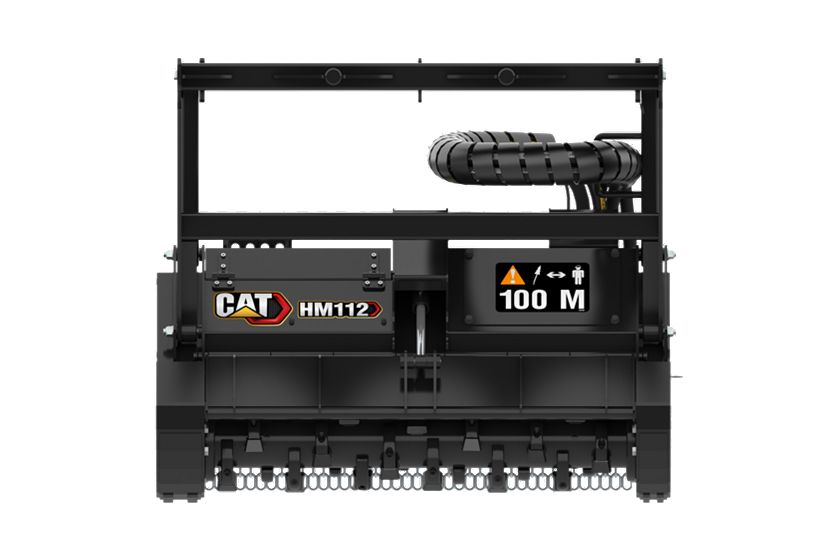

HM112 Standard Flow Mulcher

Name: HM112 Standard Flow Mulcher
Brand: Cat

High-performance cutting and mulching of vegetation and overgrowth.

Media

Cat® C Series Mulcher at Work

Cat® C Series Mulcher Overview

Cat® C Series Standard Flow Mulcher Maintenance Tips

Cat® C Series Standard Flow Mulcher Operating Tips

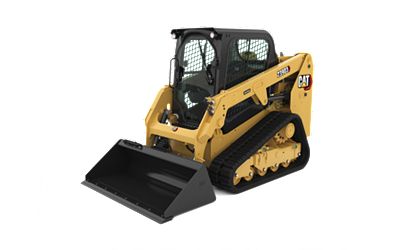

Cat® 299D2 XHP Compact Track Loader with Mulcher Customer Story (Northamptonshire, UK)

Cat® Mulcher Features and Benefits

An Attachment for Every Job – Cat® Work Tool Attachments

360° view. Double click on the image to zoom in on any area of the product.

Application

High Performance Mulching

Rugged Mulching Head

Dual Speed Hydraulic Motor

Adjustable Push Frame

Color-Coded Pressure Gauge

Hydraulically Operated Front Hood

Rear Chain Guard Protection

Serrated Steps

Lockable Service Panel

Replaceable Skid Shoes

Tool Mounted Operation and Maintenance Manual (OMM) Holder

US Metric

Spec	Value
Overall Width	59.8 in 1518 mm
Working Width	48.8 in 1240 mm
Length	48 in 1219 mm
Overall Height	50.4 in 1281 mm
Weight	1682.1 lb 763 kg
Drive Method	V-Belt V-Belt
Motor	Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics	Standard Flow Standard Flow
Optimal Hydraulic Flow	60-69 L/min (16-18 gpm) 60-69 L/min (16-18 gpm)
Optimal Hydraulic Pressure	200-230 bar (2900-3336 psi) 200-230 bar (2900-3336 psi)
Drum Speed	2670-3070 RPM 2670-3070 RPM
Fixed Teeth per Drum	30 30
Maximum Cutting Diameter	7.9 in 200 mm
Maximum Cutting Depth	2.8 in 70 mm
