Cat

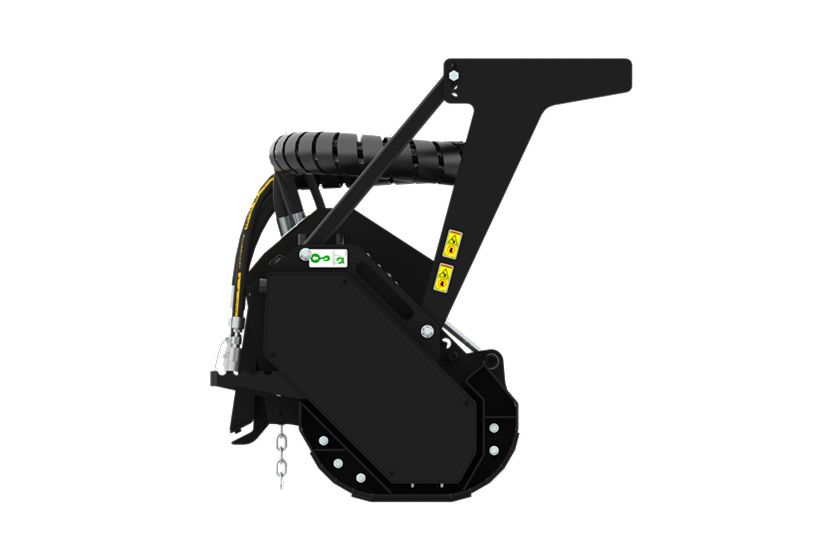

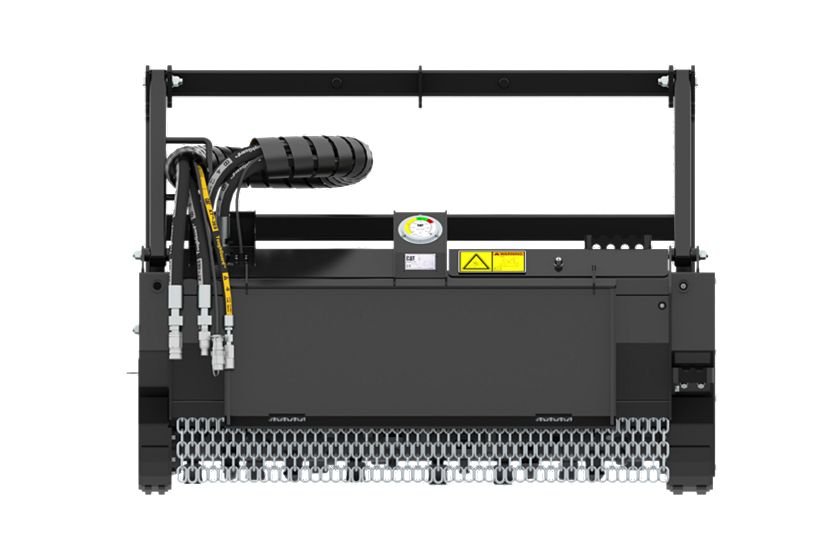

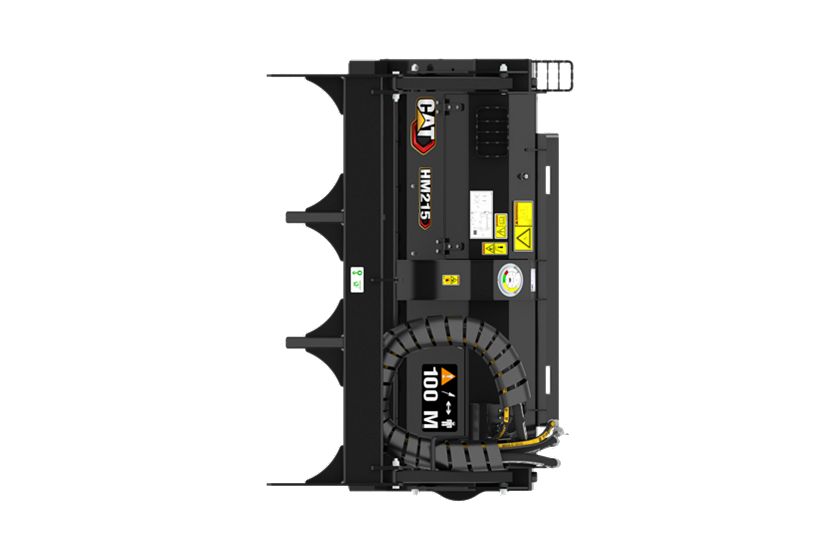

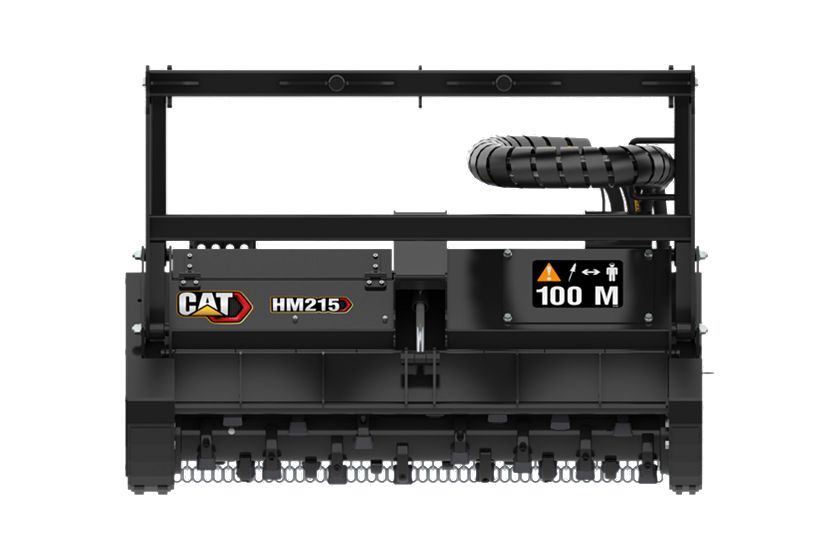

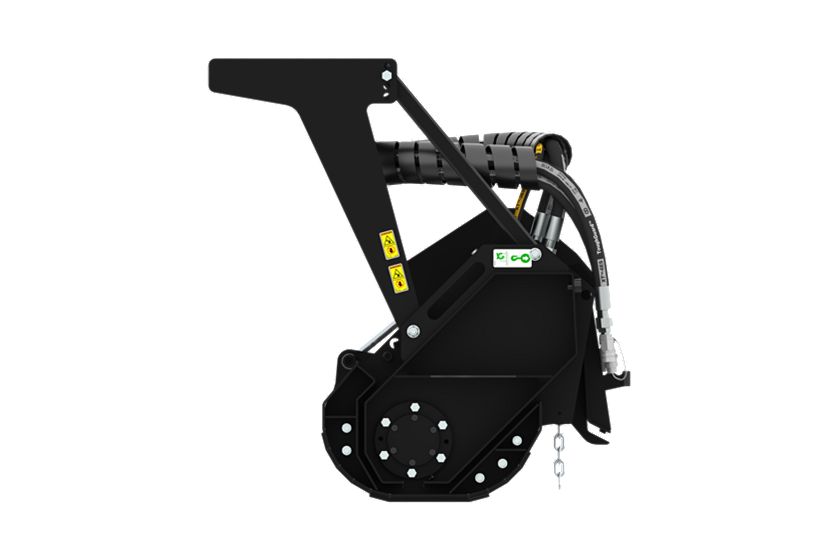

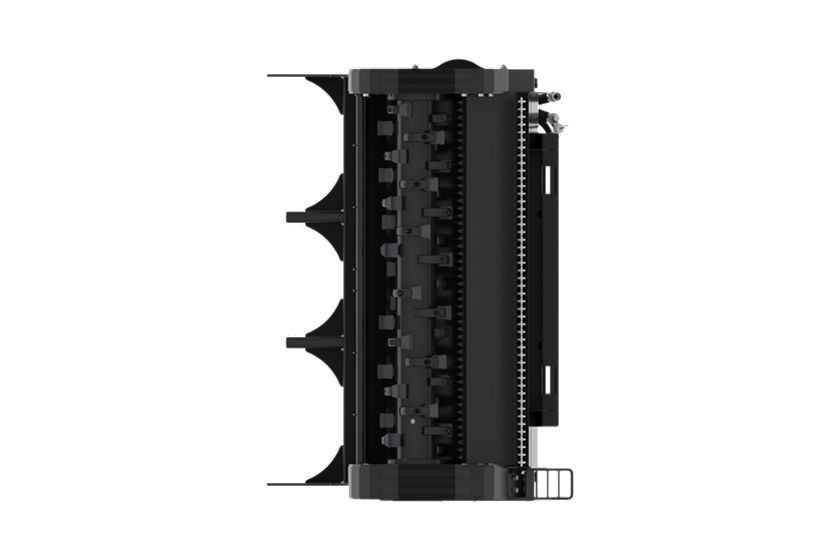

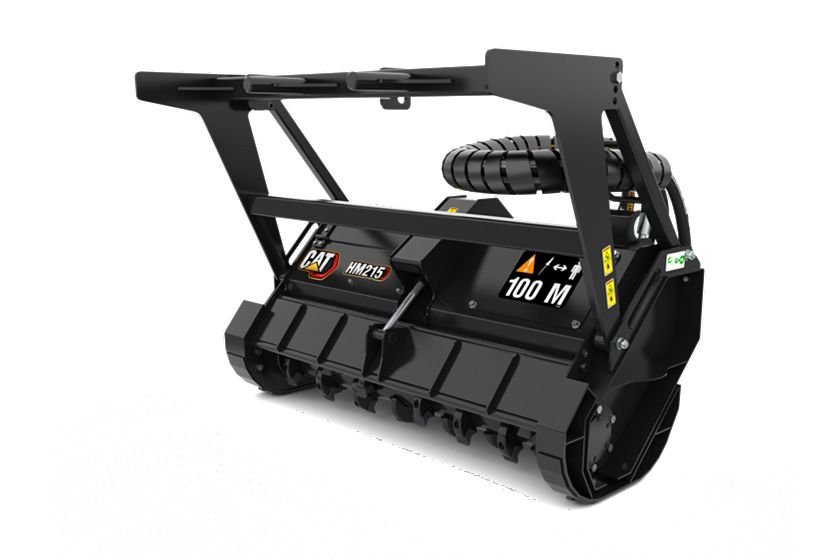

HM215 High Flow Mulcher

Name: HM215 High Flow Mulcher
Brand: Cat

High-performance cutting and mulching of vegetation and overgrowth.

Media

Cat® C Series Mulcher at Work

Cat® C Series Mulcher Overview

Cat® C Series High Flow Mulcher Maintenance Tips

Cat® C Series High Flow Mulcher Operating Tips

Cat® 299D2 XHP Compact Track Loader with Mulcher Customer Story (Northamptonshire, UK)

Cat® Mulcher Features and Benefits

Cat® Mulcher for Skid Steer Loaders and Compact Track Loaders | Overview

360° view. Double click on the image to zoom in on any area of the product.

Application

High Performance Mulching

Rugged Mulching Head

Dual Speed Hydraulic Motor

Adjustable Push Frame

Color-Coded Pressure Gauge

Hydraulically Operated Front Hood

Rear Chain Guard Protection

Serrated Steps

Lockable Service Panel

Replaceable Skid Shoes

Tool Mounted Operation and Maintenance Manual (OMM) Holder

US Metric

Spec	Value
Overall Width	69.2 in 1758 mm
Working Width	58.3 in 1480 mm
Length	48 in 1219 mm
Overall Height	50.4 in 1281 mm
Weight	1803.4 lb 818 kg
Drive Method	V-Belt V-Belt
Motor	Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics	High Flow High Flow
Optimal Hydraulic Flow	96-117 L/min (25-31 gpm) 96-117 L/min (25-31 gpm)
Optimal Hydraulic Pressure	200-230 bar (2900-3336 psi) 200-230 bar (2900-3336 psi)
Drum Speed	2480-3020 RPM 2480-3020 RPM
Fixed Teeth per Drum	36 36
Maximum Cutting Diameter	7.9 in 200 mm
Maximum Cutting Depth	2.8 in 70 mm
