Cat

LR116 Landscape Rake

For scarifying the soil and collecting debris for easy removal.

Media

Photos

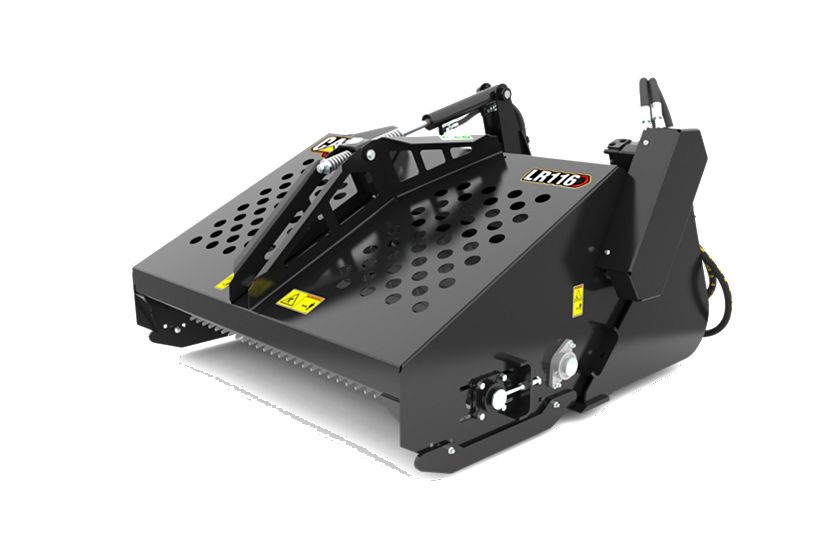

Studio Shot
Studio Shot

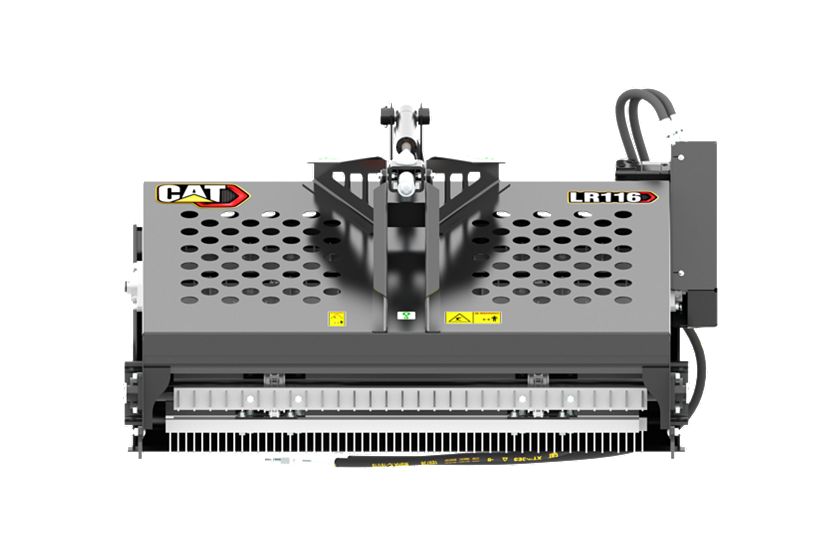

Front View
Front View

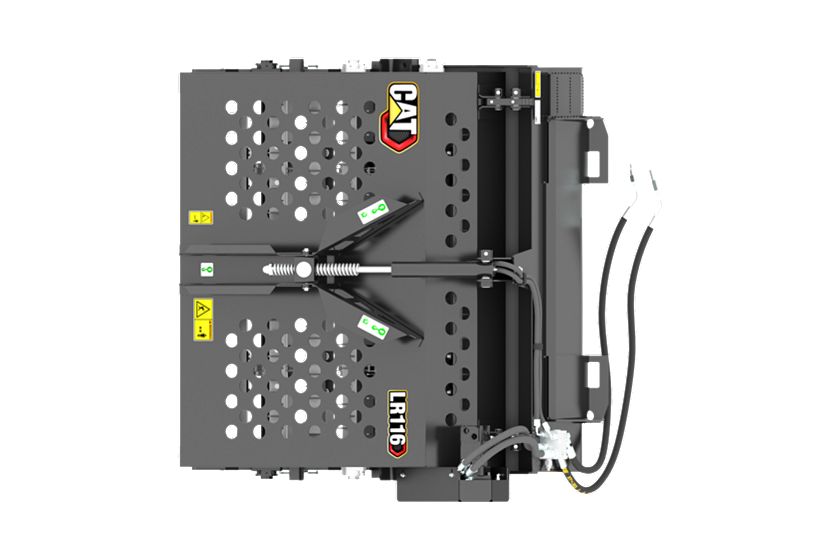

Top View
Top View

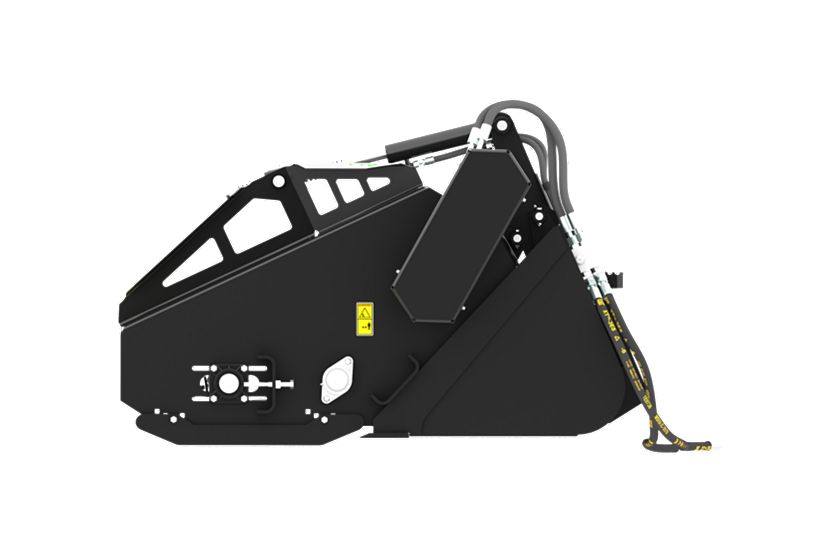

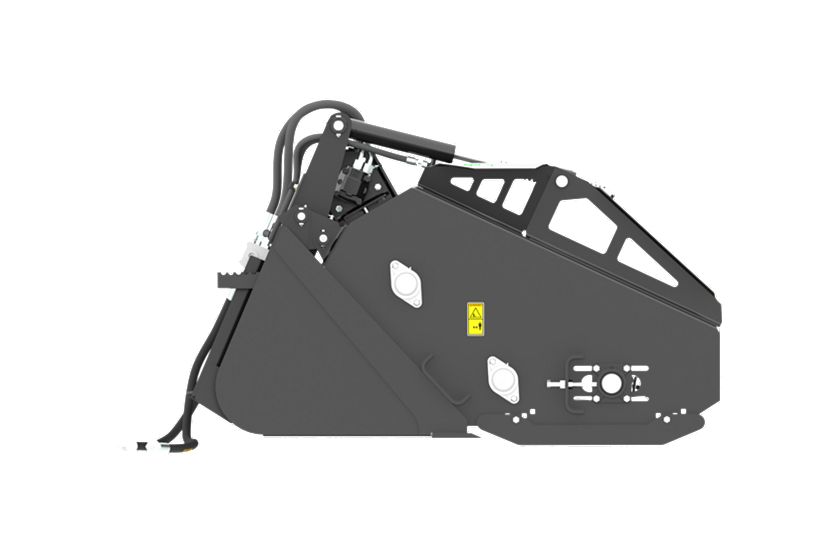

Left View
Left View
Rear View
Rear View

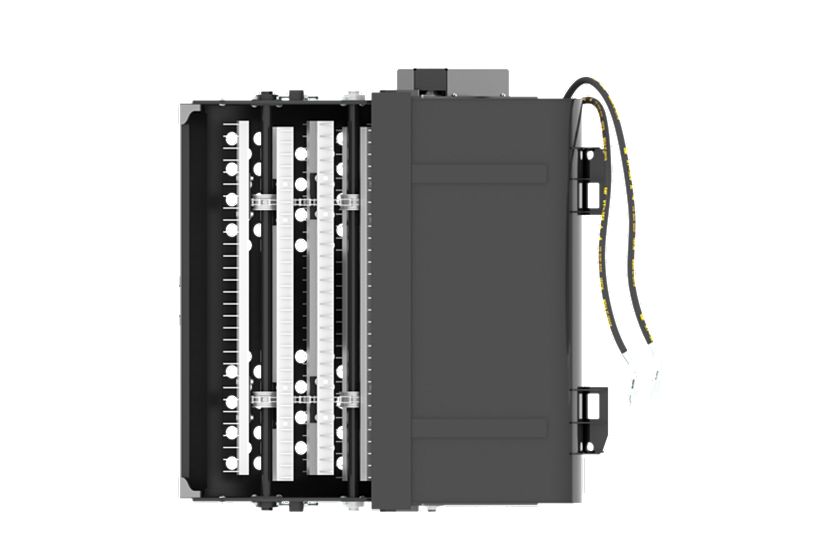

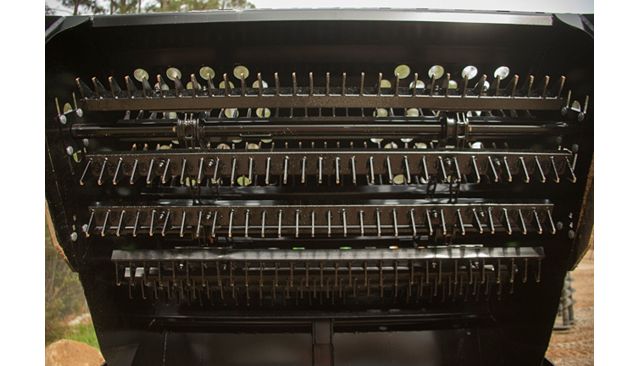

Bottom View
Bottom View
Right View
Right View

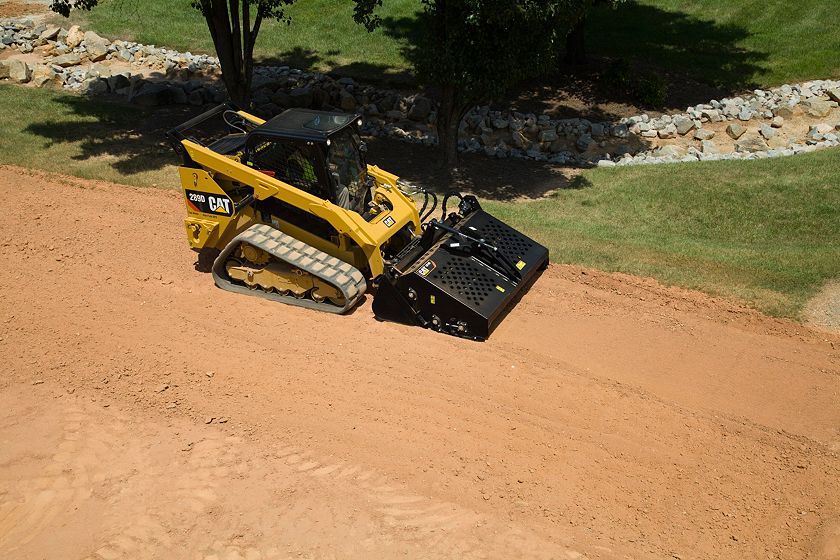

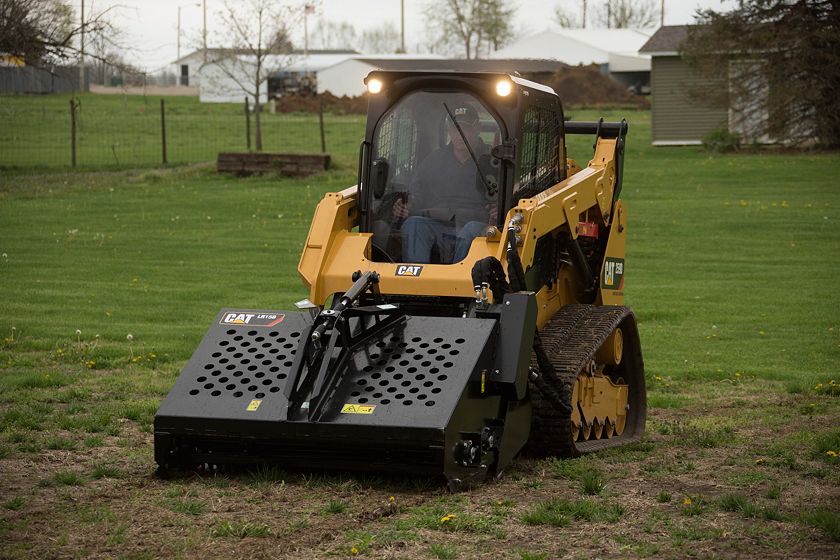

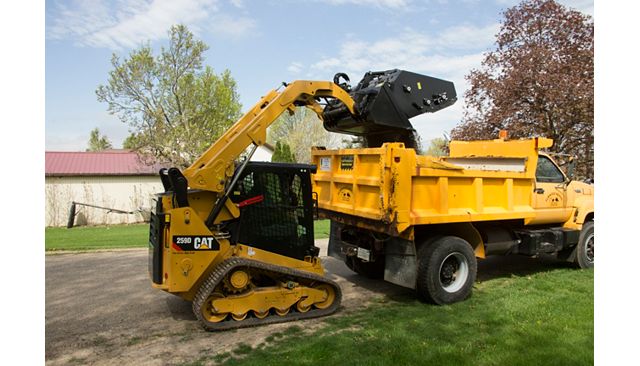

Cat® Landscape Rake on a 259D Compact Track Loader
Cat® Landscape Rake on a 259D Compact Track Loader

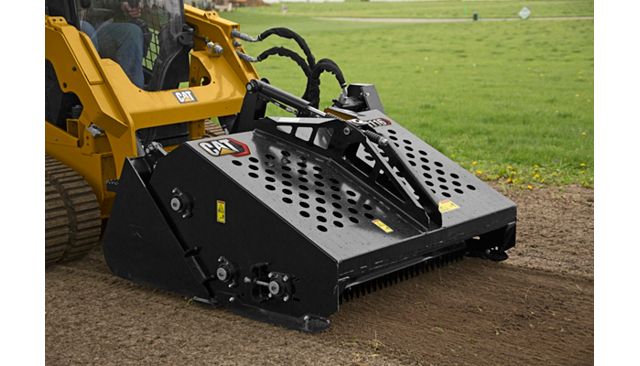

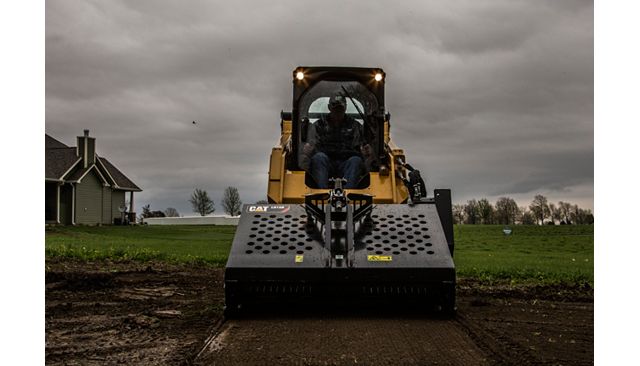

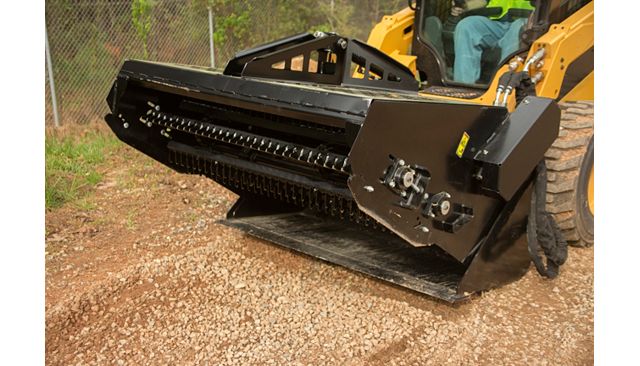

Cat® Landscape Rake Making a Pass on the Jobsite
Cat® Landscape Rake Making a Pass on the Jobsite

Videos

Cat® Landscape Rake at Work
Cat® Landscape Rake Overview
Cat® Landscape Rake Operator Tips
Cat® Landscape Rake Operation Guide
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Landscape Rakes except where indicated.

Documents

Features

Application

Travel Direction

Robust Design

Quick Dumping

Conveyor Tubes

Details

Specifications

Spec Value
Working Width 62 in 1576 mm
Bucket Capacity – Struck 0.4 yd³ 0.31 m³
Weight 1311.7 lb 595 kg
Raking Width 54.5 in 1384 mm
Overall Width 66.3 in 1683 mm
Height 38.9 in 989 mm
Length 63.8 in 1620 mm
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement 19.2 in³/rev 315 cm³/rev
Driven Shaft Speed 165 rpm @ 80 L/min (21 gpm) 165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines 372 372
Rock Size Range 19-152 mm (0.75-6 in) 19-152 mm (0.75-6 in)
Drive Method Chain Reduction Chain Reduction
Drive Chain #80H #80H
Conveyor Chain #2060H #2060H
Required Hydraulics Standard Flow Standard Flow
