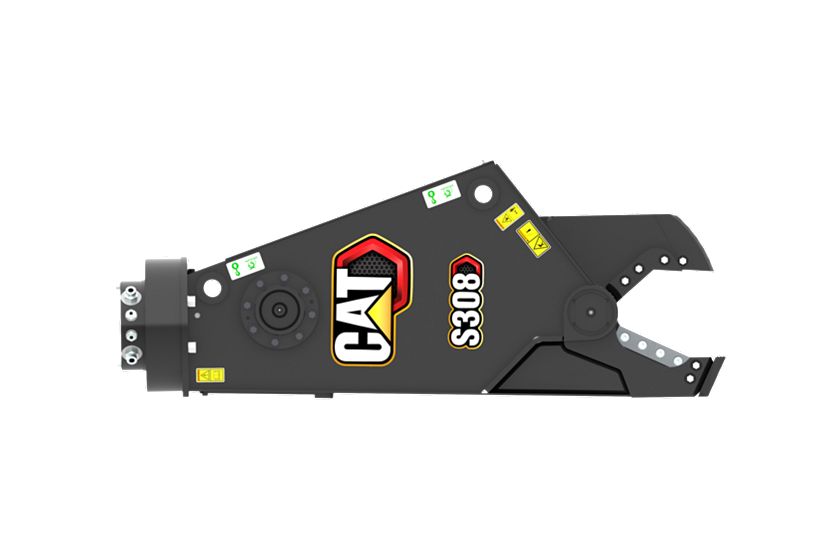

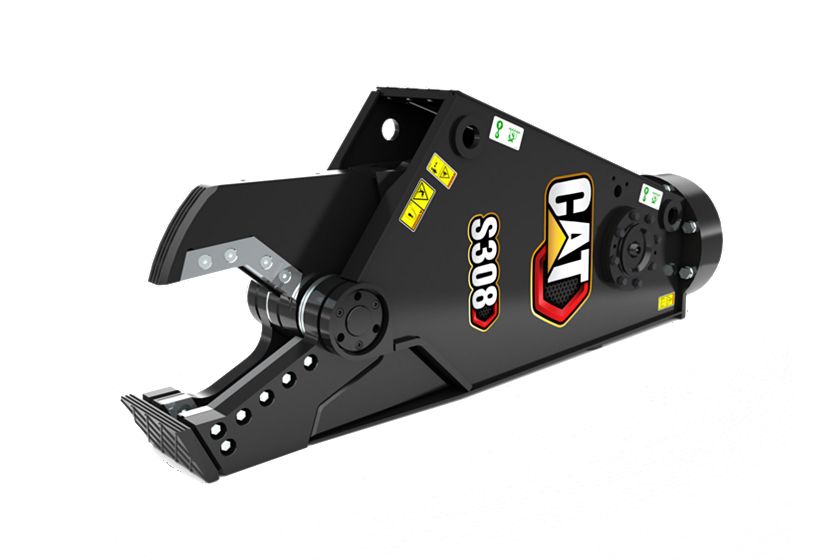

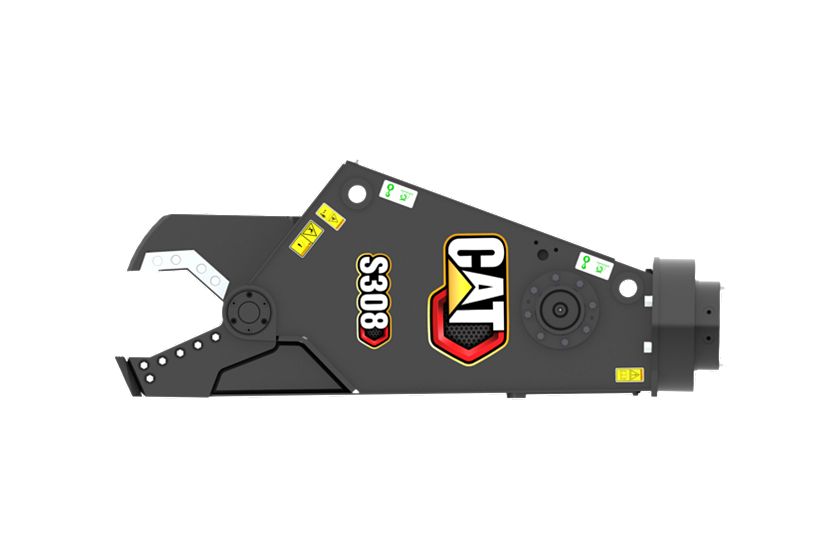

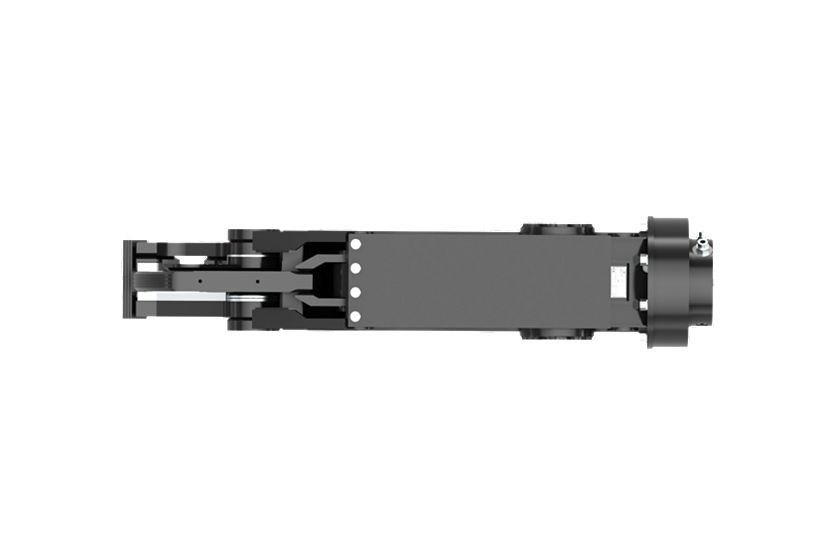

S308 Mobile Scrap & Demolition Shear

Name: S308 Mobile Scrap & Demolition Shear
Brand: Cat

Ideal for interior demolition tasks.

Media

An Attachment for Every Job – Cat® Work Tool Attachments

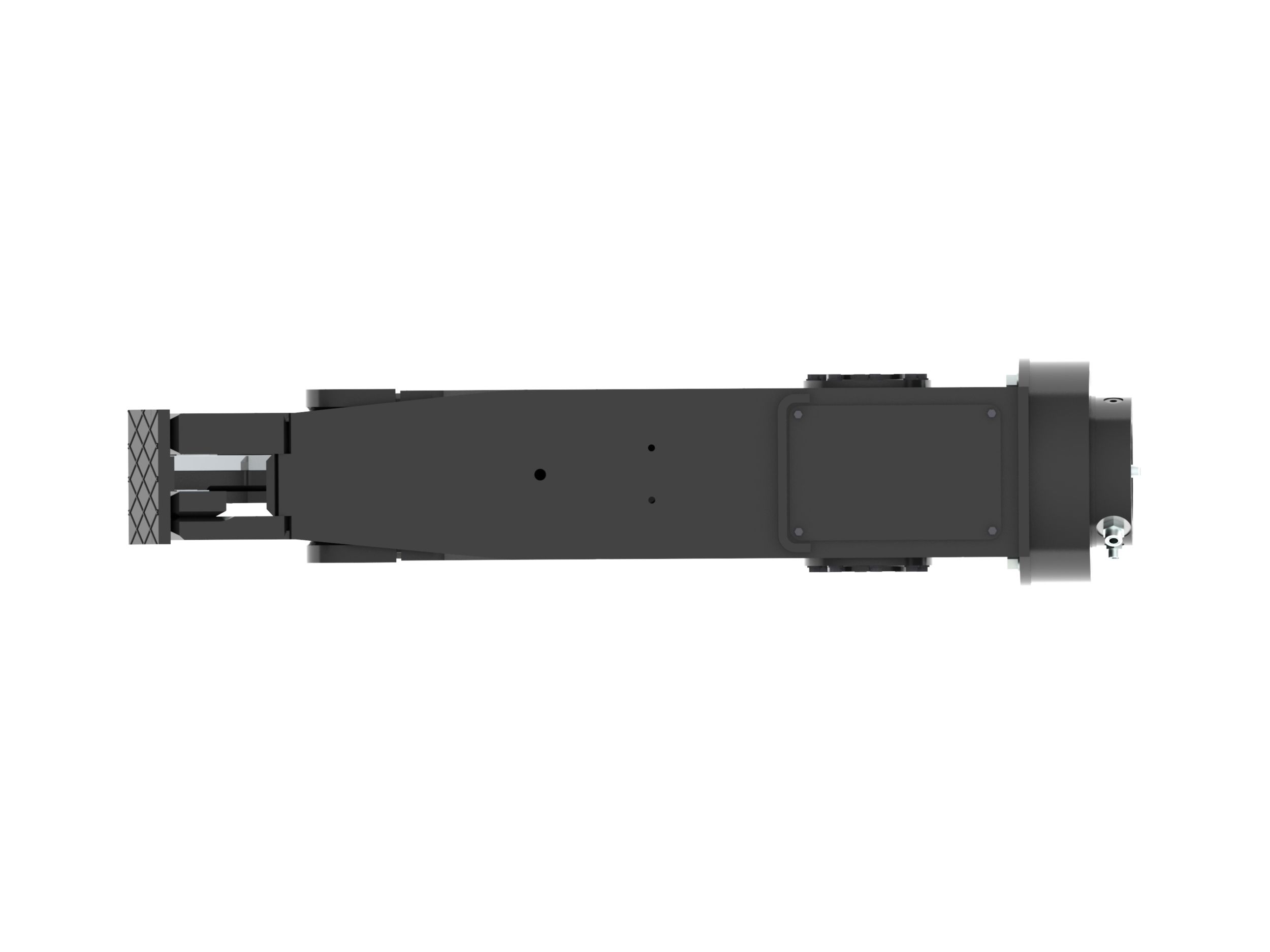

Model shown represents features on all Cat® Shears except where indicated.

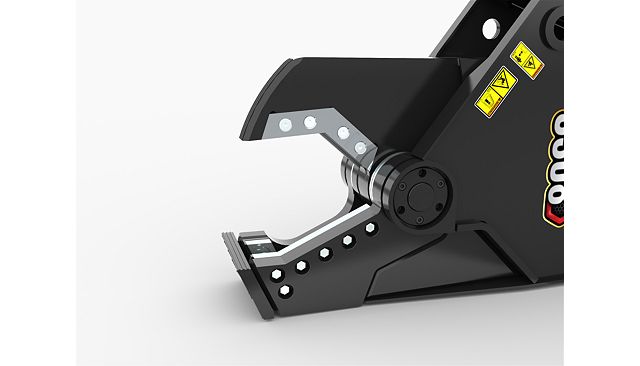

Jaw Design

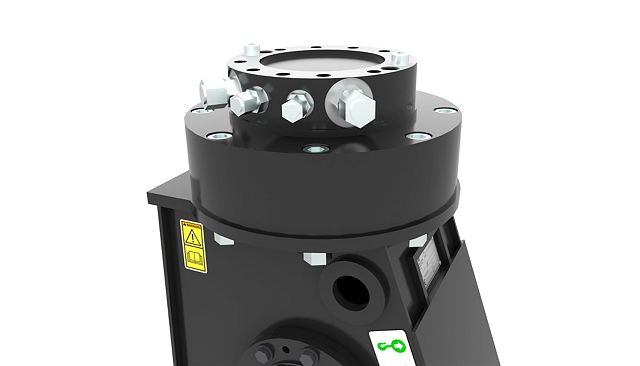

360° Rotation

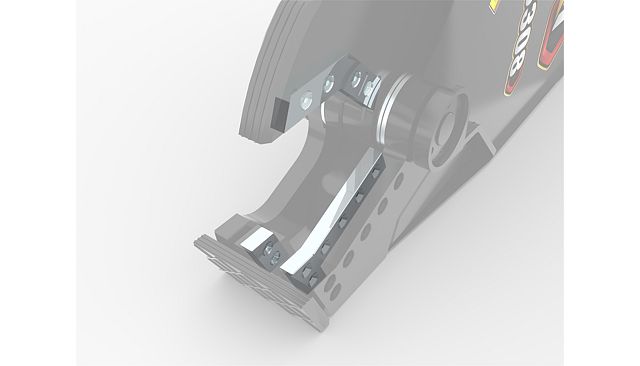

Reversible Knives

Easy Maintenance

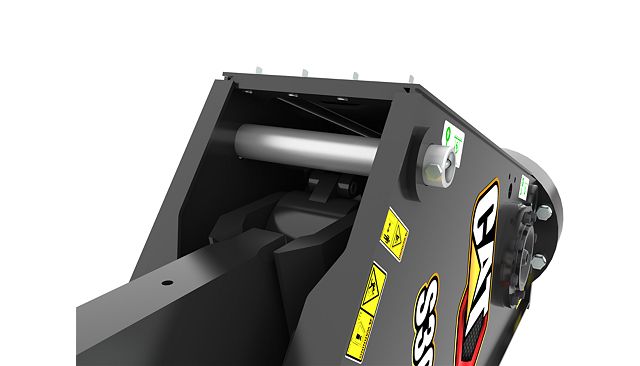

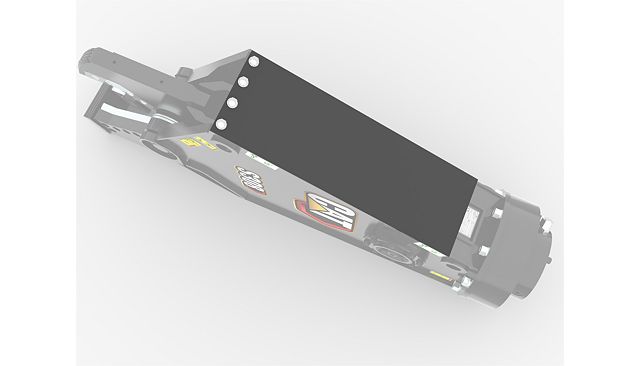

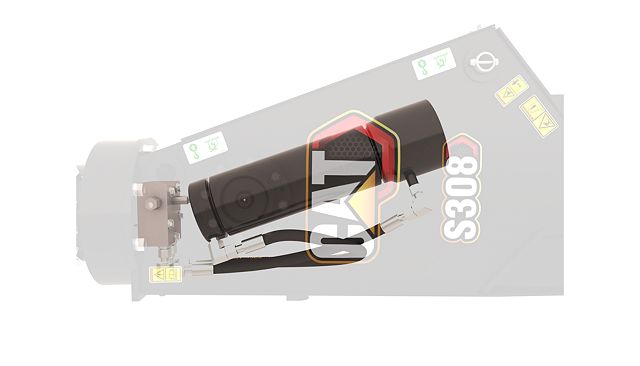

Protected Cylinder

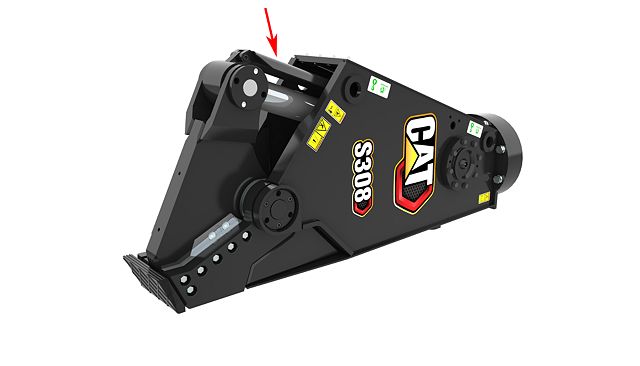

Jaw Lockout Pin

Speed Valve

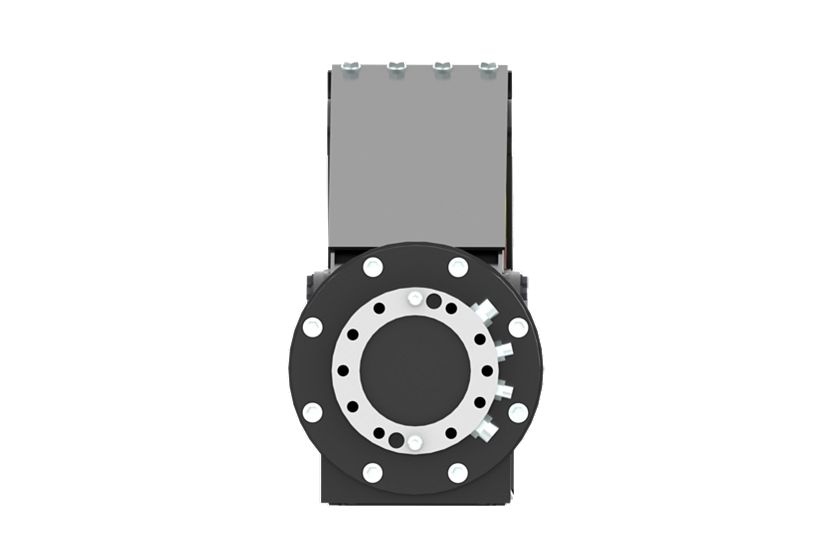

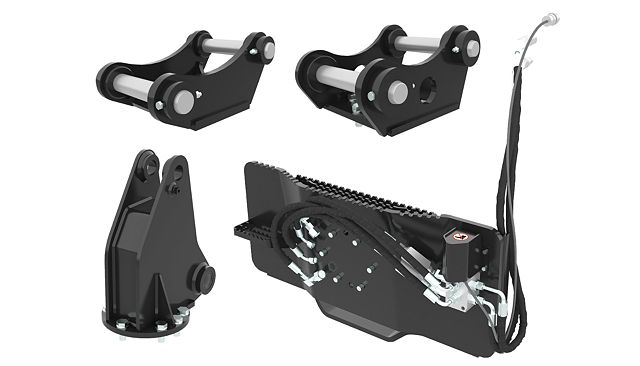

Mounting Options

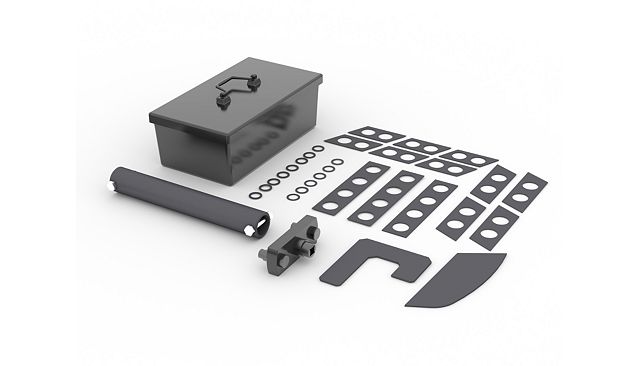

Included Service Kit

US Metric

Spec	Value
Tip Force	43.3 Sh Ton 385 kN
Rotation	360 Degrees 360 Degrees
Jaw Opening	9.4 in 240 mm
Jaw Depth	11.4 in 290 mm
Jaw Width – Moving	2.4 in 60 mm
Jaw Width – Fixed	9.1 in 230 mm
Cycle Time – Close	2.5 Seconds 2.5 Seconds
Cycle Time – Open	3.5 Seconds 3.5 Seconds
Rotation Circuit – Maximum Flow	5.3 gal/min 20 l/min
Rotation Circuit – Maximum Relief Pressure	2900.8 psi 20000 kPa
Cutting Circuit – Maximum Flow	15.9 gal/min 60 l/min
Cutting Circuit – Maximum Relief Pressure	3626 psi 25000 kPa
Throat Force	203.7 Sh Ton 1812 kN
Apex Force	73.4 Sh Ton 653 kN
Weight	1212.5 lb 550 kg
Height	26.3 in 667 mm
Length	67.3 in 1709 mm
Width	15.4 in 390 mm
