Cat

LT114 Landscape Tiller

Landscape Tillers break up and mix soil in landscaping applications.

Media

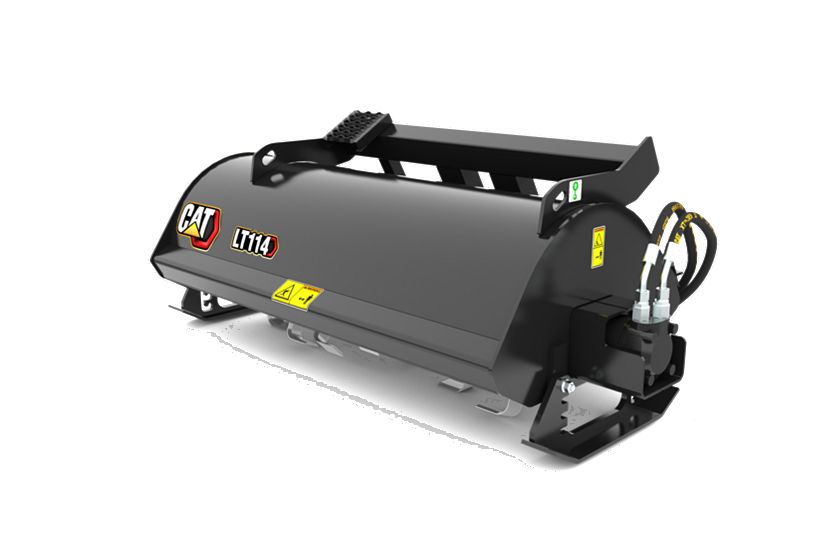

Studio Shot

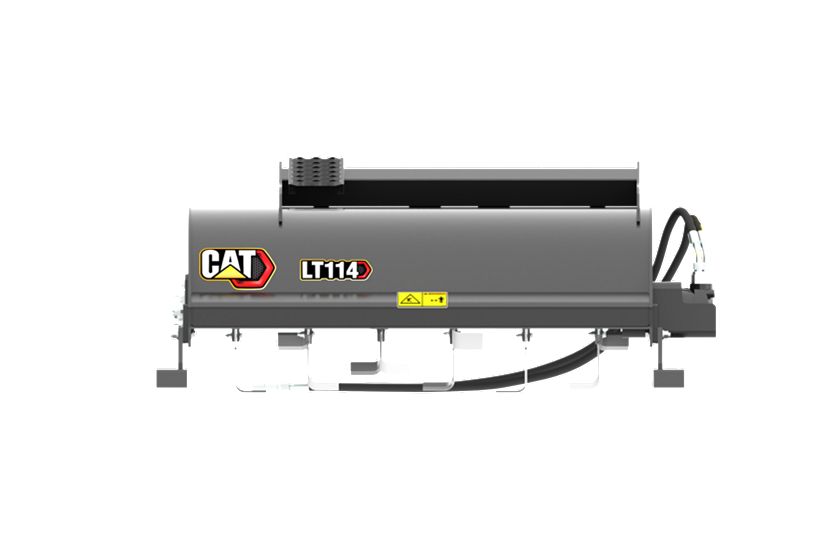

Front View

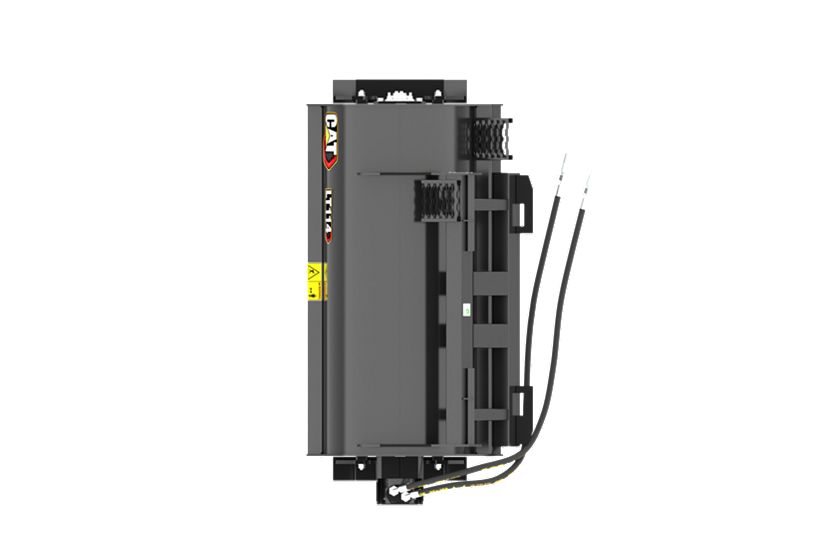

Top View

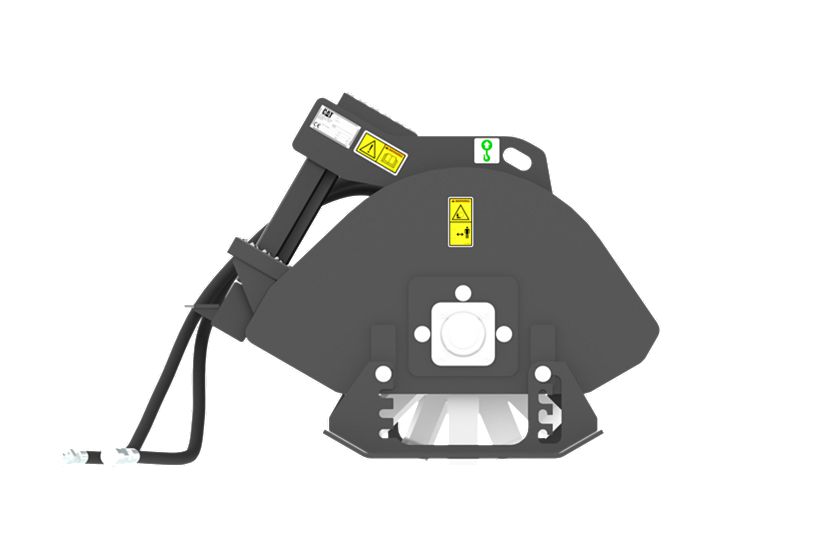

Left View

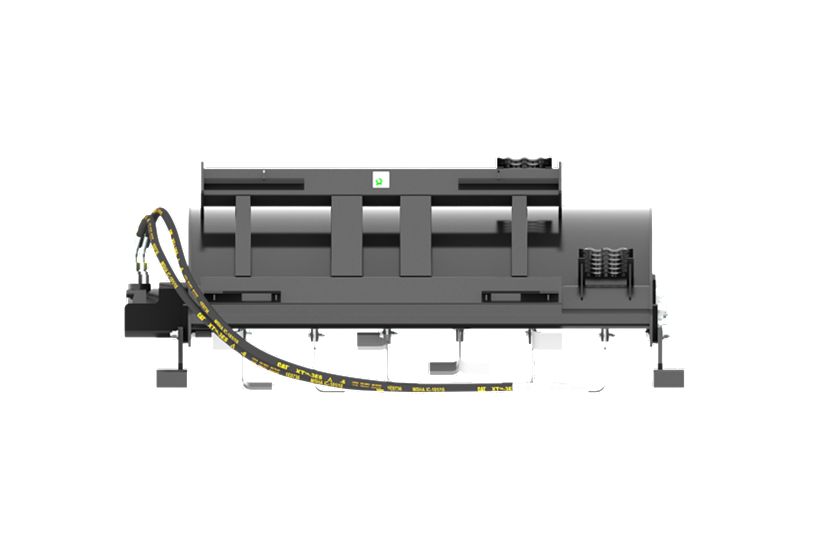

Rear View

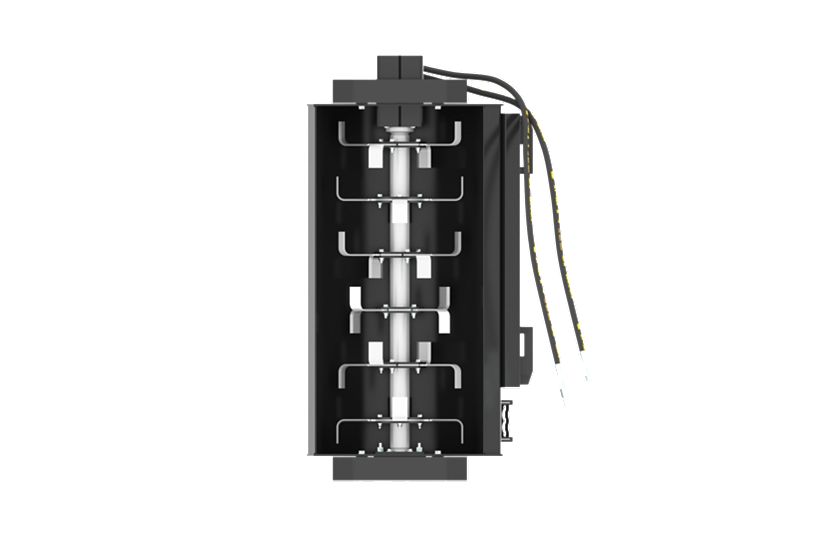

Bottom View

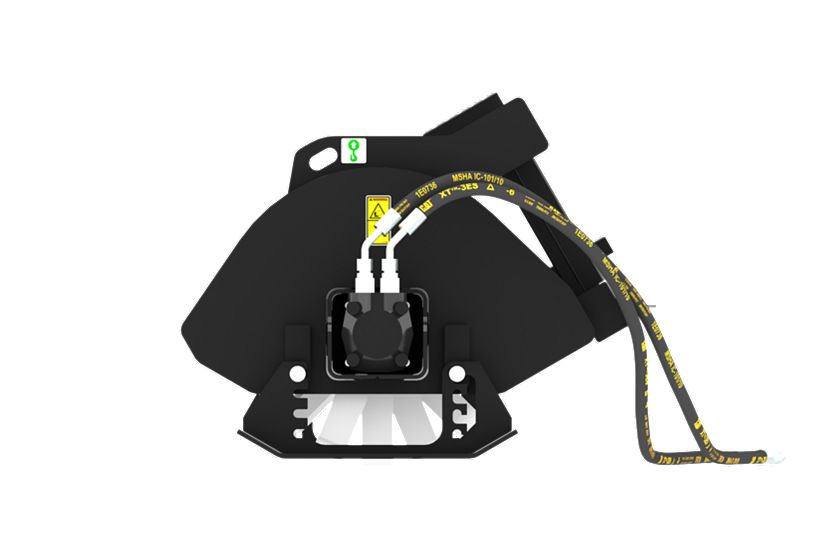

Right View

Cat® LT18B Landscape Tiller at Work

Cat® 289D Compact Track Loader and LT18B Landscape Tiller at Work

Cat® Landscape Tiller at Work

Cat® Landscape Tiller Operating Tips

Cat® Landscape Tiller Overview

Cat® Landscape Tillers for Chicken Farming

Exterior

Model shown represents features on all Cat® Landscape Tillers except where indicated.

Documents

Cat® Landscape Tiller Brochure

Get more info

Phone
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Application

Direct Drive System

Unique Spiral Tine Arrangement

Tungsten Carbide Tines

Two Full-Width Torque Tubes

Arm Level Indicator

Adjustable Skid Shoes

Serrated Steps

Specifications

US Metric

General

Spec	Value
Working Width	53.3 in 1354 mm
Working Depth	25-152 mm (1-6 in) 25-152 mm (1-6 in)
Weight	925.9 lb 420 kg
Overall Width	70.4 in 1789 mm
Height	29.7 in 755 mm
Length	37.6 in 956 mm
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement	38.4 in³ 629.09 cm³
Drum Speed	127 rpm @ 80 L/min (21 gpm) 127 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines	24 24
Required Hydraulics	Standard Flow Standard Flow
