Cat
CP44B Vibratory Soil Compactor
Operating Weight – With Cab
16471 lb
7471 kg
Compaction Width
66 in
1676 mm
Gross Power
100.6 HP
75 kW
Overview
The CP44B provides exceptional performance on flat or sloped terrain. This machine is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
Media
Photos
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Operating Weight – With Cab | 16471 lb 7471 kg |
| Weight – Drum with ROPS/FOPS | 7939 lb 3601 kg |
| Operating Weight – With ROPS/FOPS | 15935 lb 7228 kg |
| Weight – Drum with Cab | 8181 lb 3711 kg |
Operating Specifications
| Spec | Value |
|---|---|
| Compaction Width | 66 in 1676 mm |
| Ground Clearance | 16.1 in 408 mm |
| Travel Speed – Maximum | 7 mile/h 11.4 km/h |
| Turning Radius – Inside Drum Edge | 10 ft 3.05 m |
Engine
| Spec | Value |
|---|---|
| Gross Power | 100.6 HP 75 kW |
| Engine Model | Cat C3.4B Cat C3.4B |
Dimensions
| Spec | Value |
|---|---|
| Height – With ROPS/FOPS or Cab | 9.35 ft 2.85 m |
| Overall Width | 5.91 ft 1.8 m |
| Overall Width – With Blade Option | 6.95 ft 2.12 m |
| Overall Length – With Blade Option | 18.41 ft 5.61 m |
| Drum Diameter – Over Pads | 48.2 in 1225 mm |
| Drum Width | 66 in 1676 mm |
| Overall Length | 16.7 ft 5.09 m |
| Optional Blade Height | 22.6 in 574 mm |
| Wheel Base | 8.5 ft 2.6 m |
Vibratory System
| Spec | Value |
|---|---|
| Centrifugal Force – Maximum | 29900 lb 133 kN |
| Nominal Amplitude – High | 0.063 in 1.59 mm |
| Centrifugal Force – Minimum | 15000 lb 67 kN |
| Nominal Amplitude – Low | 0.031 in 0.8 mm |
| Variable Frequency Option Range | 23.3-31.9 Hz (1400-1914 vpm) 23.3-31.9 Hz (1400-1914 vpm) |
| Vibratory Frequency – Standard | 1914 V/m 31.9 Hz |
Tires
| Spec | Value |
|---|---|
| Tires | 14.9 × 24 8-ply traction 14.9 × 24 8-ply traction |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 37 gal (US) 140 l |
Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Padfoot Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
- Universal Bumper
POWER TRAIN
- Cat C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 60 Cold-cranking Amps Battery Capacity
OTHER
- Product LinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S�O�SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control
- Sun Visor
VIBRATORY SYSTEM

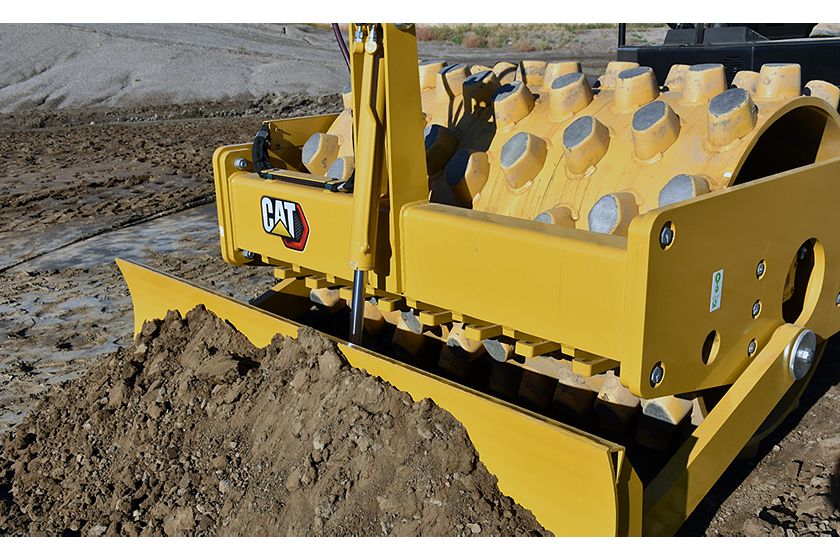

- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
- Recording Module for Vibration Frequency
POWER TRAIN
- Transmission Guard
- Bio-oil Factory Fill
TECHNOLOGY SOLUTIONS
- Map – SBAS GNSS Mapping
- Connect – Cloud and Machine Connectivity
OTHER
- Upgraded Halogen Light Package
- Rotating Amber Beacon
