Standard Equipment

Engine

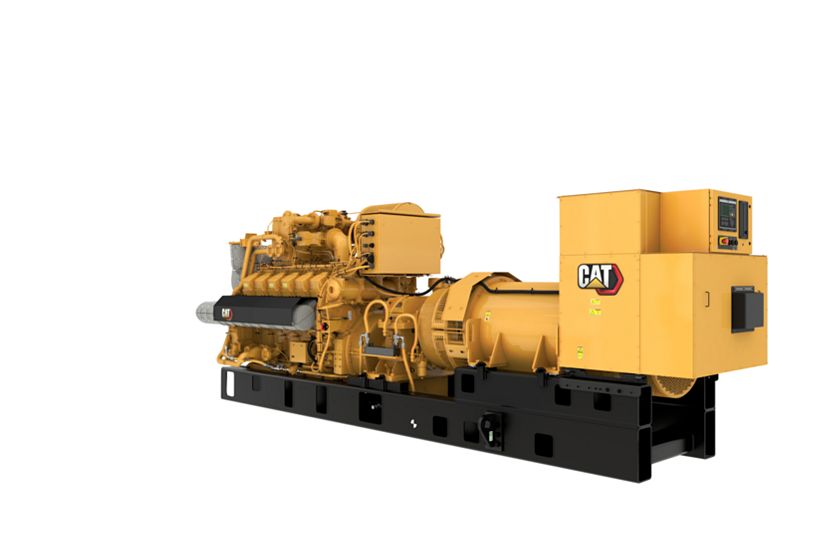

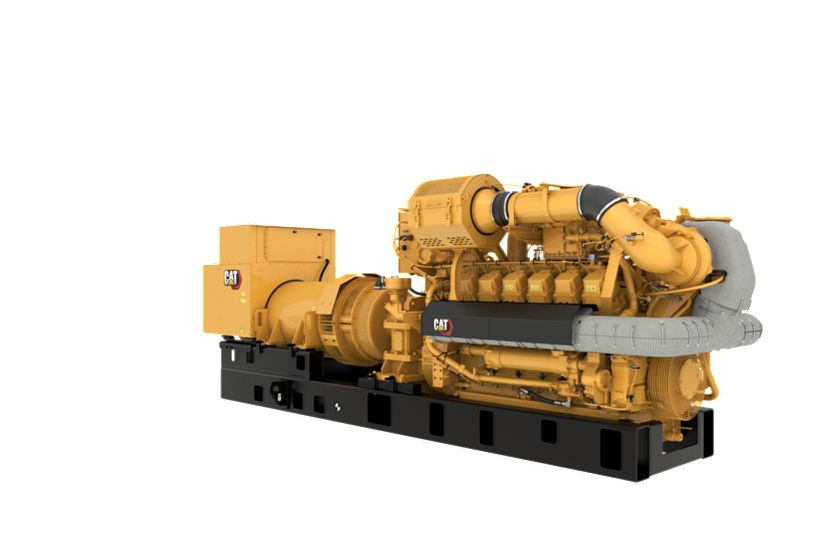

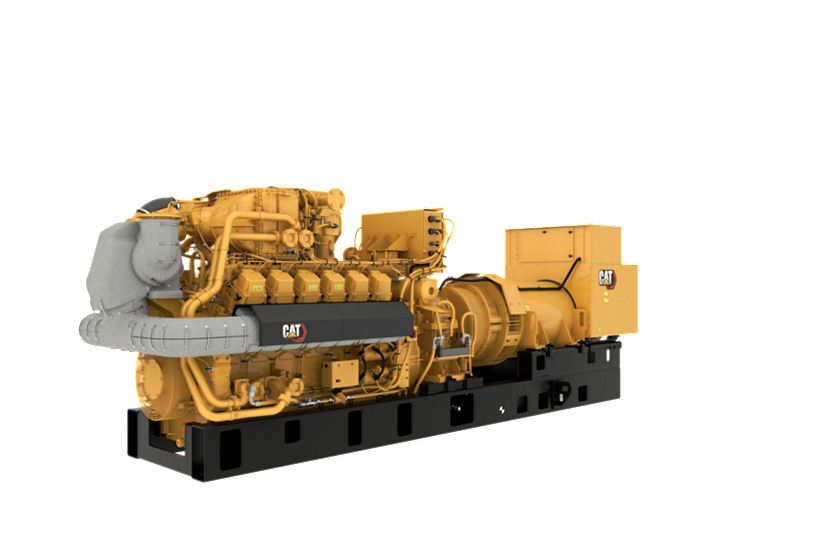

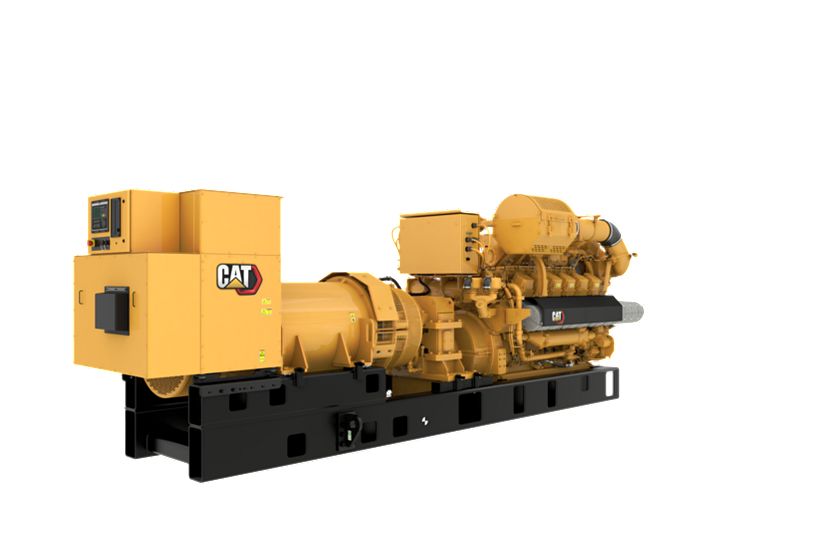

• G3512H, V12, 4-stroke-cycle, gas engine. Operates on 31.5 to 47.2 MJ/NM3 dry pipeline natural gas. Turbocharged Separate Circuit Aftercooled.

Air Inlet

• Package Mounted Air Cleaner with service indicator

Control Panel

• On Package EMCP 4.3 Control Panel System Offers engine and generator monitoringand protection, voltage regulation with Cat IVRimproves transient response performance. Controls provide auto paralleling AGC-4 controller, load sharing, VFDcontrol, and primary generator protection for greaterversatility, package utilization and monitoring.

Cooling

• ANSI/DN customer flange connections for JW inlet and outlet
• Engine driven water pumps for jacket water and aftercooler
• Jacket water and SCAC thermostats
• Standard cooling provides 40⁰C (104⁰F) ambient capability with 500mg/Nm3 NOx at 100% Continuous rating before derate, @ 500m

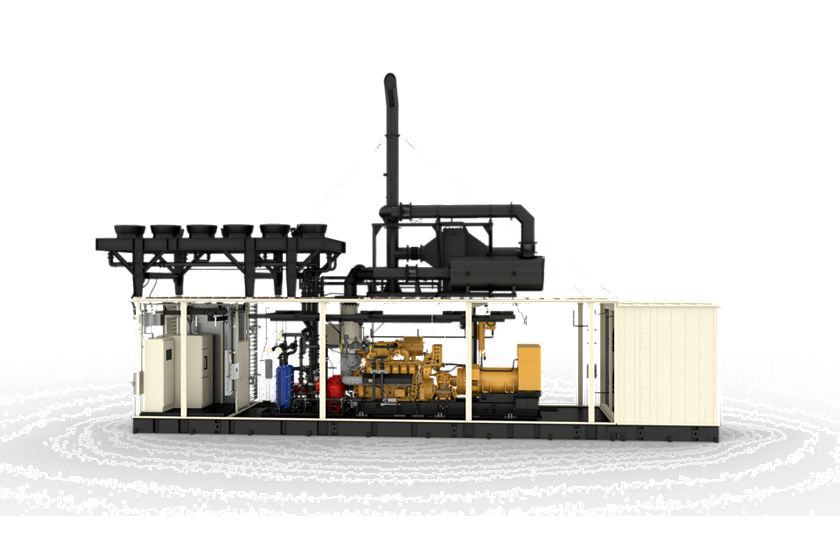

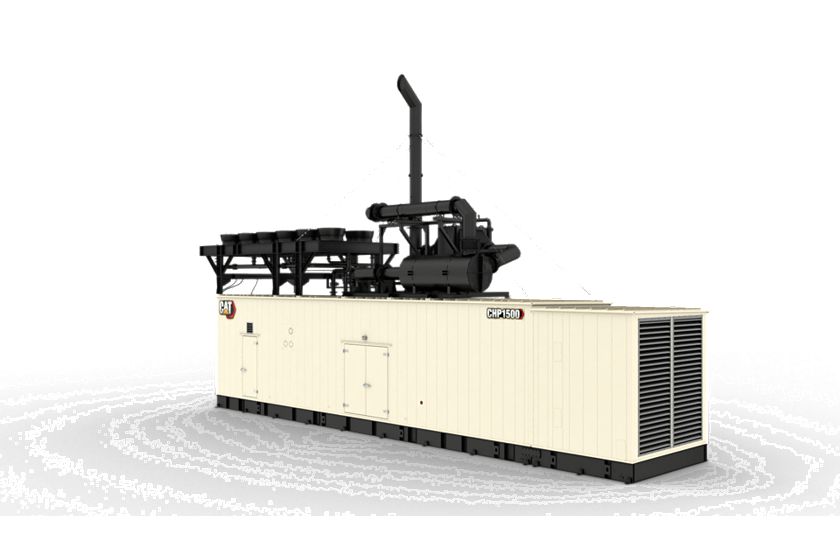

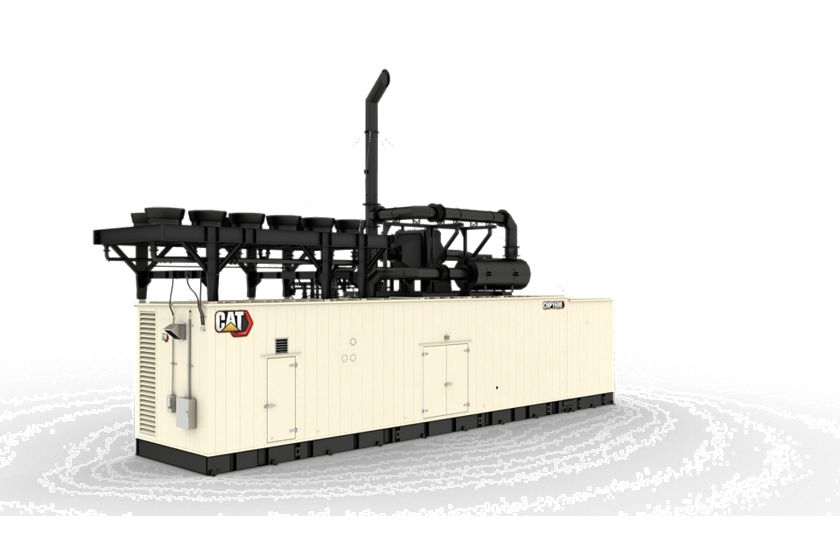

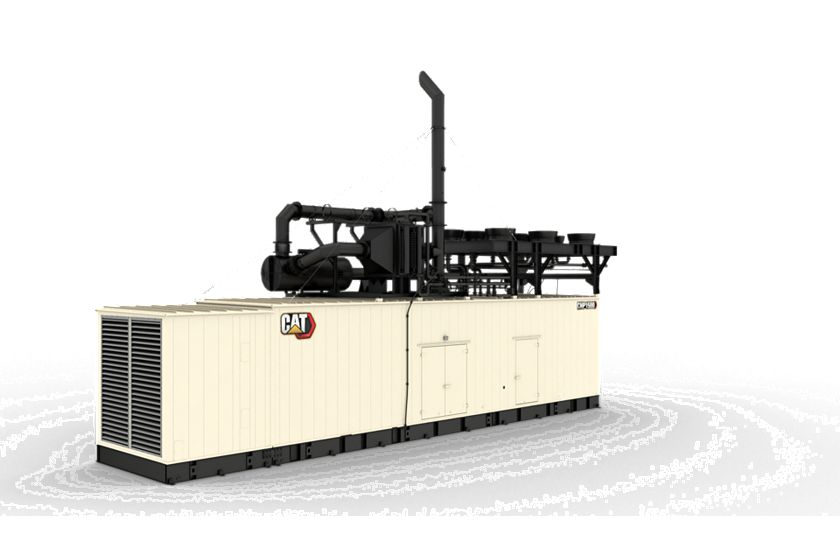

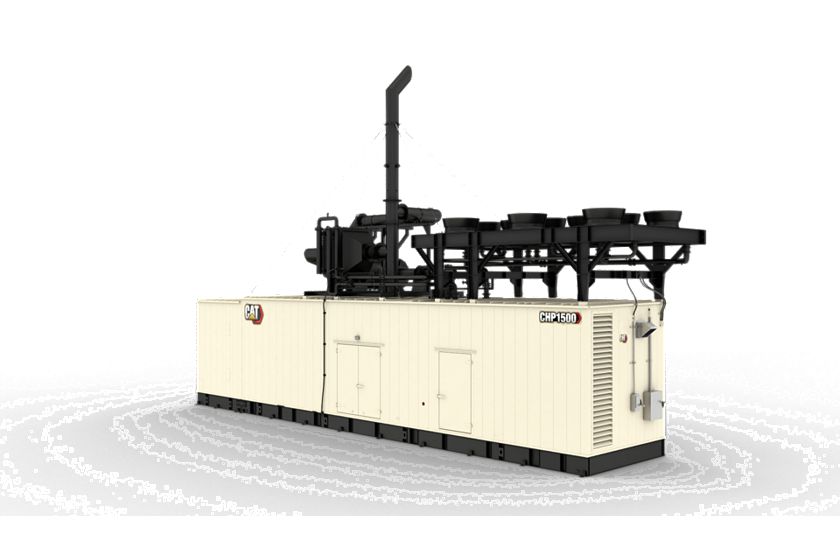

Containerized Module

• NSPS Factory Compilant, UL2200 Compilant and CSA / TSSA Sound attenuated 75 dB(A) @ 7 m (23 ft) Sound attenuated air intake louvers and lockable personnel doors with panic release LH and RH engine service doors integrated intocontainer side walls 3” ANSI flange customer fuel connection

Generator Controls And Protection

• Integrated crankcase ventilation system (CCV)and gas fuel train NFPA37 & CSAB149.3 with external fuel connections package utilization and monitoring.

Modes of Operation

• Provides for single unit stand-alone operation,island mode paralleling and load sharing withother power modules, and single unit-to-utilitymode paralleling for base load control

General

• Fire detection system

Lube Oil Make-Up System

• Integrated enclousre holding tanks: Oil makeup tank (50 gallon), Waste oil tank (300 gal / 2 oil changes), Fresh oil tank (500 gal / 2 oil changes + makeup) and oil level regulator. Low level annunciation

Circuit Breaker

• 5000A 3-Pole IEC Rated Circuit Breakers
• LSI Long-Time, Short-Time, Instantaneous Annunciator
• Rear-mounted

Exhaust

• Externally mounted exhaust system (muffler and heat exchanger)
• Dry exhaust manifolds, insulated and shielded
• Center section cooled turbocharger with Cat flanged outlet
• Individual exhaust port and turbocharger outlet wired to Integrated Tmeperature Sensing Module (ITSM) with GECM providing alarms and shutdowns

Fuel System

• Electronic fuel metering valve
• Throttle plate, 24V DC actuator, controlled by GECM

Fuel system

• Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve

Ignition System

• Individual Cylinder Detonation Sensitive Timing (DST)
• Electronic Ignition System (controlled by ADEM A4)

Generator

• Double bearing SR5 1866 frame, brushless, form wound, 12-lead design, permanent magnet excited, three-phase, with Cat IVR, Class H insulation operating at Class F temperature. Stator and Bearing temperature monitoring and anti-condensation space heaters.
• SR4B
• Caterpillar’s Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
• Busbar connections
• Paint- Caterpillar Yellow except rails gloss black
• Winding temperature detectors
• Parts book
• RH Service
• Anti-condensation space heater
• SR5
• Operation and maintenance manuals
• Crankshaft Vibration Damper and Guard
• Reactive droop

Govrerning System

• ADEM A4 4-20mA (0-5VV) Speed Input
