Caterpillar
DG230-2 (3 phase)
Frequency
60 Hz
60 Hz
Natural Gas Rating
230 eKW
230 eKW
Emissions/Fuel Strategy
U.S. EPA Certified for Non-Emergency Application
U.S. EPA Certified for Non-Emergency Application
Overview
The Cat® spark-ignited generator product line for stationary applications feature permanent magnet excitation, amortisseur winding, skewed stator, voltage adjustment through the EMCP controller, Class H winding insulation and 2/3 pitch incorporated.
Media

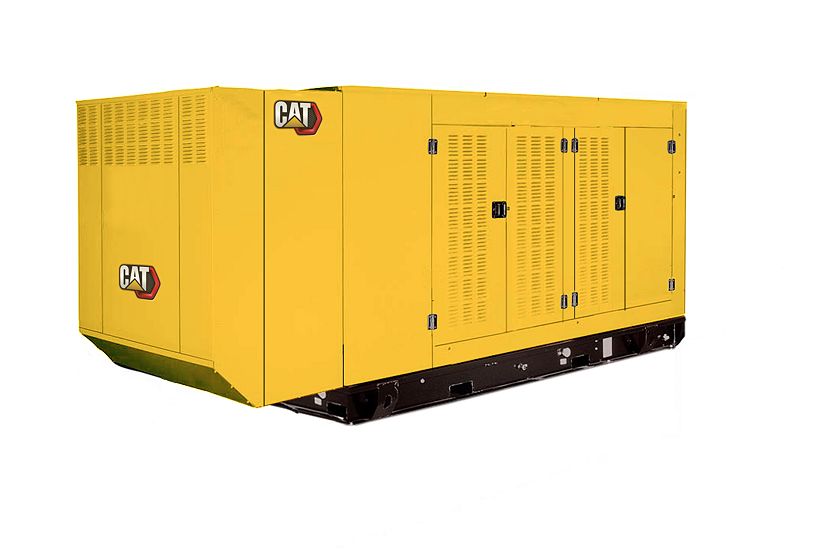

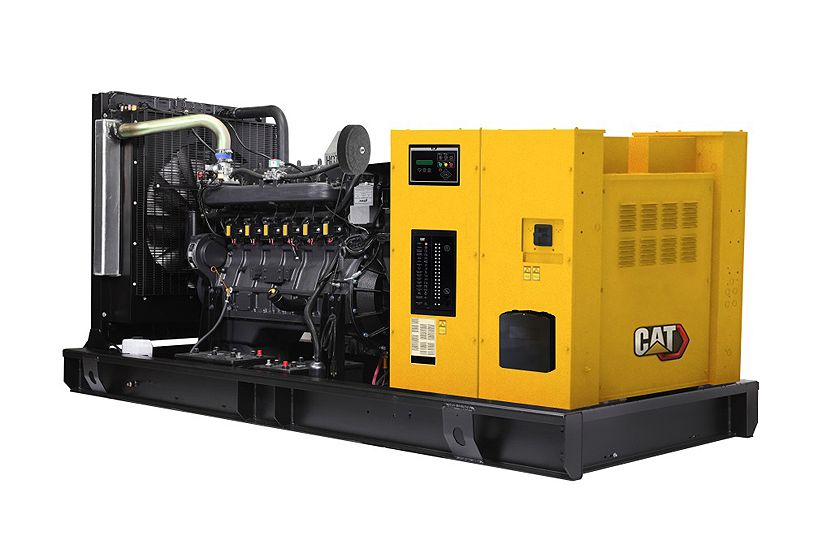

Photos
Features
Generator
Cat EMCP Control Panel+17:21
Design Criteria
UL 2200 / CSA – Optional
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Frequency | 60 Hz 60 Hz |
| Natural Gas Rating | 230 eKW 230 eKW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Non-Emergency Application U.S. EPA Certified for Non-Emergency Application |
| Speed | 1800 rpm 1800 rpm |
Engine Specifications
| Spec | Value |
|---|---|
| Aspiration | Turbocharged - Aftercooled Turbocharged - Aftercooled |
| Governor Type | Electronic Electronic |
| Bore | 1463.1 mm 138.74 in |
| Stroke | 1728.3 mm 57.6 in |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 2887 kg 68.04 in |
| Width | 57.6 in 6364 lb |
| Height | 68.04 in 1728.3 mm |
| Weight | 6364 lb 2887 kg |
Standard Equipment
Cooling
- Factory-installed radiator
- Closed coolant recovery system
- 50/50 Ethylene glycol antifreeze
- Radiator and cooling fan complete with protective guards
- Standard ambient temperatures up to 50°C (122°F)
Air Inlet
- Single element air filter
Fuel
- Low fuel pressure switch
- Primary and secondary fuel shut-off
- Fuel pressure test po
- Dual lock off valves
- Natural Gas or LP Vapor
- NPT connection
Generator
- Class H insulation material
- Full load capacity alternator
- Permanent magnet excitation
- Class H insulation material
- Full load capacity alternator
- Integrated Voltage Regulator
- Matched to the performance and output characteristics of Cat engines
- Permanent magnet excitation
- IP23 Protection
Exhaust
- Exhaust outlet with 3” pipe
Controls
- EMCP 4.2 Series generator set controller
Mounting
- Vibration isolaton (puck type)
- Rubber vibration isolators
Electric Power - Package Serial Number Prefix
- Battery charging alternator
Electric Starting and/or Prelube
- Battery cables
- Engine electrical system
- Solenoid activated starter motor
- Solenoid activated starter motor
Governor
- Electronic governor (non adjustable)
Control Panel
- EMCP 4.2 Series generator set controller
Starting/Charging
- Batteries with rack and cables
- 12 volt starting motor
Optional Equipment
Starting/Charging
- Battery heater
- Charging alternator
- Jacket water heater
- Battery charger – UL Listed 10 amp
General
- Suitable for Use as Service Equipment (SUSE)
- Automatic transfer switches (ATS)
- CSA Certification
- Enclosures: sound attenuated, weather protective
- UL 2200 package
Generator
- Anti-condensation heater
- Shunt trip and auxiliary contact breaker
- Thermal magnetic or electronic trip MCCBs
- Excitation: [ ] Permanent Magnet Excited (PM)
- Anti-condensation heater
- Oversize and premium generators
