Engine Paralleling and Integration Control (EPIC)

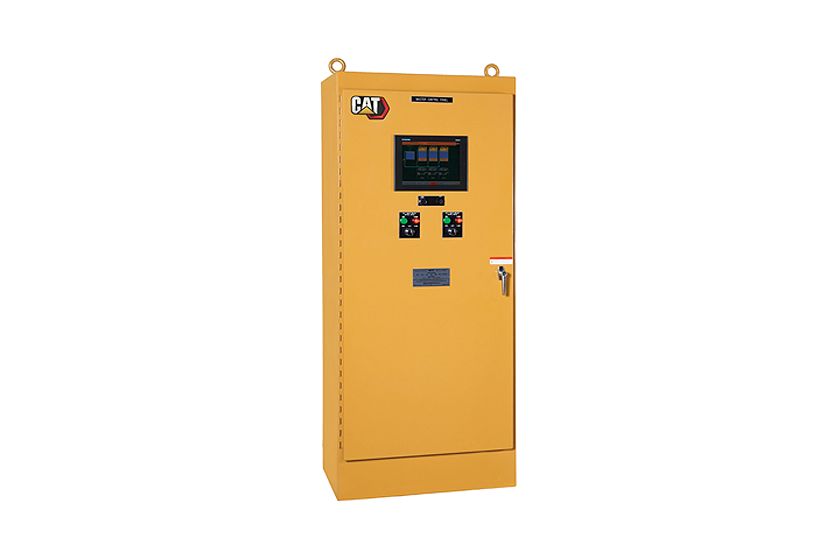

The Engine Paralleling and Integration Control (EPIC) product line provides standard paralleling controls in a remote cabinet separate from the engine generator set and separate from switchgear (breakers and bus).
Media
Photos
Details
Specifications
Technical Summary
| Spec | Value |
|---|---|
| Configuration | Remote modular paralleling control system (Master Control Panel for the first 2 generator sets and optional tie breaker, separate add-on control panels for up to 8 additional generator sets, utility paralleling control, and distribution control) Remote modular paralleling control system (Master Control Panel for the first 2 generator sets and optional tie breaker, separate add-on control panels for up to 8 additional generator sets, utility paralleling control, and distribution control) |
| Modes of Operation | Emergency Standby with redundant master control, Utility paralleling, peak shaving, and closed transition to/from Generator Power (with optional utility control panel) Emergency Standby with redundant master control, Utility paralleling, peak shaving, and closed transition to/from Generator Power (with optional utility control panel) |
| Application | LV and MV (208V-27kV) LV and MV (208V-27kV) |
Generator Protective Devices
| Spec | Value |
|---|---|
| ANSI Protective Devices | 15/25. 27/59, 81 O/U, 32, 40, 90 (Industrial Grade) 15/25. 27/59, 81 O/U, 32, 40, 90 (Industrial Grade) |
Utility Protective Devices
| Spec | Value |
|---|---|
| ANSI Protective Devices | 15/25. 27/59, 81 O/U, 32,47 (Industrial Grade) 15/25. 27/59, 81 O/U, 32,47 (Industrial Grade) |
Environmental Parameters
| Spec | Value |
|---|---|
| Certifications | UL / cUL 508A UL / cUL 508A |
| Control Panel Enclosure | NEMA 12 NEMA 12 |
| Operating Temperature | 0°C to 55°C 0°C to 55°C |
| Storage Temperature | -20°C to 60°C -20°C to 60°C |
Standard Equipment
Instant Auto Selector Switch
- Allows user to return sysem to automatic in the event of a touchscreen failure
Optional Equipment
Generator Control Panel (for 3-10 gensets)
- With breaker position indications and circuit breaker control switch
Utility Control Panel (for utility paralleling and control)
- With utility close lockout switch, breaker position indications, and circuit breaker control switch
Supplemental Hardware 25 Device
- Provides additional discrete synchronization protection
Data Table Interface
- Accommodates interface with a building management system
Generator Demand Priority Control
- An automatic priority sequencing function to modulate the number of gensets online to control load percentages per machine, assist with fuel efficiency, and maintain adequate reserve capacity
