Cat

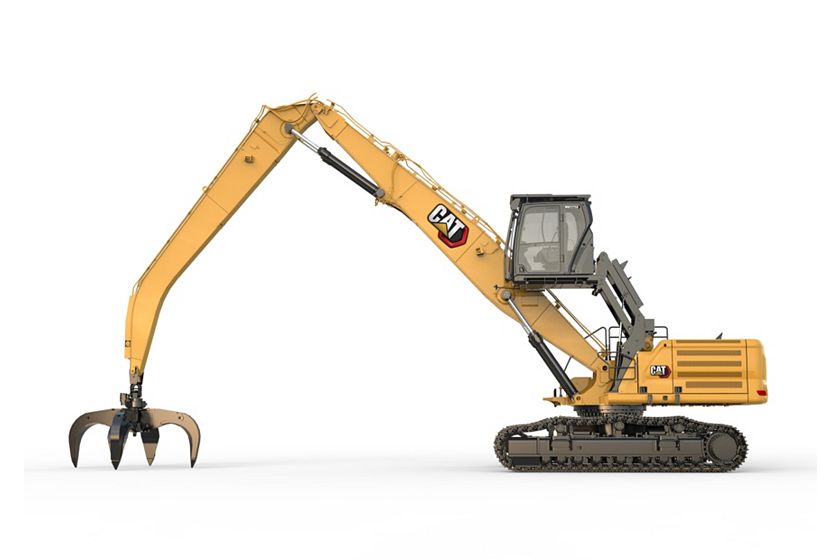

MH3250 Tracked Material Handler
Engine Model
Cat C9.3B
Cat C9.3B
Operating Weight
107700 lb
48850 kg
Maximum Reach
52.5 ft
16010 mm
Overview
The Cat® MH3250 offers superior performance for your material handling applications. Featuring a spacious, ergonomic cab, the MH3250 offers a comfortable work environment to keep you productive all day long. Longer maintenance intervals and up to a 15% reduction in fuel consumption combine to provide up to 20% lower operating costs. The MH3250 provides the safety and reliability you need for your toughest applications.
Media
Photos
Videos
Details
Specifications
Engine
Spec | Value |
---|---|
Engine Model | Cat C9.3B Cat C9.3B |
Net Power- ISO 14396:2002 | 314 HP 234 kW |
Net Power – ISO 9249 | 311 HP 232 kW |
Bore | 5 in 115 mm |
Stroke | 5 in 127 mm |
Displacement | 568 in³ 9.3 l |
Transmission
Spec | Value |
---|---|
Gradeability | 70 70 |
Maximum Travel Speed | 2.1 mile/h 3.4 km/h |
Maximum Travel Speed | 2.1 mile/h 3.3 km/h |
Maximum Drawbar Pull | 55281 lbf 246 kN |
Hydraulic System
Spec | Value |
---|---|
Main System – Maximum Flow (× 2 pumps) – Implement | 148 gal(US)/min 558 l/min |
Maximum Pressure – Implements | 5076 psi 35000 kPa |
Maximum Pressure – Travel | 5076 psi 35000 kPa |
Maximum Pressure – Swing | 4061 psi 32000 kPa |
Weights
Spec | Value |
---|---|
Operating Weight | 107700 lb 48850 kg |
Service Refill Capacities
Spec | Value |
---|---|
Fuel Tank Capacity | 158.5 gal (US) 600 l |
Cooling System | 10.6 gal (US) 40 l |
Engine Oil (with filter) | 8.5 gal (US) 32 l |
Swing Drive – Each | 4.8 gal (US) 18 l |
Final Drive – Each | 4 gal (US) 15 l |
Hydraulic System – Including Tank | 98.5 gal (US) 373 l |
Hydraulic Tank | 42.5 gal (US) 161 l |
DEF Tank | 21.1 gal (US) 80 l |
Swing Mechanism
Spec | Value |
---|---|
Swing Speed | 8.84 r/min 8.84 r/min |
Swing Torque | 104734 ft·lbf 142 kN·m |
Dimensions
Spec | Value |
---|---|
Boom | MH Boom 9.2 m (30'2") MH Boom 9.2 m (30'2") |
Stick | Industrial 7.6 m (24'11") Industrial 7.6 m (24'11") |
Shipping Height (with FOGS, without stick) | 11.8 ft 3570 mm |
Shipping Length (without stick) | 41.8 ft 12700 mm |
Tail Swing Radius | 11.583 ft 3530 mm |
Counterweight Clearance | 4.66 ft 1410 mm |
Cab Height-Lowered | 11.5 ft 3500 mm |
Cab Height-Lowered with FOGS | 11.8 ft 3570 mm |
Cab Height-Raised | 19.8 ft 6020 mm |
Cab Height-Raised with FOGS | 20.3 ft 6160 mm |
Ground Clearance | 2.33 ft 700 mm |
Track Length-Length to Center of Rollers | 14.3 ft 4340 mm |
Track Length | 17.6 ft 5350 mm |
Upper Frame Width (includes walkways and handrails) | 12.5 ft 3820 mm |
Track Gauge-Retracted | 10.6 ft 3220 mm |
Track Gauge- Extended | 12.2 ft 3720 mm |
Undercarriage Width-Retracted, 600 mm (24”) shoes | 13.2 ft 4010 mm |
Undercarriage Width-Extended | 177 in 4510 mm |
Machine Length (with boom/stick) | 14.3 ft 12610 mm |
Working Ranges
Spec | Value |
---|---|
Maximum Reach | 52.5 ft 16010 mm |
Boom | MH Boom 9.2 m (30'2") MH Boom 9.2 m (30'2") |
Stick | Industrial 7.6 m (24'11") Industrial 7.6 m (24'11") |
Maximum Height | 55.3 ft 16850 mm |
Minimum Height | 13.4 ft 4090 mm |
Minimum Swing Radius-Front | 12.8 ft 3870 mm |
Maximum Depth | 23.3 ft 7090 mm |
Boom Pin Height | 37.6 ft 11450 mm |
Standard Equipment
BOOMS AND STICKS
- 9.2 m (30’2″) material handler boom
- 9.2 m (30’2″) material handler boom
- 7.6 m (24’11”) industrial stick
- 7.6 m (24’11”) industrial stick
CAB
- Advanced sound-suppressed TOPS cab (ISO 12117-2 compliant) with rubber mount
- Advanced sound-suppressed TOPS cab (ISO 12117-2 compliant) with rubber mount
- Material Handler cab: air suspension heated and ventilated seat, 10″ monitor
- Material Handler cab: air suspension heated and ventilated seat, 10″ monitor
- Keyless push-to-start engine control
- Keyless push-to-start engine control
- Tilt-up left-side console
- Tilt-up left-side console
- Fixed one-piece laminated windshield and glass hatch (P5A glass)
- Fixed one-piece laminated windshield and glass hatch (P5A glass)
- LED dome and lower interior lights
- LED dome and lower interior lights
CAT TECHNOLOGY
- Cat Product Link
- Cat Product Link
- Remote services capability
- Remote flash capability
ELECTRICAL SYSTEM
- Maintenance-free batteries
- LED exterior lights (integrated into storage box and mounted on boom and stick sides)
- Centralized electrical disconnect switch
- Power fuse module
- Electronic Technician compatible
SERVICE AND MAINTENANCE
- Service platform with anti-skid plate and recessed bolts
- S-O-S sampling ports
- Grouped location for engine oil and fuel filters
ENGINE
- C9.3B engine
- One-touch low idle with automatic engine speed control
- Automatic engine shutdown
- Electric fuel priming pump
- Double element air filter with integrated precleaner
- 3000 m altitude capability with no derate
- 115 Amp alternator
- Single plane 3 horizontal cooling system
- Biodiesel capable (up to B20)
- Dual stage 4 micron main filter and 10 micron primary filter with water separator and water separator indicator switch in fuel line
HYDRAULIC SYSTEM
- Electric main control valve
- Electric main control valve
- Automatic warm up and cold lock out
- Automatic swing parking brake
- Hydraulic main pump
- Boom and stick lowering check valves
- Boom and stick regeneration circuit
- Medium pressure (grapple rotate) and cab riser valve
- Reverse swing damping valve
- High performance hydraulic return filter
- Two speed travel
- Fine swing capability
SAFETY AND SECURITY
- Rear- and right-side-view cameras
- Right-hand handrail and hand hold (ISO 2867 compliant)
- Signaling/warning horn
- Secondary engine shutoff switch
- Caterpillar one key security system
- Secure start with PIN code
- Lockable external tool/storage box and fuel drain compartment
- Standard visibility mirror package
- FOGS Guard
UNDERCARRIAGE AND STRUCTURES
- 600 mm (24″) triple grouser long variable guage undercarriage, PPR2 (M24)
- Grease lubricated track GLT4, Resin seal
- Guard, heavy duty bottom without swivel guard or travel motor protection (recessed bolts)
- Guard, heavy duty travel motor protection
- Towing eye on baseframe (ISO 15818 compliant)
Optional Equipment
ELECTRICAL SYSTEM
- Generator, 25 kW with wiring to stick nose
CAB
- Cat Stick Steer
- Auxiliary relay
SERVICE AND MAINTENANCE
- Integrated vehicle health management system
SAFETY AND SECURITY
- Swing alarm
