Cat

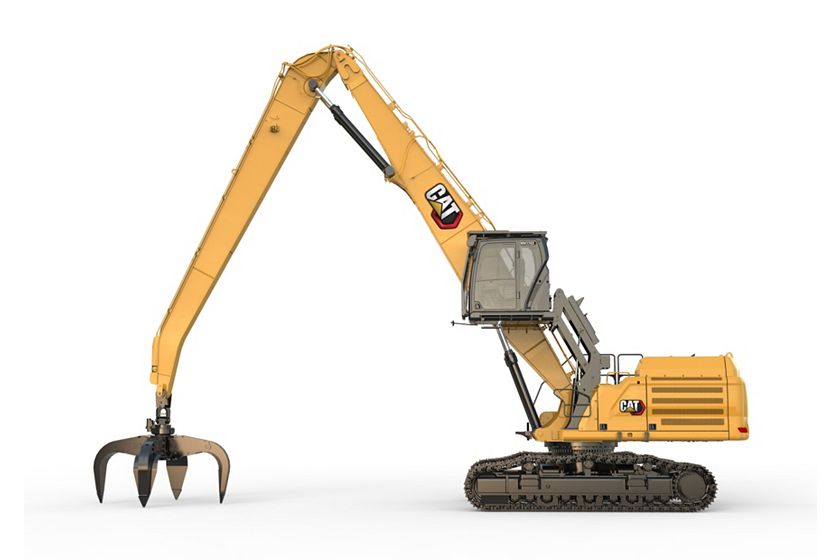

MH3260 Tracked Material Handler
Engine Model
Cat C13
Cat C13
Operating Weight
133200 lb
60420 kg
Maximum Reach
59.1 ft
18000 mm
Overview
The Cat® MH3260 offers superior performance for your material handling applications. Featuring a spacious, ergonomic cab, the MH3260 offers a comfortable work environment to keep you productive all day long. Longer maintenance intervals and lower fuel consumption combine to provide up to 20% lower operating costs. The MH3260 provides the safety and reliability you need for your toughest applications.
Media
Photos
Videos
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C13 Cat C13 |
| Net Power – ISO 9249 | 424 hp 316 kW |
| Net Power – ISO 9249 (DIN) | 430 hp (metric) 430 hp (metric) |
| Engine Power – ISO 14396:2002 | 425 hp 317 kW |
| Engine Power – ISO 14396 (DIN) | 431 hp (metric) 431 hp (metric) |
| Bore | 5 in 130 mm |
| Stroke | 6 in 157 mm |
| Displacement | 763 in³ 12.5 l |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Transmission
| Spec | Value |
|---|---|
| Gradeability | 30°/58% 30°/58% |
| Maximum Travel Speed | 3 mile/h 4.8 km/h |
| Maximum Drawbar Pull | 53729 lbf 239 kN |
Hydraulic System
| Spec | Value |
|---|---|
| Main System – Maximum Flow (× 2 pumps) – Travel | 206 gal(US)/min 779 l/min |
| Maximum Pressure – Implements | 5076 psi 35000 kPa |
| Maximum Pressure – Travel | 5076 psi 35000 kPa |
| Maximum Pressure – Swing | 3771 psi 26000 kPa |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 133200 lb 60420 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 188.9 gal (US) 715 l |
| Cooling System | 13.7 gal (US) 52 l |
| Engine Oil (with filter) | 10.6 gal (US) 40 l |
| Swing Drive – Each | 2.8 gal (US) 10.5 l |
| Final Drive – Each | 4 gal (US) 15 l |
| Hydraulic System – Including Tank | 145.3 gal (US) 550 l |
| Hydraulic Tank | 57.3 gal (US) 217 l |
| DEF Tank | 12.2 gal (US) 46 l |
Swing Mechanism
| Spec | Value |
|---|---|
| Swing Speed | 8 r/min 8 r/min |
| Swing Torque | 137924 ft·lbf 187 kN·m |
Dimensions
| Spec | Value |
|---|---|
| Boom | MH 9.9 m (32'6") MH 9.9 m (32'6") |
| Stick | Industrial 9.1 m (29'10") Industrial 9.1 m (29'10") |
| Shipping Height (with OPG, without stick) | 11.8 ft 3580 mm |
| Shipping Length (without stick) | 45 ft 13710 mm |
| Machine Length (with boom/stick) | 46.5 ft 13270 mm |
| Tail Swing Radius | 12.3 ft 3760 mm |
| Counterweight Clearance | 4.7 ft 1420 mm |
| Cab Height-Lowered | 11.6 ft 3540 mm |
| Cab Height-Lowered with OPG | 11.8 ft 3580 mm |
| Cab Height-Raised | 19.8 ft 6030 mm |
| Cab Height-Raised with OPG | 20.3 ft 6175 mm |
| Ground Clearance | 2.33 ft 710 mm |
| Track Length to Center of Rollers | 14.3 ft 4340 mm |
| Track Length | 17.6 ft 5370 mm |
| Upper Frame Width (includes walkways and handrails) | 12.6 ft 3830 mm |
| Track Gauge-Retracted | 10.6 ft 3220 mm |
| Track Gauge- Extended | 12.2 ft 3720 mm |
| Undercarriage Width-Retracted,750 mm (30”) shoes | 13.2 ft 4010 mm |
Working Ranges
| Spec | Value |
|---|---|
| Maximum Reach | 59.1 ft 18000 mm |
| Boom | MH Boom 9.9m (32'6") MH Boom 9.9m (32'6") |
| Stick | Industrial 9.1 m (29'10") Industrial 9.1 m (29'10") |
| Maximum Height | 58.5 ft 17820 mm |
| Minimum Height | 10 ft 3120 mm |
| Minimum Swing Radius-Front | 13.1 ft 4000 mm |
| Maximum Depth | 26.8 ft 8150 mm |
| Boom Pin Height | 39.8 ft 12120 mm |
Air Conditioning System
| Spec | Value |
|---|---|
| Note (1) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg (2.64 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.892 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg (2.64 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.892 tons). |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOMS AND STICKS
- 9.9 m (32’6″) Material Handler boom
CAB
- Advanced sound-suppressed TOPS cab with rubber mount
- High-resolution 254 mm (10″) LCD touchscreen monitor
- Air suspension premium seat with headrest, heater, ventilator
CAT TECHNOLOGY
- VisionLink®
- Remote Flash
- Remote Troubleshoot
ELECTRICAL SYSTEM
- Maintenance-free battery
- LED exterior lights (integrated into storage box and mounted on boom and stick sides)
- Power fuse module
- Electronic Technician compatible
ENGINE
- 115 Amp alternator
- -32° C (-25° F) cold start capability
- 52° C (126° F) high-ambient cooling
- Automatic engine speed control
- Electric fuel priming pump
- Integrated precleaner air filter
- Three vertical side-by-side cooling system
HYDRAULIC SYSTEM
- SmartBoom™
- Electric main control valve
- Automatic warm up
- Automatic swing parking brake
- Hydraulic main pump
- Boom and stick lowering check valves
- Boom and stick regeneration circuit
- Medium pressure (grapple rotate) and cab riser valve
- High performance hydraulic return filter
- Two speed travel
- Fine swing capability
SAFETY AND SECURITY
- 2D E-fence
- Rear- and side-view cameras
- Right-hand handrail and hand hold
- Signaling/warning horn
- Secondary engine shutoff switch
- Caterpillar One Key security system
- Lockable external tool/storage box and fuel drain compartment
- Lockable disconnect switch
- Standard visibility mirror package
SERVICE AND MAINTENANCE
- Service platform with anti-skid plate and recessed bolts
- Sampling ports for Scheduled Oil Sampling (S·O·S℠)
- Grouped location for engine oil and fuel filters
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Variable Gauge undercarriage
- 750 mm (30″) triple grouser track shoes
- 12 000 kg (26,460 lb) counterweight
- Electric main control valve
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOMS AND STICKS
- 7.4 m (24’5″) Industrial stick
- 9.1 m (29’10”) Industrial stick
CAB
- Operator Protective Guards (OPG)
ELECTRICAL SYSTEM
- Generator, 25 kW with wiring to stick nose
SAFETY AND SECURITY
- Inspection lighting
- 360° visibility
