Cat

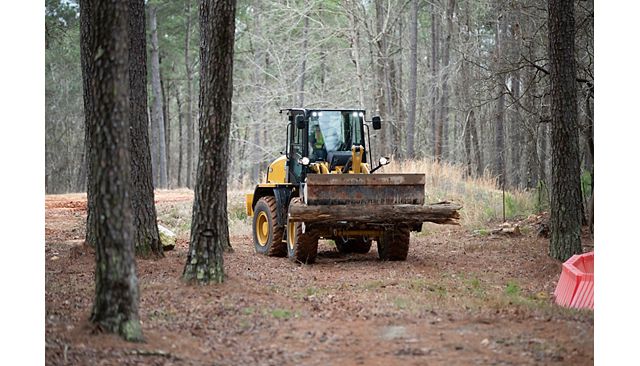

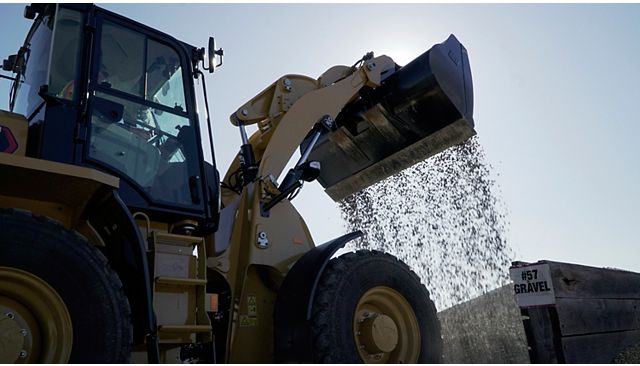

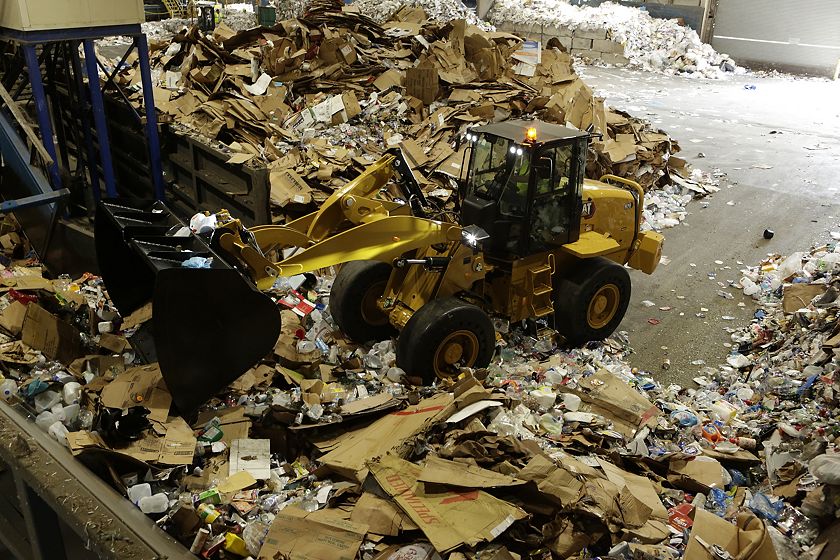

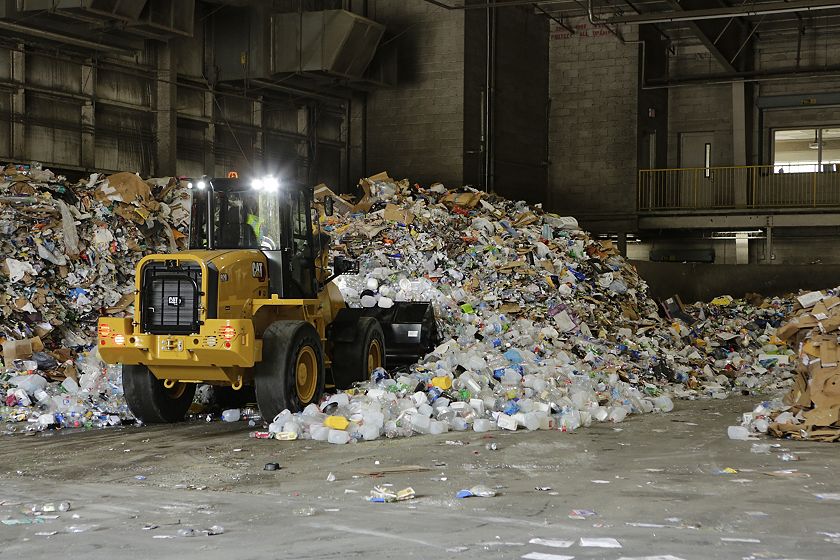

920 Compact Wheel Loader

Name: 920 Compact Wheel Loader
Brand: Cat

Maximum Gross Power

121 HP

90 kW

Operating Weight

21742 lb

9865 kg

Bucket Capacities

1.3-3.5 m3 (1.7-4.6 yd3)

Overview

The Cat® 920 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.

Media

The New Cat® Wheel Loaders are Here For You

Cat® 910, 914, 920 Compact Wheel Loaders at Work

Cat® 910, 914, 920 Compact Wheel Loaders Overview

Cat® 910, 914, 920 Compact Wheel Loaders Features and Benefits

Cat® 914 and 920 Aggregate Handlers Features and Benefits

Cat® 914 and 920 Waste Handlers Features and Benefits

Cat® 914 and 920 Waste Handlers Overview

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

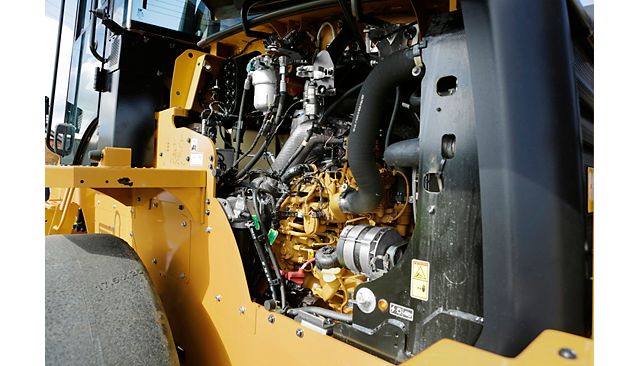

Cat® C3.6 Engine

Cat Optimized Z-bar Loader Linkage

Work Tools

Hydraulics and Controls

Tuned Drivetrain

Cab

Serviceability

Efficiently Powerful

Standard Fuel Savings Features

Sustainability

Specifications

US Metric

Engine

Spec	Value
Rated Net Power – Rated Engine Speed	2200 r/min 2200 r/min
Maximum Gross Power – Rated Engine Speed	2200 r/min 2200 r/min
Rated Net Power – SAE J1349	120 HP 90 kW
Maximum Gross Power – ISO 14396 (metric)	122 HP 122 HP
Rated Net Power – ISO 9249	118 HP 88 kW
Maximum Gross Torque – SAE J1995	372 ft·lbf 505 N·m
Maximum Gross Torque – ISO 14396	369 ft·lbf 500 N·m
Maximum Net Torque – SAE J1349	366 ft·lbf 496 N·m
Maximum Net Torque – ISO 9249	363 ft·lbf 493 N·m
Displacement	220 in³ 3.6 l
Bore	3.85 in 98 mm
Stroke	4.72 in 120 mm
Engine Model	Cat C3.6 Cat C3.6
Emissions	Engine meets Tier 4 Final/Stage V emission standards. Engine meets Tier 4 Final/Stage V emission standards.
Note	Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Gross Power – ISO 14396	121 HP 90 kW
Maximum Gross Power	121 HP 90 kW

Buckets

Spec	Value
Bucket Capacities	1.3-3.5 m3 (1.7-4.6 yd3) 1.3-3.5 m3 (1.7-4.6 yd3)
Bucket Capacities – General Purpose	1.3-1.9 m³ (1.7-2.5 yd³) 1.3-1.9 m³ (1.7-2.5 yd³)
Bucket Capacities – Light Material	2.5-3.5 m³ (3.3-4.6 yd³) 2.5-3.5 m³ (3.3-4.6 yd³)

Weights

Spec	Value
Operating Weight	21742 lb 9865 kg

Steering

Spec	Value
Maximum Working Pressure – Steering Pump	3190 psi 22000 kPa
Steering Cycle Times – Full Left to Full Right – At 2,350 rpm: 90 rpm Steering Wheel Speed	2.3 s 2.3 s
Steering Articulation Angle – Each Direction	40 ° 40 °
Number of Steering Wheel Turns – Full Left to Full Right or Full Right to Full Left	3.4 turns 3.4 turns
Maximum Flow – Steering Pump	21.7 gal/min 82 l/min

Loader Hydraulic System

Spec	Value
Relief Pressure – Tilt Cylinder	4641 psi 32000 kPa
Maximum Flow – Implement Pump – 3rd Function, Maximum Flow, Standard	25 gal/min 95 l/min
Maximum Flow – Implement Pump	43.6 gal/min 165 l/min
Relief Pressure – Tilt Cylinder – 4th Function Relief Pressure	4641 psi 32000 kPa
Hydraulic Cycle Time – Float Down, Maximum Lift to Ground Level	2.7 s 2.7 s
Note	All cycle times listed are with cylinder snubbing turned off. All cycle times listed are with cylinder snubbing turned off.
Maximum Working Pressure – Implement Pump	4061 psi 28000 kPa
Hydraulic Cycle Time – Total Cycle Time	11.5 s 11.5 s
Hydraulic Cycle Time – Rackback	2.2 s 2.2 s
Maximum Flow – Implement Pump – 4rd Function, Maximum Flow	25 gal/min 95 l/min
Hydraulic Cycle Time – Dump, at Maximum Reach	1.8 s 1.8 s
Hydraulic Cycle Time – Raise, Ground Level to Maximum Lift	4.8 s 4.8 s
Maximum Flow – Implement Pump – 3rd Function, Maximum Flow, High	40 gal/min 150 l/min

Service Refill Capacities

Spec	Value
Transmission	0.8 gal (US) 3.2 l
Engine Crankcase	2.6 gal (US) 10 l
Diesel Exhaust Fluid (DEF) Tank	4.8 gal (US) 18 l
Axles – Rear	4.5 gal (US) 17 l
Cooling System	5.7 gal (US) 21.5 l
Hydraulic System – Including Tank	25.9 gal (US) 98 l
Axles – Front	4.5 gal (US) 17 l
Fuel Tank	43.6 gal (US) 165 l
Hydraulic Tank	14.5 gal (US) 55 l
Note	DEF used in Cat Selective Catalyst Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. DEF used in Cat Selective Catalyst Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Transmission

Spec	Value
Note	Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse – Speed Range 3	25 mile/h 40 km/h
Forward and Reverse – Speed Range 2*	12.5 mile/h 20 km/h
Forward and Reverse – Speed Range 1*	6.3 mile/h 10 km/h

Axles

Spec	Value
Rear	Oscillating ±11 degrees; Locking differential (standard) Oscillating ±11 degrees; Locking differential (standard)
Front	Fixed; Locking differential (standard) Fixed; Locking differential (standard)

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 ISO 3449:2005
Note (3)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A). The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008, when the cab is properly installed and maintained, is 77 dB(A). The declared dynamic operator sound pressure levels per ISO 6396:2008, when the cab is properly installed and maintained, is 77 dB(A).
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (4)	The measurements were conducted with the cab doors and windows closed. The measurements were conducted with the cab doors and windows closed.

Tires

Spec	Value
Other Choices Include	17.5 R25 L3 XHA2; 20.5 R25 L3 XHA3; 17.5-25 L2/L3 SGL; 20.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 20.5 R25 L2 Snow; 17.5 R25 Solid 17.5 R25 L3 XHA2; 20.5 R25 L3 XHA3; 17.5-25 L2/L3 SGL; 20.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 20.5 R25 L2 Snow; 17.5 R25 Solid
Standard Size	17.5 R25 L2 XTLA 17.5 R25 L2 XTLA
Note (1)	Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
