Caterpillar

930M Small Wheel Loader

Name: 930M Small Wheel Loader
Brand: Caterpillar

Maximum Gross Power

168 hp

125 kW

Operating Weight

31382 lb

14235 kg

Bucket Capacities

2.1-5.0 m3 (2.7-6.5 yd3)

Overview

The Cat 930M Small Wheel Loader sets the standard for productivity, fuel efficiency and operator comfort. The improved optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a tool carrier. A high torque, low speed C7.1 ACERT engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. Meets Tier 4 Final/Stage V emission standards with an environmentally friendly, Clean Emission Module designed to manage itself so you can concentrate on your work. Experience the new industry benchmark.

Media

M Series Small Wheel Loaders | At Work

M Series Small Wheel Loaders | Overview

Built in Quality: Cat® Small Wheel Loaders Manufactured in Clayton, NC

Safety and Service Overview | Cat® 926M, 930M, 938M Small Wheel Loader

Kick-Outs, Snubbing, Wrap-Out and Soft Detents | M Series Small Wheel Loader Operator Tips

Secondary Display Navigation | M Series Small Wheel Loader Operator Tips

Preventative Maintenance | M Series Small Wheel Loader Operator Tips

Coded Start Feature/Individual Operator Profiles | M Series Small Wheel Loader Operator Tips

Creeper Control | M Series Small Wheel Loader Operator Tips

Rim Pull | M Series Small Wheel Loader Operator Tips

Efficient Hystat Operation | M Series Small Wheel Loader Operator Tips

Throttle Lock | M Series Small Wheel Loader Operator Tips

Fine Mode Control and Perfect Parallelism | M Series Small Wheel Loader Operator Tips

Quick Steer | M Series Small Wheel Loader Operator Tips

Power Train Modes | M Series Small Wheel Loader Operator Tips

Cab Controls and Features | M Series Small Wheel Loader Operator Tips

Hydro-mechanical Applications | M Series Small Wheel Loader Operator Tips

Third and Fourth Auxiliary Flow | M Series Small Wheel Loader Operator Tips

Reversing Fan | M Series Small Wheel Loader Operator Tips

Customize Your Experience | M Series Small Wheel Loader Operator Tips

Diesel Exhaust Fluid (DEF) Fill Alarm | M Series Small Wheel Loader Operator Tips

Cat® Production Measurement (CPM) | M and K Series Small Wheel Loader Operator Tips

Cat® Production Measurement (CPM) Updates | M and K Series Small Wheel Loader Operator Tips

Differential Lock | M Series Small Wheel Loader Operator Tips

Tire Pressure Monitoring System | M Series Small Wheel Loader Operator Tips

Tire Pressure Monitoring System Updates | M Series Small Wheel Loader Operator Tips

Engine Idle Shutdown | M and K Series Small Wheel Loader Operator Tips

Continuously Adjustable Creep Mode | M and K Series Small Wheel Loader Operator Tips

Operator ID and Machine Security | M and K Series Small Wheel Loader Operator Tips

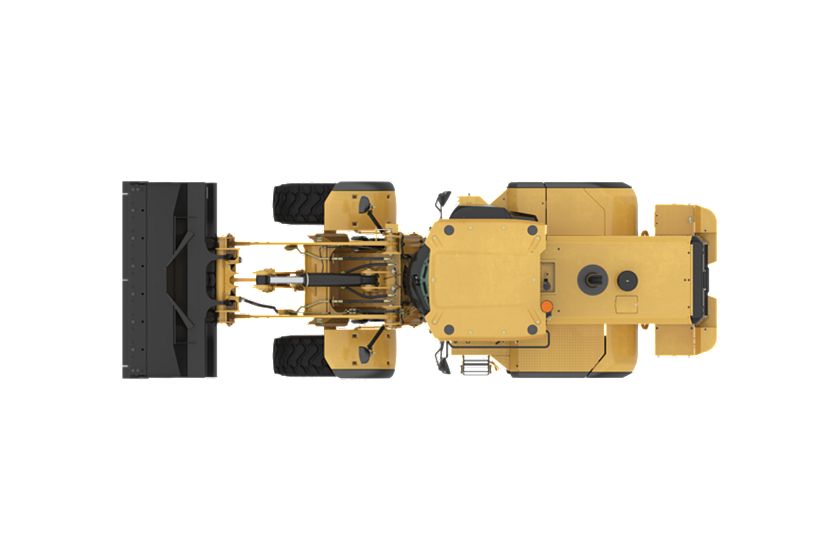

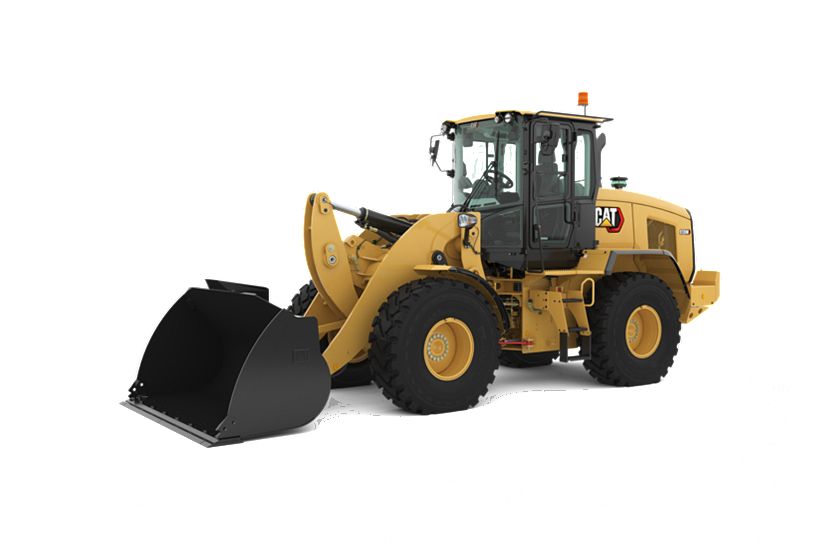

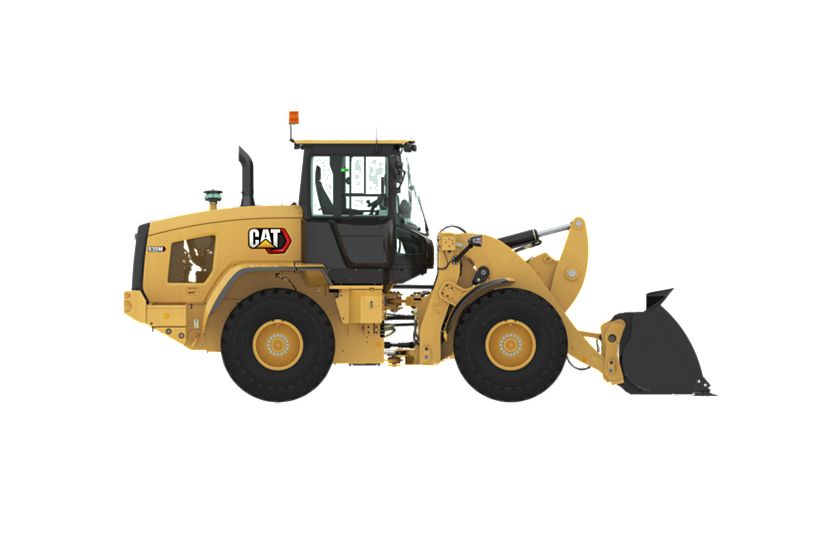

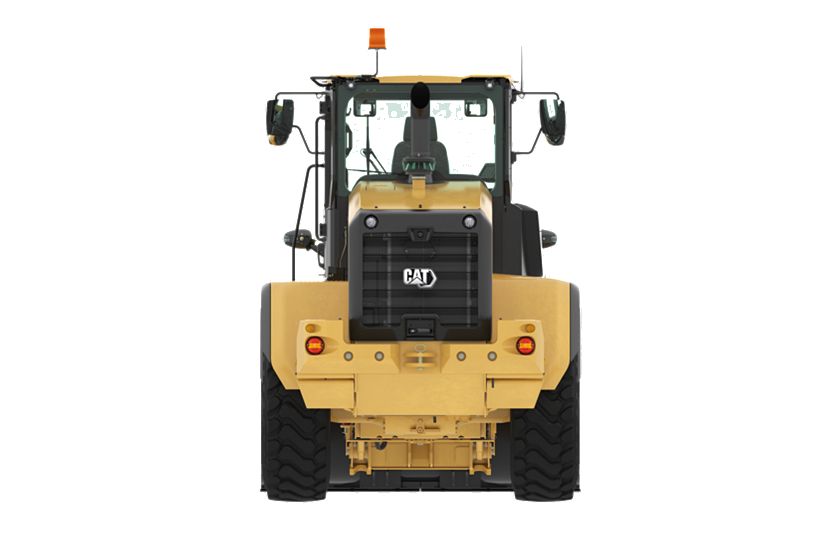

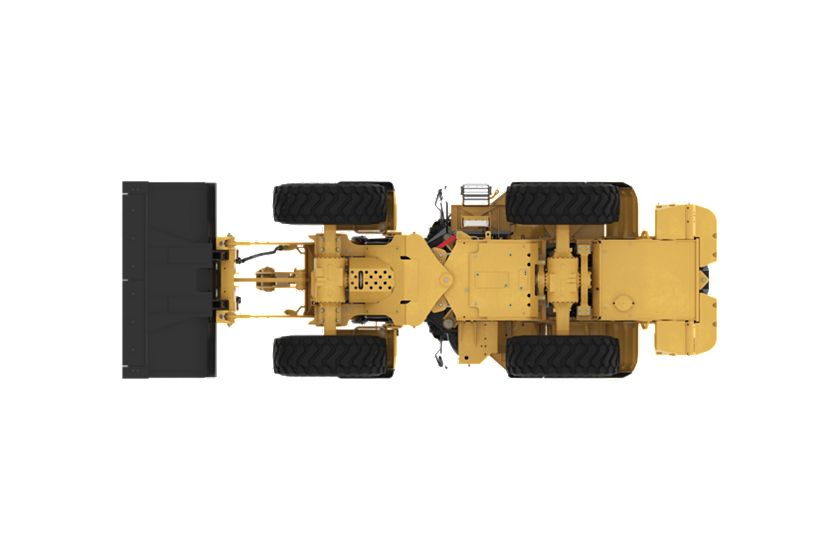

Exterior

Model shown represents features on all Cat® Small Wheel Loaders except where indicated.

Interior

Model shown represents features on all Cat® Small Wheel Loaders except where indicated.

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Efficiently Powerful

Work Made Easy

Enjoy All Day Comfort

Customize Your Experience

Service

Customer Support

Sustainability

Specifications

US Metric

Engine

Spec	Value
Maximum Gross Power	168 hp 125 kW
Rated Net Power – 1,600 rpm – SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	156 hp 116 kW
Maximum Net Torque – SAE J1349 (Performance Power Mode: Range 1-4)	588 ft·lbf 797 N·m
Maximum Gross Power – 1,800 rpm – ISO 14396 (DIN) (Performance Power Mode: Range 1-4)	170 mhp 170 mhp
Maximum Gross Power – 1,800 rpm – ISO 14396 (Performance Power Mode: Range 1-4)	168 hp 125 kW
Displacement (Performance Power Mode: Speed Range 1-4)	427 in³ 7.01 l
Note (2)	Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology. Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Maximum Gross Torque – ISO 14396 (Performance Power Mode: Range 1-4)	601 ft·lbf 815 N·m
Rated Net Power – 1,600 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	158 mhp 158 mhp
Note (1)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed. Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Maximum Gross Power – 1,600 rpm – ISO 14396 (Standard Power Mode: Range 1-3*)	160 hp 119 kW
Engine Model	Cat C7.1 Cat C7.1
Displacement (Standard Power Mode: Speed Range 1-3*)	427 in³ 7.01 l
Maximum Net Torque – SAE J1349 (Standard Power Mode: Range 1-3*)	573 ft·lbf 777 N·m
Rated Net Power – 1,800 rpm – SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	163 hp 122 kW
Rated Net Power – 1,800 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4)	166 mhp 166 mhp
Maximum Gross Torque – ISO 14396 (Standard Power Mode: Range 1-3*)	586 ft·lbf 795 N·m
Note (3)	The Cat C7.1 engine meets Tier 4 Final/Stage V off-highway emission standards. The Cat C7.1 engine meets Tier 4 Final/Stage V off-highway emission standards.
Maximum Gross Power – 1,600 rpm – ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)	162 mhp 162 mhp
Maximum Net Torque – ISO 9249:2007 (Performance Power Mode: Range 1-4)	587 ft·lbf 796 N·m
Rated Net Power – 1,800 rpm – ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	164 hp 122 kW
Maximum Net Torque – ISO 9249:2007 (Standard Power Mode: Range 1-3*)	572 ft·lbf 776 N·m
Rated Net Power – 1,600 rpm – ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	156 hp 116 kW

Buckets

Spec	Value
Bucket Capacities	2.1-5.0 m3 (2.7-6.5 yd3) 2.1-5.0 m3 (2.7-6.5 yd3)
Bucket Capacities – Light Material	3.1-5.0 m³ (4.0-6.5 yd³) 3.1-5.0 m³ (4.0-6.5 yd³)
Bucket Capacities – General Purpose	2.1-2.7 m³ (2.7-3.5 yd³) 2.1-2.7 m³ (2.7-3.5 yd³)

Weights

Spec	Value
Operating Weight	31382 lb 14235 kg

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 Level II ISO 3449:2005 Level II
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008, when properly installed and maintained, are: – Standard cab: 68 ±3 dB(A) – Deluxe cab: 66 ±2 dB(A) The declared dynamic operator sound pressure levels per ISO 6396:2008, when properly installed and maintained, are: – Standard cab: 68 ±3 dB(A) – Deluxe cab: 66 ±2 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Steering

Spec	Value
Steering Cycle Times – Full Left to Full Right – At 1,800 rpm: 90 rpm Steering Wheel Speed	2.4 s 2.4 s
Maximum Steering Torque – 40° (Full Turn)	27747 ft·lbf 37620 N·m
Maximum Flow – Steering Pump	34 gal/min 130 l/min
Number of Steering Wheel Turns – Full Left to Full Right or Full Right to Full Left	3.5 turns 3.5 turns
Maximum Working Pressure – Steering Pump	3500 psi 24130 kPa
Maximum Steering Torque – 0° (Straight Machine)	37155 ft·lbf 50375 N·m
Steering Articulation Angle – Each Direction	40° 40°

Service Refill Capacities

Spec	Value
Hydraulic System – Including Tank	43.6 gal (US) 165 l
Hydraulic Tank	23.8 gal (US) 90 l
Rear Axles	6.6 gal (US) 25 l
Transmission – Gear Box	2.2 gal (US) 8.5 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) 19 l
Front Axles	6.9 gal (US) 26 l
Note	DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Fuel Tank	51.5 gal (US) 195 l
Engine Crankcase	5.3 gal (US) 20 l
Cooling System	7.9 gal (US) 30 l

Loader Hydraulic System

Spec	Value
Hydraulic Cycle Time – Standard Mode at 1,600 rpm – Float Down, Maximum Lift to Ground Level	2.7 s 2.7 s
Hydraulic Cycle Time – Standard Mode at 1,600 rpm – Raise, Ground Level to Maximum Lift	5.7 s 5.7 s
Note (1)	3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display, when equipped. 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display, when equipped.
Relief Pressure – Tilt Cylinder – 3rd and 4th Function Maximum Working Pressure	3771 psi 26000 kPa
Maximum Working Pressure – Implement Pump	3771 psi 26000 kPa
Relief Pressure – Tilt Cylinder	4061 psi 28000 kPa
Relief Pressure – Tilt Cylinder – 3rd and 4th Function Relief Pressure	4061 psi 28000 kPa
Maximum Flow – Implement Pump – 4th Function Maximum Flow*	42 gal/min 160 l/min
Hydraulic Cycle Time – Performance Mode at 1,800 rpm – Dump, at Maximum Lift Height	1.5 s 1.5 s
Hydraulic Cycle Time – Performance Mode at 1,800 rpm – Raise, Ground Level to Maximum Lift	5.1 s 5.1 s
Hydraulic Cycle Time – Performance Mode at 1,800 rpm – Float Down, Maximum Lift to Ground Level	2.7 s 2.7 s
Hydraulic Cycle Time – Standard Mode at 1,600 rpm – Total Cycle Time	10.1 s 10.1 s
Hydraulic Cycle Time – Standard Mode at 1,600 rpm – Dump, at Maximum Lift Height	1.7 s 1.7 s
Hydraulic Cycle Time – Performance Mode at 1,800 rpm – Total Cycle Time	9.3 s 9.3 s
Maximum Flow – Implement Pump	50 gal/min 190 l/min
Maximum Flow – Implement Pump – 3rd Function Maximum Flow*	50 gal/min 190 l/min

Sound

Spec	Value
Note (1)	European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”
Operator Sound Pressure (ISO 6396:2008)	72 dB(A) 72 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	101 dB(A) 101 dB(A)

Axles

Spec	Value
Rear	Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional) Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)
Front	Fixed; Locking differential (standard) Fixed; Locking differential (standard)

Transmission

Spec	Value
Forward and Reverse – Range 1*	1-13 km/h (0.6-8 mph) 1-13 km/h (0.6-8 mph)
Forward and Reverse – Range 4	25 mile/h 40 km/h
Forward and Reverse – Range 3	17 mile/h 27 km/h
Note	Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph). Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph).
Forward and Reverse – Range 2	8 mile/h 13 km/h

Tires

Spec	Value
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (1)	Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Other Choices Include	20.5 R25, radial (L-2); 20.5 R25, radial (L-5); 20.5-25 12PR (L-2); 20.5-25 12PR (L-3); 20.5-25 16PR (L-5); 600/65 R25 radial (L-3); Skidder/Agriculture; Solid Tires 20.5 R25, radial (L-2); 20.5 R25, radial (L-5); 20.5-25 12PR (L-2); 20.5-25 12PR (L-3); 20.5-25 16PR (L-5); 600/65 R25 radial (L-3); Skidder/Agriculture; Solid Tires
Standard Size	20.5 R25, radial (L-3) 20.5 R25, radial (L-3)

Air Conditioning System

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.

Sustainability

Spec	Value
Recyclability	94% 94%

Standard Equipment

POWER TRAIN

Axle Duo-Cone™ seal guards
Auto idle shut down feature
Cat C7.1 engine
– Power modes (Standard and Performance)
– Power by range (High Power in Range 4)
– Turbocharged and aftercooled
– Diesel particulate filter (Fit for Life)
Coded start (requires secondary display)
Differential lock in front axle
Enclosed wet disc full hydraulic brakes
Hydraulically driven demand cooling fan
Hydrostatic transmission with electronic control
– Operator modes (Default, TC, Hystat, and Ice)
– Directional Shift Aggressiveness (fast, medium, slow)
– Rimpull control, adjust wheel torque
– Creeper control, adjust ground speed
Parking brake, electric
Single plane cooling package wide six fins per inch density
Oil sampling ports
Throttle lock and max speed limiter

HYDRAULICS

Automatic lift lower and tilt kickouts, adjustable in-cab
Bucket and fork modes, adjustable in-cab
Cylinder damping at kickout and mechanical end stops
Fine mode control (fast, medium, slow)
Hydraulic response setting (fast, medium, slow)
Load sensing hydraulics and steering
Seat-mounted hydraulic joystick controls

ELECTRICAL

Alternator, 115 amp, heavy duty
Batteries, 1,000 CCA (2) 24V system, disconnect switch
Back-up alarm
Emergency shutdown switch
Halogen work and roading lights, LED rear tail lights
Product Link™ PRO with three year subscription
Remote jump start post
Resettable main and critical function breakers

OPERATOR ENVIRONMENT

75 mm (3 in) High-Vis retractable seat belt, with audible alarm and indicator
Automatic temperature control
Cab, pressurized
Camera, rearview, with dedicated display
External heated mirrors with lower parabolic
Ground level cab door release
Hydraulic control lockout
Mirror, single
Lunch box storage
Radio ready speakers
Rear window defrost, electric
Column mounted multi function control – lights, wipers, turn signal
Tilt and telescopic steering wheel
Tinted front glass
Wet arm wiper/washer, 2-speed and intermittent, front, lights, wipers, turn signal
Suspension seat, fabric

OTHER STANDARD EQUIPMENT

Large-access enclosure doors with adjustable close/open force
Cat optimized Z-bar linkage with parallel lift
Recovery hitch, with pin
Remote mounted lubrication points
Lockable compartments and enclosures

Optional Equipment

OPTIONAL EQUIPMENT

Autolube, integrated in secondary display
Auxiliary flow, third and fourth function
Differential, limited slip, rear
Beacon light, strobe
Cab, deluxe (standard in Europe)
– Camera, rearview integrated into advanced display
– Electrically adjustable external heated mirrors (2)
– Secondary display to enable features and adjust parameters
– LED interior lighting
– Sunscreen, front and rear
– Touchscreen secondary display
– Ride control adjustable speed activation
– Preventative maintenance reminders
– Integrated help function (26 languages)
Camera, roof mounted, front view with separate display
Cold start package
– Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)
Counterweight, additional options
Coupler (Fusion and ISO 23727)
Debris packages (low, medium, high)
Fenders (extended cover and full coverage)
Guarding packages
Linkage, high lift
Lights, auxiliary, halogen or LED with engine and DEF compartment lights
Payload Technology
– Cat Production Measurement (CPM)
– CPM Printer
Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
Radio packages
Rear Object Detection
Ride Control System, adjustable through secondary display
Seats
– Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
– Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
Steering
– Dual mode and secondary
Tire Pressure Monitoring (TPM)
