Caterpillar

Cat® Microgrid Master Controller-Small (MMC-S)

Name: Cat® Microgrid Master Controller-Small (MMC-S)
Brand: Caterpillar

Application

Microgrid Control

Module Type

Monitoring / control and asset optimization

Overview

The Cat® Microgrid Master Controller-Small (MMC-S)is designed for industrial/commercial installations. The MMC will integrate a variety of traditional and renewable energy sources to provide overall monitoring and control of the assets. These assets may be either located at a common installation or dispatched over a wider region.

Media

Exterior

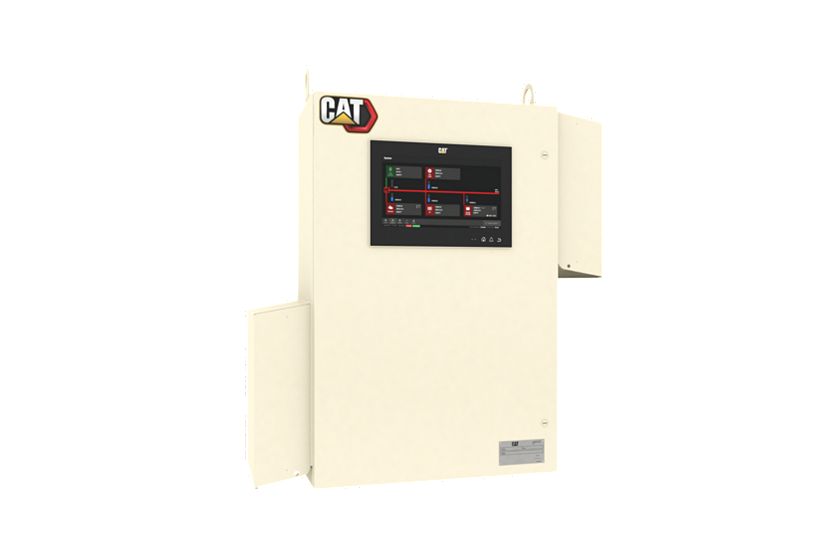

360 Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Email
This field is for validation purposes and should be left unchanged.

Features

Asset Optimization

Remote Monitoring

Renewable Integration

Applicable Standards and Certifications

Specifications

US Metric

Technical Summary

Spec	Value
Application	Microgrid Control Microgrid Control
Module Type	Monitoring / control and asset optimization Monitoring / control and asset optimization

Standard Equipment

MMC-S Panel

13″ industrial color touch-screen display
Cat electronic control module (ECM)
Configurable protocol translator
Industrial PC for data management
Router for customer connection-Ethernet port
Digital I/O module for interfacing with ATS and other relays
Lightening Arrestor & Surge Protector
Fan and heater for temperature regulation with thermal and humidity control
Uninterruptible Power Supply with battery management
Indoor/Outdoor rated IP54 wall mount control panel

Software Modules

Individual software modules control each type of asset
Up to five (5) software modules may be installed to match the site power system configuration
