Caterpillar

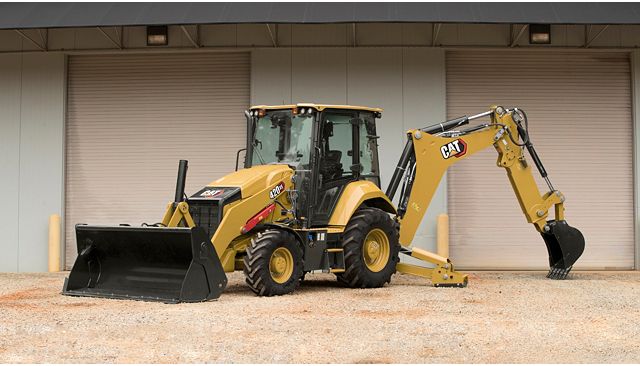

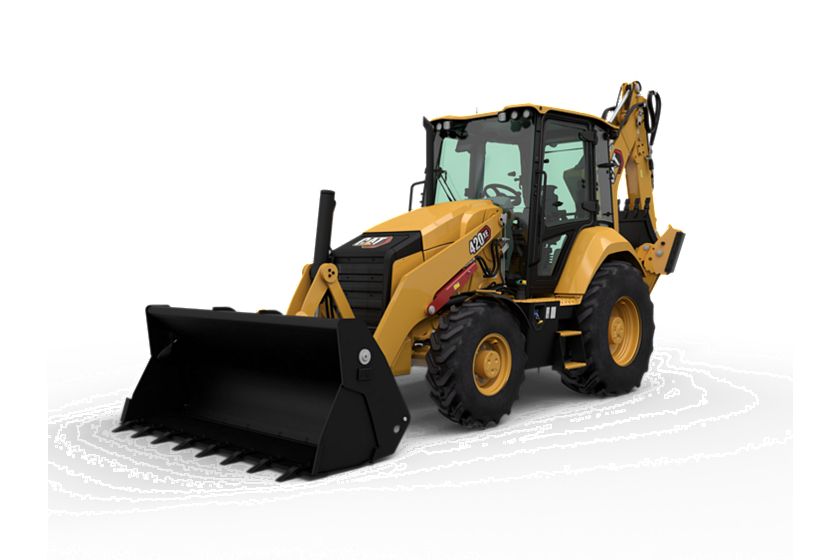

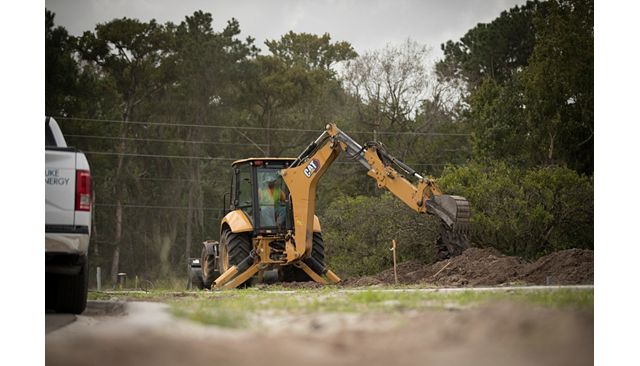

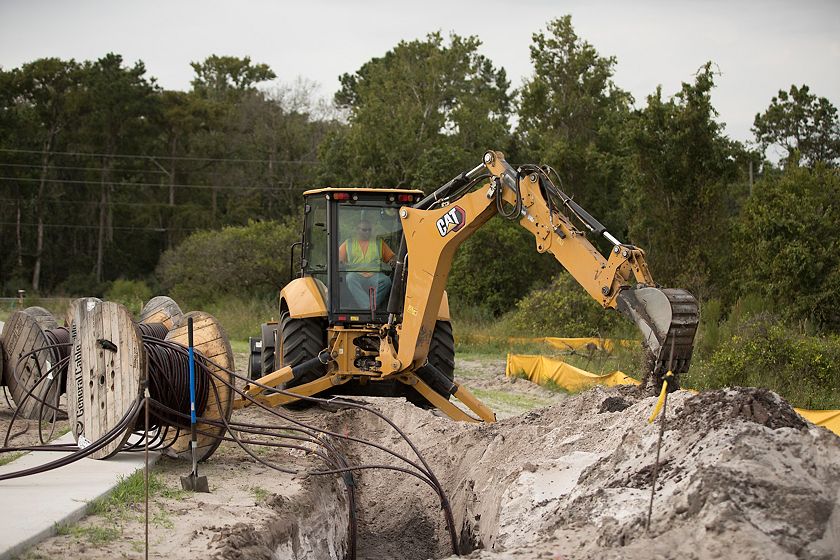

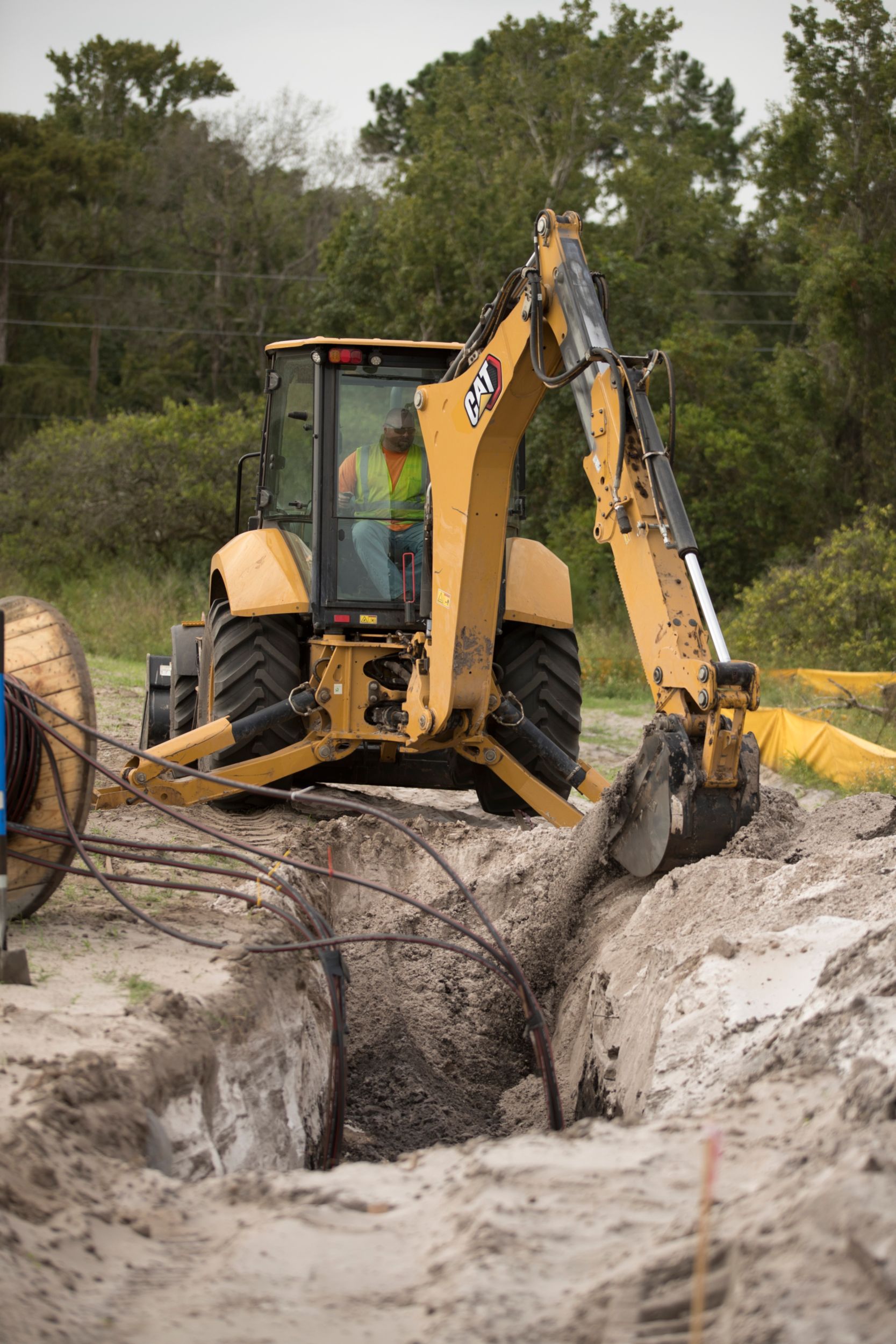

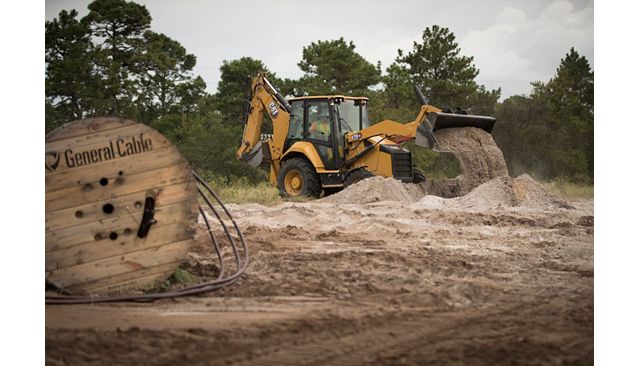

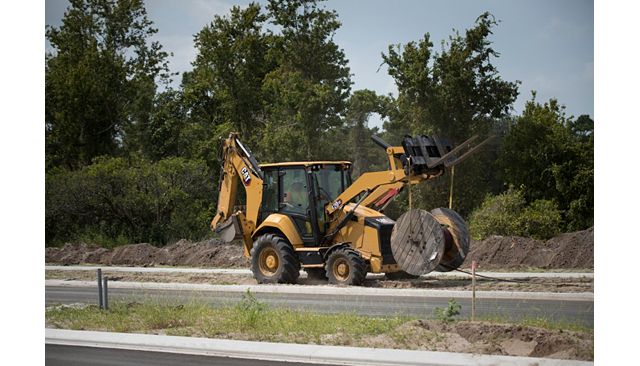

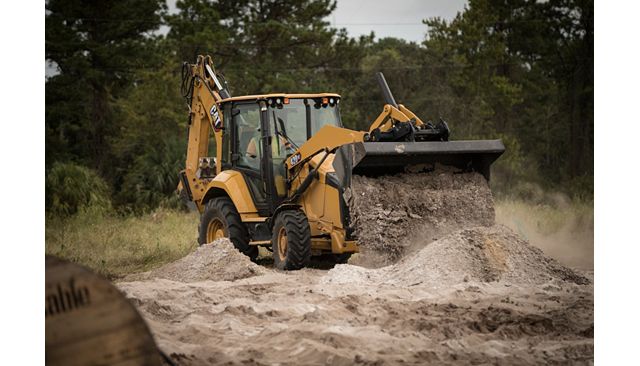

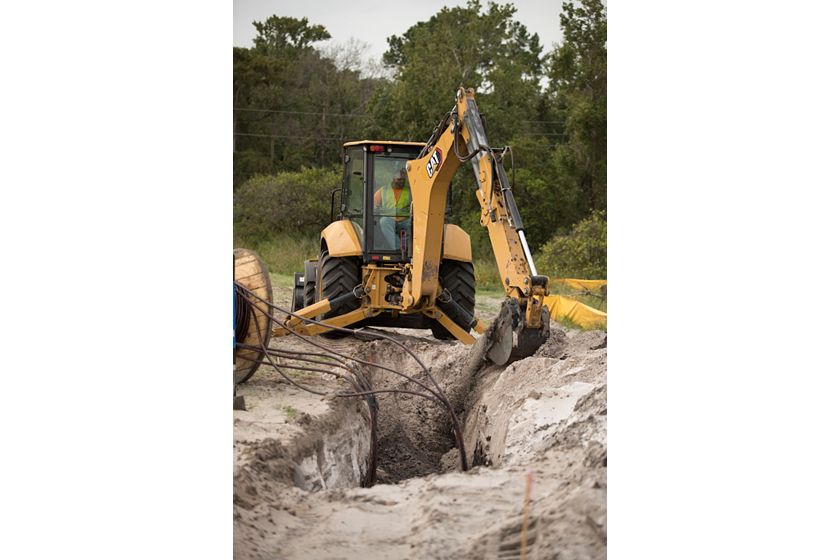

420 XE Backhoe Loader

Name: 420 XE Backhoe Loader
Brand: Caterpillar

Net Power – SAE J1349

92 HP (68 kW) / 103 HP (76 kW)

Dig Depth – Standard

14 ft

4278 mm

Operating Weight – Maximum

24251 lb

11000 kg

Overview

The Cat^® 420 XE Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system, versatility and an updated operator station.

Media

Cat® 420 XE Backhoe Loader Customer Story – Michael Facchiano Contracting Inc.

Cat® 420 XE Backhoe Loader Overview (North America)

Cat® 420 XE Backhoe Loader – Features and Benefits (North America)

Cat® 420 XE Backhoe Loader at Work (North America)

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

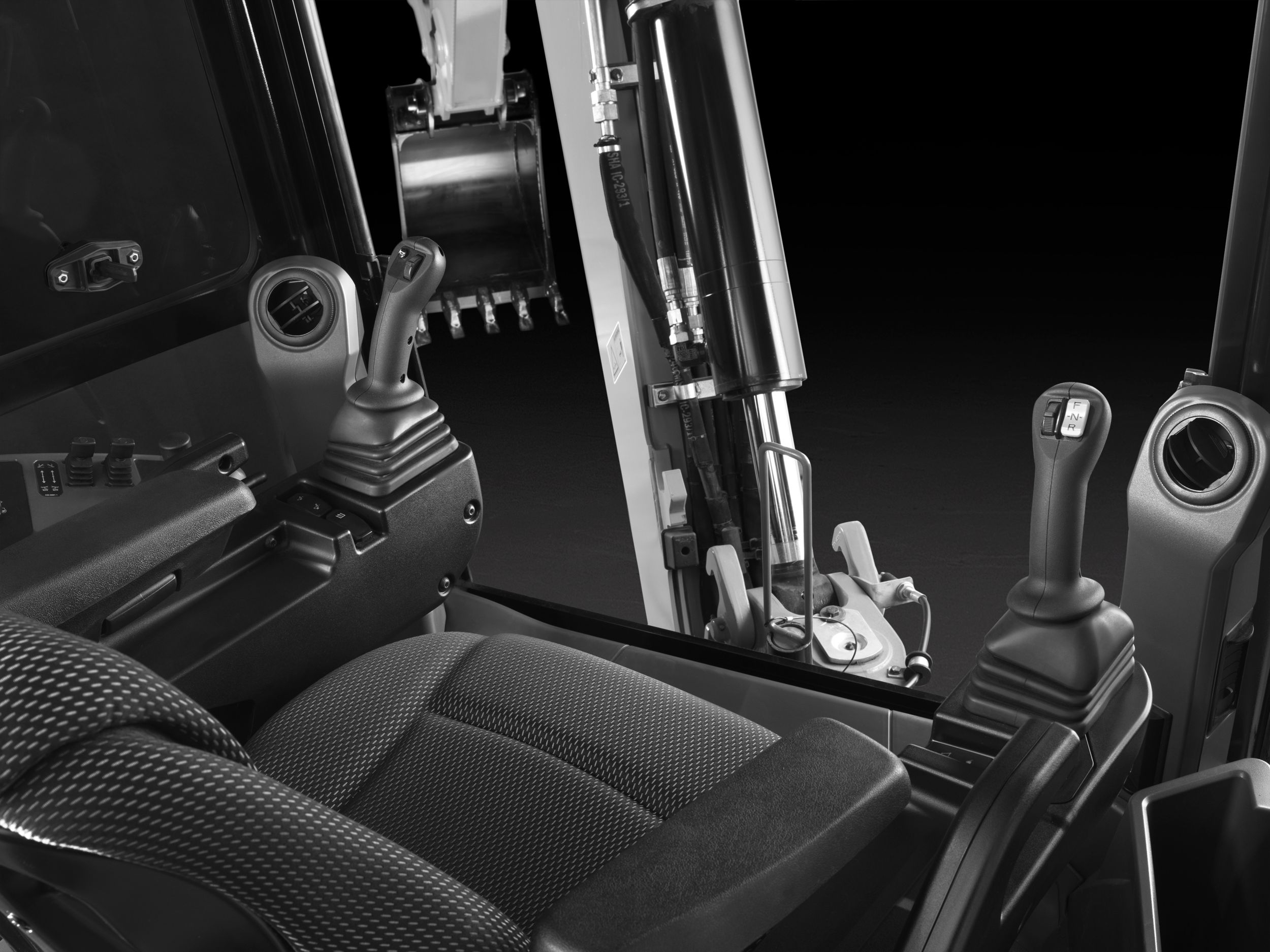

Ergonomic Operator Station

Load Sensing Hydraulics

Machine Performance

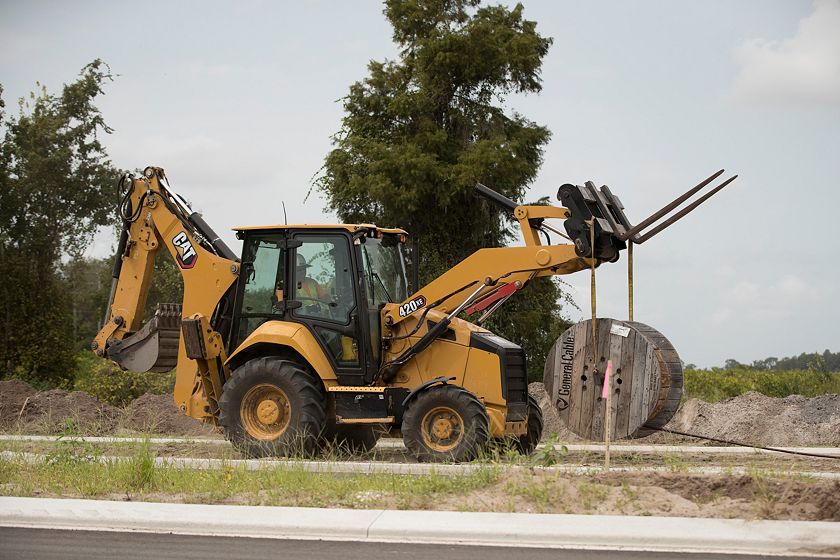

Machine Versatility

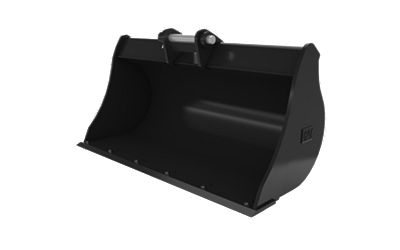

Cat Attachments

Powershift Transmission

Lift Performance

Sustainability

Specifications

US Metric

Engine

Spec	Value
Net Power – SAE J1349	92 HP (68 kW) / 103 HP (76 kW) 92 HP (68 kW) / 103 HP (76 kW)
Displacement	220 in³ 3.6 l
Engine Model	C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled
Net Power Rating at 2,200 rpm – ISO 9249	91 hp 68 kW
Power Rating Conditions – No De-Rating Required Up To	10000 ft 3048 m
Net Torque Rise – 1,400 rpm – SAE J1349	47% 47%
Ratings at 2,200 rpm – Gross Power SAE J1995	102 hp 76 kW
Ratings at 2,200 rpm – Gross Power ISO 14396	100 hp 74 kW
Net Power Rating at 2,200 rpm – SAE J1349	92 hp 68 kW
Net Torque Rise – 1,400 rpm – SAE J1349	322 ft-lb 436 N·m
Emissions	Engine meets Tier 4 Final/Stage V emission standards. Engine meets Tier 4 Final/Stage V emission standards.
Net Peak Power – 1,800 rpm – ISO 9249	105 hp 78 kW
Dimensions – Bore	3.86 in 98 mm
Dimensions – Stroke	4.72 in 120 mm
Net Peak Power Rating @ 1,800 rpm – SAE J1349	105 hp 79 kW

Weights

Spec	Value
Operating Weight – Maximum	24251 lb 11000 kg
Cab – ROPS/FOPS	320 lb 145 kg
Ride Control	33 lb 15 kg
Air Conditioning	99 lb 45 kg
Note	Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank. Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.
MP Bucket (0.96 m3/1.25 yd3) – With Fold-Over Forks	2017 lb 915 kg
Operating Weight – Maximum – ROPS Capacity	24251 lb 11000 kg
MP Bucket (0.96 m3/1.25 yd3) – Without Fold-Over Forks	1642 lb 745 kg
Power-Shift Transmission	STD STD
Extendible Stick (excludes ft. counterweight)	595 lb 270 kg
Counterweights, base – Maximum	1014 lb 460 kg
Counterweights, base	256 lb 115 kg
Loader QC	540 lb 245 kg
All-Wheel Drive	STD STD
Operating Weight (estimated)	17271 lb 7834 kg
Counterweights, base – Stackable, one	529 lb 240 kg

Backhoe

Spec	Value
Dig Depth – Standard	14 ft 4278 mm

Transmission

Spec	Value
Power-Shift Transmission with LTC – Optional – Forward – 2nd	5.8 mile/h 9.4 km/h
Power-Shift Transmission with LTC – Optional – Forward – 6th LTC*	25 mile/h 40 km/h
Power-Shift Transmission with LTC – Optional – Forward – 5th LTC	18 mile/h 29 km/h
Power Shift Transmission – Standard – Forward – 3rd	12 mile/h 20 km/h
Power Shift Transmission – Standard – Reverse – 2nd	7.7 mile/h 12.4 km/h
Power-Shift Transmission with LTC – Optional – Reverse – 3rd	17 mile/h 27 km/h
Power-Shift Transmission – Optional – Forward – 2nd	5.8 mile/h 9.4 km/h
Power-Shift Transmission – Optional – Reverse – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission with LTC – Optional – Forward – 4th	12 mile/h 20 km/h
Power Shift Transmission – Standard – Forward – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission with LTC – Optional – Forward – 5th	17 mile/h 27 km/h
Power-Shift Transmission – Optional – Reverse – 2nd	7.7 mile/h 12 km/h
Power-Shift Transmission with LTC – Optional – Reverse – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission with LTC – Optional – Forward – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission – Optional – Reverse – 3rd	17 mile/h 27 km/h
Power Shift Transmission – Standard – Reverse – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission – Optional – Forward – 3rd	8 mile/h 12 km/h
Power Shift Transmission – Standard – Reverse – 3rd	17 mile/h 27 km/h
Power-Shift Transmission with LTC – Optional – Forward – 6th	25 mile/h 41 km/h
Power Shift Transmission – Standard – Forward – 4th	25 mile/h 41 km/h
Power Shift Transmission – Standard – Forward – 2nd	5.8 mile/h 9.4 km/h
Power-Shift Transmission with LTC – Optional – Forward – 3rd	8 mile/h 12 km/h
Power-Shift Transmission with LTC – Optional – Reverse – 2nd	7.7 mile/h 12 km/h
Power-Shift Transmission – Optional – Forward – 6th	25 mile/h 41 km/h
Power-Shift Transmission – Optional – Forward – 4th	12 mile/h 20 km/h
Power-Shift Transmission – Optional – Forward – 5th	17 mile/h 27 km/h
Power-Shift Transmission – Optional – Forward -1st	3.7 mile/h 5.9 km/h
Note (2)	Limited by engine speed to 40 km/h (25 mph). Limited by engine speed to 40 km/h (25 mph).
Note (1)	Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires. Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires.

Axle Ratings

Spec	Value
Rear Axle – Dynamic	22046 lb 10000 kg
Front Axle, AWD – Dynamic	19841 lb 9000 kg
Front Axle, AWD – Static	51808 lb 23500 kg
Rear Axle – Static	58422 lb 26500 kg

Hydraulic System

Spec	Value
Pump Type	Variable-flow, Axial Piston Variable-flow, Axial Piston
System Pressure – Loader	3626 psi 25000 kPa
Pump Capacity at 2,200 rpm	49.4 gal/min 187 l/min
System Pressure – Backhoe	3626 psi 25000 kPa
Type	Closed Center Closed Center

Steering

Spec	Value
Bore	2.6 in 65 mm
Turning Circle – (inner wheel not braked) – Outside Front Wheels	26.92 ft 8.205 m
Turning Circle – (inner wheel not braked) – Outside Widest Loader Bucket	35.25 ft 10.745 m
Power Steering	Hydrostatic Hydrostatic
Rod Diameter	1.6 in 40 mm
Type	Front Wheel Steering Front Wheel Steering
Stroke	4.2 in 106 mm
Axle Oscillation	11° 11°
Cylinder	One Double-Acting One Double-Acting

Service Refill Capacities

Spec	Value
Fuel Tank	42.3 gal (US) 160 l
Engine Oil – With Filter	2.4 gal (US) 9 l
Hydraulic Tank	11.1 gal (US) 42 l
Hydraulic System	25.1 gal (US) 95 l
Cooling System with Air Conditioning	4.8 gal (US) 18 l
Rear Axle	4.2 gal (US) 16 l
Diesel Exhaust Fluid (DEF)	5 gal (US) 19 l
Rear Axle – Planetaries	0.4 gal (US) 1.7 l
Transmission – Power Shift – AWD	5 gal (US) 19 l
Transmission – Power Shuttle – AWD	4.8 gal (US) 18 l
Front Axle (AWD) – Planetaries	0.2 gal (US) 0.7 l
Front Axle (AWD)	2.9 gal (US) 11 l

Standard Equipment

STANDARD EQUIPMENT

Adjustable auxiliary controls, backhoe loader
Air cleaner
Alarm, back-up
Audible system fault alarm
Automatic Engine Speed Control (AESC)
Battery, maintenance-free, 850 CCA
Battery disconnect switch
Boom transport lock
Brace, lift cylinder
Brake, parking, Spring Applied Hydraulically Released (SAHR)
Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
Bucket level indicator
Canopy, ROPS/FOPS
Cat cushion swing system
Coat restraint
Coolant/antifreeze, extended life
Dome light (cab only)
Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
Differential lock, loader joystick
Drink holders, two
Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
Engine enclosure, sound suppression, removable side panels
Face seals, O-ring
Fan, suction and guard
Fast reversing shuttle, all gears
Fenders, rear
Filters, spin-on: fuel, engine oil, transmission oil, water separator
Filters, bowl and cartridge: hydraulic fluid
Flashing hazards/signal lights
Floor mat
Four wheel drive
Four wheel drive shaft guard
Fuel tank, fully enclosed
Fully hinged front grill for cooling package cleaning access
Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
Ground level fuel fill and DEF fill
Halogen lights, working (2 front, 2 rear)
High ambient cooling package
Hood lock, inside cab
Hydraulic Lock Out, loader, backhoe, auxiliary hydraulics
Hydraulic hose, XT™
Hydraulic oil cooler
Hydraulic oil level sight gauge
Hydraulic valves, loader 2 function
Hydraulic valves, backhoe 4 function
Hydraulics, load sensing with variable displacement piston pump
Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
Instrument panel lights
Key start/stop system
LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
Loader, EH Parallel Lift
Loader, Programmable Kick Out
Loader, Programmable Return To Dig
Loader, single tilt
Mirror, interior, rearview
One-touch low idle
Open circuit breather
Pattern changer, in cab
Power receptacle, 12 volt, 2 internal, 1 external
Power receptacle, 5 volt USB, 1 internal
Power steering, hydrostatic
Product Link™, satellite, network manager
Product Link, cellular, network manager
Seat belt, retractable, 51 mm (2 in)
Seat mounted joystick controls: backhoe and loader, EH operated, excavator style with pattern changer
Socket, two roof
Stabilizers, EH Control, Auto-UP
Stabilizer shoes, street
Steering knob
Seat, air suspension, vinyl cover, with armrest
Starting system, glow plugs
Steering column, tilting, telescopic
Storage compartment, lockable
Storage tray
Stop and tail lights
Swing transport lock
Tires
Toolbox, external, lockable
Torque converter
Throttle, hand and foot, electronic
Transmission, 4 speed, powershift
Transmission neutralizer switch
Transport tie-downs
Vandalism locks, four
Warning horn, electric

Optional Equipment

OPTIONAL EQUIPMENT

Auxiliary hydraulics, loader, adjustable flow
Auxiliary hydraulics, rear, adjustable flow
Battery, additional, 850 CCA
Cab, deluxe
Cold weather fuel (–30° C/–22° F)
Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
Fenders, front with integral steps
Guard, boom protection plate
Guard, stabilizer, rock
Hydraulic valves, loader with auxiliary roller thumb control (3rd valve for MP or Quick Coupler)
Hydraulic valves, backhoe (5th and 6th function)
Hydraulic lines, combined function auxiliary
LED lights, working (2 front, 2 rear)
Quick Coupler, hydraulic, dual lock
Quick Coupler, manual, dual lock
Quick Coupler, manual, pin lock
Radio and CD player, Bluetooth®
Ride Control
Rotating beacon, magnetic mount
Seat, air suspension, fabric with armrest
Seat, air suspension, fabric with armrest, heated
Seat belt, retractable, 75 mm (3 in)
Security system, Bluetooth
Security system, operator display
Side mirrors, cab, external
Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
Stabilizer pads, reversible
Stick, extendible
Touch screen LCD Display: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
Transmission, AutoShift with lock-up torque converter, 6 speed
Vandalism protection, gauge cover

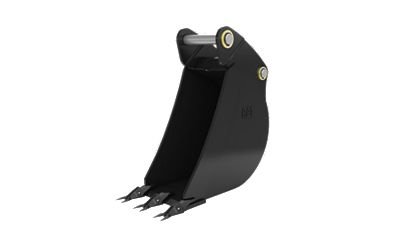

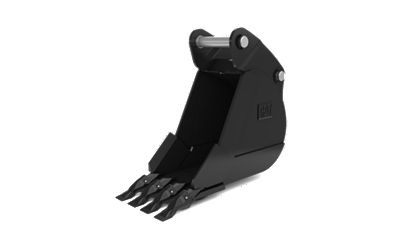

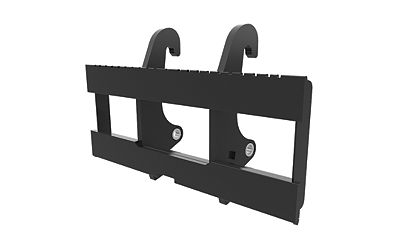

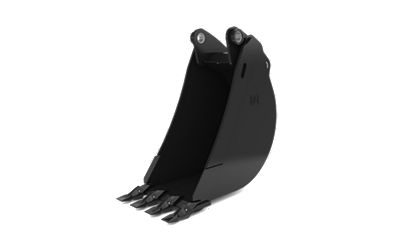

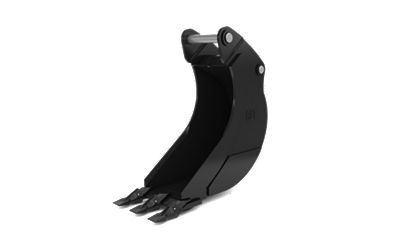

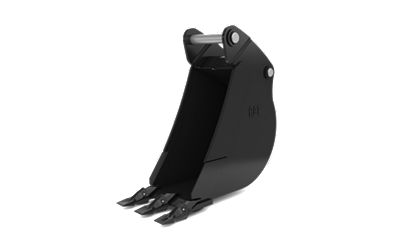

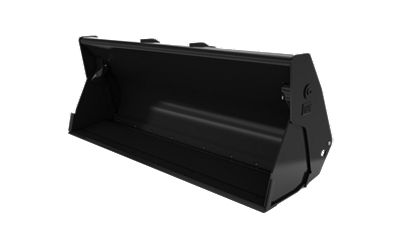

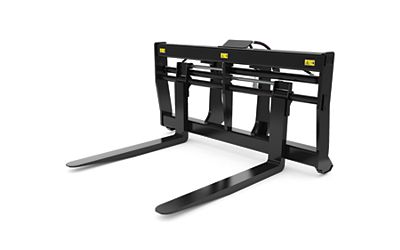

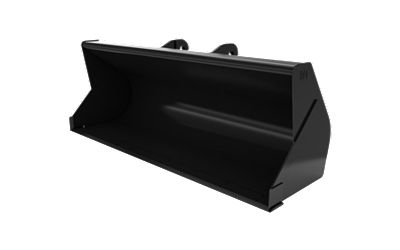

Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
