Cat

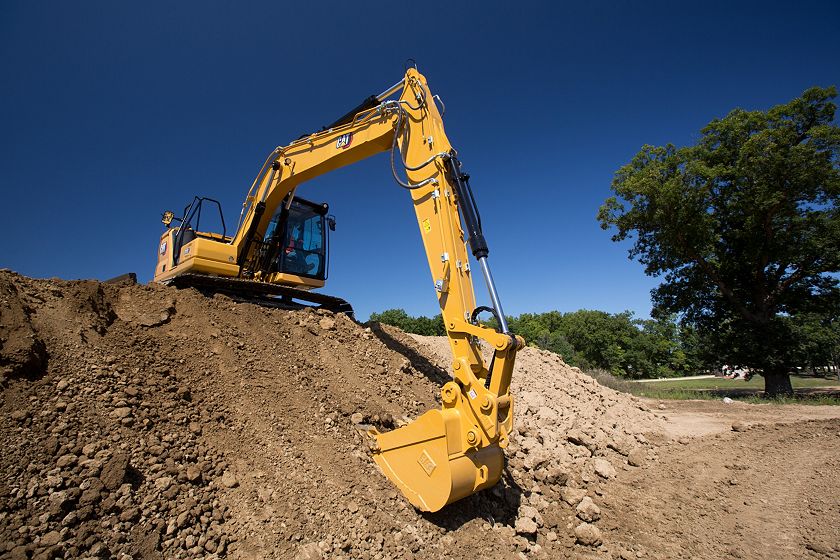

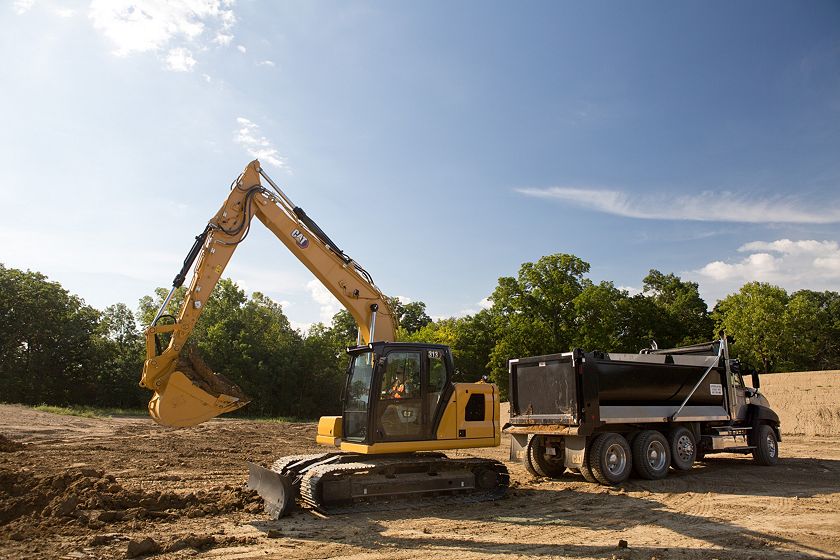

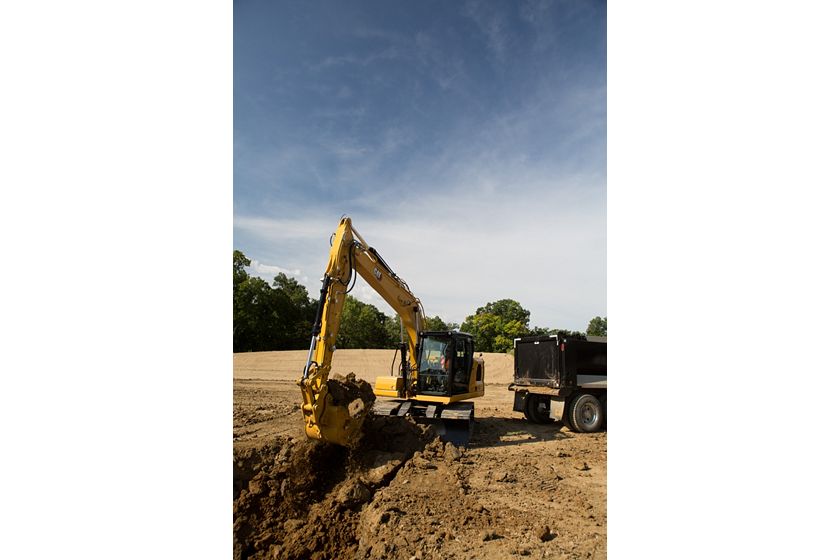

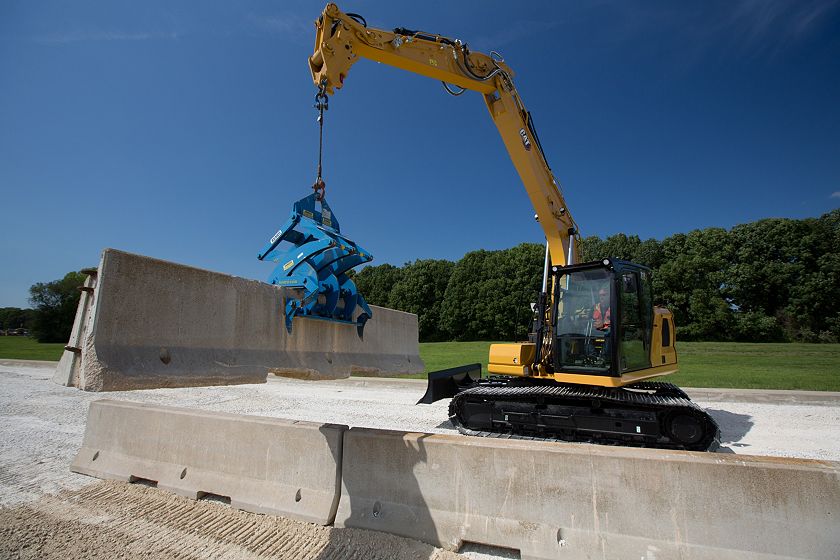

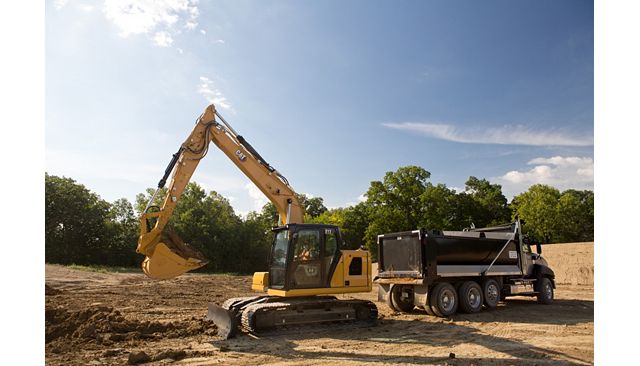

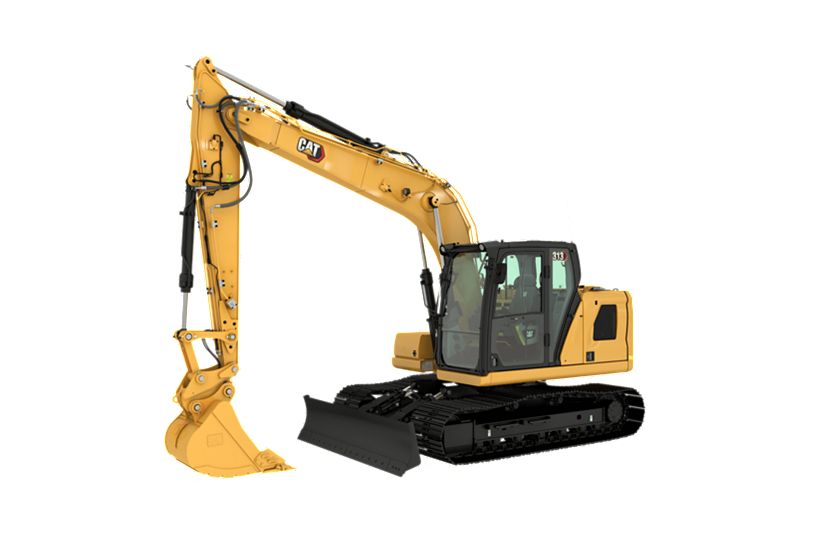

313 Hydraulic Excavator
Net Power – ISO 9249
108 hp
80.9 kW
Operating Weight
30400 lb
13800 kg
Maximum Digging Depth
19.2 ft
5840 mm
Overview
The 313 excavator offers excellent performance and operator efficiency. Standard, easy-to-use Cat technologies, large cab focused on operator comfort and productivity, and low fuel and maintenance costs allow you to move material all day with speed and precision while keeping more money in your pocket.
Media

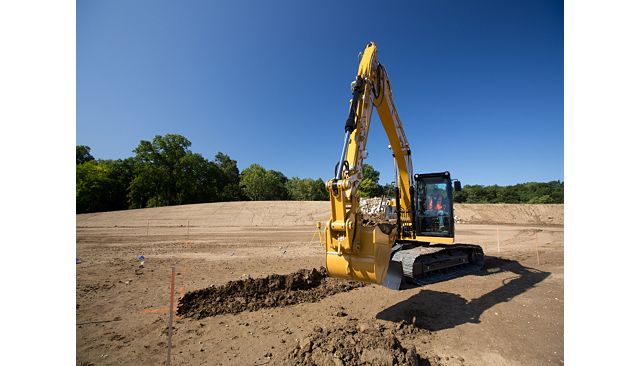

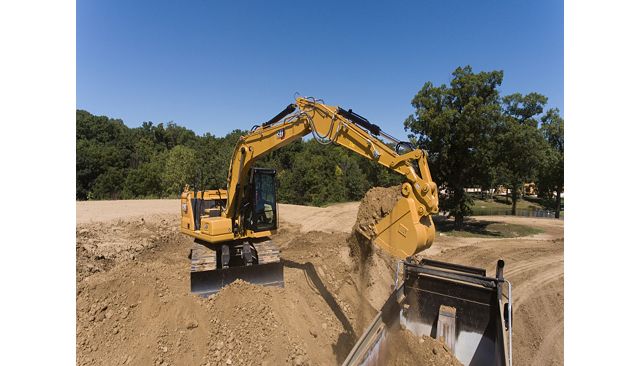

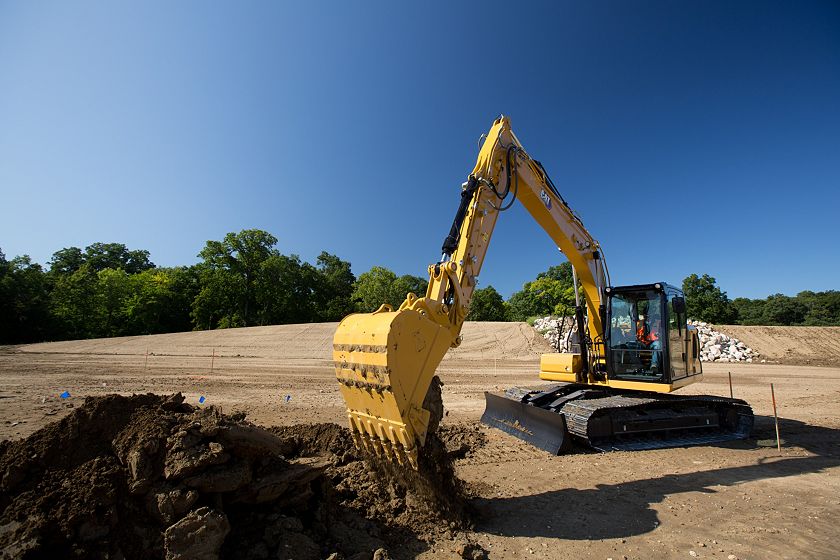

Photos
Videos
360° View
Exterior
313 Exterior 360° View
Interior
313 Interior 360° View
Features
High Performance and Productivity
Boost Efficiency and Productivity with Cat Technologies
Take the Guesswork out of Managing Your Equipment

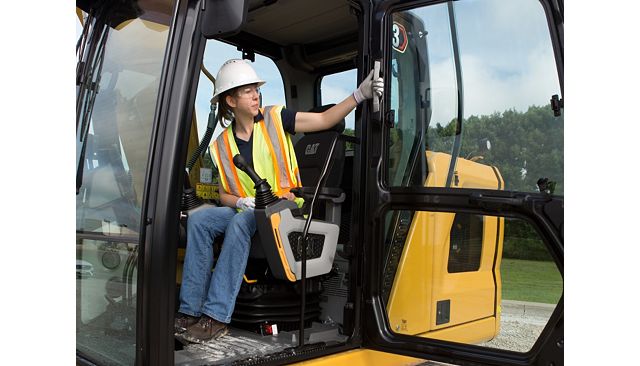

Work in Comfort

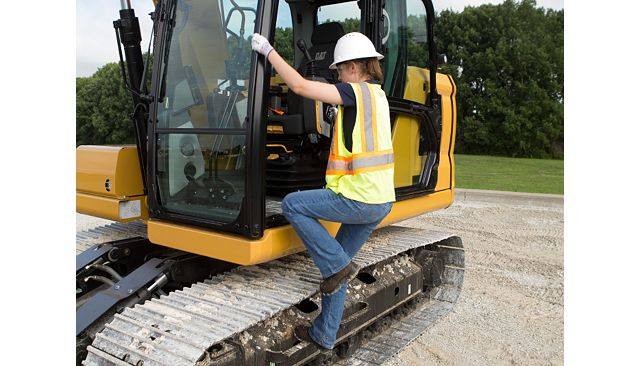

Simple to Operate

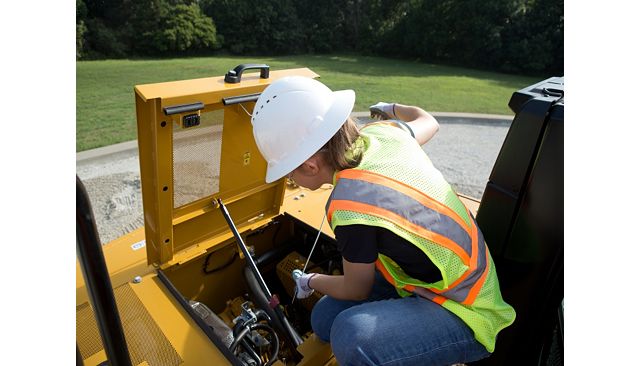

Low Maintenance Costs
Safety
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Net Power – ISO 9249 | 108 hp 80.9 kW |
| Net Power – ISO 9249 (DIN) | 110 hp (metric) 110 hp (metric) |
| Engine Model | Cat C3.6 Cat C3.6 |
| Engine Power – ISO 14396:2002 | 110 hp 82 kW |
| Engine Power – ISO 14396 (DIN) | 111 hp (metric) 111 hp (metric) |
| Bore | 4 in 98 mm |
| Stroke | 5 in 120 mm |
| Displacement | 220 in³ 3.6 l |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Hydraulic System
| Spec | Value |
|---|---|
| Main System – Maximum Flow | 247 L/min (65 gal/min) 247 L/min (65 gal/min) |
| Maximum Pressure – Equipment | 5075 psi 35000 kPa |
| Maximum Pressure – Travel | 5075 psi 35000 kPa |
| Maximum Pressure – Swing | 3770 psi 26000 kPa |
Swing Mechanism
| Spec | Value |
|---|---|
| Swing Speed | 11.5 r/min 11.5 r/min |
| Maximum Swing Torque | 25741 lbf·ft 35 kN·m |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 30400 lb 13800 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 68.2 gal (US) 258 l |
| Cooling System | 4 gal (US) 15 l |
| Engine Oil | 2.1 gal (US) 8 l |
| Final Drive – Each | 0.8 gal (US) 3 l |
| Hydraulic System – Including Tank | 22.5 gal (US) 85 l |
| Hydraulic Tank | 18.5 gal (US) 70 l |
| DEF Tank | 5.6 gal (US) 21 l |
Dimensions
| Spec | Value |
|---|---|
| Boom | Reach 4.65 m (15'3") Reach 4.65 m (15'3") |
| Stick | Reach R3.0 m (9'10") Reach R3.0 m (9'10") |
| Bucket | GD 0.53 m³ (0.69 yd³) GD 0.53 m³ (0.69 yd³) |
| Shipping Height – Top of Cab | 9.3 ft 2810 mm |
| Handrail Height | 9.3 ft 2810 mm |
| Shipping Length | 25.5 ft 7780 mm |
| Shipping Length – with Blade | 26.4 ft 8050 mm |
| Tail Swing Radius | 7.2 ft 2190 mm |
| Counterweight Clearance | 3 ft 915 mm |
| Ground Clearance | 1.5 ft 445 mm |
| Track Length | 12.3 ft 3750 mm |
| Length to Center of Rollers | 10 ft 3040 mm |
| Track Gauge | 6.5 ft 1990 mm |
| Transport Width | 8.2 ft 2490 mm |
Working Ranges and Forces
| Spec | Value |
|---|---|
| Maximum Digging Depth | 19.2 ft 5840 mm |
| Boom | Reach 4.65 m (15'3") Reach 4.65 m (15'3") |
| Stick | Reach R3.0 m (9'10") Reach R3.0 m (9'10") |
| Bucket | GD 0.53 m³ (0.69 yd³) GD 0.53 m³ (0.69 yd³) |
| Maximum Reach at Ground Level | 28.4 ft 8660 mm |
| Maximum Cutting Height | 29 ft 8830 mm |
| Maximum Loading Height | 21.1 ft 6420 mm |
| Minimum Loading Height | 5.3 ft 1600 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 19.3 ft 5860 mm |
| Maximum Vertical Wall Digging Depth | 17 ft 5190 mm |
| Minimum Working Equipment Radius | 8.4 ft 2570 mm |
| Bucket Digging Force – ISO | 22180 lbf 98.67 kN |
| Stick Digging Force – ISO | 13330 lbf 59.29 kN |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 hg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 hg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes. |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 95% 95% |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 4.65 m (15’3″) Reach boom
CAB
- Rollover protective structure (ROPS)
CAT TECHNOLOGIES
- VisionLink
- VisionLink Productivity
- Remote Flash
- Remote Troubleshoot
- Cat Grade with 2D
- Cat Assist
- Cat Payload
- Cat Advanced Payload
ELECTRICAL SYSTEM
- Maintenance free battery
- LED chassis light, left-side/right-side boom lights, cab lights
- Centralized electrical disconnect switch
- Programmable time-delay LED working lights
ENGINE
- Cat C3.6 single turbo diesel engine
- One-touch low idle with auto engine speed control
- Auto engine shutdown
- 52°C (125°F) high-ambient cooling capacity without de-rate
- Electric fuel priming pump
- Variable speed fan
- Single fuel filtration system
- Double element air filter with integrated precleaner
- Biodiesel capability up to B20
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Auto hydraulic warm up
- Auto two speed travel
- Electric main control valve
- Boom and stick drift reduction valve
- Swing drive with fine swing control function
SAFETY AND SECURITY
- Rear and right-side-view cameras
- Hydraulic lock out lever
- Ground-level engine shutoff switch
- Service platform with anti-skid plate and countersunk bolts
- Signaling/warning horn
- 2D E-Fence
SERVICE AND MAINTENANCE
- Grouped engine oil and fuel filters
- Ground-level engine oil dipstick
- Sampling ports for Scheduled Oil Sampling (S·O·S)
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Long undercarriage
- Grease lubricated track link
- Tie down points on base frame
- 2470 kg (5,445 lb) counterweight
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 2.8 m (9’2″) Thumb Ready stick
- 2.8 m (9’2″) Reach stick
- 3.0 m (9’10”) Reach stick
CAB
- Operator Protective Guards (OPG)
- Deluxe Cab: air suspension heated seat, 10″ touch screen monitor
- Premium Cab: air suspension heated and cooled seat, 10″ touch screen monitor
- Cat Stick Steer
- Auxiliary relay
CAT TECHNOLOGIES
- Cat Grade with Advanced 2D
- Cat Grade with 3D (single or dual GNSS)
- Operator Coaching
ELECTRICAL SYSTEM
- 360° lighting
ENGINE
- -25°C (-13°F) cold start capability
HYDRAULIC SYSTEM
- Boom and stick lowering check valves
- Medium-pressure line
- High-pressure line
- Quick coupler line
SAFETY AND SECURITY
- Cat Detect – People Detection
- Cat Command remote control
- 360° visibility
- Swing alarm
- Inspection lighting
UNDERCARRIAGE AND STRUCTURES
- 500 mm (20″) triple grouser shoes
- 500 mm (20″) rubber track shoes
- 500 mm (20″) triple grouser shoes with rubber pad
- 600 mm (24″) triple grouser shoes
- 600 mm (24″) rubber track shoes
- 700 mm (28″) triple grouser shoes
- 770 mm (30″) triple grouser shoes
- 2500 mm (8’2″) blade
- 2600 mm (8’6″) blade
- 2700 mm (8’10”) blade
