Cat

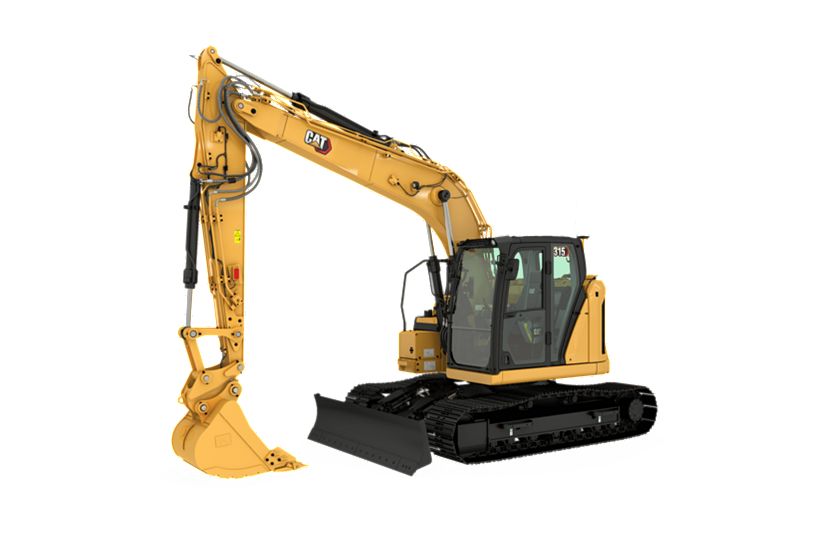

315 Hydraulic Excavator
Net Power – ISO 9249
108 hp
80.9 kW
Operating Weight
34000 lb
15400 kg
Maximum Digging Depth
19.7 ft
5990 mm
Overview
The Cat® 315 excavator offers excellent performance in a compact design. Standard, easy-to-use Cat technologies boost operator efficiencies and improve jobsite productivity while a large, ergonomic cab provides a comfortable working environment. Combined with simplified maintenance points, the 315 keeps you working, quickly and efficiently.
Media
Photos
Videos
360° View
Exterior
315 Exterior Spinset
Interior
315 Interior Spinset
Features
High Performance and Productivity
Boost Efficiency and Productivity with Cat Technologies
Take the Guesswork out of Managing Your Equipment
Simple to Operate

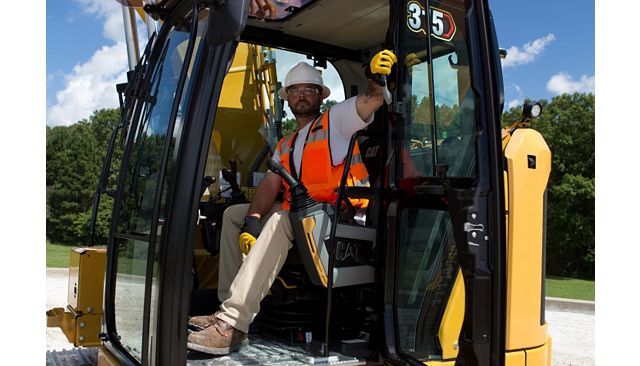

Work in Comfort
Low Maintenance Costs
Safety
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Net Power – ISO 9249 | 108 hp 80.9 kW |
| Net Power – ISO 9249 (DIN) | 110 hp (metric) 110 hp (metric) |
| Engine Model | Cat C3.6 Cat C3.6 |
| Engine Power – ISO 14396:2002 | 110 hp 82 kW |
| Engine Power – ISO 14396 (DIN) | 111 hp (metric) 111 hp (metric) |
| Bore | 4 in 98 mm |
| Stroke | 5 in 120 mm |
| Displacement | 220 in³ 3.6 l |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Hydraulic System
| Spec | Value |
|---|---|
| Main System – Maximum Flow | 276 l/min (73 gal/min) 276 l/min (73 gal/min) |
| Maximum Pressure – Equipment | 5075 psi 35000 kPa |
| Maximum Pressure – Travel | 5075 psi 35000 kPa |
| Maximum Pressure – Swing | 3770 psi 26000 kPa |
Swing Mechanism
| Spec | Value |
|---|---|
| Swing Speed | 12 r/min 12 r/min |
| Maximum Swing Torque | 25815 lbf·ft 35 kN·m |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 34000 lb 15400 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 49 gal (US) 187 l |
| Cooling System | 4 gal (US) 15 l |
| Engine Oil | 2 gal (US) 8 l |
| Final Drive – Each | 1 gal (US) 3 l |
| Hydraulic System – Including Tank | 22.5 gal (US) 85 l |
| Hydraulic Tank | 19 gal (US) 72 l |
| DEF Tank | 6 gal (US) 21 l |
Dimensions
| Spec | Value |
|---|---|
| Boom | Reach 4.65 m (15'3") Reach 4.65 m (15'3") |
| Stick | Reach R3.0 m (9'10") Reach R3.0 m (9'10") |
| Bucket | GD 0.68 m³ (0.89 yd³) GD 0.68 m³ (0.89 yd³) |
| Shipping Height – Top of Cab | 9.3 ft 2810 mm |
| Handrail Height | 9.4 ft 2860 mm |
| Shipping Length | 24.4 ft 7440 mm |
| Shipping Length – with Blade | 26.3 ft 8010 mm |
| Tail Swing Radius | 5.2 ft 1570 mm |
| Counterweight Clearance | 2.9 ft 880 mm |
| Ground Clearance | 1.4 ft 440 mm |
| Track Length | 12.3 ft 3750 mm |
| Length to Center of Rollers | 10 ft 3040 mm |
| Track Gauge | 6.5 ft 1990 mm |
| Transport Width | 8.2 ft 2490 mm |
Working Ranges and Forces
| Spec | Value |
|---|---|
| Maximum Digging Depth | 19.7 ft 5990 mm |
| Boom | Reach 4.65 m (15'3") Reach 4.65 m (15'3") |
| Stick | Reach R3.0 m (9'10") Reach R3.0 m (9'10") |
| Bucket | GD 0.68 m³ (0.89 yd³) GD 0.68 m³ (0.89 yd³) |
| Maximum Reach at Ground Level | 28.5 ft 8690 mm |
| Maximum Cutting Height | 31.8 ft 9690 mm |
| Maximum Loading Height | 23.7 ft 7220 mm |
| Minimum Loading Height | 6.8 ft 2080 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 19.1 ft 5810 mm |
| Maximum Vertical Wall Digging Depth | 17 ft 5180 mm |
| Minimum Working Equipment Radius | 7.3 ft 2240 mm |
| Bucket Digging Force – ISO | 22180 lbf 98.67 kN |
| Stick Digging Force – ISO | 13330 lbf 59.29 kN |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 hg of refrigerant which has a CO2 equivalent of 1.144 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 hg of refrigerant which has a CO2 equivalent of 1.144 metric tonnes. |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 95% 95% |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Rollover Protective Structure (ROPS)
- Air suspension heated seat, 254 mm (10″) touchscreen monitor
CAT TECHNOLOGIES
- VisionLink®
- Remote Flash
- Remote Troubleshoot
- Cat Grade with 2D
- Cat Assist
- Cat Payload
ELECTRICAL SYSTEM
- Maintenance free battery
- LED chassis light, left-side/right-side boom lights, cab lights
- Programmable time-delay LED working lights
ENGINE
- Cat C3.6 single turbo diesel engine
- One-touch low idle with auto engine speed control
- Auto engine shutdown
- 52°C (125°F) high-ambient cooling capacity without de-rate
- -25°C (-13°F) cold start capability
- Electric fuel priming pump
- Variable speed fan
- Single fuel filtration system
- Double element air filter with integrated precleaner
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Auto hydraulic warm up
- Auto two speed travel
- Electric main control valve
- Boom and stick drift reduction valve
- Electric boom snubber
SAFETY AND SECURITY

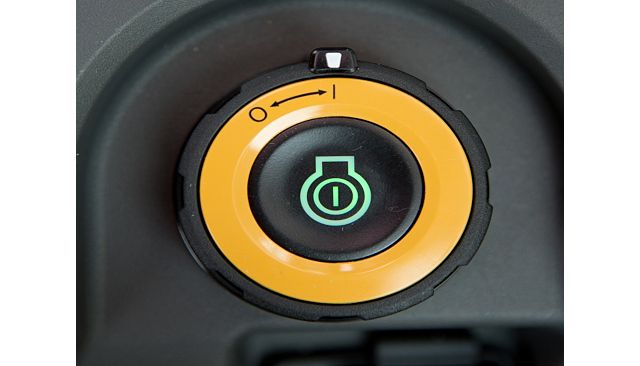

- Ground-level engine shutoff switch

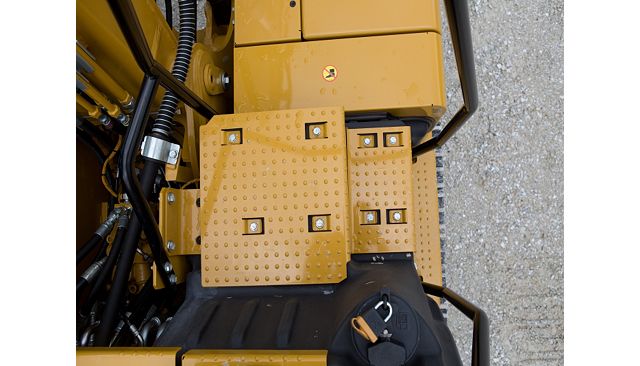

- Service platform with anti-skid plate and countersunk bolts
- Signaling/warning horn
- 2D E-Fence

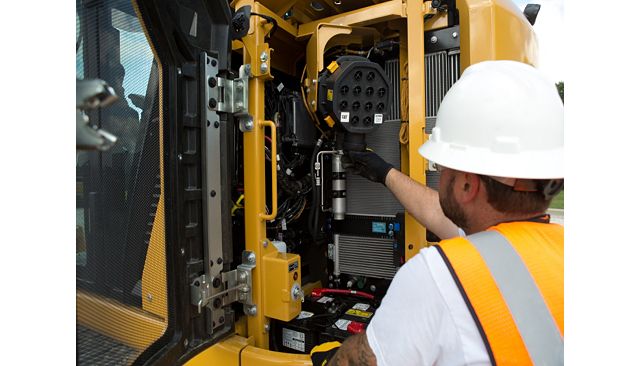

SERVICE AND MAINTENANCE
- Grouped engine oil and fuel filters
- Ground-level engine oil dipstick
- Integrated vehicle health management system
- Sampling ports for Scheduled Oil Sampling (S·O·S)
UNDERCARRIAGE AND STRUCTURES
- Grease lubricated track link
- Tie down points on base frame
- 3830 kg (8,440 lb) counterweight
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 4.65 m (15’3″) Reach boom
- 2.4 m (7’8″) stub + 2.44 (8’0″) fore Variable Angle boom
- 4.27 m (14’4″) Power Offset boom
- 2.2 m (7’3″) Reach stick
- 2.5 m (8’2″) Reach stick
- 3.0 m (9’10”) Reach stick
- 2.8 m (9’2″) Reach stick
- 2.8 m (9’2″) Thumb Ready stick
CAB
- Operator Protective Guards (OPG)
- Cat Stick Steer
- Auxiliary relay
CAT TECHNOLOGIES
- VisionLink Productivity
- Cat Grade 2D with Attachment Ready Option (ARO)

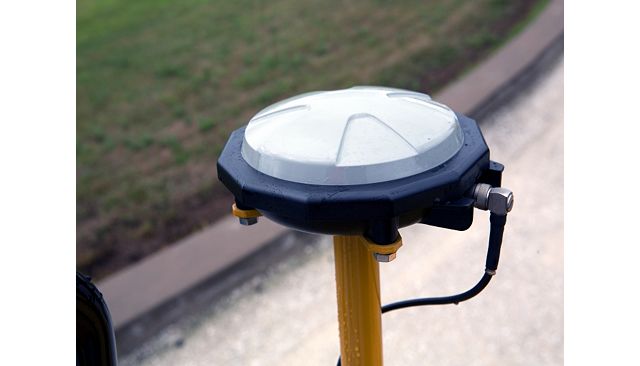

- Cat Grade with 3D (single or dual GNSS)
- Operator Coaching
ELECTRICAL SYSTEM
- 360° lighting
HYDRAULIC SYSTEM
- Boom and stick lowering check valves
SAFETY AND SECURITY
- Cat Detect – People Detection
- Cat Command remote control
- 360° visibility
- Swing alarm
- Inspection lighting
- Rear and right-side-view cameras
UNDERCARRIAGE AND STRUCTURES
- 500 mm (20 in) triple grouser shoes
- 500 mm (20″) rubber track shoes
- 500 mm (20 in) triple grouser shoes with rubber pad
- 600 mm (24 in) triple grouser shoes
- 600 mm (24″) rubber track shoes
- 700 mm (28 in) triple grouser shoes
- 2500 mm (8’2″) blade
- 2600 mm (8’6″) blade
- 2700 mm (8’10”) blade
