Cat

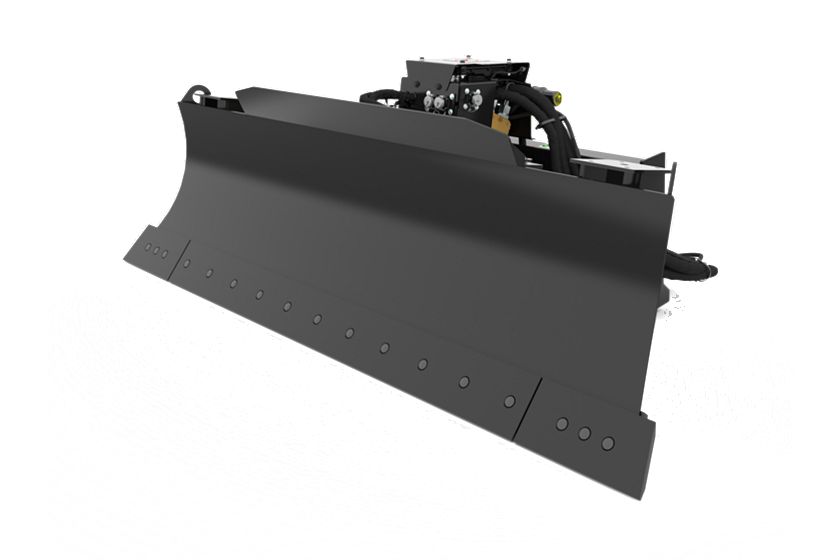

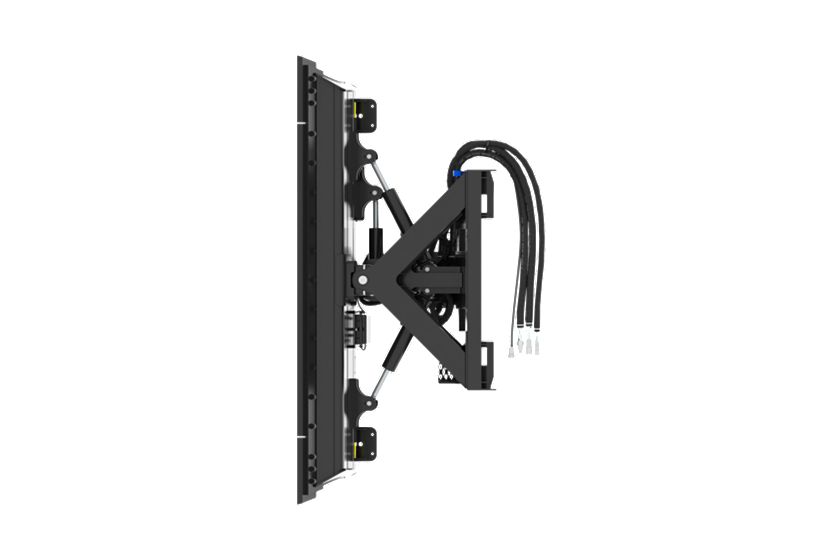

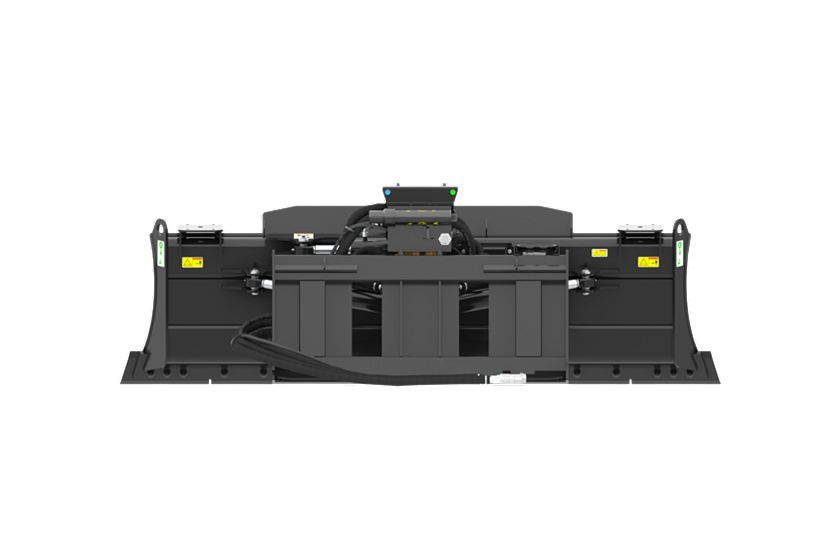

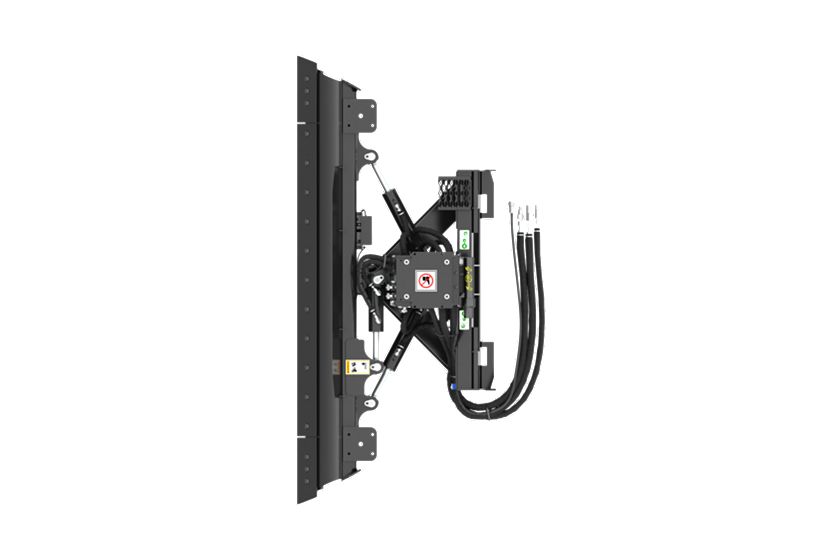

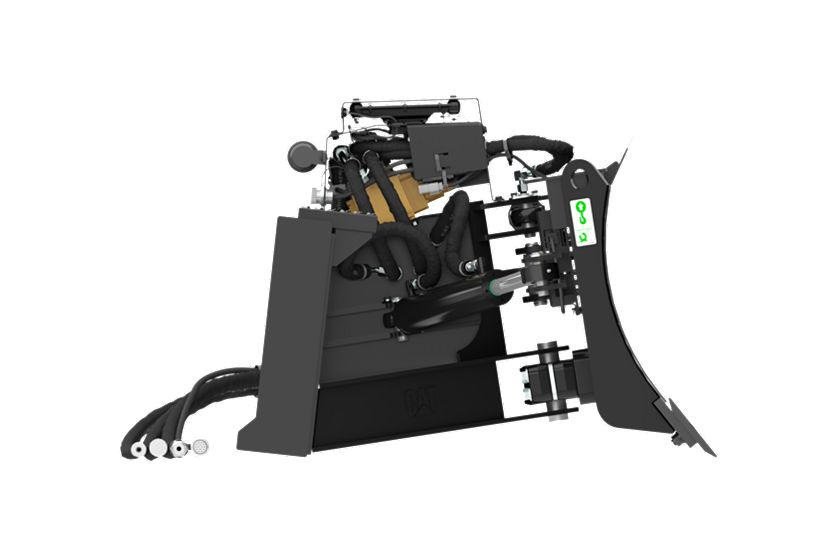

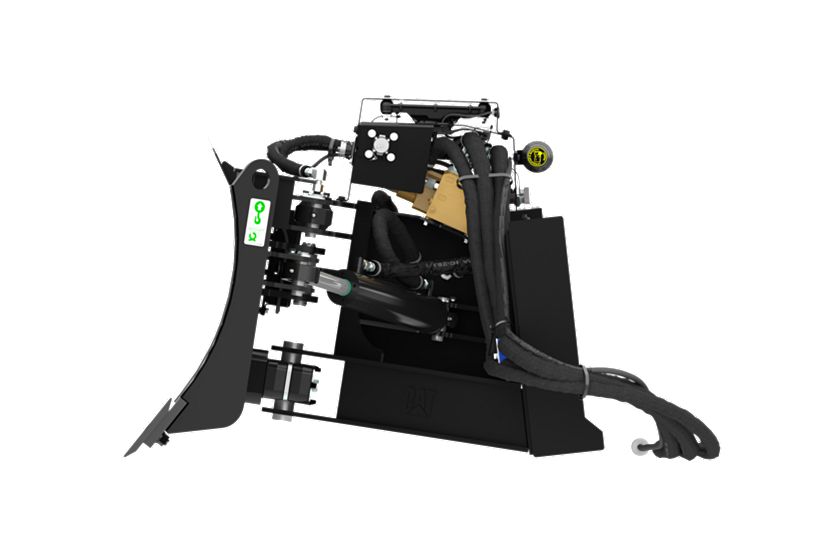

2337 mm (92 in) Dozer Blade with SMART

Designed for rough and finish grading in dirt, gravel, and light dozing.

Media

Photos

Videos

360° View

Exterior

Features shown represent all Cat® Dozer Blades except where indicated.

Features

Details

Specifications

Spec Value
Blade Width 92 in 2337 mm
Width – Fully Angled 80.7 in 2049 mm
Maximum Blade Angle – Right/Left of Center 30 degrees 30 degrees
Tilt Angle Range +/- 10 degrees 10 degrees
Blade Height 24.4 in 619 mm
Overall Height 30.9 in 785 mm
Length 40.5 in 1028 mm
Weight 1164 lb 528 kg
Cutting Edge Thickness 0.6 in 16 mm
Required Hydraulics Standard Flow Standard Flow
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Interface Type Skid Steer Coupler Skid Steer Coupler
