Caterpillar

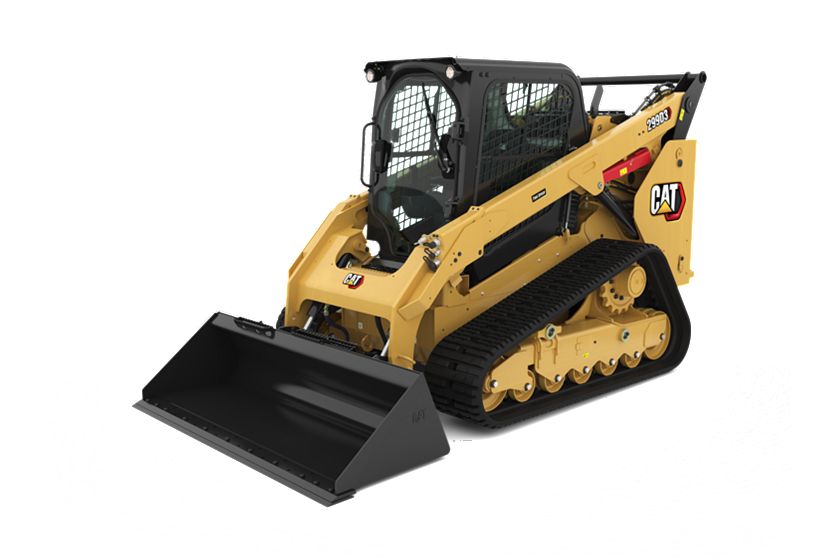

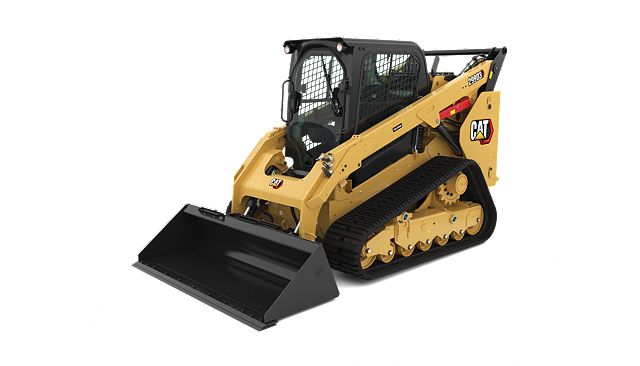

299D3 Compact Track Loader

Gross Power – SAE J1995

98 hp

73 kW

Rated Operating Capacities – 35% Tipping Load

3480 lb

1580 kg

Operating Weight

11464 lb

5200 kg

Overview

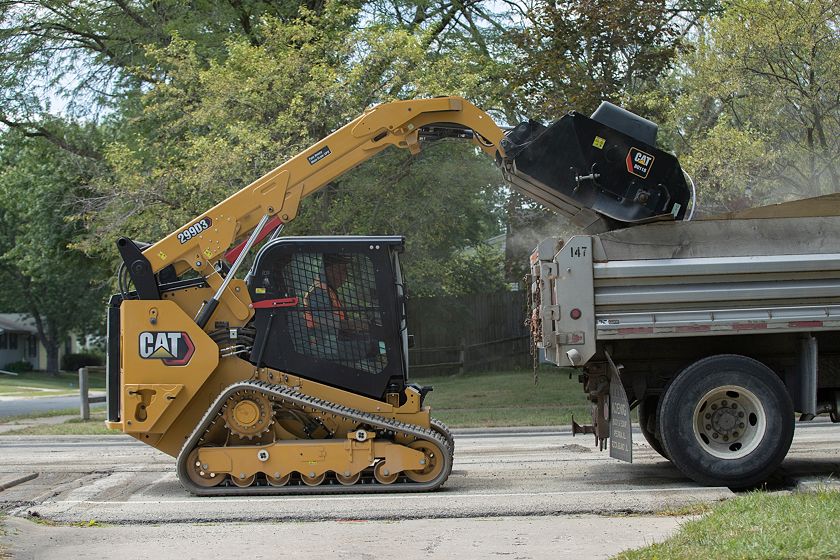

The Cat® 299D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Media

Photos

Videos

360° View

Exterior

Interior

Features

Details

Specifications

Spec Value
Gross Power – SAE J1995 98 hp 73 kW
Net Power – SAE 1349 95 hp 71 kW
Displacement 232 in³ 3.8 l
Bore 3.9 in 100 mm
Stroke 4.7 in 120 mm
Net Power 95 hp 71 kW
Net Power – ISO 9249 95 hp 71 kW
Engine Model Cat C3.8 DIT (turbo) Cat C3.8 DIT (turbo)
Peak Torque – 1,500 rpm – SAE J1995 246 ft·lbf 334 N·m
Spec Value
Rated Operating Capacities – 35% Tipping Load 3480 lb 1580 kg
Tipping Load 9945 lb 4520 kg
Breakout Force – Tilt Cylinder 7270 lb 3298 kg
Breakout Force – Lift Cylinder 6162 lb 2795 kg
Rated Operating Capacity with Optional Counterweight 5240 lb 2380 kg
Ground Contact Area – With 400 mm/15.7 in Track 2184 in² 1.41 m²
Ground Pressure – With 400 mm/15.7 in Track 5.3 psi 36.4 kPa
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Rated Operating Capacities – 50% Tipping Load 4970 lb 2255 kg
Ground Contact Area – With 450 mm/17.7 in Track 2463 in² 1.59 m²
Ground Pressure – With 450 mm/17.7 in Track 4.7 psi 32.1 kPa
Spec Value
Operating Weight 11464 lb 5200 kg
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Spec Value
Length – Track on Ground 69.6 in 1767 mm
Overall Length – Track 89.4 in 2270 mm
Height – Top of Cab 83.6 in 2125 mm
Ground Clearance 9.6 in 245 mm
Departure Angle 33° 33°
Maximum Dump Angle 54° 54°
Vehicle Width (450 mm/17.7 in tracks) 78 in 1981 mm
Turning Radius from Center – Coupler 58.1 in 1476 mm
Rack Back Angle – Maximum Height 81° 81°
Reach – Maximum Lift/Dump 33.6 in 852 mm
Vehicle Width (400 mm/15.7 in tracks) 76 in 1931 mm
Bucket Pin Reach – Maximum Lift 19.4 in 493 mm
Bucket Pin Height – Carry Position 7.1 in 180 mm
Turning Radius from Center – Bucket (racked) 91.1 in 2314 mm
Maximum Reach – With Arms Parallel to Ground 51.9 in 1319 mm
Length – Without Bucket 125.5 in 3189 mm
Length – With Bucket on Ground 154.7 in 3931 mm
Clearance at Maximum Lift and Dump 94.5 in 2399 mm
Bucket Pin Height – Maximum Lift 126.3 in 3208 mm
Maximum Overall Height 158.7 in 4032 mm
Roll Back Angle 25° 25°
Turning Radius from Center – Machine Rear 74 in 1881 mm
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Spec Value
Hydraulic Flow – High Flow XPS – Maximum Loader Hydraulic Pressure 4061 psi 28000 kPa
Hydraulic Flow – Standard – Loader Hydraulic Pressure 3335 psi 23000 kPa
Hydraulic Flow – Standard – Hydraulic Power (Calculated) 44 hp 33 kW
Hydraulic Flow – Standard – Loader Hydraulic Flow 23 gal/min 86 l/min
Hydraulic Flow – High Flow XPS – Maximum Loader Hydraulic Flow 32 gal/min 121 l/min
Hydraulic Flow – High Flow XPS – Hydraulic Power (Calculated) 76 hp 57 kW
Spec Value
ROPS ISO 3471:2008 ISO 3471:2008
FOPS ISO 3449:2005 Level I ISO 3449:2005 Level I
Spec Value
Travel Speed – Forward or Reverse – Two Speed 8.4 mile/h 13.5 km/h
Travel Speed – Forward or Reverse – One Speed 5.2 mile/h 8.4 km/h
Spec Value
Cooling System 4.1 gal (US) 16 l
Engine Crankcase 3.5 gal (US) 13 l
Fuel Tank 31.7 gal (US) 120 l
Hydraulic System 14.5 gal (US) 55 l
Hydraulic Tank 10.3 gal (US) 39 l
Diesel Exhaust Fluid (DEF) Tank 5 gal (US) 19 l
Spec Value
Note (2) *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Inside Cab* 83 dB(A) 83 dB(A)
Note (3) **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Outside Cab** 104 dB(A) 104 dB(A)
Spec Value
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

ELECTRICAL

  • 12 volt Electrical System
  • 100 ampere Alternator
  • Ignition Key Start/Stop Switch
  • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
  • Backup Alarm
  • Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

  • Gauges: Fuel Level, DEF Level, Hour Meter
  • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
  • Adjustable Vinyl Seat
  • Fold In Ergonomic Contoured Armrest
  • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
  • ROPS Cab, Open, Tilt Up
  • FOPS, Level I
  • Top and Rear Windows
  • Floor Mat
  • Interior Rearview Mirror
  • 12 volt Electric Socket
  • Horn
  • Hand (Dial) Throttle, Electronic
  • Adjustable Joystick Controls
  • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
  • Storage Compartment with Netting

POWER TRAIN

  • Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
  • Air Cleaner, Dual Element, Radial Seal
  • S·O·SSM Sampling Valve, Hydraulic Oil
  • Filters, Cartridge-type, Hydraulic
  • Filters, Canister-type, Fuel and Water Separator
  • Radiator/Hydraulic Oil Cooler (side-by-side)
  • Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
  • Hydrostatic Transmission, Two Speed Travel
  • Suspension – Independent Torsion Axles (4)

OTHER

  • Engine Enclosure, Lockable
  • Extended Life Antifreeze, –37° C (–34° F)
  • Machine Tie Down Points (6)
  • Support, Lift Arm
  • Hydraulic Oil Level Sight Gauge
  • Radiator Coolant Level Sight Gauge
  • Radiator, Expansion Bottle
  • Cat ToughGuard™ Hose
  • Auxiliary, Hydraulics, Continuous Flow
  • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
  • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
  • Electrical Outlet, Beacon
  • Belly Pan Cleanout
  • Variable Speed Demand Fan
  • Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

  • Hydraulics, Standard or High Flow XPS
  • Quick Coupler, Mechanical or Powered
  • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
  • Steel Imbed Rubber Track – 400 mm (15.7 in) or 450 mm (17.7 in)
  • Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
  • PERFORMANCE PACKAGE (must select one of the following):
    – Performance Package H1: Standard Flow (No Self Level)
    – Performance Package H2: Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    – Performance Package H3: High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
  • COMFORT PACKAGE (must select one of the following):
    – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
    – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
    – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
    – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

OPTIONAL EQUIPMENT

  • External Counterweights
  • Beacon, Rotating
  • Engine Block Heater – 120V
  • Oil, Hydraulic, Cold Operation
  • Paint, Custom
  • Heavy Duty Battery, 850 CCA, with Battery Disconnect
  • Heavy Duty Battery, 1,000 CCA, with Battery Disconnect
  • Product Link PL641, Cellular
  • Variable Speed Demand Fan with Reversing Functionality
  • Speed Sensitive Ride Control
  • Work Tool Return to Dig and Work Tool Positioner
  • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
