Caterpillar

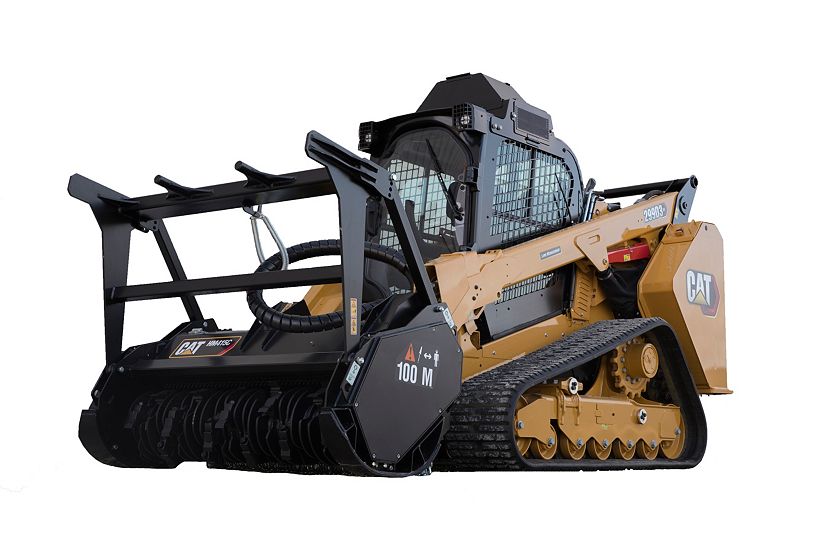

299D3 XE Land Management Compact Track Loader

Name: 299D3 XE Land Management Compact Track Loader
Brand: Caterpillar

Gross Power – SAE J1995

110 HP

82 kW

Rated Operating Capacities – 35% Tipping Load

4340 lb

1975 kg

Operating Weight

12764 lb

5790 kg

Overview

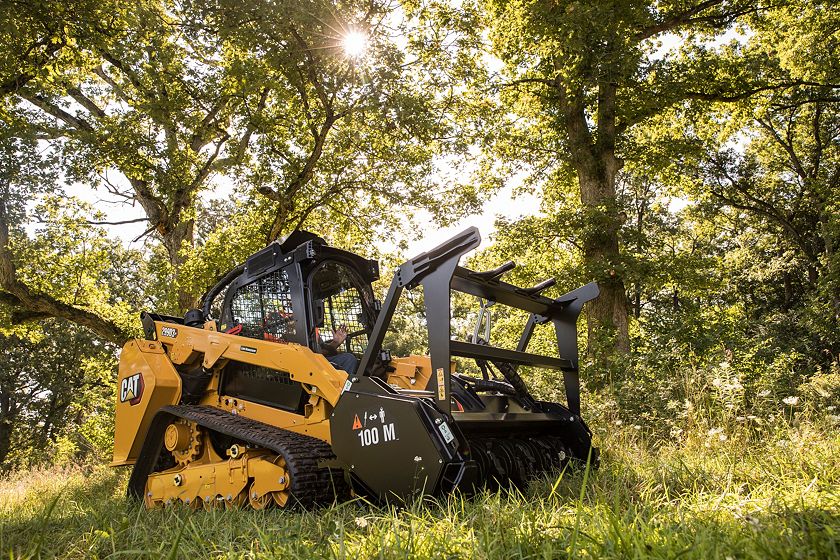

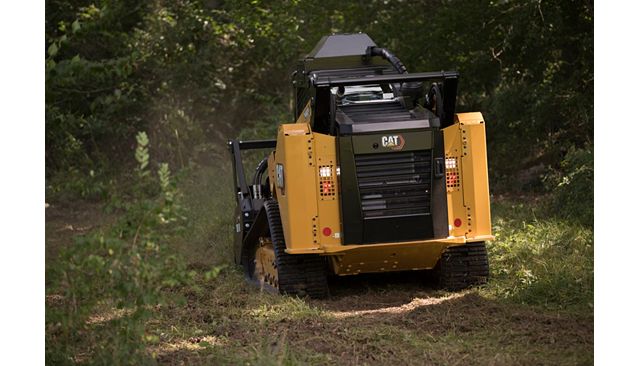

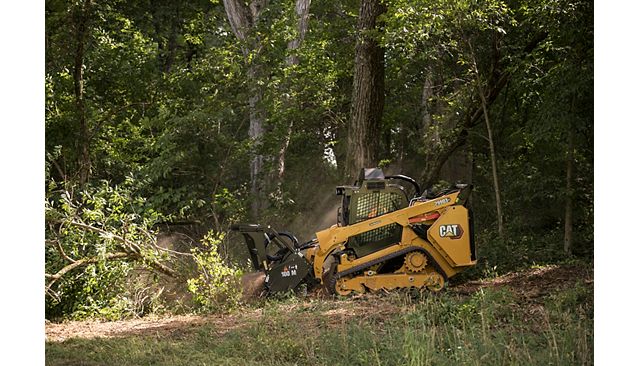

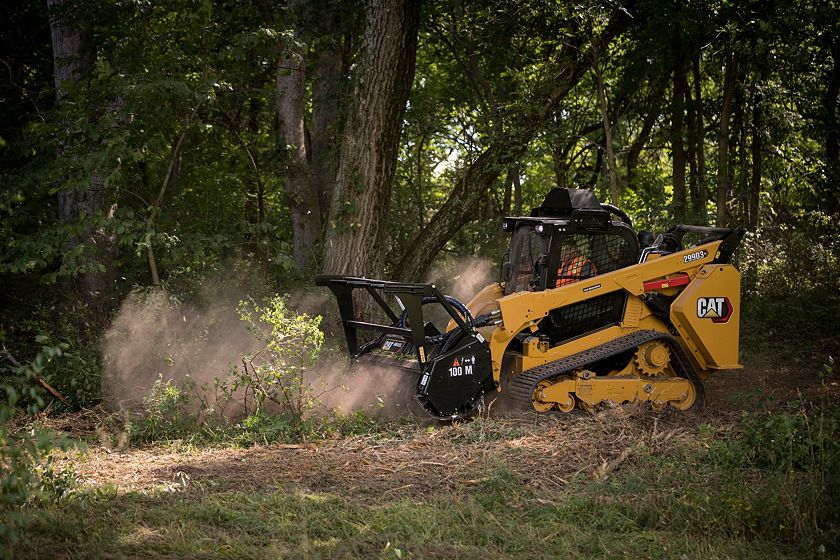

The Cat^® 299D3 XE Land Management Compact Track Loader is a segment focused machine solution for customers involved in demanding vegetation-management applications, ranging from mulching, brush-cutting, vegetation control, and mowing. The 299D3 XE Land Management machine’s powerful Cat C3.8 engine combined with its high-flow/high-pressure auxiliary hydraulic system to deliver a calculated hydraulic power rating of 70 kW (94 hp), resulting in optimum performance when powering high-production, hydro-mechanical attachments.

Media

At Work

Overview

Features and Benefits

Daily Maintenance

Track Maintenance and Adjustment

Experience What You Inspired

D3 Series Skid Steer and Compact Track Loaders

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Extend Your Working Time

Powerful Hydraulics

Protective Guarding and Sealing

Maximum Performance

Quiet and Comfortable

Specifications

US Metric

Engine

Spec	Value
Gross Power – SAE J1995	110 HP 82 kW
Net Power – SAE 1349	106 HP 79 kW
Displacement	232 in³ 3.8 l
Bore	3.9 in 100 mm
Stroke	4.7 in 120 mm
Net Power	106 HP 79 kW
Net Power – ISO 9249	107 HP 80 kW
Engine Model	Cat C3.8 DIT (turbo) Cat C3.8 DIT (turbo)
Peak Torque – 1,500 rpm – SAE J1995	276 ft·lbf 374 N·m

Operating Specifications

Spec	Value
Rated Operating Capacities – 35% Tipping Load	4340 lb 1975 kg
Tipping Load	12400 lb 5635 kg
Breakout Force – Tilt Cylinder	7270 lb 3298 kg
Breakout Force – Lift Cylinder	6162 lb 2795 kg
Ground Pressure – With 450 mm/17.7 in Track	5.2 psi 35.8 kPa
Rated Operating Capacities – 50% Tipping Load	6200 lb 2820 kg
Ground Contact Area – With 400 mm/15.7 in Track	2171 in² 1.41 m²
Ground Contact Area – With 450 mm/17.7 in Track	2443 in² 1.58 m²
Ground Pressure – With 400 mm/15.7 in Track	5.9 psi 40.5 kPa
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler. Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.

Weights

Spec	Value
Operating Weight	12764 lb 5790 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler. Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.

Dimensions

Spec	Value
Length – Track on Ground	69.6 in 1767 mm
Overall Length – Track	89.4 in 2270 mm
Height – Top of Cab	83.6 in 2125 mm
Ground Clearance	9.6 in 245 mm
Departure Angle	33° 33°
Maximum Dump Angle	54° 54°
Turning Radius from Center – Coupler	58.1 in 1476 mm
Turning Radius from Center – Machine Rear	74 in 1881 mm
Vehicle Width (400 mm/15.7 in tracks)	76 in 1931 mm
Turning Radius from Center – Bucket (racked)	91.1 in 2314 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler. Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.
Length – Without Bucket	125.5 in 3189 mm
Bucket Pin Reach – Maximum Lift	19.4 in 493 mm
Clearance at Maximum Lift and Dump	94.5 in 2399 mm
Rack Back Angle – Maximum Height	81° 81°
Vehicle Width (450 mm/17.7 in tracks)	78 in 1982 mm
Maximum Overall Height	158.7 in 4032 mm
Reach – Maximum Lift/Dump	33.6 in 852 mm
Length – With Bucket on Ground	154.7 in 3931 mm
Maximum Reach – With Arms Parallel to Ground	51.9 in 1319 mm
Bucket Pin Height – Maximum Lift	126.3 in 3208 mm
Bucket Pin Height – Carry Position	7.1 in 180 mm
Roll Back Angle	25° 25°

Hydraulic System

Spec	Value
Standard Flow Mode – Loader Hydraulic Flow	23 gal/min 86 l/min
Standard Flow Mode – Loader Hydraulic Pressure	3335 psi 23000 kPa
Standard Flow Mode – Hydraulic Power – Calculated	44 HP 33 kW
Hydraulic Flow – XE – Hydraulic Power (calculated)	94 HP 70 kW
Hydraulic Flow – XE – Maximum Loader Hydraulic Flow*	40 gal/min 150 l/min
Hydraulic Flow – XE – Maximum Loader Hydraulic Pressure	4061 psi 28000 kPa
Note	When equipped with Cat 400 Series work tools. When equipped with Cat 400 Series work tools.

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 Level I ISO 3449:2005 Level I

Power Train

Spec	Value
Travel Speed – Forward or Reverse – Two Speed	8.3 mile/h 13.3 km/h
Travel Speed – Forward or Reverse – One Speed	5.5 mile/h 8.9 km/h

Service Refill Capacities

Spec	Value
Cooling System	4.1 gal (US) 16 l
Engine Crankcase	3.5 gal (US) 13 l
Fuel Tank	58 gal (US) 220 l
Hydraulic System	14.5 gal (US) 55 l
Hydraulic Tank	10.3 gal (US) 39 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) 19 l

Noise Level

Spec	Value
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Inside Cab*	83 dB(A) 83 dB(A)
Outside Cab**	104 dB(A) 104 dB(A)
Note (1)	Sealed and pressurized cab is standard in North America and Europe. Sealed and pressurized cab is standard in North America and Europe.
Note (3)	The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Air Conditioning System (if equipped)

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

ELECTRICAL

12 volt Electrical System
100 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear LED Working Lights, Two Adjustable Front LED Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 1,000 CCA, with Battery Disconnect

OPERATOR ENVIRONMENT

Gauges: Fuel Level, DEF Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
High Back Cloth Seat with Air Suspension, Heated with Recline and Lumbar Support and Fully Adjustable Seat Mounted Controls
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Enclosed, Tilt Up
FOPS, Level I
Top, Rear and Side Windows
Headliner, Deluxe
Floor Mat
Interior Rearview Mirror
USB Charging Port
Horn
Hand (Dial) and Foot Throttle, Electronic with Decel Feature
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
Storage Compartment with Netting

POWER TRAIN

Cat C3.8, Turbo Diesel Engine, Meeting U.S. EPA Tier 4 Final and EU Stage V Emission Standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
Hydrostatic Transmission, Two Speed Travel
Suspension – Independent Torsion Axles (4)
Speed Sensitive Ride Control

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –37° C (–34° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly and Engine Compartment Access Panels for Cleanout
Variable Speed Demand Fan with Reversing Functionality

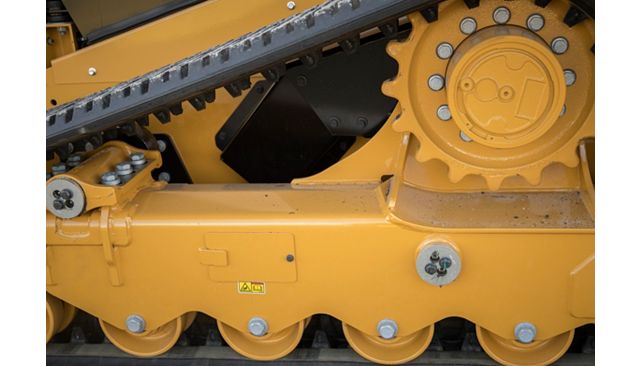

Steel Embed Rubber Track – 400 mm (15.7 in) Block Tread
Triple Flange Idlers (front and rear)
Product Link™ PL240, Cellular
Fire Extinguisher Mounting Bracket (in-cab)
Screw-to-Connect Auxiliary Hydraulic Couplings (¾ in)
Push-to-Connect Flat Faced Auxiliary Hydraulic Couplings (½ in)
Debris Guarding (external and turbo)
Precleaner for Engine Air Intake
Additional Machine Guarding
Drive-line Guarding
Turbo Guard
Additional Machine Sealing
Fire Suppression System – Ready

MANDATORY EQUIPMENT

Quick Coupler, Mechanical or Powered
High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
PERFORMANCE PACKAGE:
– Performance Package H3: XE Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGE:
– Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (High Back and Heated) and Polycarbonate Door

Optional Equipment

OPTIONAL EQUIPMENT

Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
Product Link PL641, Cellular
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
Roof Mounted Auxiliary Hydraulic Cooler
Steel Embed Rubber Track – 450 mm (17.7 in) Block Tread
Steel Embed Rubber Track – 450 mm (17.7 in) BAR Tread
Steel Track – 355 mm (14 in) Sealed and Lubricated Steel Track (SALT) with Triple Grouser Shoes
Fire Suppression System – Fully Installed
