Caterpillar

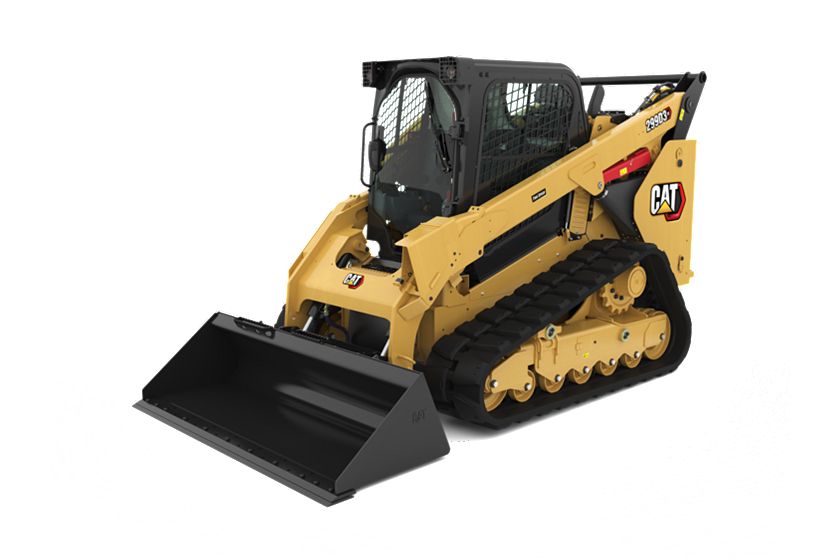

299D3 XE Compact Track Loader

Name: 299D3 XE Compact Track Loader
Brand: Caterpillar

Gross Power – SAE J1995

110 HP

82 kW

Rated Operating Capacities – 35% Tipping Load

3560 lb

1620 kg

Operating Weight

11756 lb

5333 kg

Overview

The Cat® 299D3 XE Compact Track Loader, with its powerful engine, high output hydraulic system, high lift forces, vertical lift design and torsion axle suspension, provides the maximum performance for work tool productivity, digging, truck loading and material handling in a wide range of underfoot conditions and applications.

Media

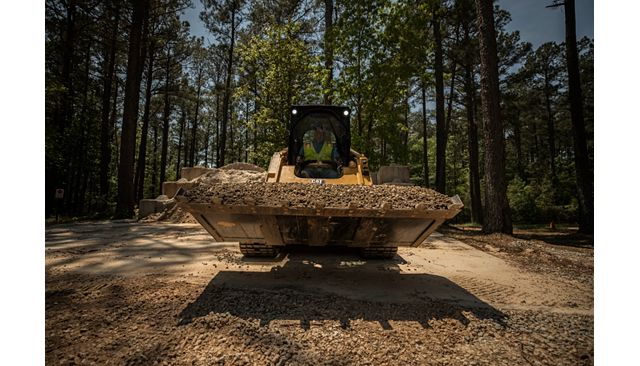

At Work

Overview

Features and Benefits

Daily Maintenance

Track Maintenance and Adjustment

Experience What You Inspired

D3 Series Skid Steer and Compact Track Loaders

Exterior

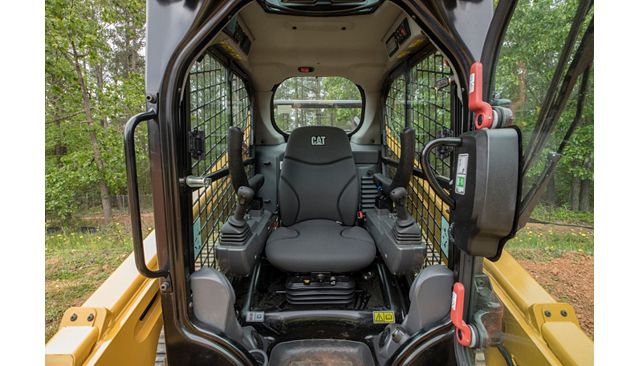

Interior

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Quiet and Comfortable

Maximum Performance

Making Your Job Easier

A Smooth Ride

Optimized Machine Capability

Sustainability

Specifications

US Metric

Engine

Spec	Value
Gross Power – SAE J1995	110 HP 82 kW
Net Power – SAE 1349	106 HP 79 kW
Displacement	232 in³ 3.8 l
Bore	3.9 in 100 mm
Stroke	4.7 in 120 mm
Net Power – ISO 9249	107 HP 80 kW
Net Power	106 HP 79 kW
Peak Torque – 1,500 rpm – SAE J1995	276 ft·lbf 374 N·m
Engine Model	Cat C3.8 DIT (turbo) Cat C3.8 DIT (turbo)

Operating Specifications

Spec	Value
Rated Operating Capacities – 35% Tipping Load	3560 lb 1620 kg
Ground Contact Area	2184 in² 1.41 m²
Ground Pressure	5.4 psi 37.3 kPa
Tipping Load	10170 lb 4625 kg
Breakout Force – Tilt Cylinder	7270 lb 3298 kg
Breakout Force – Lift Cylinder	6162 lb 2795 kg
Rated Operating Capacity with Optional Counterweight	5360 lb 2431 kg
Ground Pressure – With 450 mm/17.7 in Track	4.8 psi 33 kPa
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Rated Operating Capacities – 50% Tipping Load	5085 lb 2315 kg
Ground Contact Area – With 450 mm/17.7 in Track	2463 in² 1.59 m²

Weights

Spec	Value
Operating Weight	11756 lb 5333 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions

Spec	Value
Length – Track on Ground	69.6 in 1767 mm
Overall Length – Track	89.4 in 2270 mm
Height – Top of Cab	83.6 in 2125 mm
Ground Clearance	9.6 in 245 mm
Departure Angle	33° 33°
Maximum Dump Angle	54° 54°
Maximum Overall Height	158.7 in 4032 mm
Bucket Pin Height – Carry Position	7.1 in 180 mm
Turning Radius from Center – Coupler	58.1 in 1476 mm
Reach – Maximum Lift/Dump	33.6 in 852 mm
Length – Without Bucket	125.5 in 3189 mm
Turning Radius from Center – Machine Rear	74 in 1881 mm
Turning Radius from Center – Bucket (racked)	91.1 in 2314 mm
Bucket Pin Reach – Maximum Lift	19.4 in 493 mm
Clearance at Maximum Lift and Dump	94.5 in 2399 mm
Rack Back Angle – Maximum Height	81° 81°
Vehicle Width (400 mm/15.7 in tracks)	76 in 1931 mm
Bucket Pin Height – Maximum Lift	126.3 in 3208 mm
Length – With Bucket on Ground	154.7 in 3931 mm
Maximum Reach – With Arms Parallel to Ground	51.9 in 1319 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Roll Back Angle	25° 25°

Hydraulic System

Spec	Value
Standard Flow Mode – Loader Hydraulic Pressure	3335 psi 23000 kPa
Note	When equipped with Cat 400 Series work tools. When equipped with Cat 400 Series work tools.
Standard Flow Mode – Hydraulic Power – Calculated	44 HP 33 kW
Standard Flow Mode – Loader Hydraulic Flow	23 gal/min 86 l/min
Hydraulic Flow – XE – Hydraulic Power (calculated)	94 HP 70 kW
Hydraulic Flow – XE – Maximum Loader Hydraulic Flow*	40 gal/min 150 l/min
Hydraulic Flow – XE – Maximum Loader Hydraulic Pressure	4061 psi 28000 kPa

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 Level I ISO 3449:2005 Level I

Power Train

Spec	Value
Travel Speed – Forward or Reverse – One Speed	5.2 mile/h 8.4 km/h
Travel Speed – Forward or Reverse – Two Speed	8.4 mile/h 13.5 km/h

Service Refill Capacities

Spec	Value
Cooling System	4.1 gal (US) 16 l
Engine Crankcase	3.5 gal (US) 13 l
Fuel Tank	31.7 gal (US) 120 l
Hydraulic System	14.5 gal (US) 55 l
Hydraulic Tank	10.3 gal (US) 39 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) 19 l

Noise Level

Spec	Value
Inside Cab*	83 dB(A) 83 dB(A)
Outside Cab**	104 dB(A) 104 dB(A)
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)	The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Air Conditioning System (if equipped)

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

ELECTRICAL

12 volt Electrical System
100 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 1,000 CCA, with Battery Disconnect

OPERATOR ENVIRONMENT

Gauges: Fuel Level, DEF Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
High Back Cloth Seat with Air Suspension, Heated with Recline and Lumbar Support and Fully Adjustable Seat Mounted Controls
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Enclosed, Tilt Up
FOPS, Level I
Top, Rear and Side Windows
Headliner, Deluxe
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) and Foot Throttle, Electronic with Decel Feature

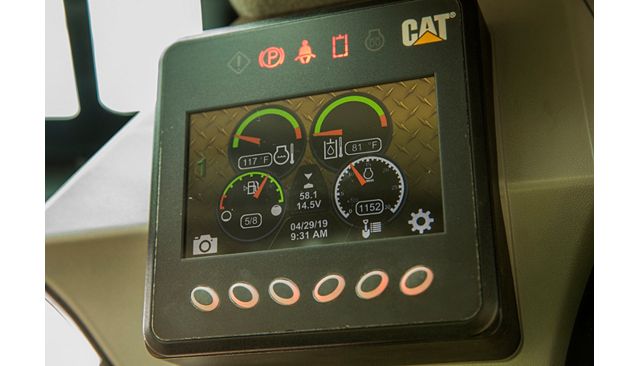

Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
Storage Compartment with Netting

POWER TRAIN

Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes

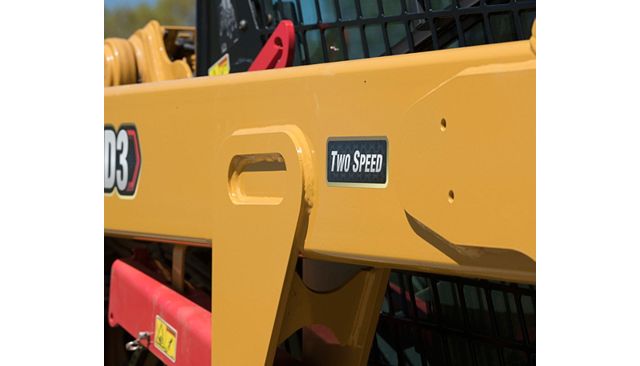

Hydrostatic Transmission, Two Speed Travel
Suspension – Independent Torsion Axles (4)
Speed Sensitive Ride Control

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –37° C (–34° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan

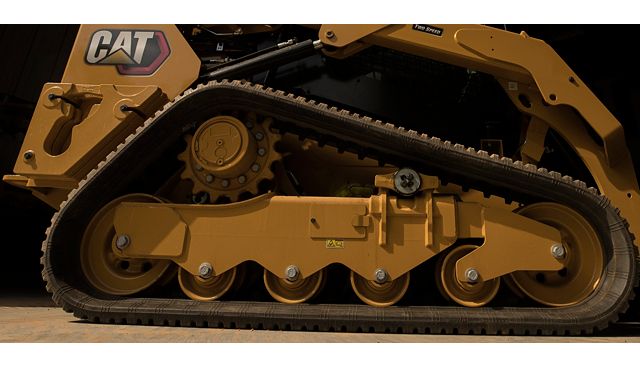

Steel Imbed Rubber Track – 400 mm (15.7 in) with Triple Flange Idlers (front and rear)
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Quick Coupler, Mechanical or Powered
High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
PERFORMANCE PACKAGE:
– Performance Package H3: XE Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGE:
– Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (High Back and Heated) and Door (Glass or Polycarbonate)

Optional Equipment

OPTIONAL EQUIPMENT

Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
Variable Speed Demand Fan with Reversing Functionality
External Counterweights
Product Link PL641, Cellular
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
